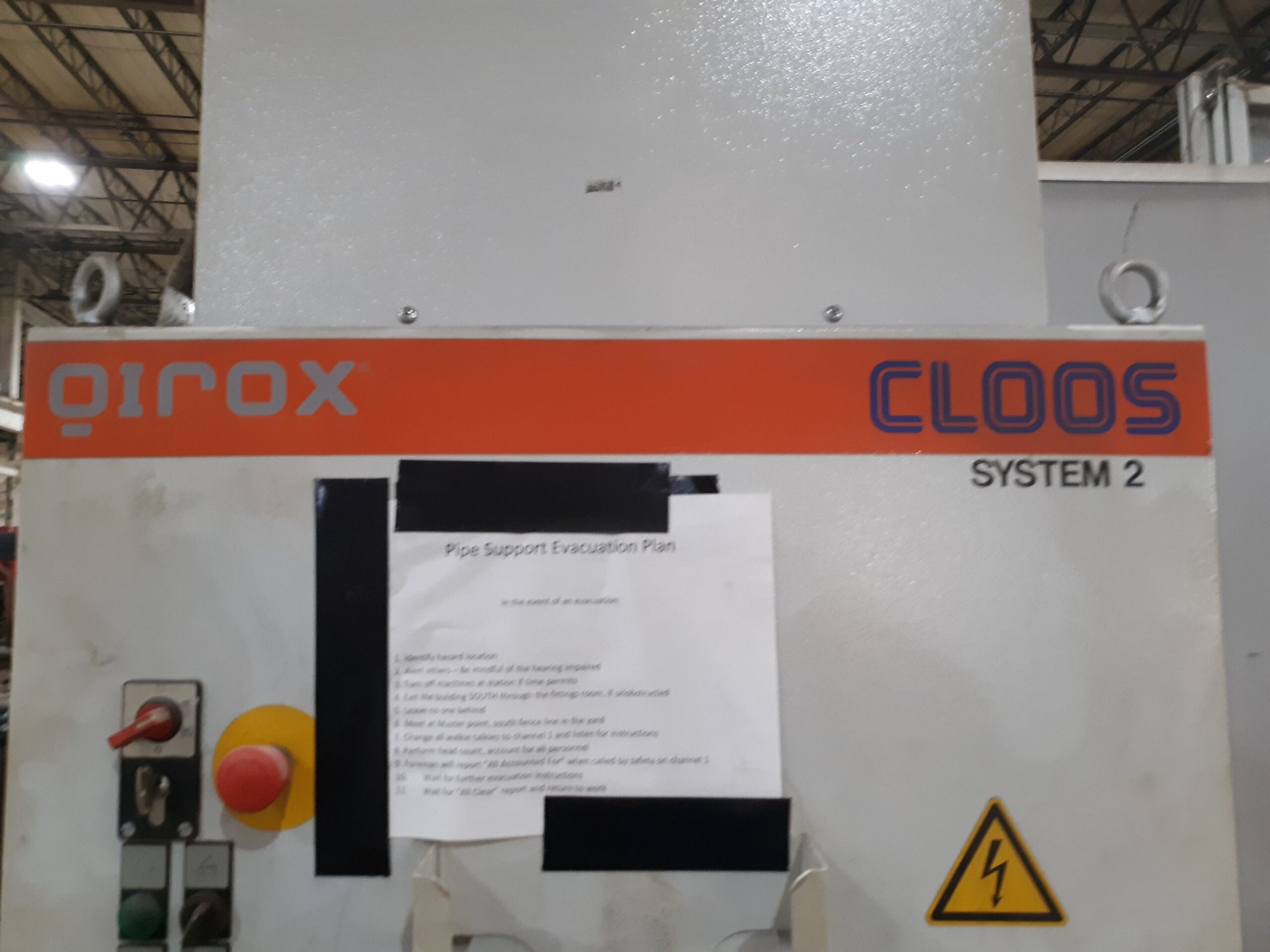

Cloos QR-CS-60-10kN Compact Welding System, 2016 – Multi Axis Positioner, Clean
$70,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

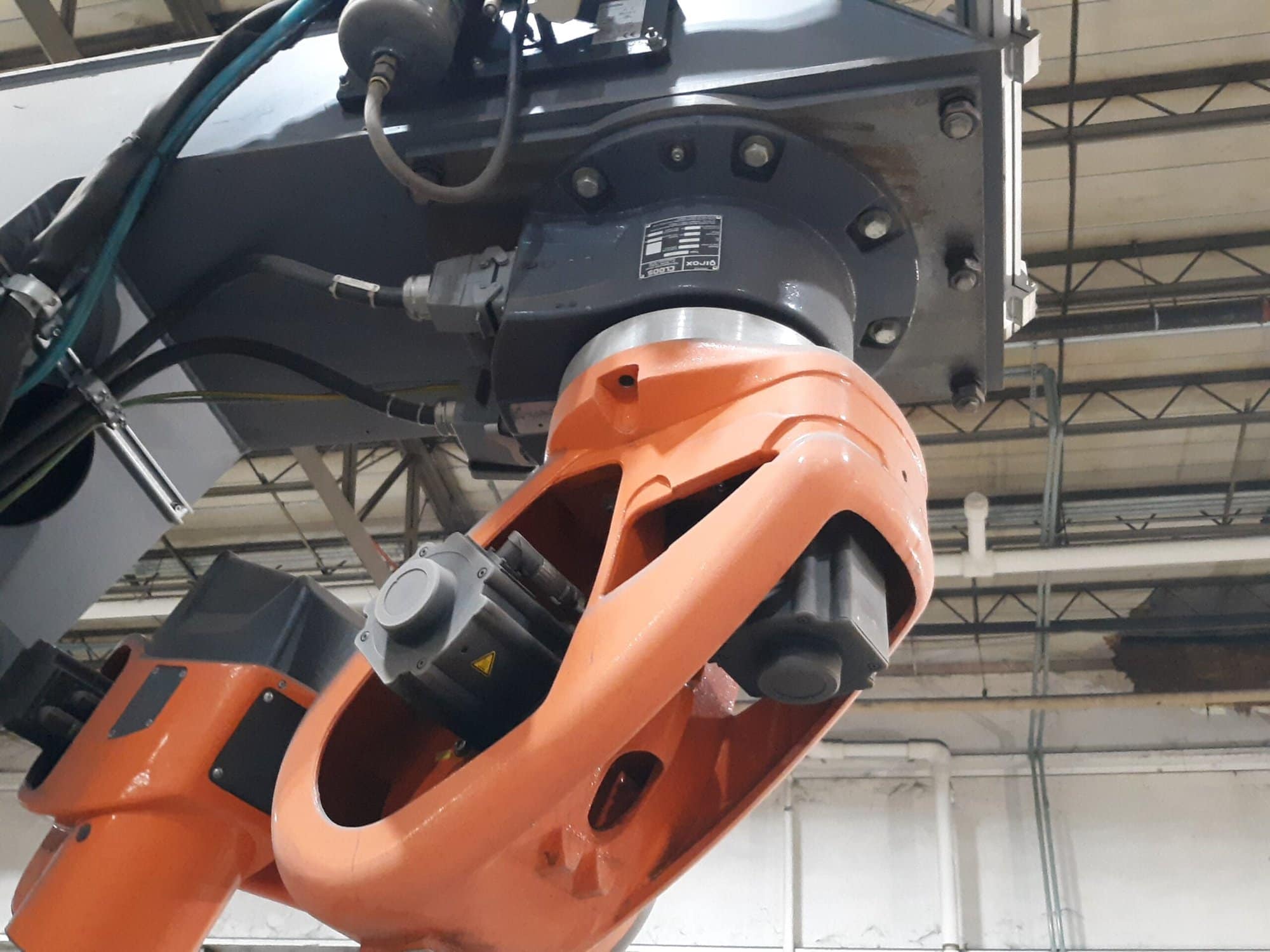

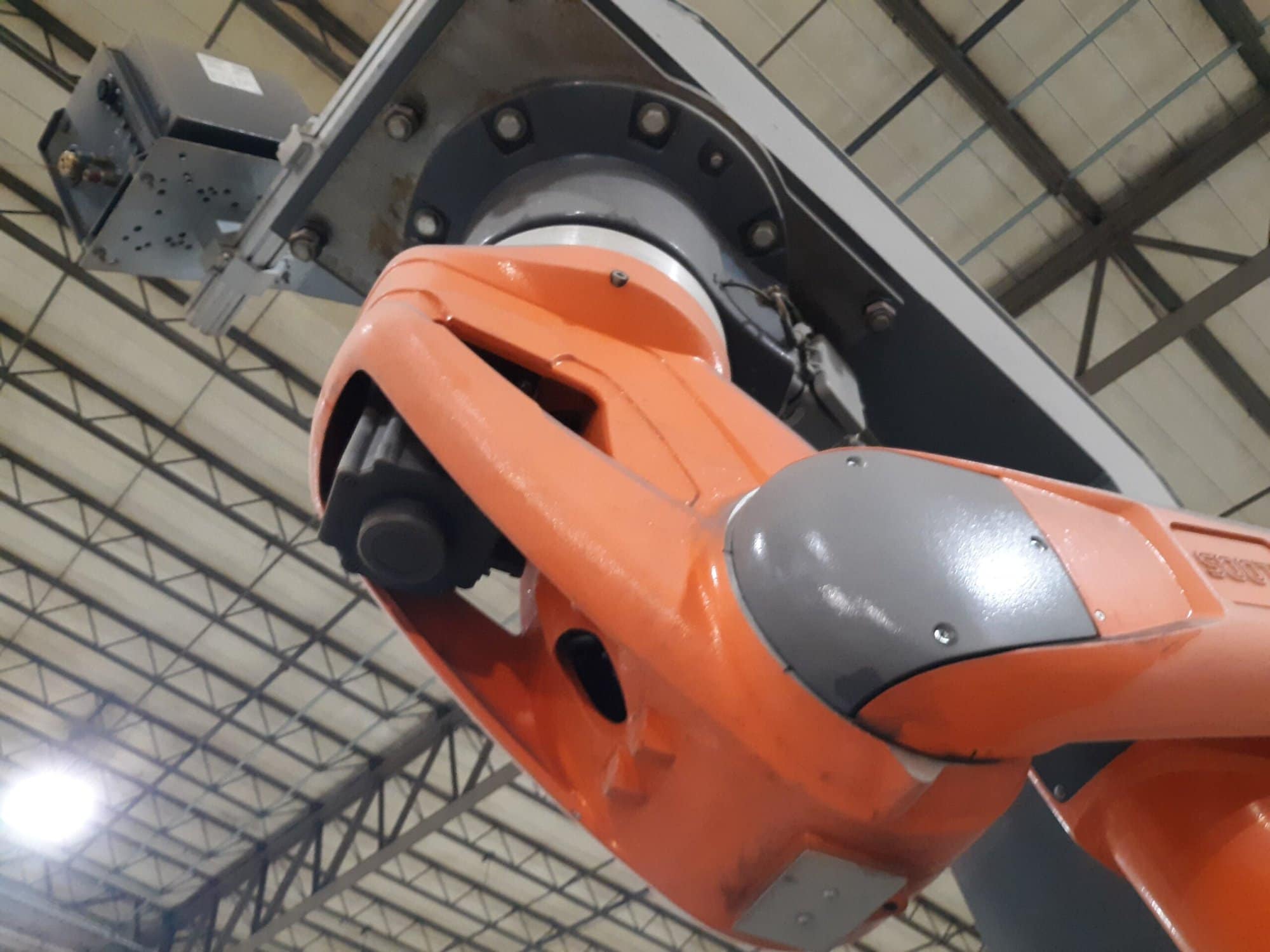

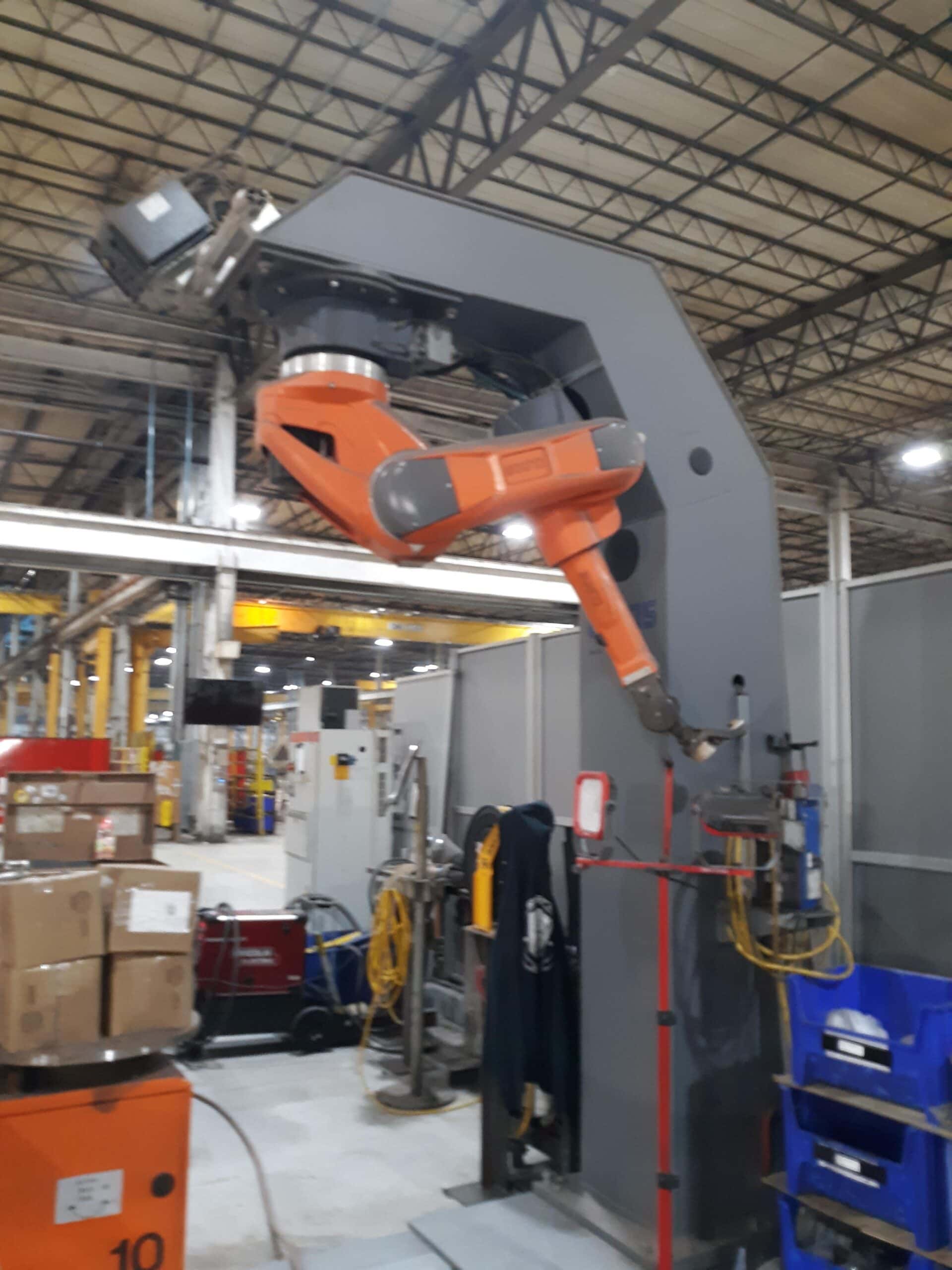

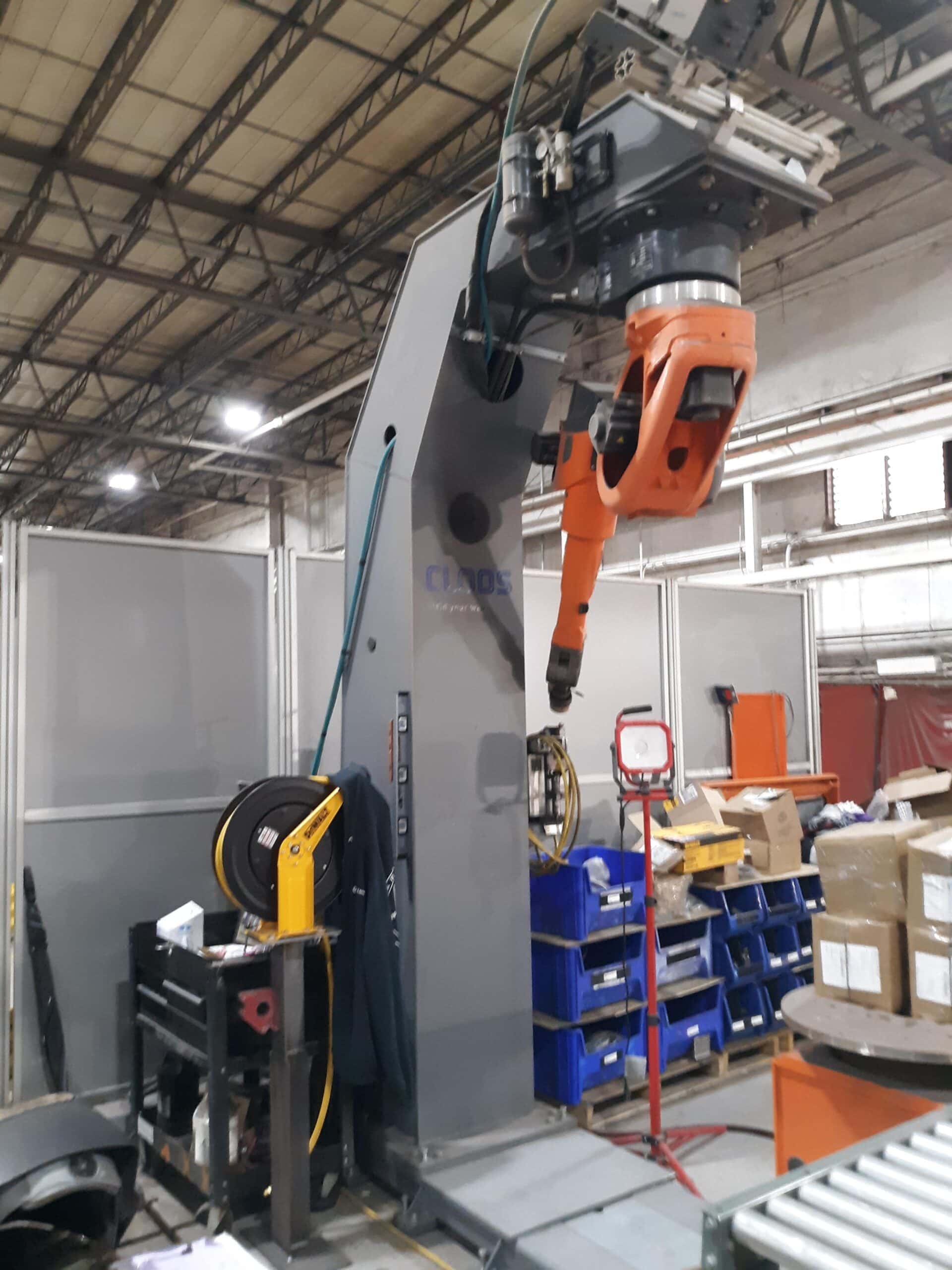

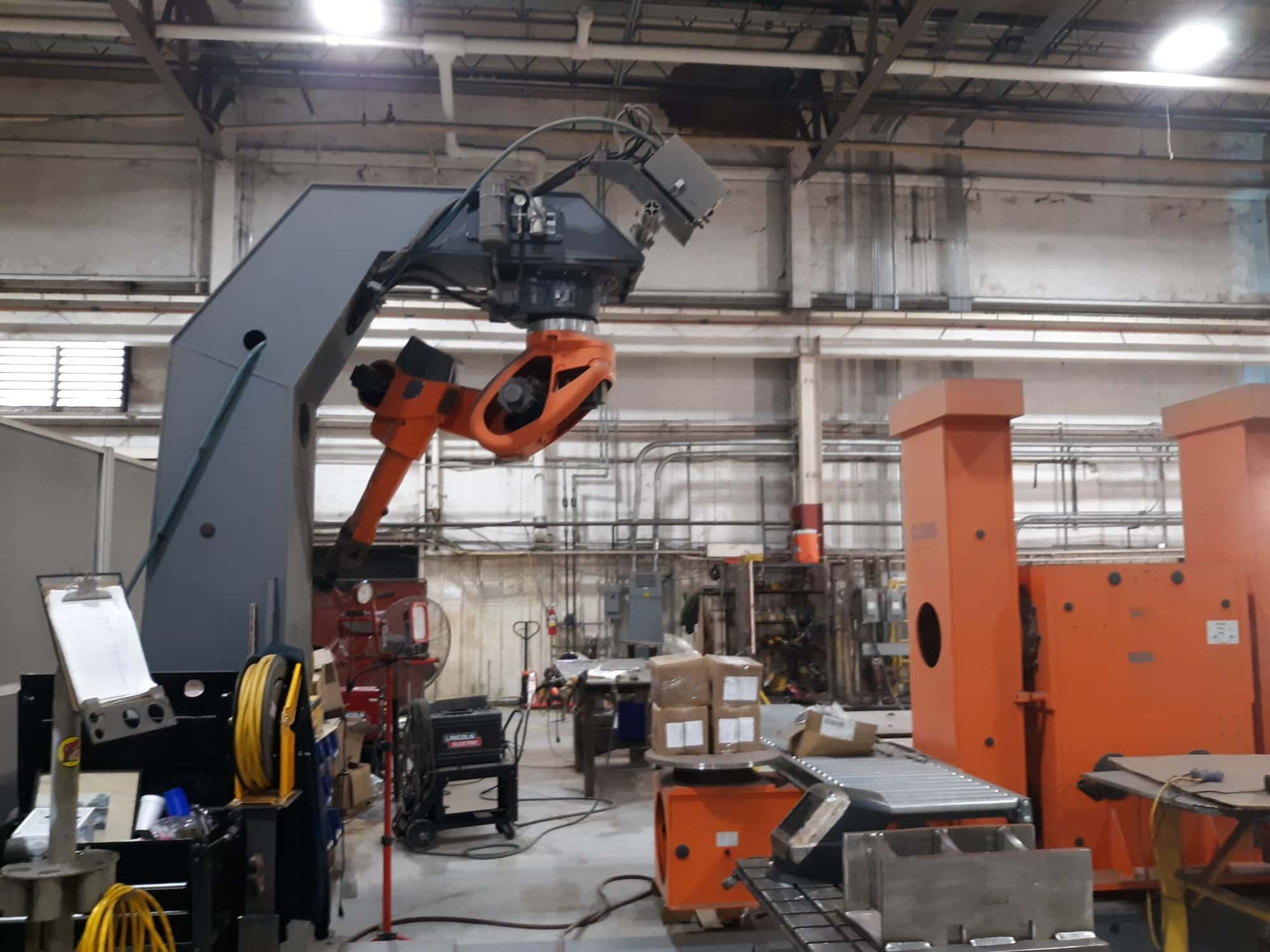

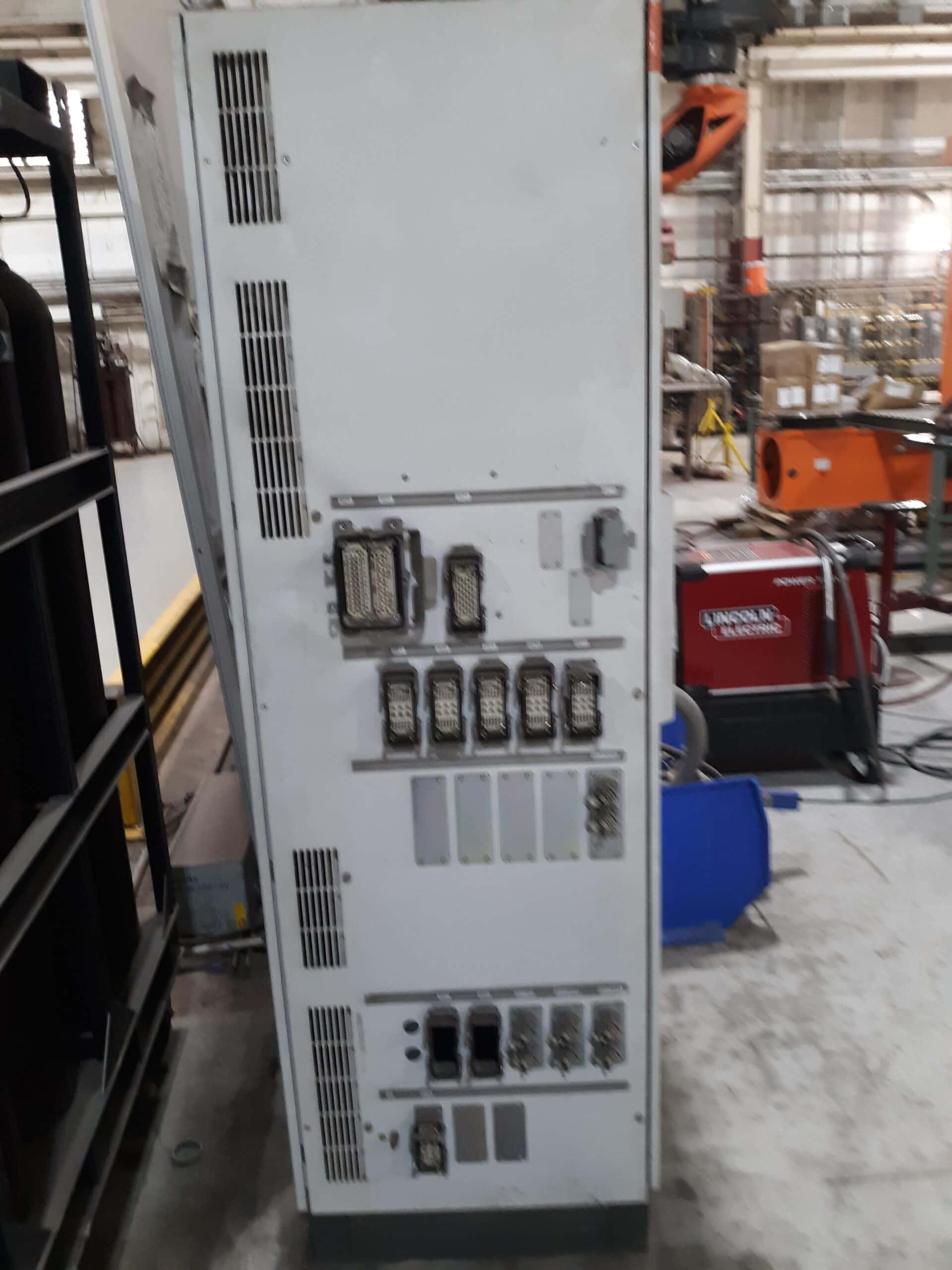

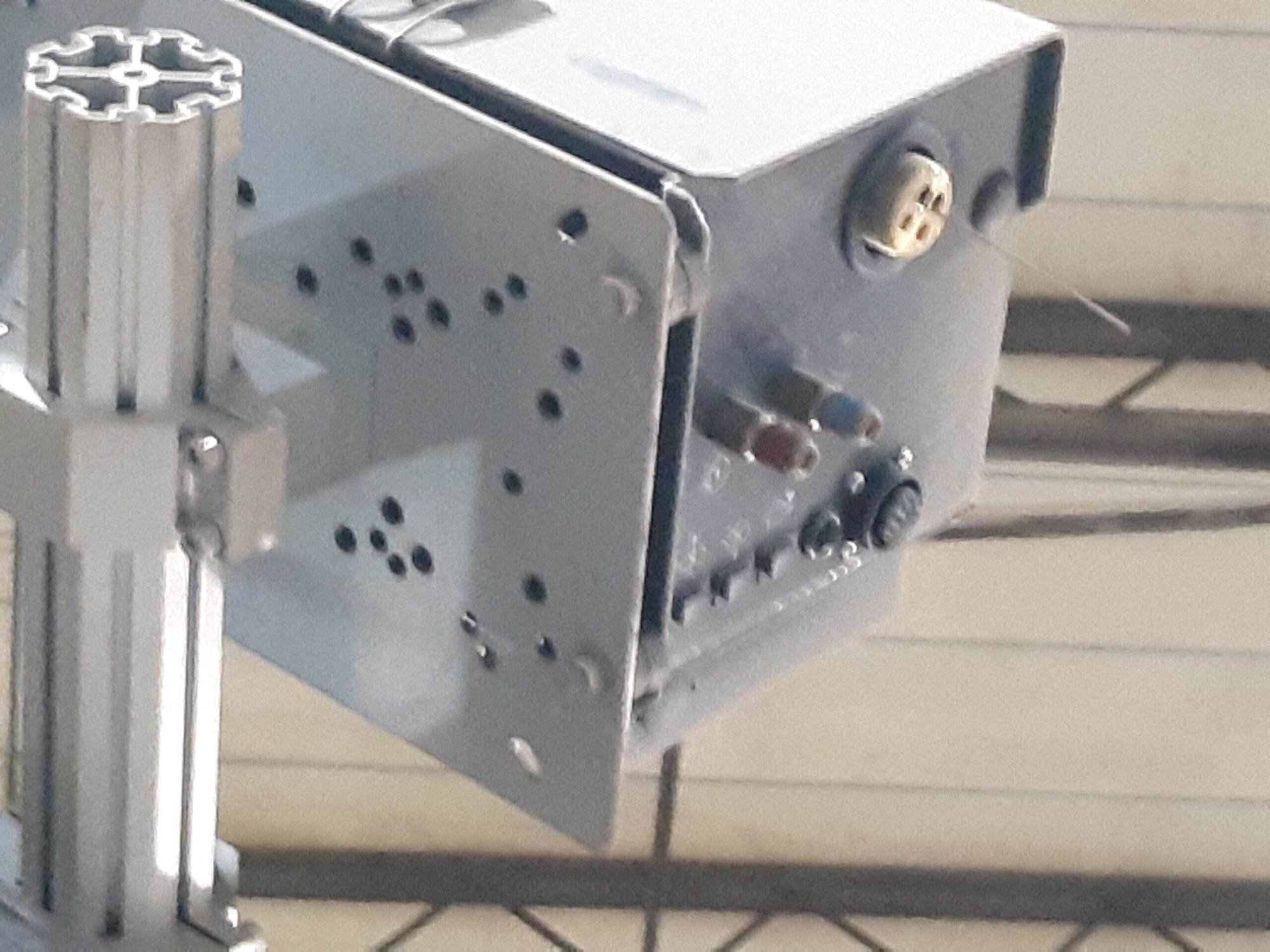

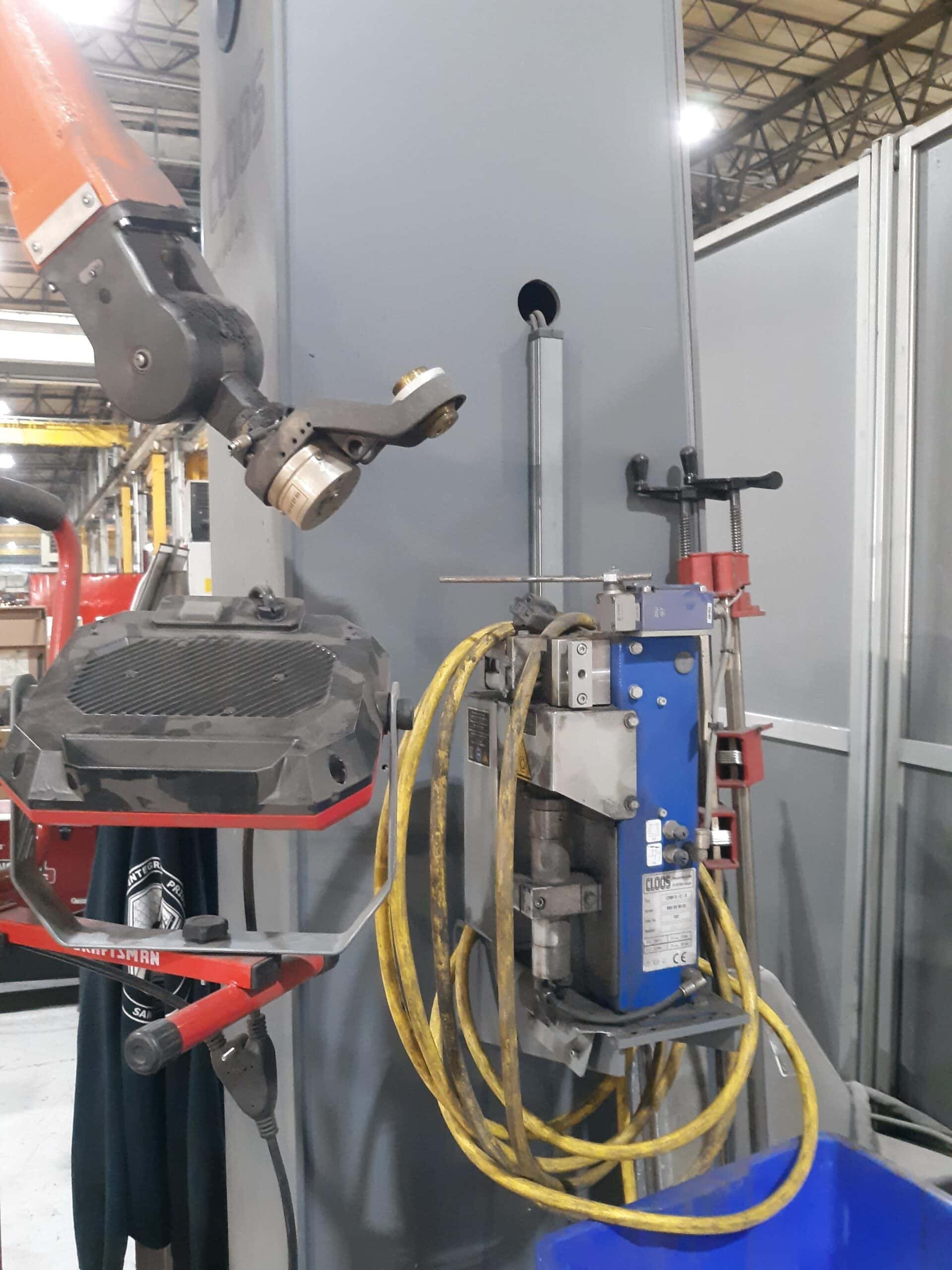

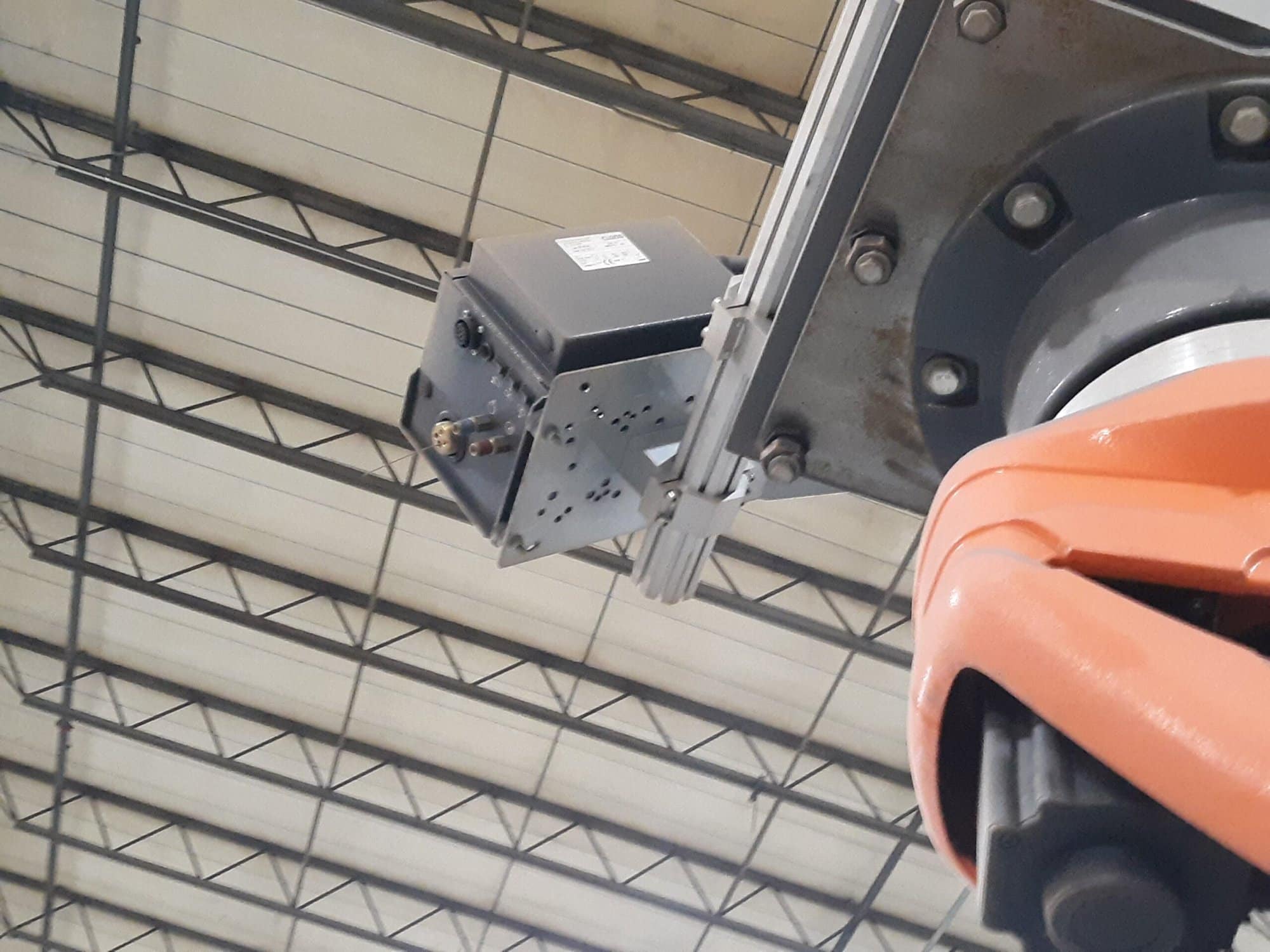

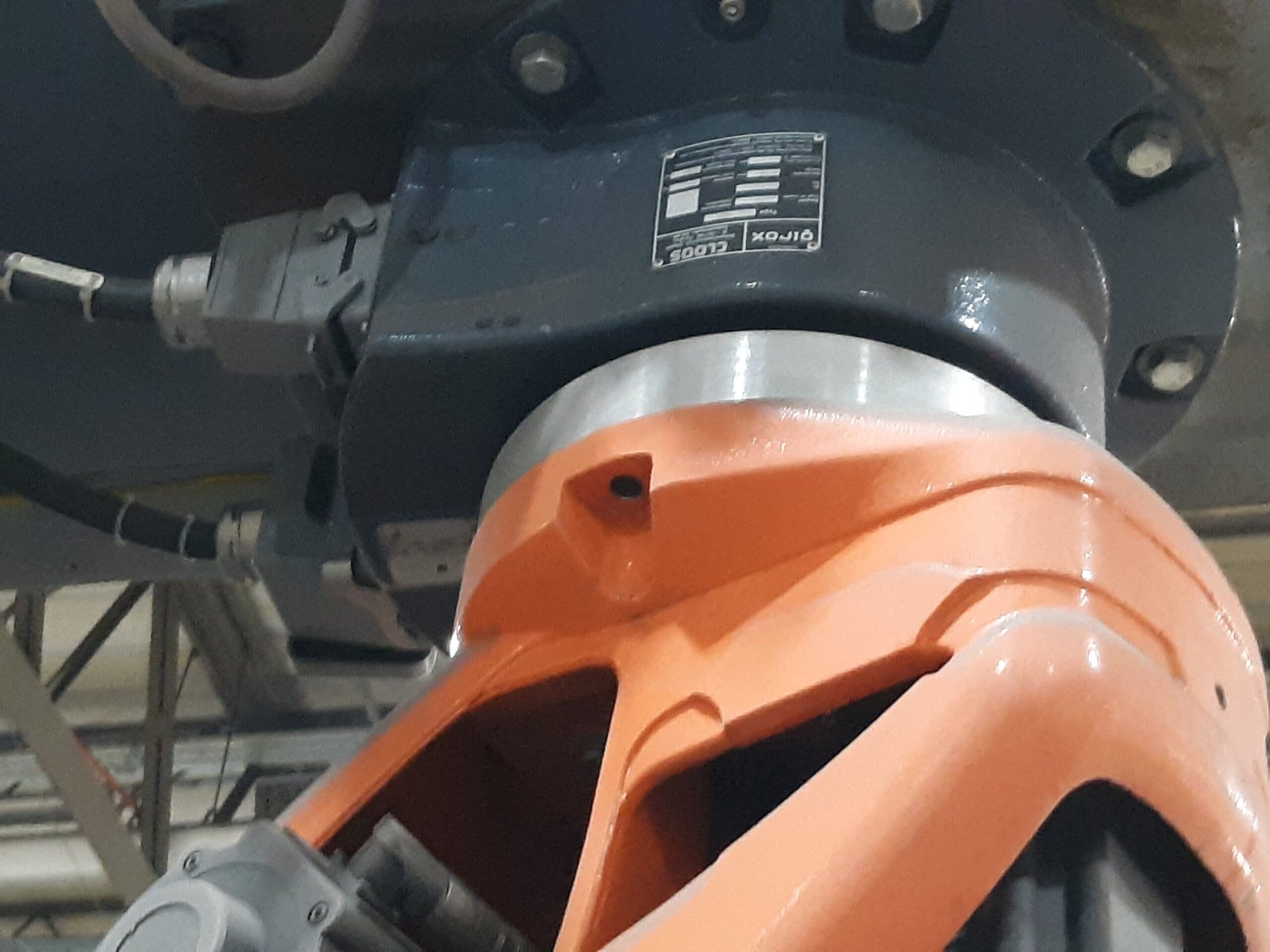

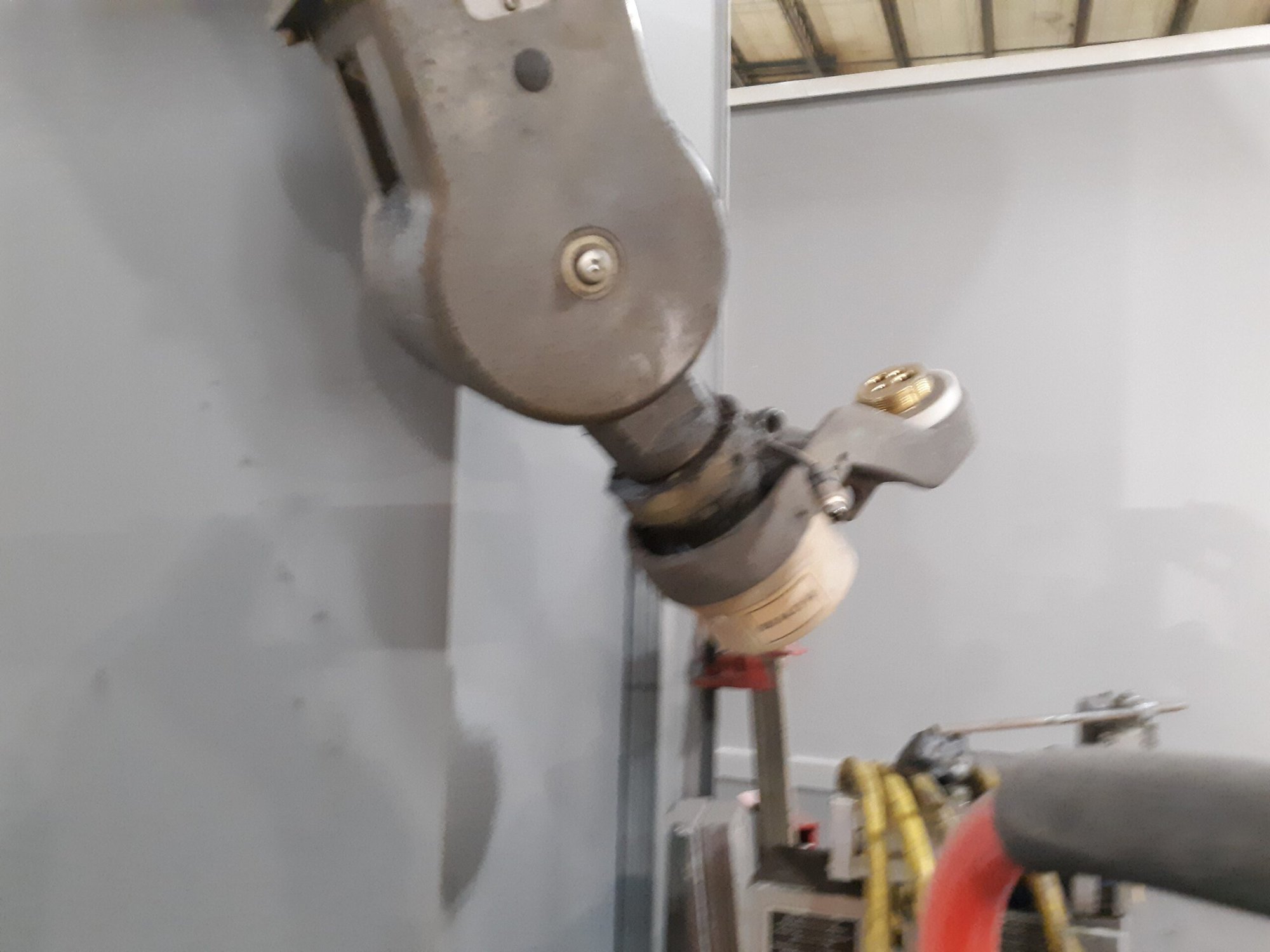

QRC-350 6 Axis Robotic Arm currently set up for MIG Welding Mounted on a RP-C-6 Overhead C Frame Fixed Arm with WP-DH-TS-10 Horizontal Rotary Positioner with turning and swiveling movement. Qineo Pulse 600A Power Source
Swiveling range axis 1: +170 / -170°
Swiveling range axis 2: +125 / -90°
Swiveling range axis 3: +80 / -210°
Swiveling range axis 4: +179 / -179°
Swiveling range axis 5: +135 / -135°
Swiveling range axis 6: +300 / -300°
Swiveling speed axis 1: 184 °/
Swiveling speed axis 2: 184 °/sec
Swiveling speed axis 3: 177 °/sec
Swiveling speed axis 4: 497 °/sec
Swiveling speed axis 5: 542 °/sec
Swiveling speed axis 6: 528 °/sec
Operating range Ø 4470 mm
Operating range Axis 5 +90° Ø 3440 mm Operating range Height: 2580 mm
Pay load: 15.00 kg
Repeatability: Δ ≤ s +/- 0,1 mm
Collision radius: 500 mm
Floor space: Ø 500 mm
Weight: 235 kg

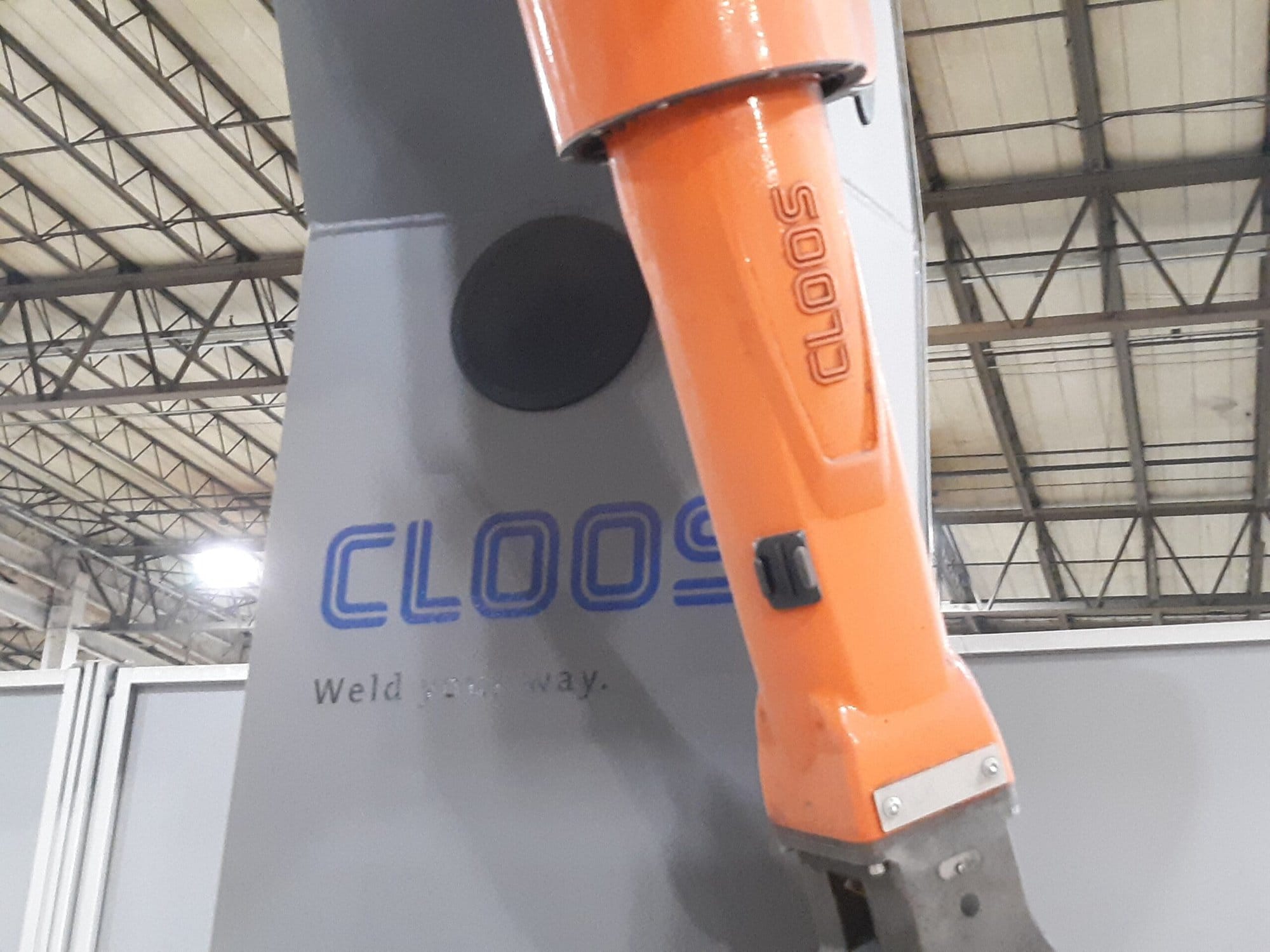

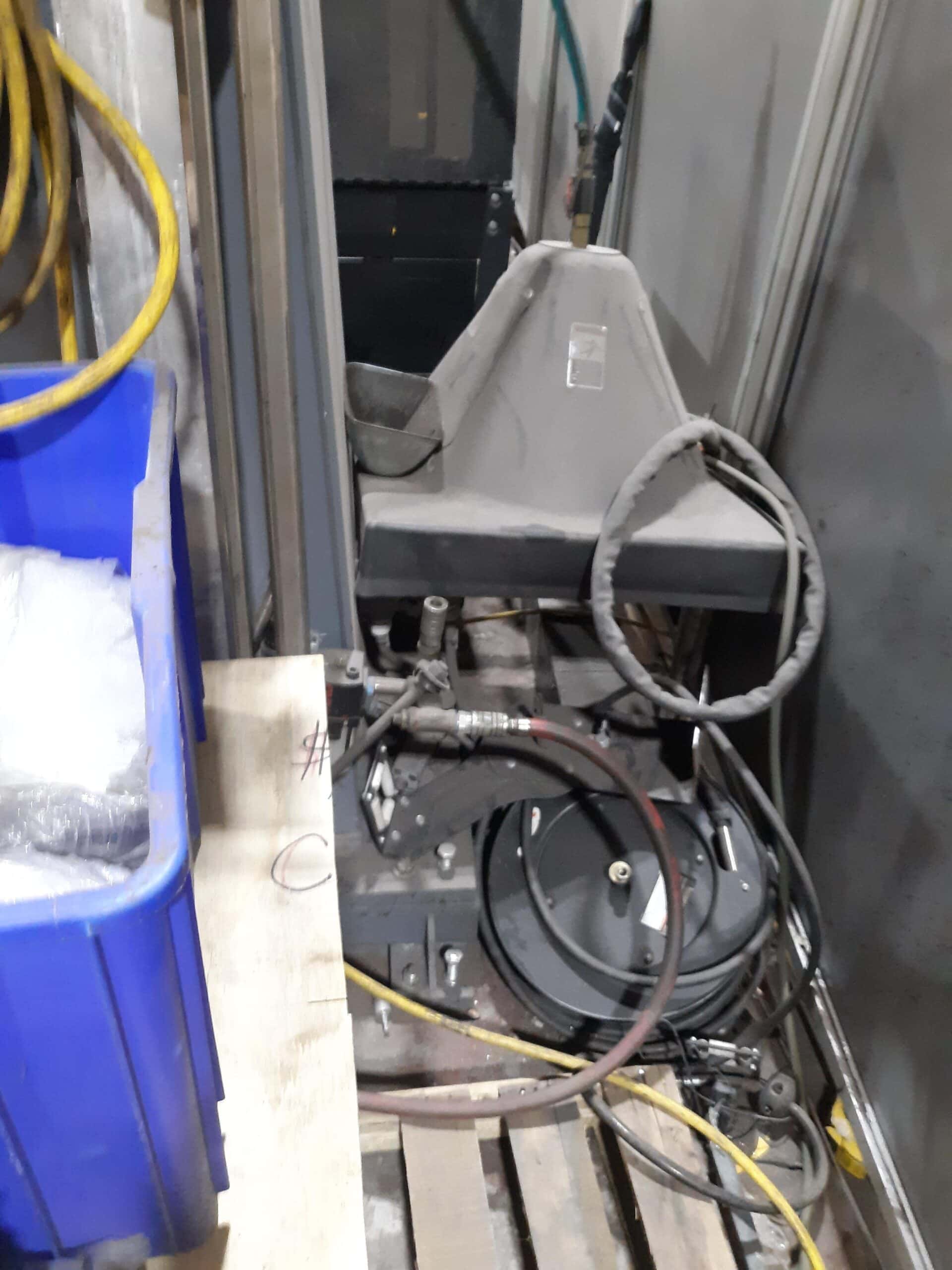

RP-C-6 Fixed C Frame Arm
Load: 6.0kn
Robot Ht.: 2.4m – 3.6m
Reach: 1.2m – 2.2m
Grid Robot Ht.: 0.10m
Grid Reach: 0.10m

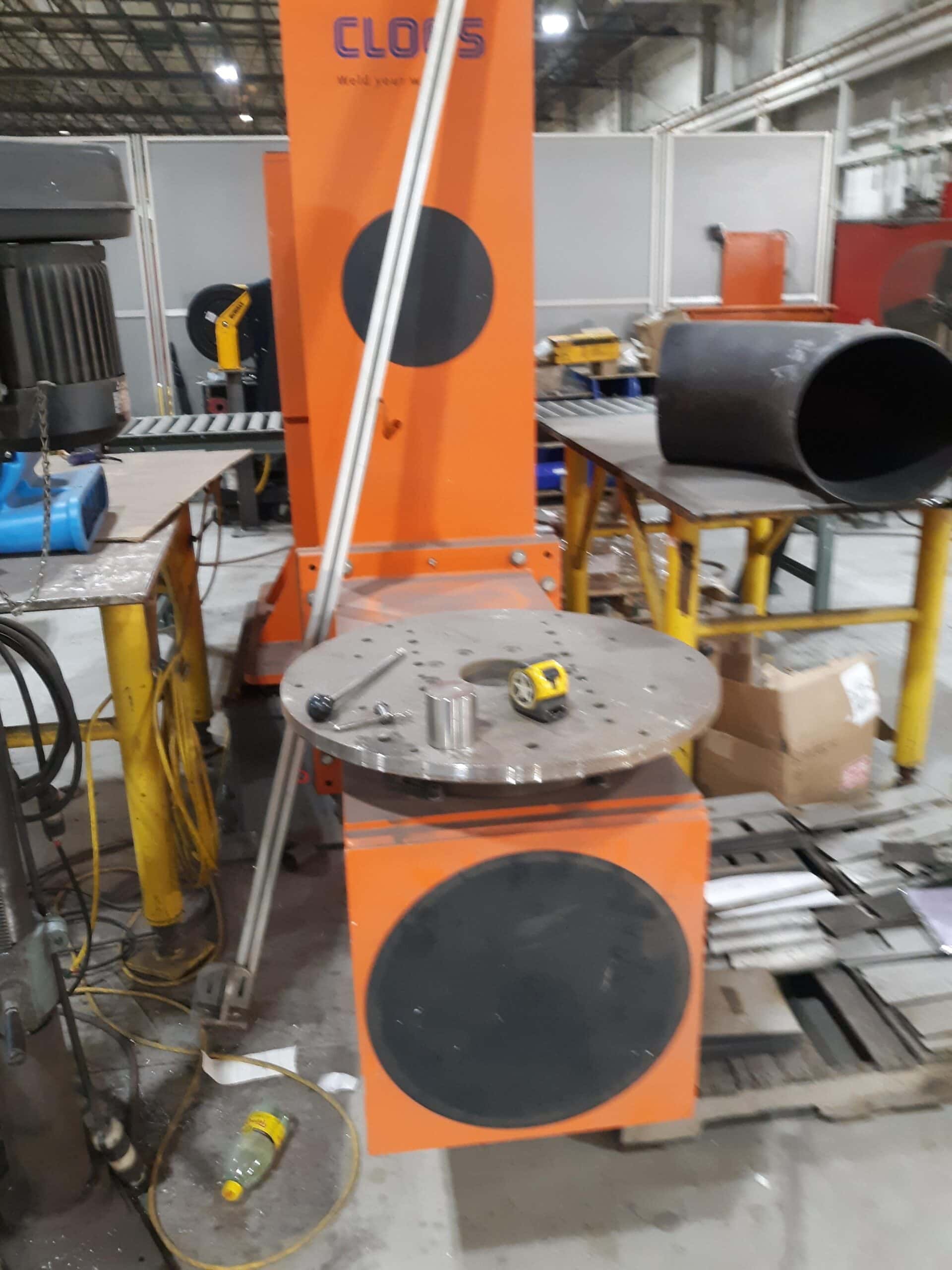

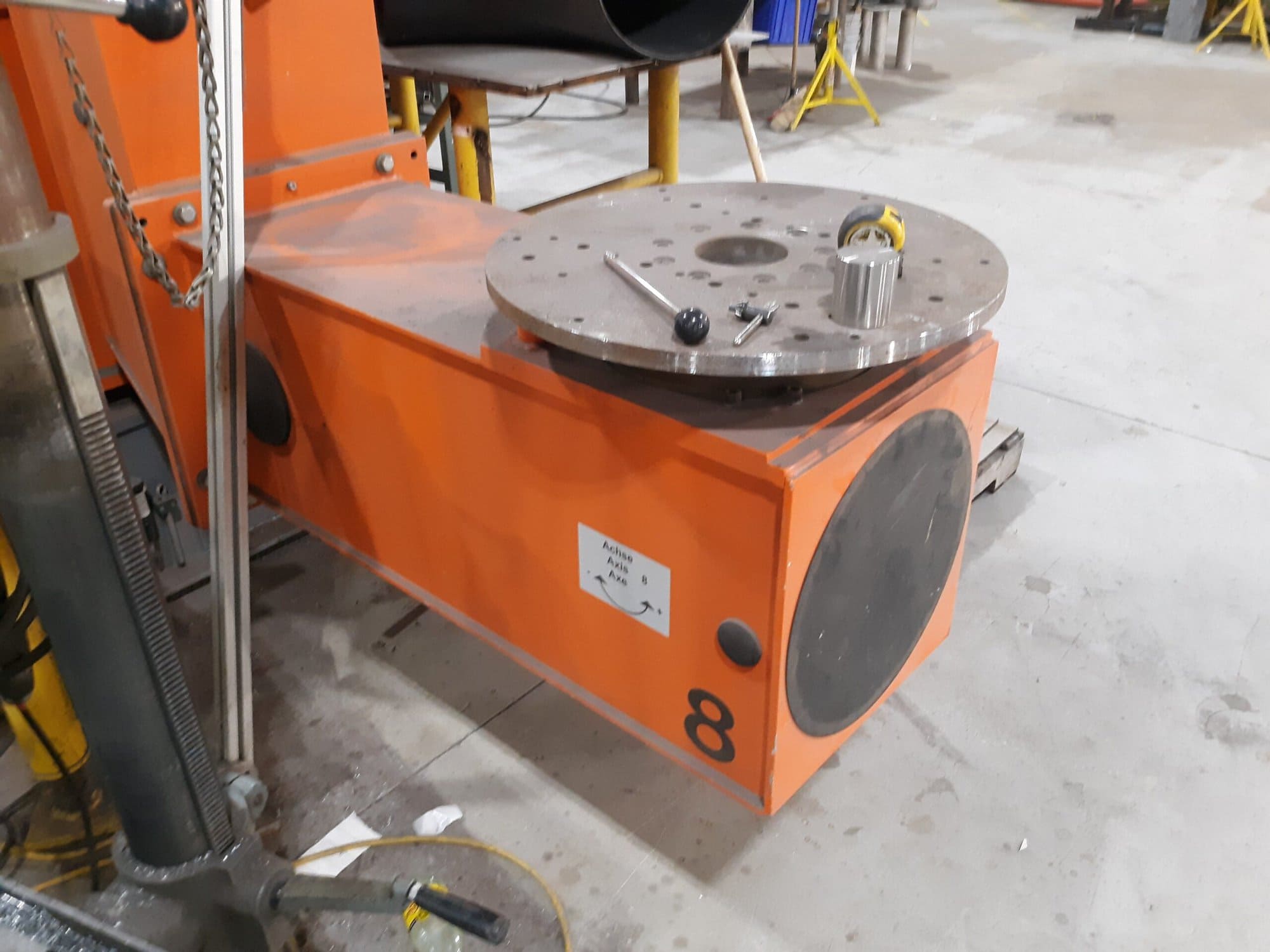

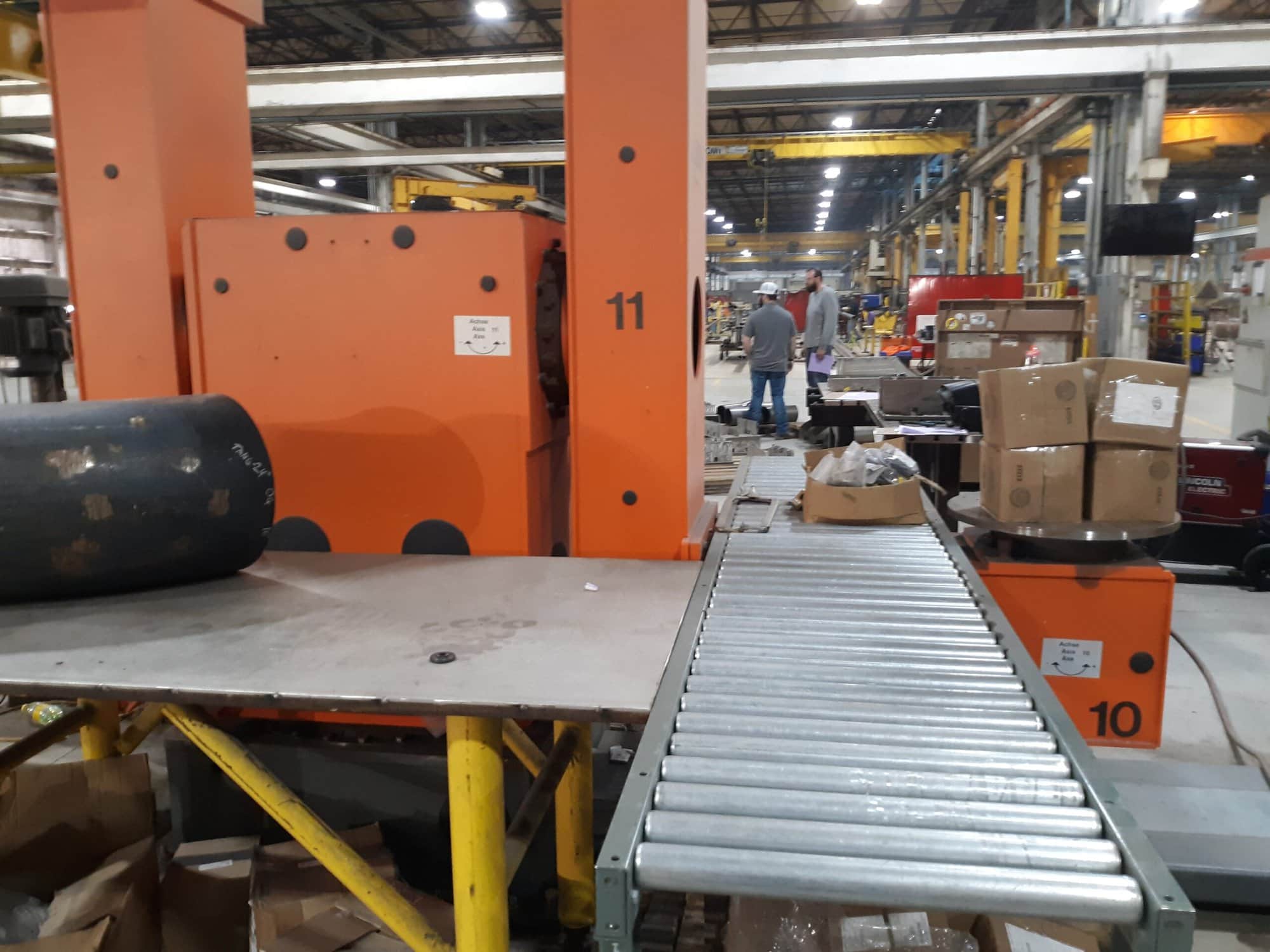

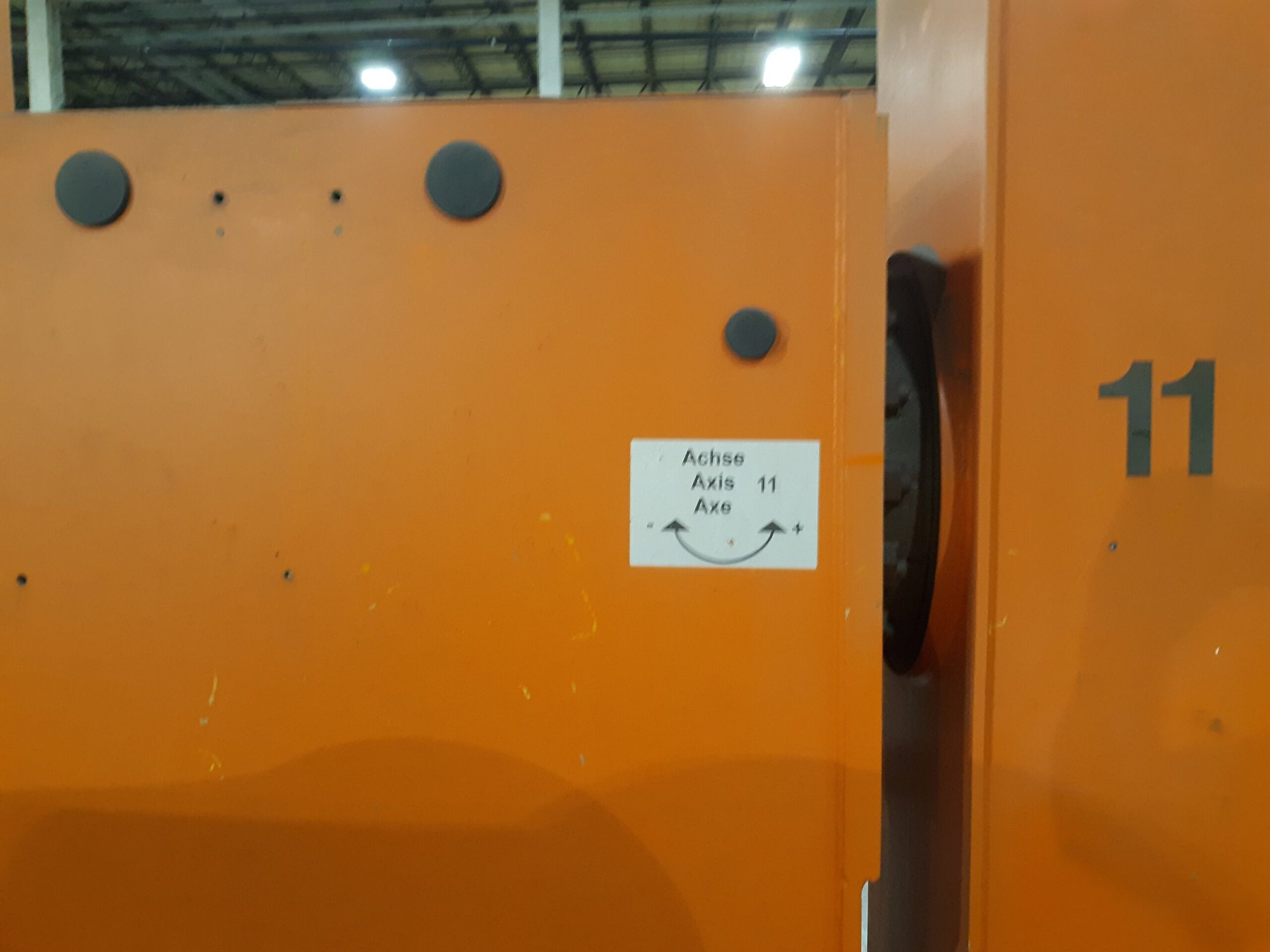

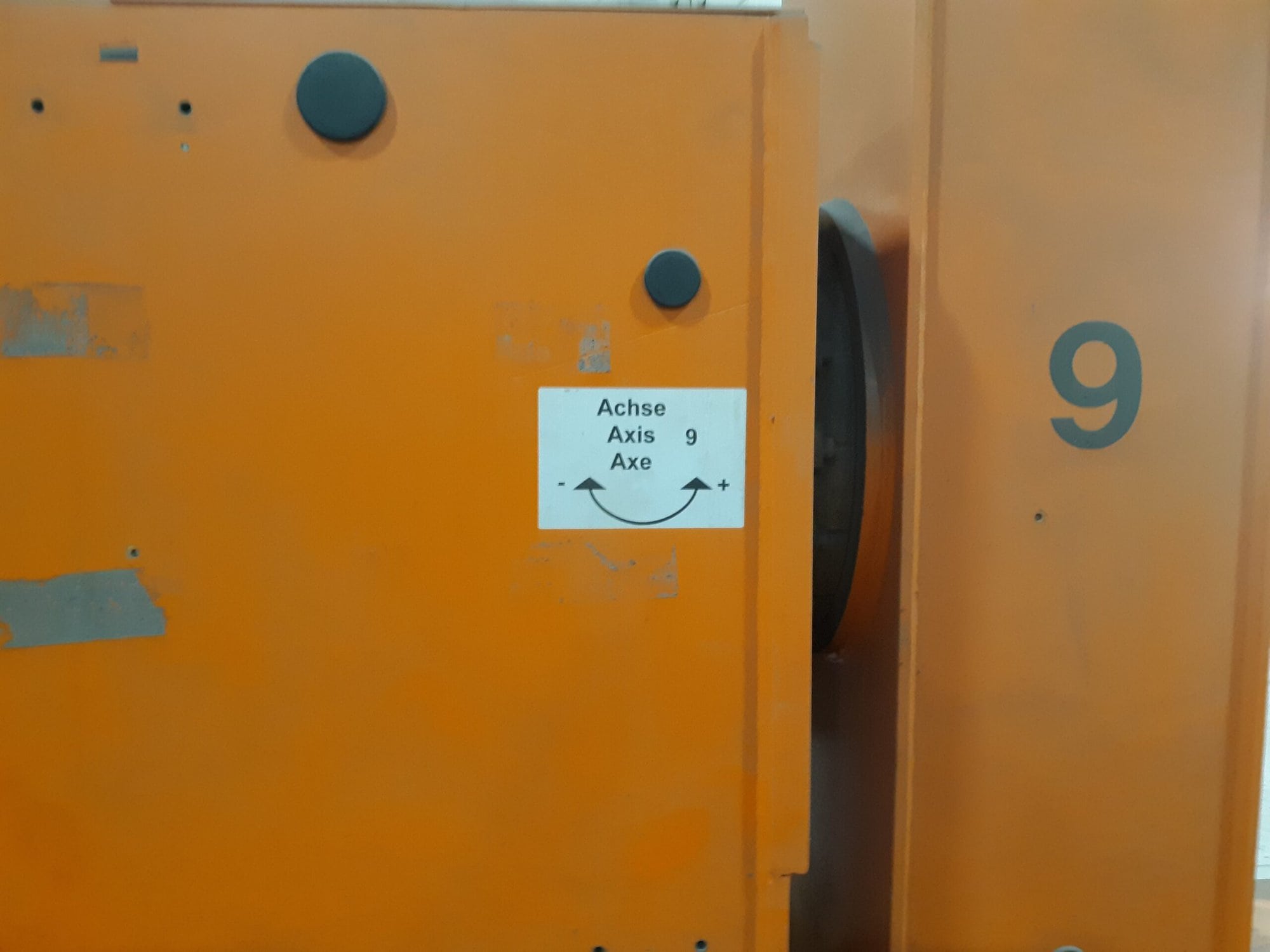

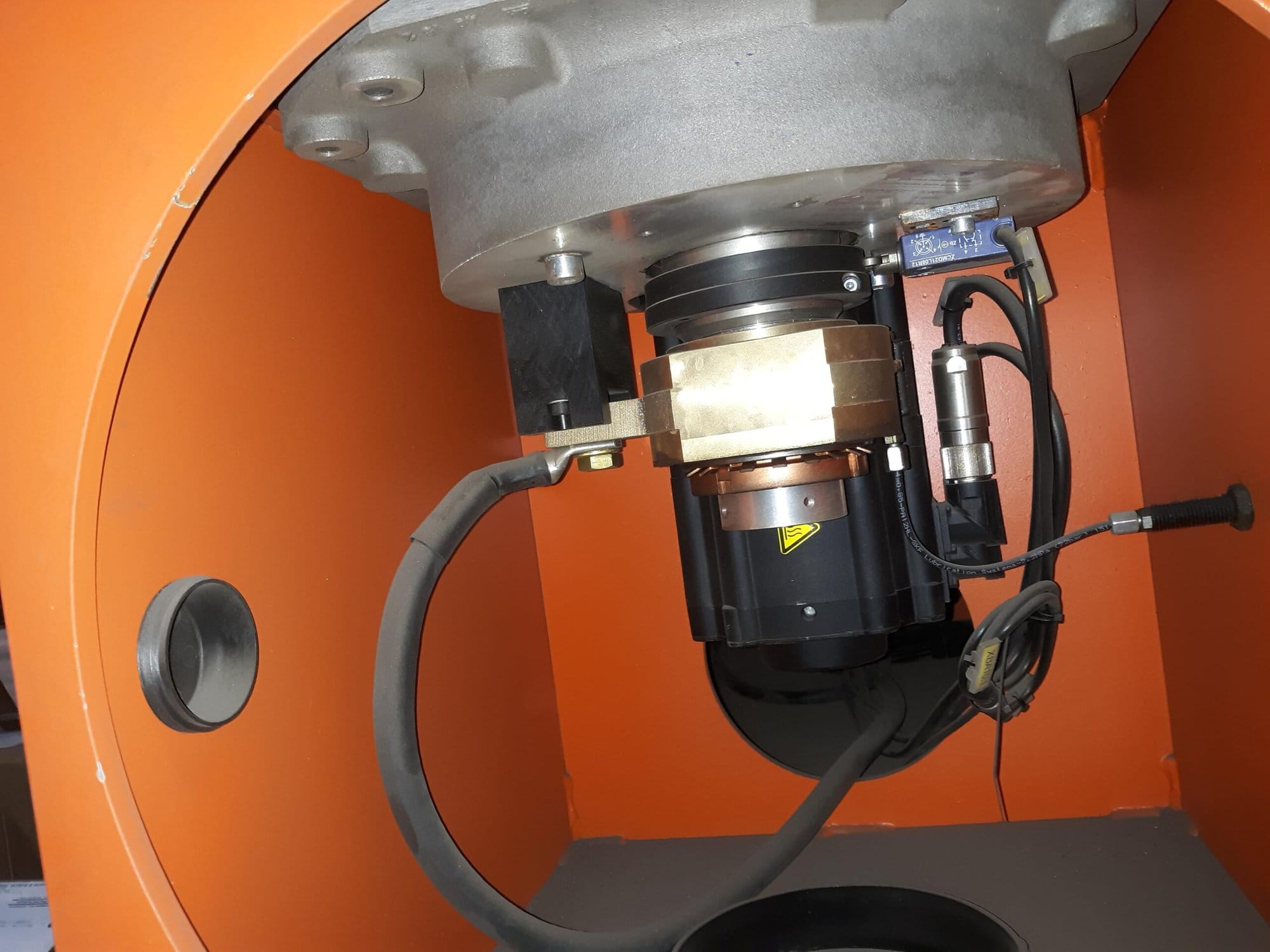

WP-DH-TS-10 Horizontal Rotary Positioner

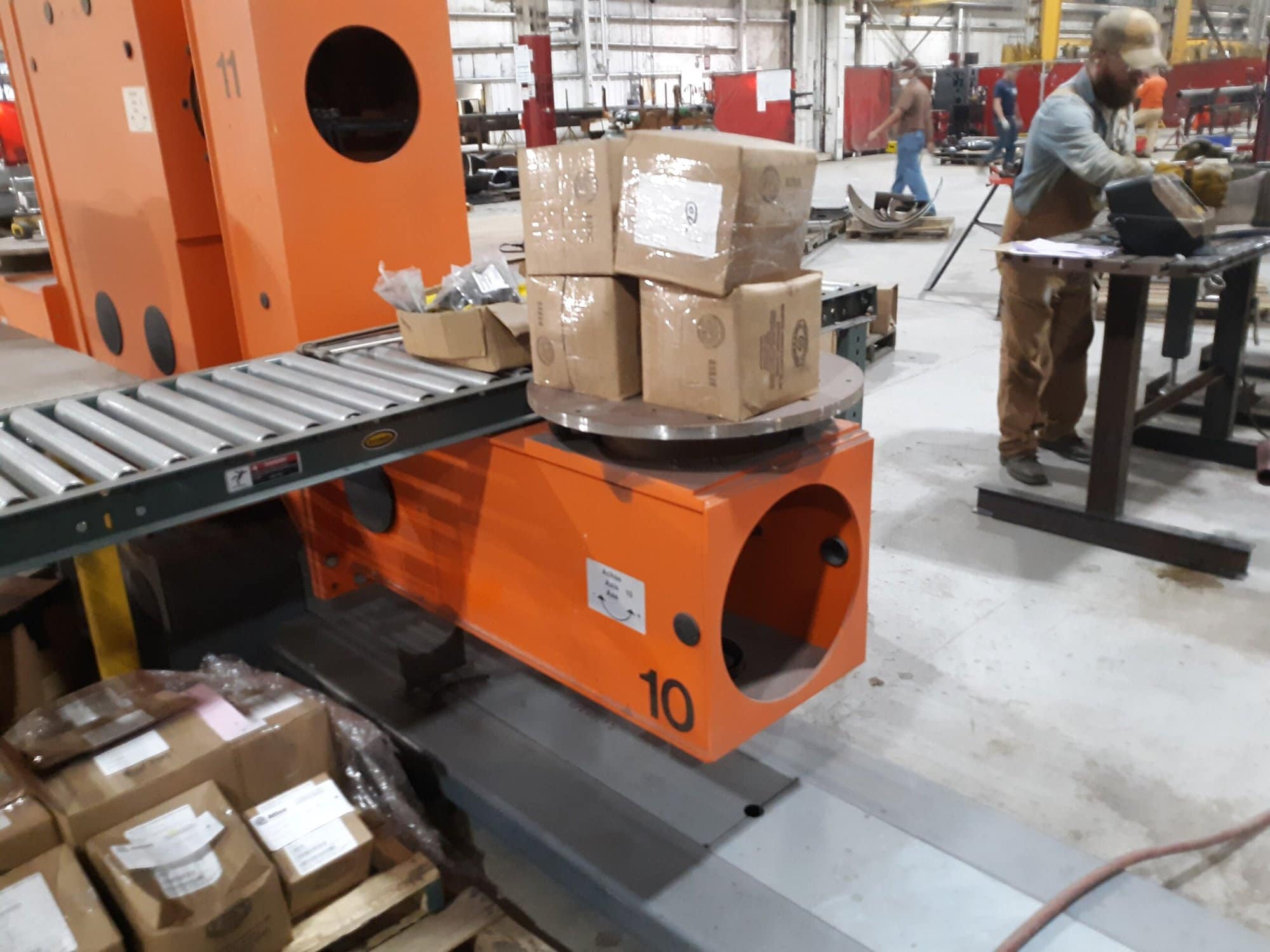

The two-station positioner changes the station by a horizontal rotation. Each station is equipped with a horizontal swiveling axis. An L-shaped extension arm is mounted on this axis. The extension arm contains a turning axis with horizontal faceplate. The positioner can take up light to medium-weight complex workpieces and positions them perfectly for welding.
Load: 10.0kn
Free Turning Radius: 1000mm
Faceplate Ht.: 1.0m
Rotating Speed: 90.0 °/sec
Tilting Speed: 60.0 °/sec
Swiveling Speed: 40.0 °/sec
Turning Range: +/- 360°
Swiveling Range: +/- 180°
Tilting Range: +/- 185°
