Clausing Colchester Tornado 200 CNC Lathe, 1996
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
HEADSTOCK
AC Spindle Drive
Continuous/30 Min. Rating 14.75/20.11HP
Spindle Nose A2-6
Hole Through Spindle 3.05in
Power Chuck Size (A type M/C) 8.26in
Power Chuck Size (B type M/C) 10in
Draw Tube Bar Capacity (A/B type M/C) 2.55/2.55in
Front Bearing (internal diameter) 4.33in
Maximum Spindle Speed (B type M/C) 3500 RPM
AXES
X Axis Working Stroke 8.46in
Travel Above Centre Line 7.40in
Travel Below Centre Line 1.06in
Z Axis Working Stroke 15.74in
FEED RATES
Rapid Traverse X Axis 32.8084ft/min
Rapid Traverse Z Axis 65.6168ft/min

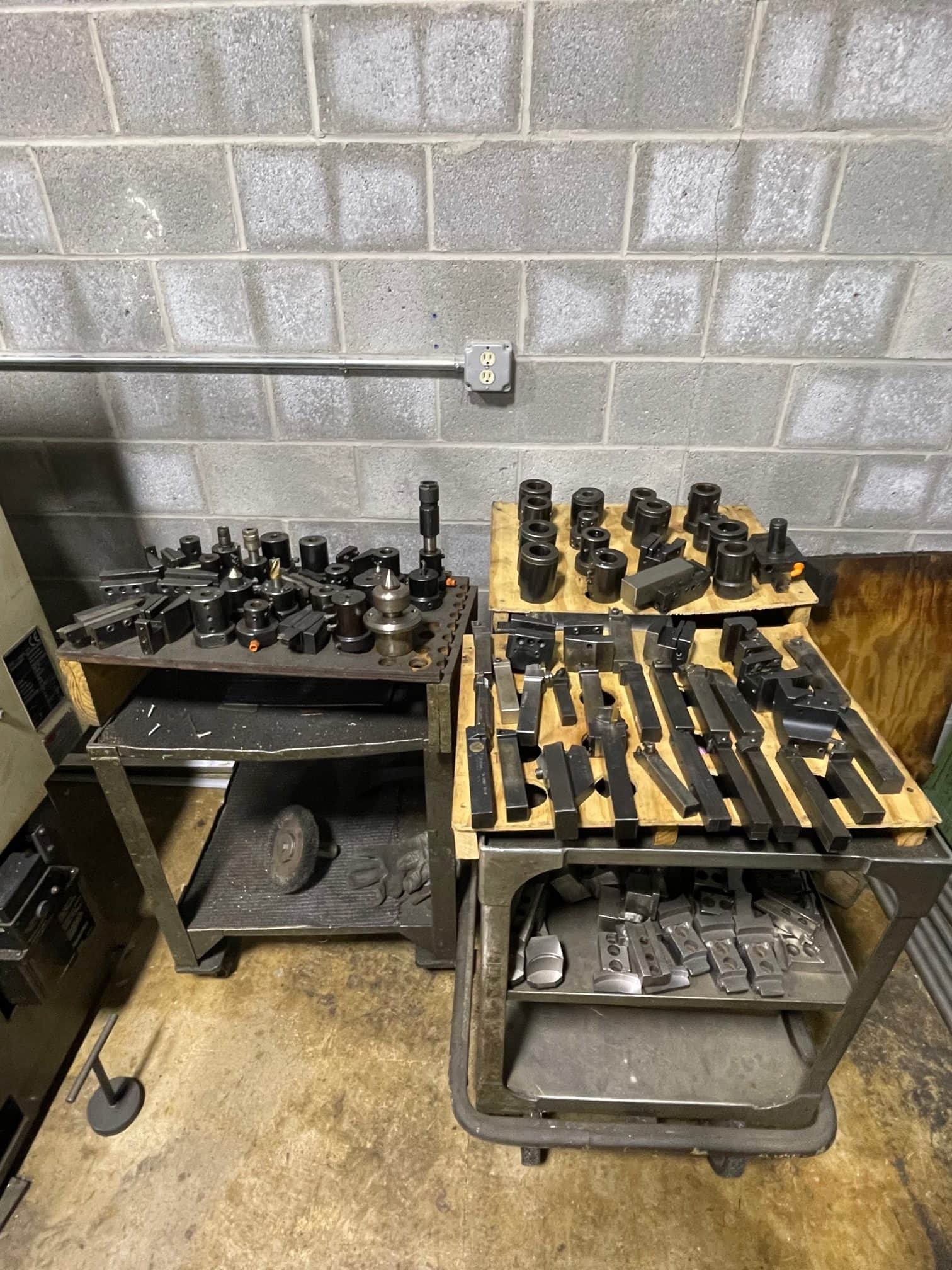

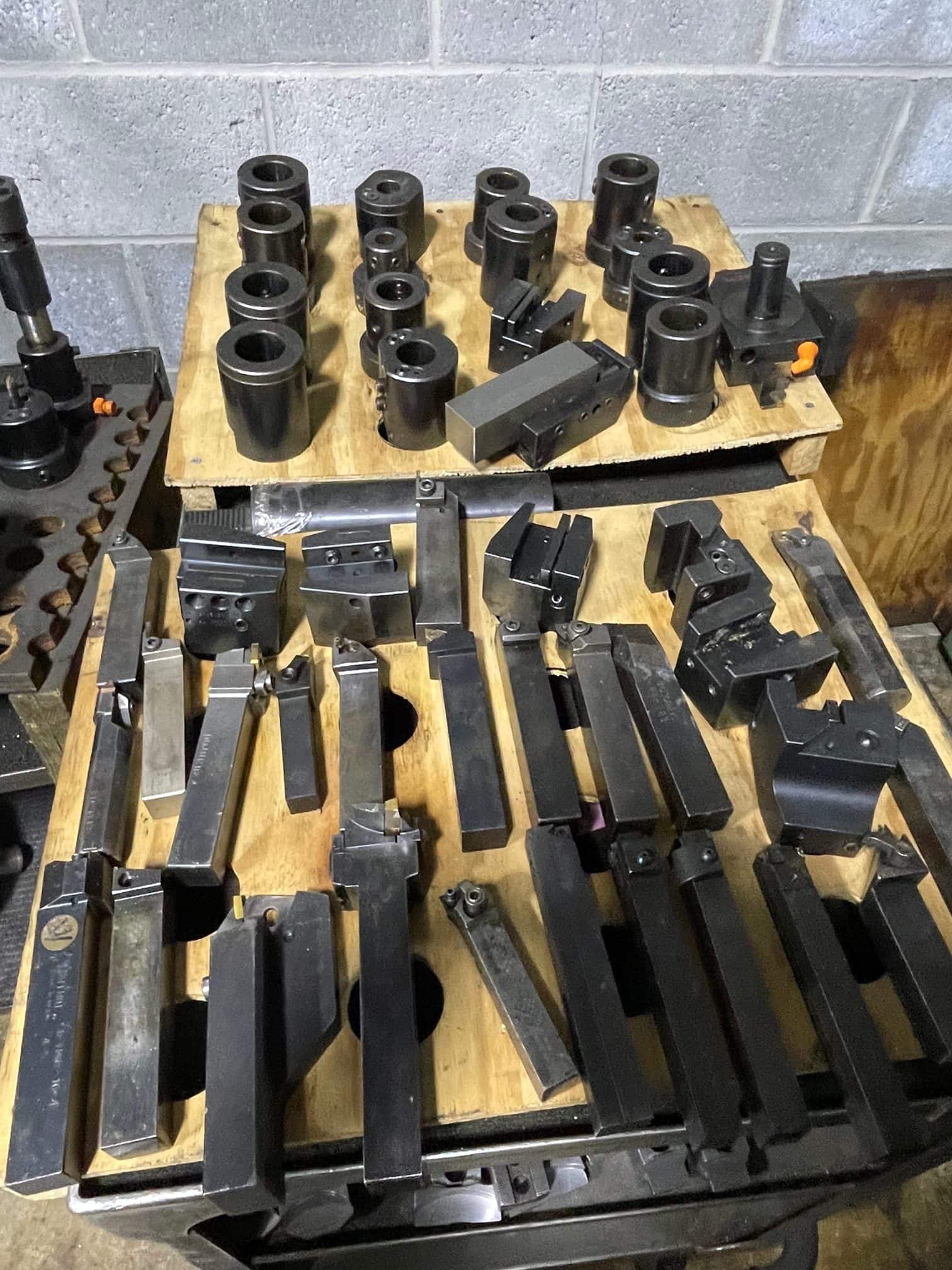

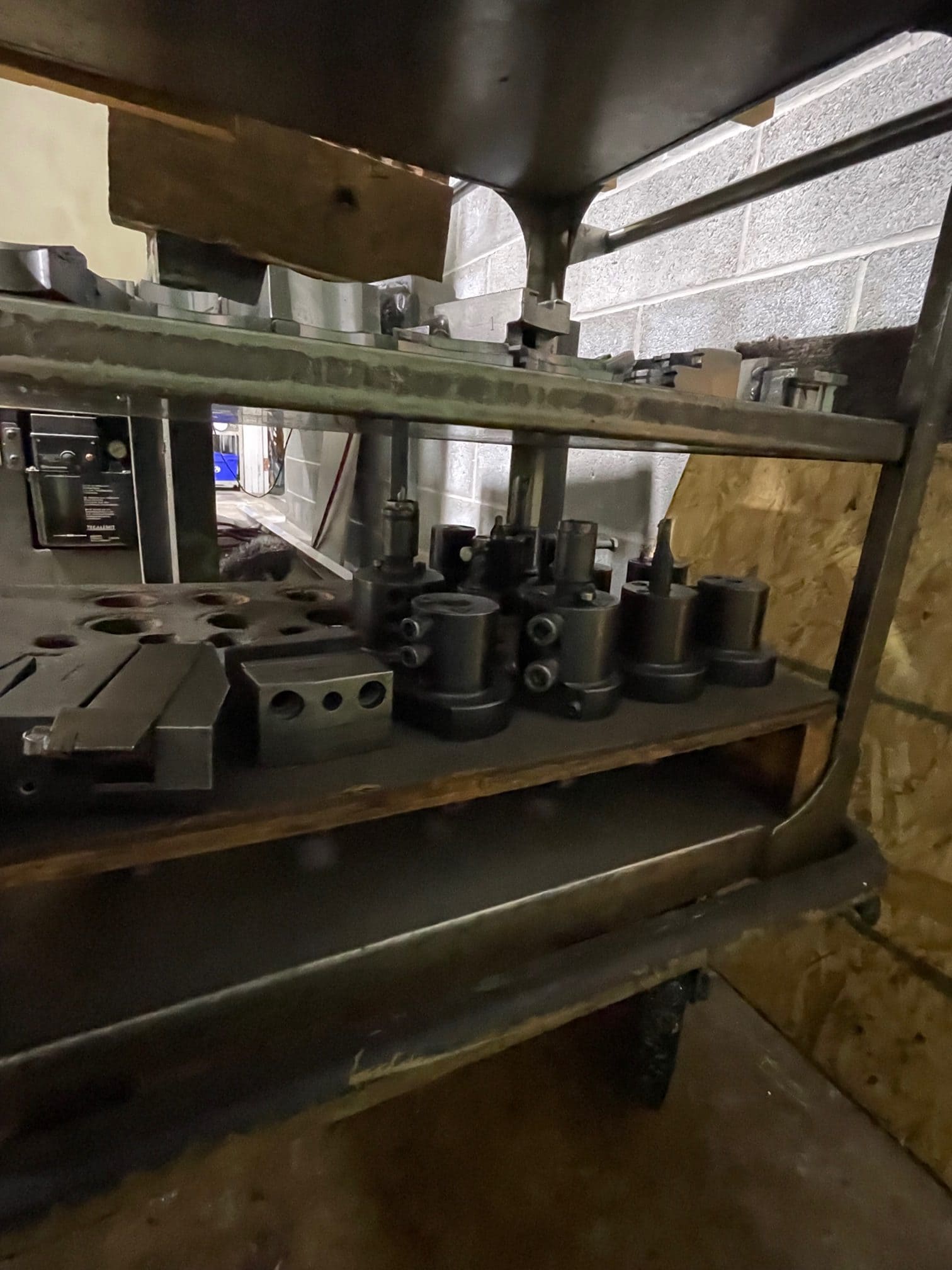

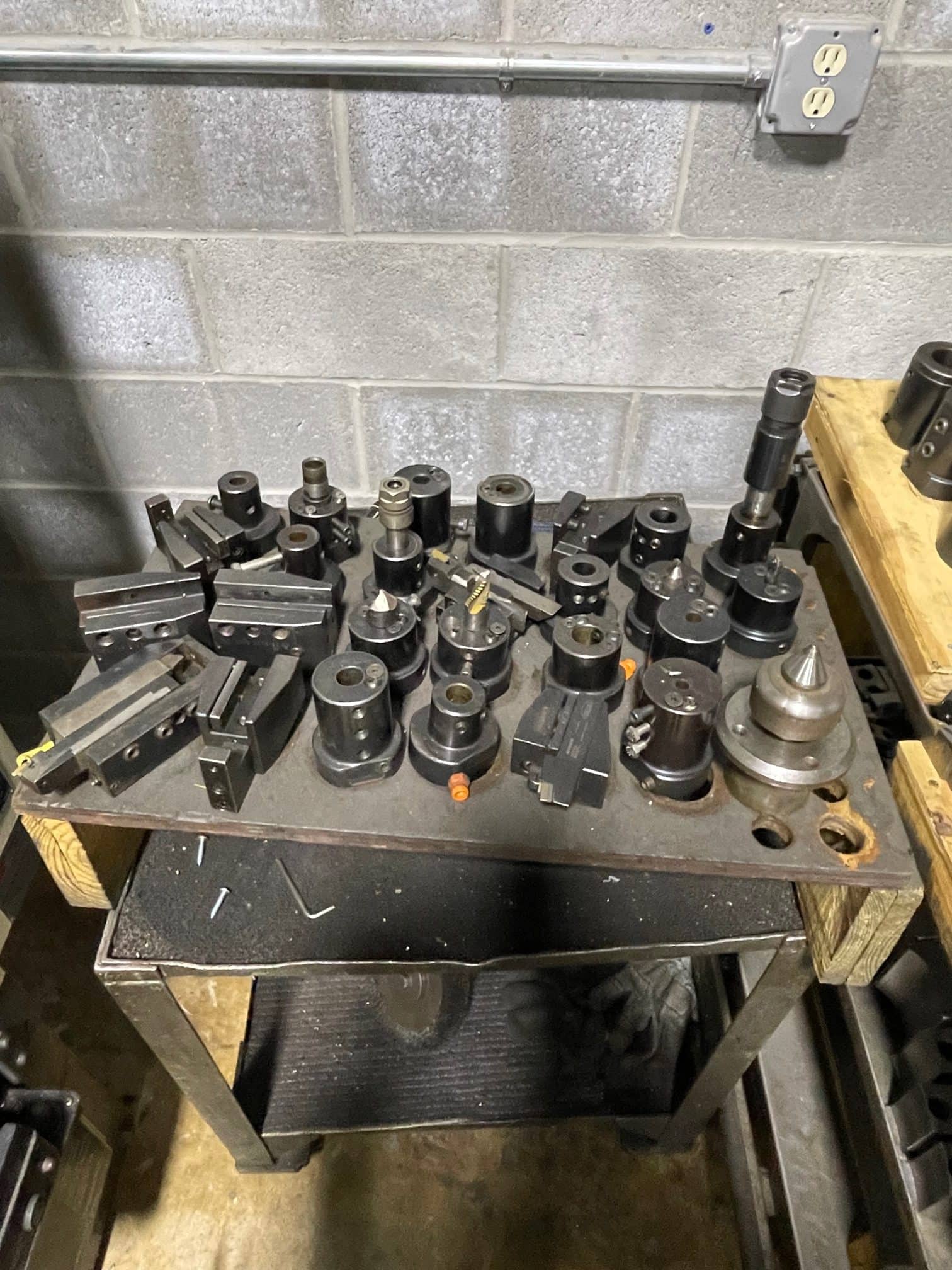

TURRETS
No. of Turret Tool Stations 12
Tooling System VDI 3425/Ø40
Turning Tool Shank Size 25×25
Maximum Boring Bar Dia. 1.57in
TAILSTOCK
Tailstock Quill Diameter 3.74in
Tailstock Quill Taper No.5 MT
Tailstock Quill Stroke 4.92in
Tailstock Body Travel 19.09in
CAPACITIES
Swing Over Covers 20.86in
Swing Over Carriage 12.9in
Maximum Machining Diameter 9.84in
Maximum Turning Length 15.74in
Spindle Centre Height From Floor 35.94in
Bed Width – Across Ways 29.52in
Bed Width – Over Linear Guide Rails 15.07in
Bed Width – Tailstock Ways 10.039in
Cross Slide Width 10.07in
Carriage Inclination 60°
COOLANT
Coolant Tank Capacity (Liters) 63
Coolant Pump Delivery (Liters/Min) 45 @ 3 bar
DIMENSIONS
Approx. Floor Area 34.23ft2
Approx. Weight 6614lbs
