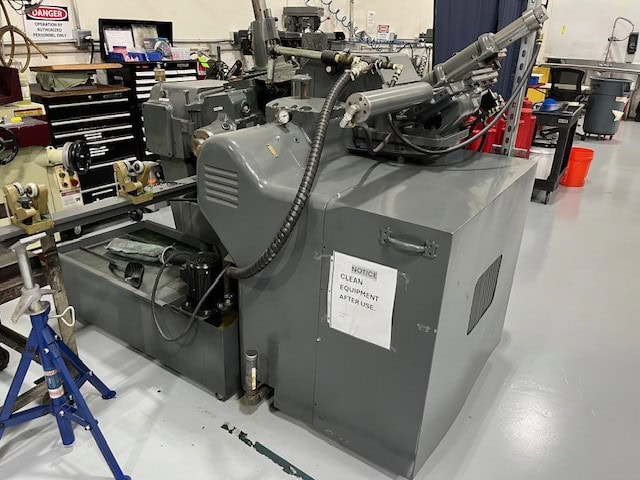

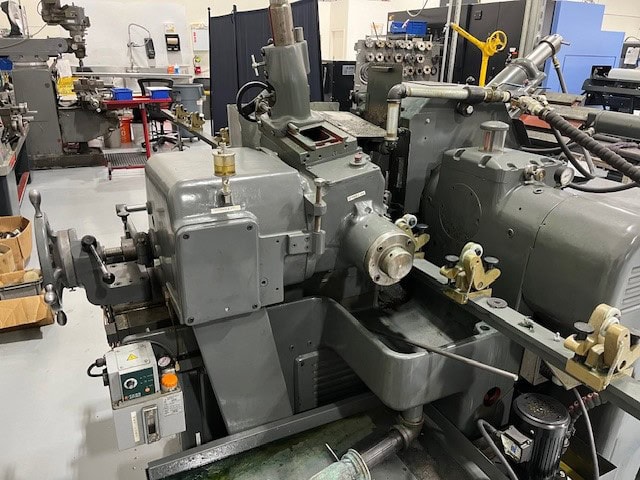

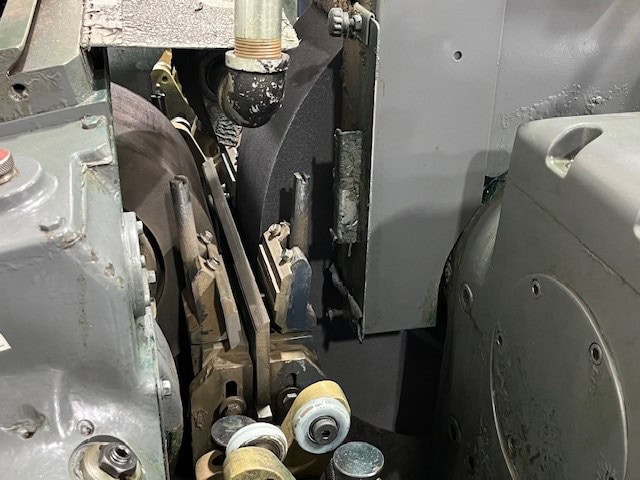

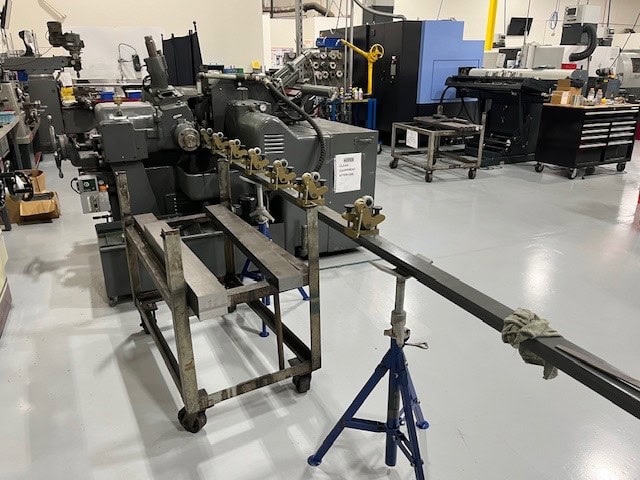

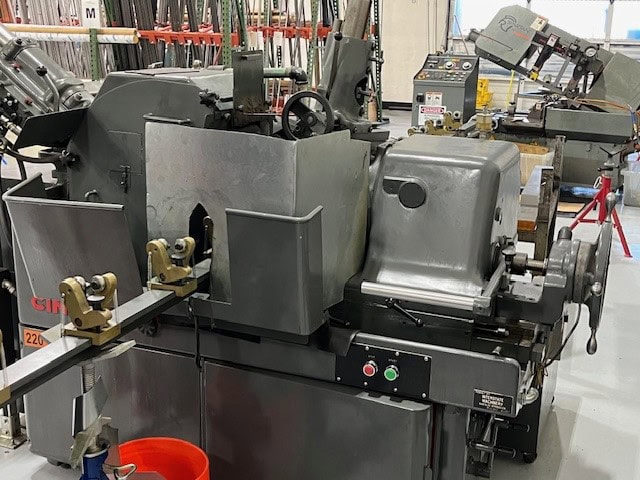

Cincinnati No.2 Centerless Grinder, 2021 – Rebuilt 2021
$34,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Grinding Capacity:
Workpiece Diameter Range: 1/16″ – 4″
Maximum Workpiece Length: Typically accommodates various lengths based on part feeding.
Grinding Wheel:
Maximum Diameter: 20″.
Width: 8″.
Bore Diameter: 12″.
Surface Speed: Typically 6,000 SFPM
Regulating Wheel:
Diameter: Typically 10″.
Width: 8″.
Surface Speed: Adjustable to control part rotation and feed rate.
Feeds:
Infeed Grinding: Adjustable to control material removal for plunge operations.
Throughfeed Grinding: Continuous material movement for high-volume production.
Power:
Grinding Wheel Spindle Motor: 15 HP.
Regulating Wheel Motor: 1.5 HP.
Adjustments:
Regulating Wheel Angle: Adjustable to set the desired angle for feed and support.
Work Rest Blade: Adjustable height and angle to match the workpiece diameter.
Overall Dimensions:
Approx. Dimensions for Placement: 86″ x 57″
Approx. Dimensions for Transport: 7.5′ x 4.5′ x 6′
Dimensions of Accessories for Transport: 12.1′ x 2.5′
Approx. Weight: 8,000 lbs.
