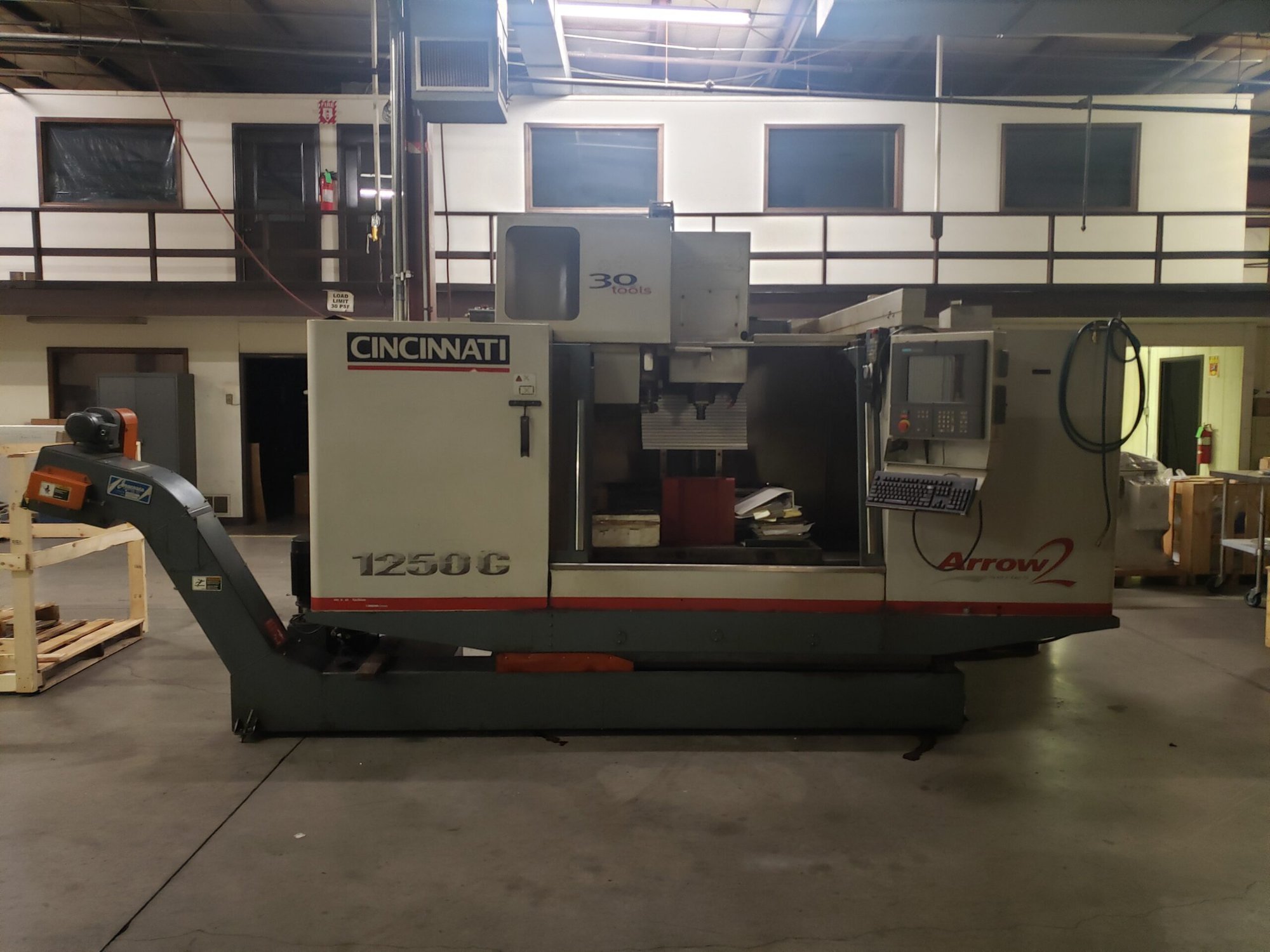

Cincinnati Arrow 2 1250C CNC Vertical Machining Center – 2004, Seimens Acramatic 2100 (Known issue/alarm) W/ Fixture table for Additional Cost
$6,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Cincinnati Arrow2 1250C CNC Vertical Machining Center – 2004, Seimens Acramatic 2100 (Known issue/alarm) W/ Fixture table for Additional Cost
X Travel: 50″
Y Travel: 20″
Z Travel: 22″
Table Working Surface: 60″x30″
Table Work Load Capacity: 4410 LBS
Spindle Horsepower: 15 HP
Spindle Speeds: 60-8000 RPM
Spindle Taper: CAT 40
Feed Rates, X & Y: 0.1 to 590 IPM
Feed Rate, Z: 0.1 to 590 IPM
Rapid Traverse X & Y: 944 IPM
Rapid Traverse Z: 945 IPM
Tool Storage Capacity: 21
Approximate Dimensions: 145″ x 112″
Approximate Height : 142″
Approximate Weight: 19,360 LBS
EQUIPPED WITH:

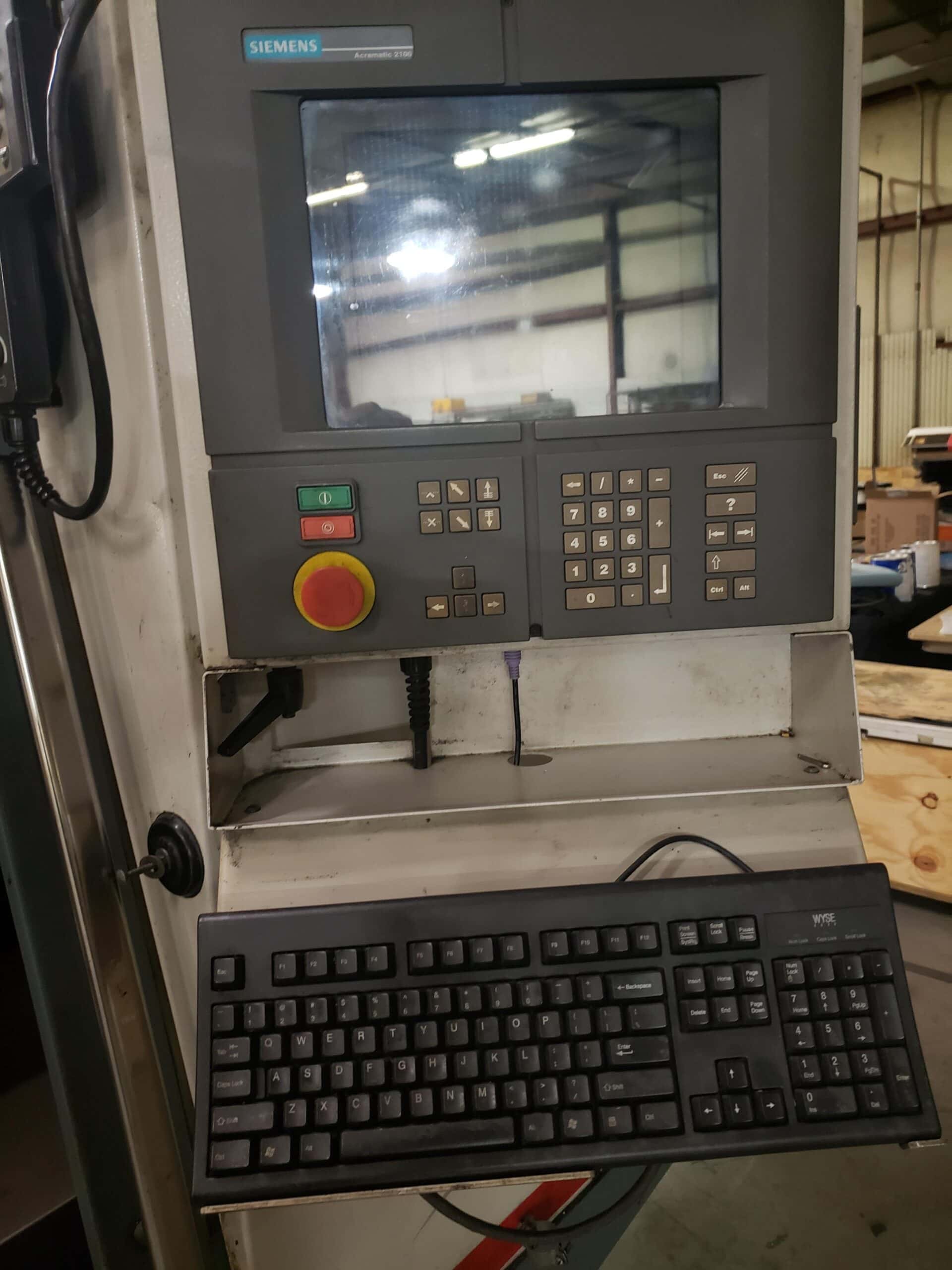

Siemens Acramatic 2100 PC Based CNC Control
Conversational Programming, Multiple Part Program Storage, Migrating
Tools, Fanuc Program Translation, 3-1/2″ Floppy Disk Drive, RS-232 Port,

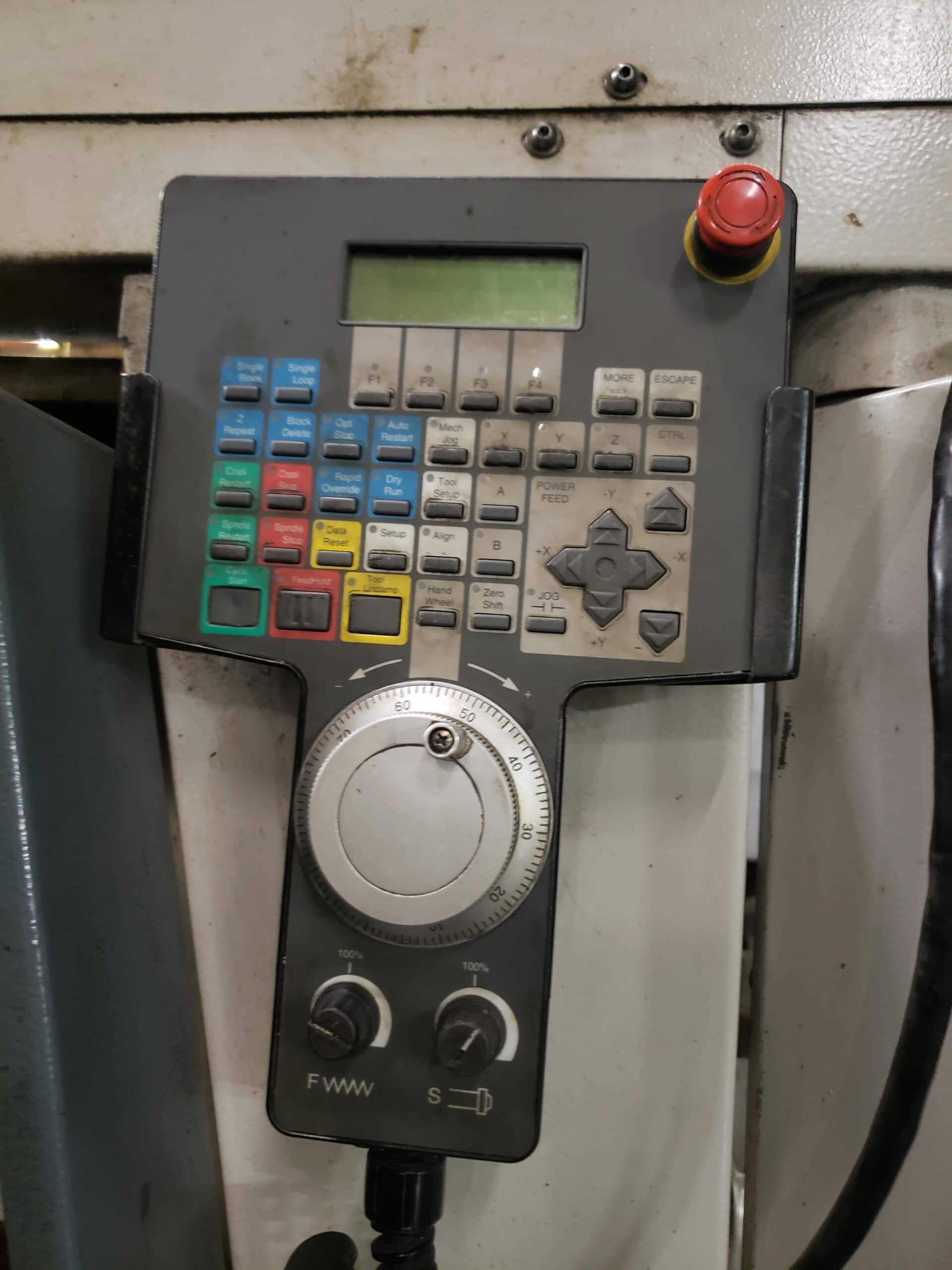

Probe, 21 Station Automatic Tool Changer
***Known Issue*** – We were running the machine right up until the alarm. The alarm is “ Seimens 611 drives configuration error”

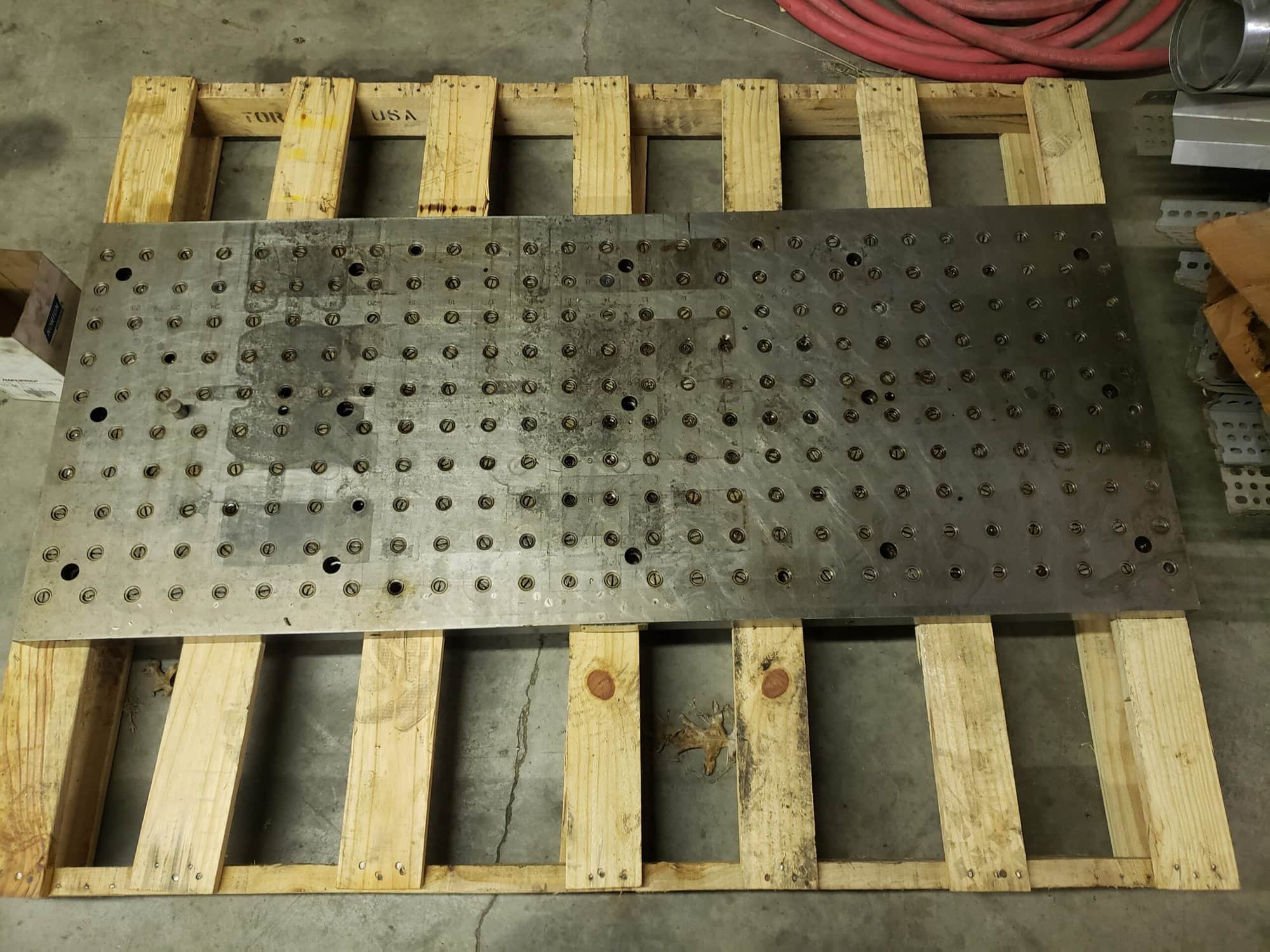

Fixture table is additional cost of $2,000. These new are $8,000
