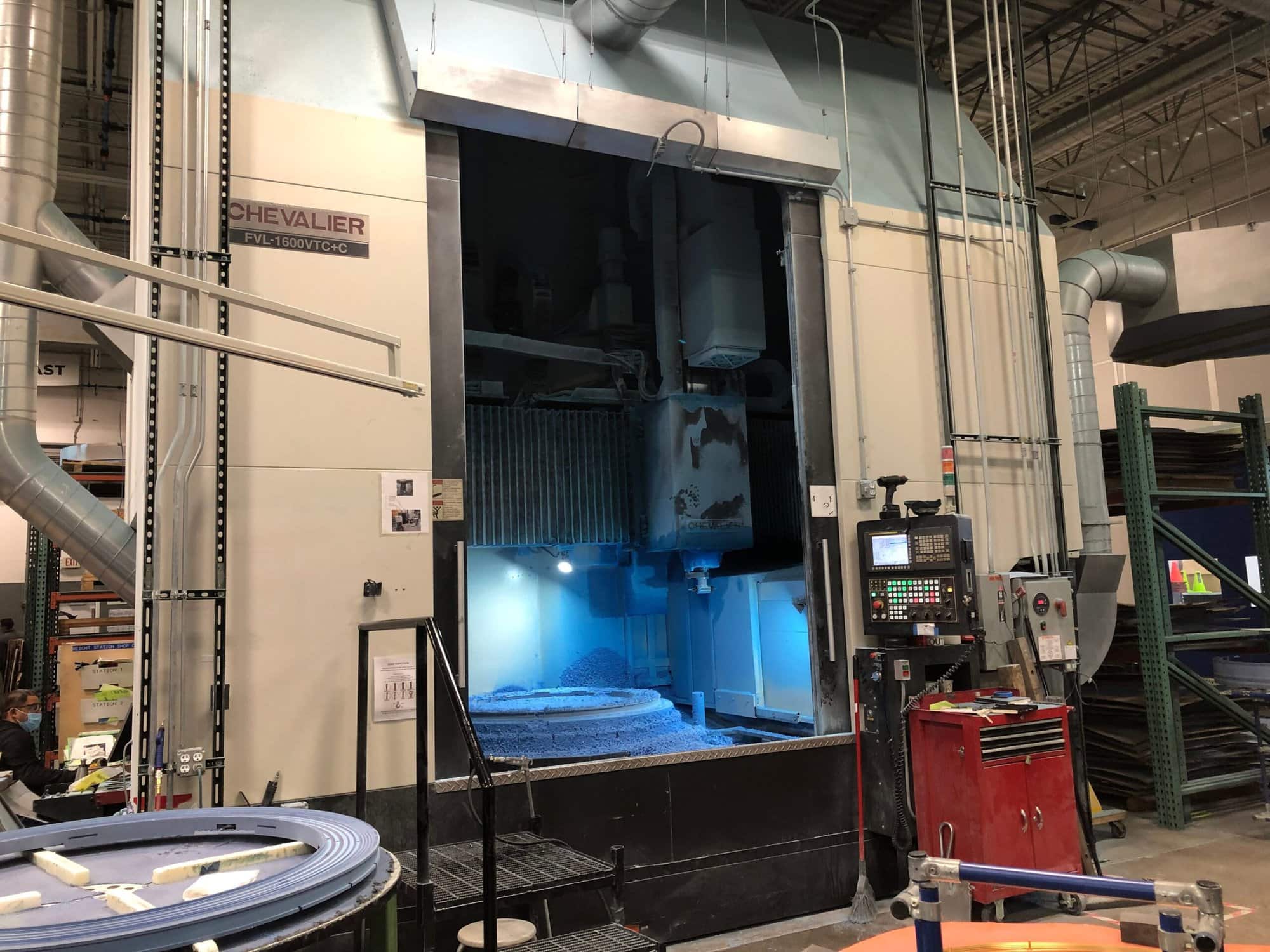

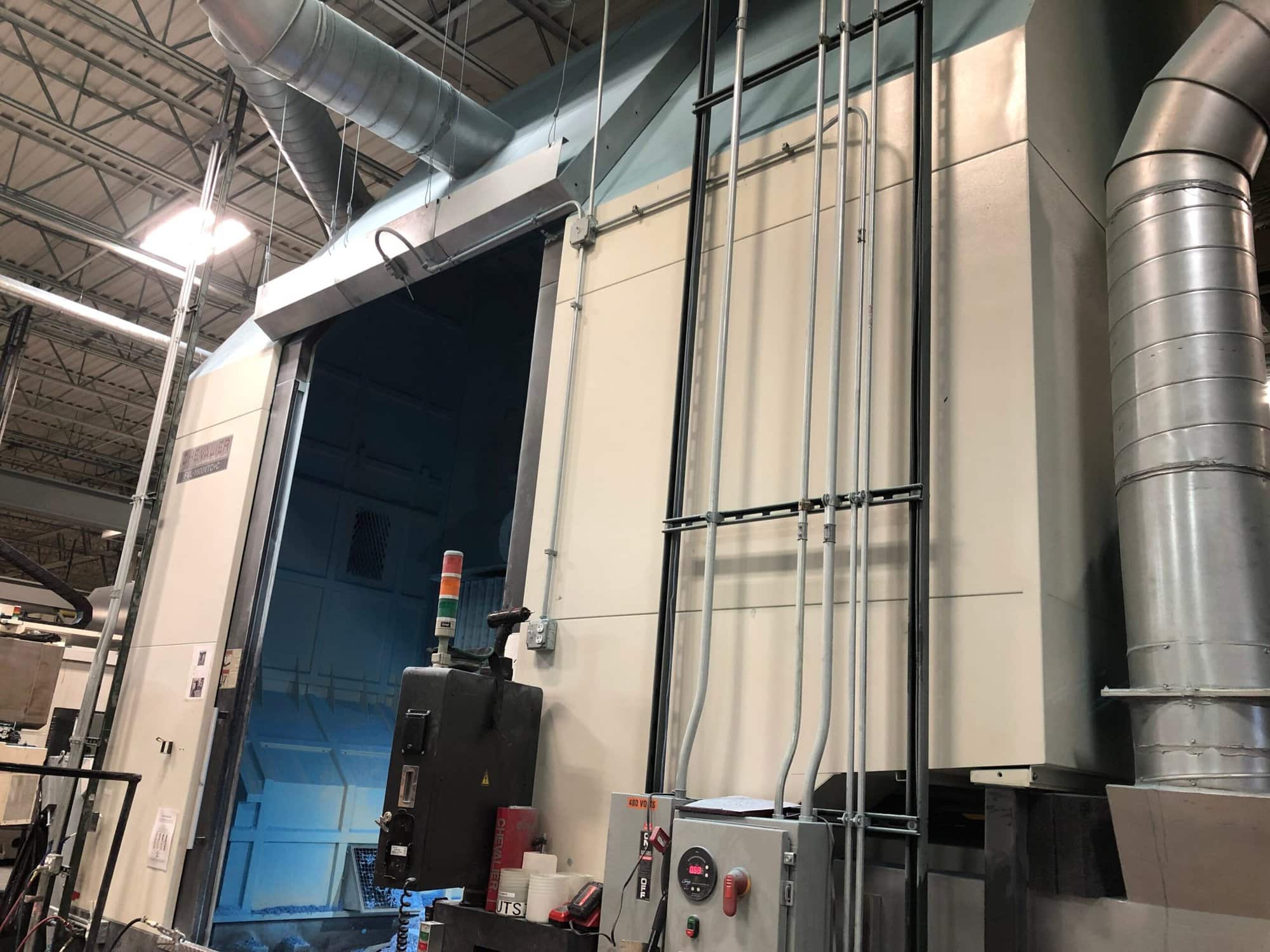

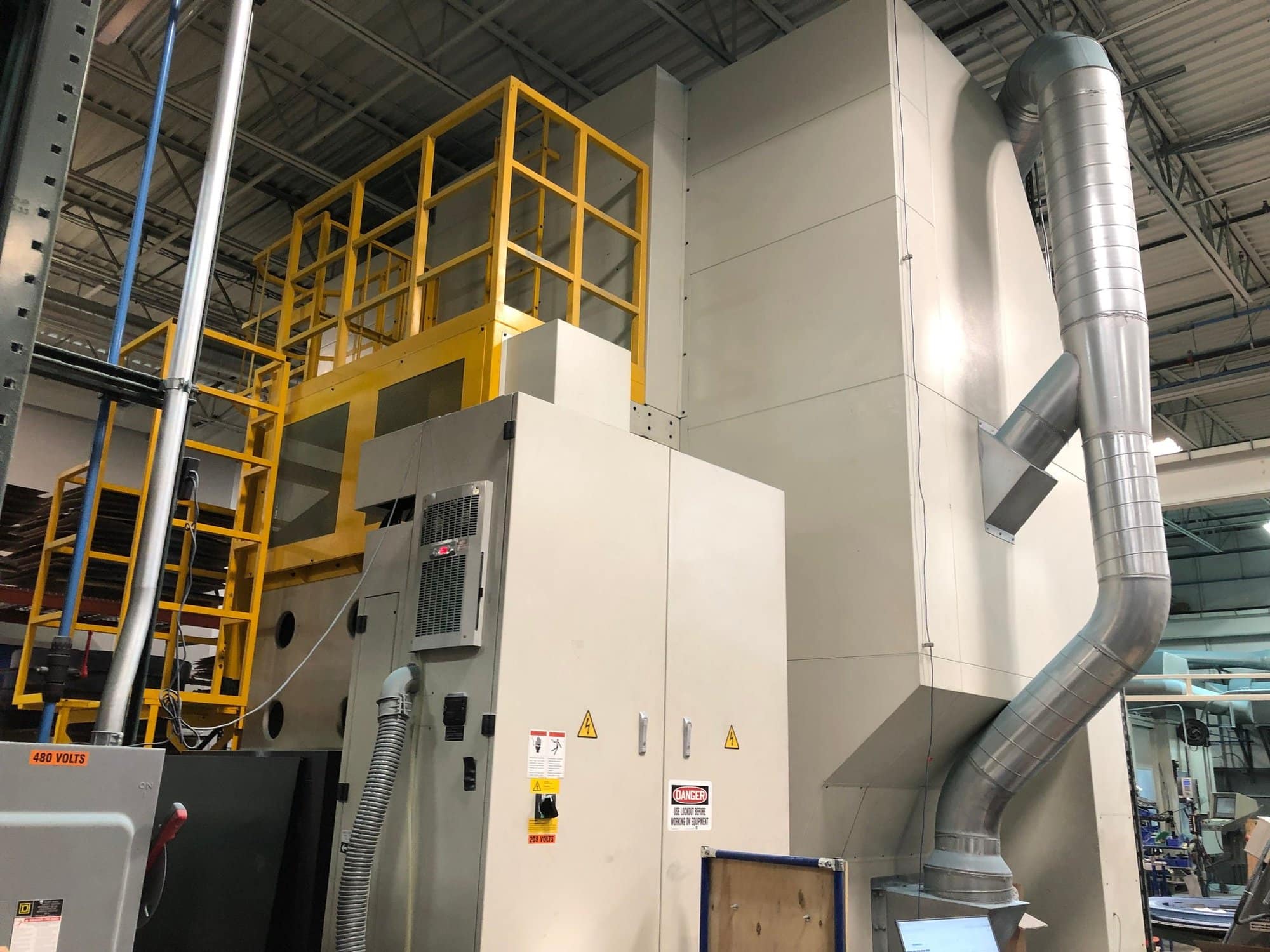

Chevalier FVL-1600VTC-C VTL, 2015 – Live Tooling, 63″ Chuck, Box Ways, C-Axis, Probe, Chip Conveyor
$309,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Diameter: 63″
Max Swing/Cutting Dia: 78.7″
Max Turning Height: 53″
Max Table Load: 22,000 lbs.
Spindle Speed: 25-2500RPM
Z Axis Stroke: 35.4″
X Axis Stroke: 45.7″
W Axis Stroke: 31.4″
Z Axis Rotation Speed: 3.33RPM
Table Motor: Up to 75kW (100 HP)
C Axis Cutting Feedrate: 0-1200 degrees/min
Box Way Structure
Table Size: Up to 1998.9mm (78.7″)
Equipped With:

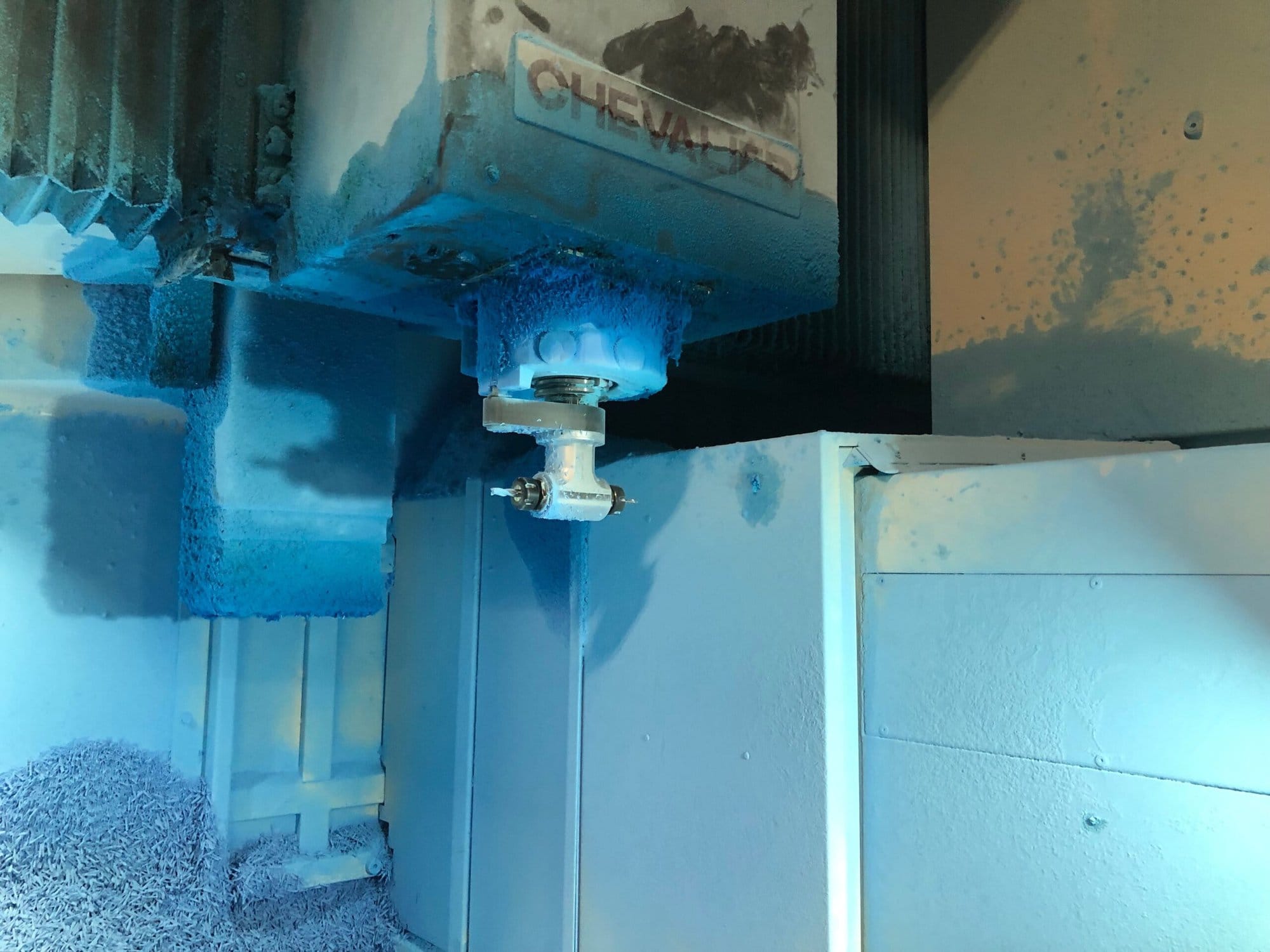

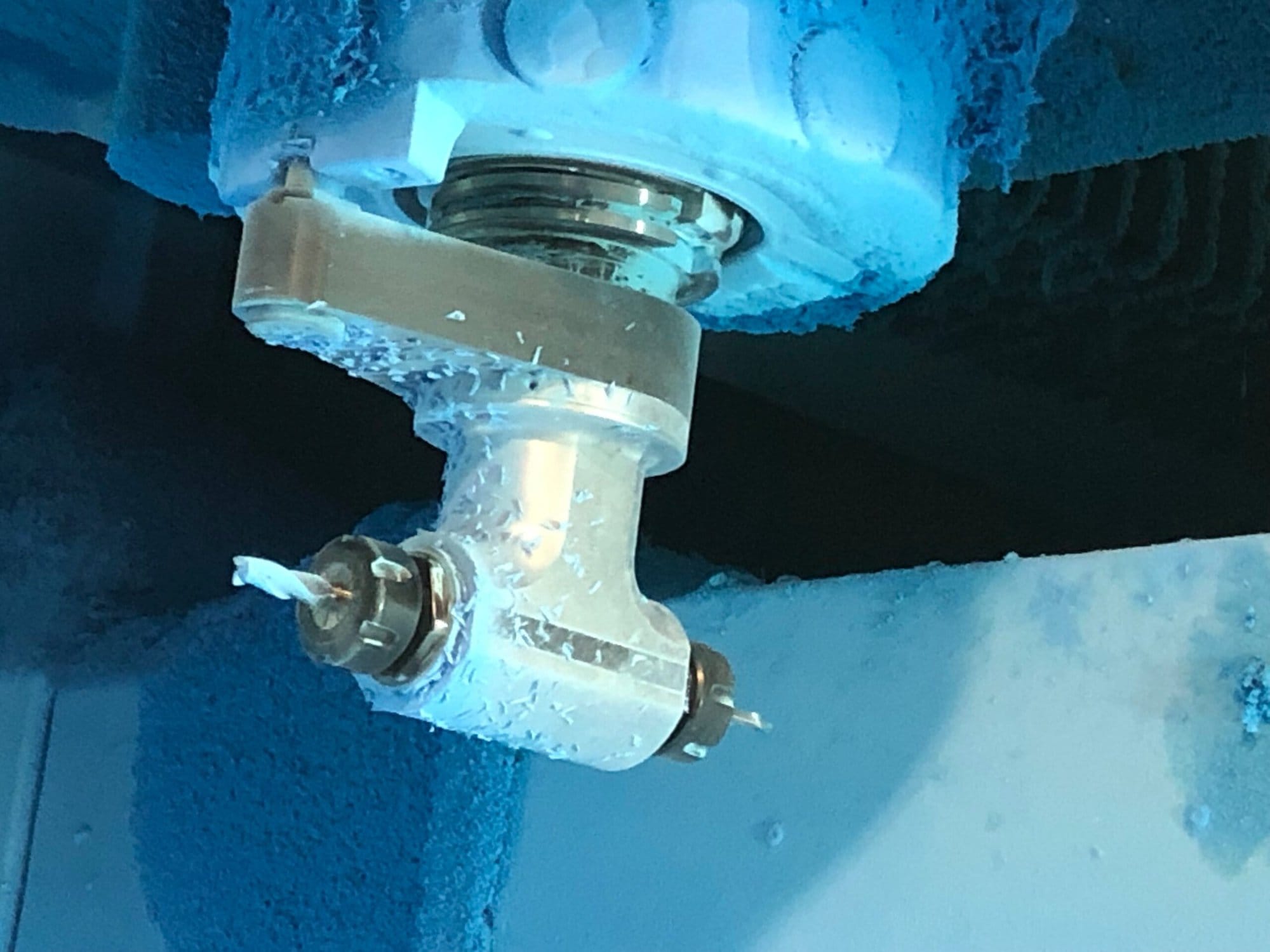

Live Tooling with C-Axis
Chip Conveyor
48 Tool Stations
Probe
Fanuc Control Option- Helical/Circular Threading

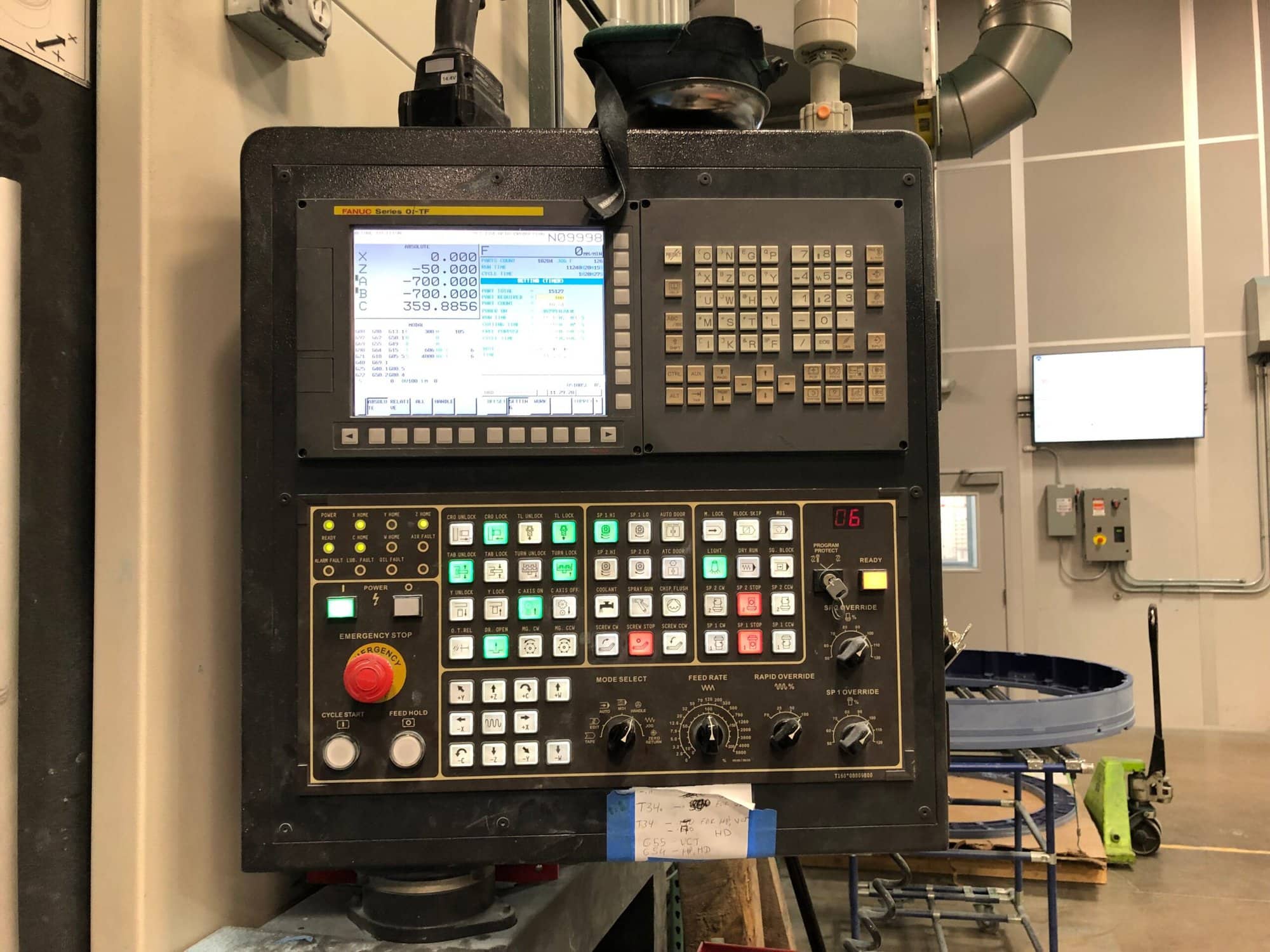

Fanuc 0i-TD Control
16 Carousel – VTC+C Series
X/Z-Rapid: 10 m/min (393ipm)
