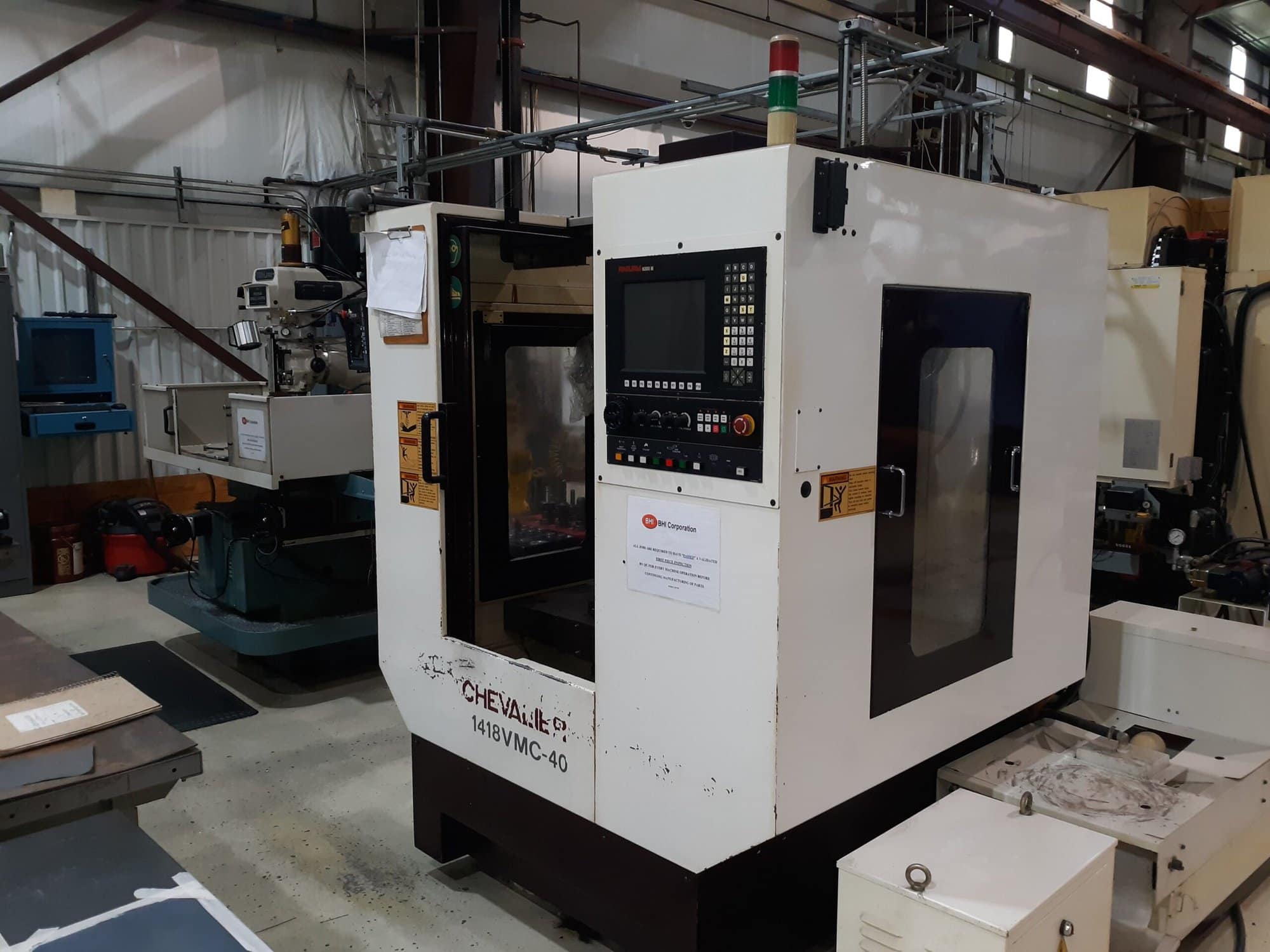

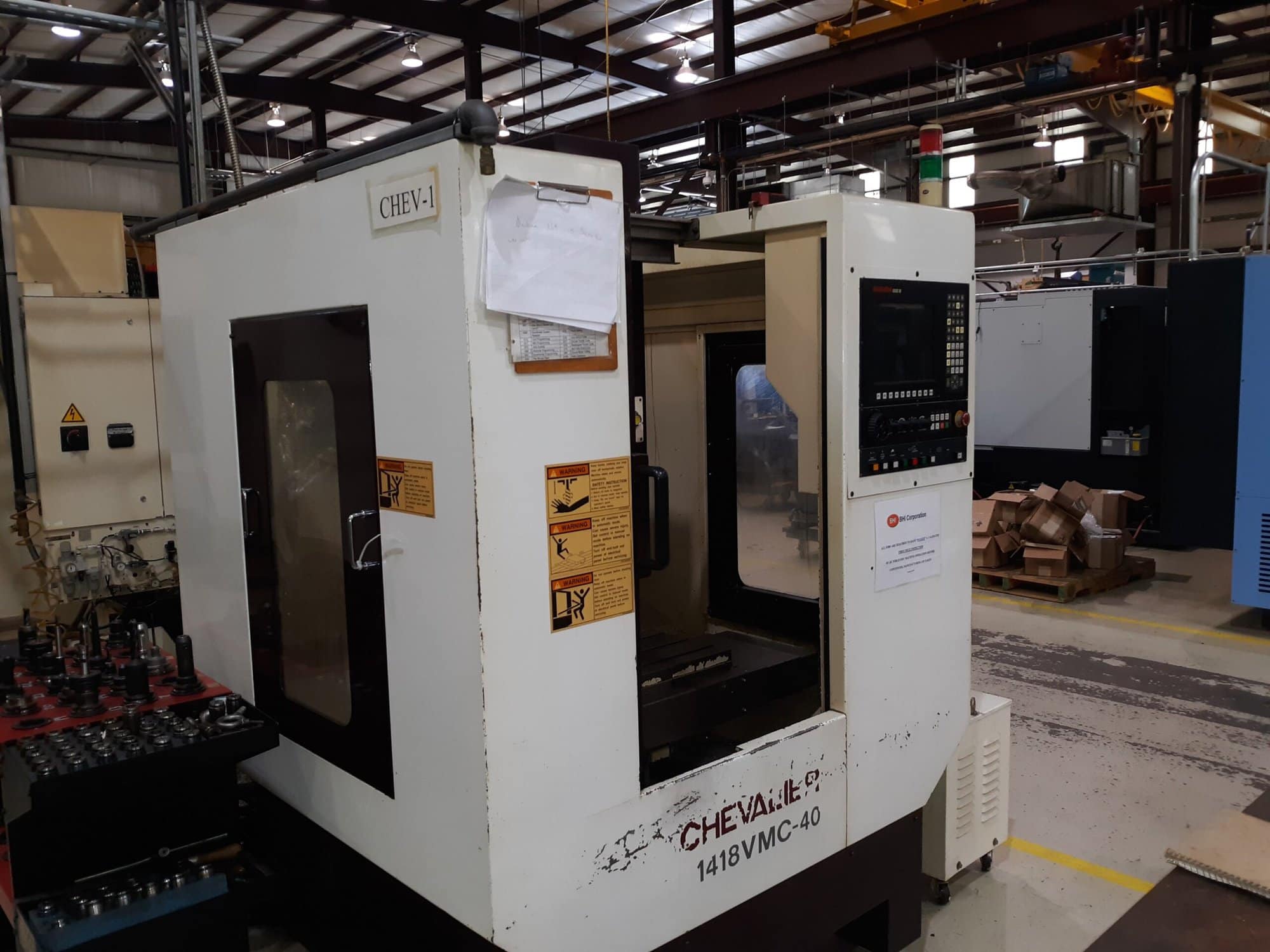

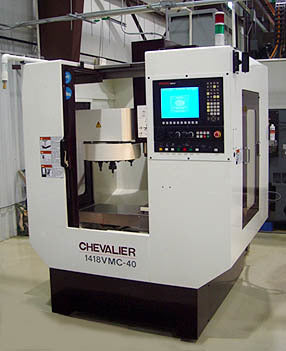

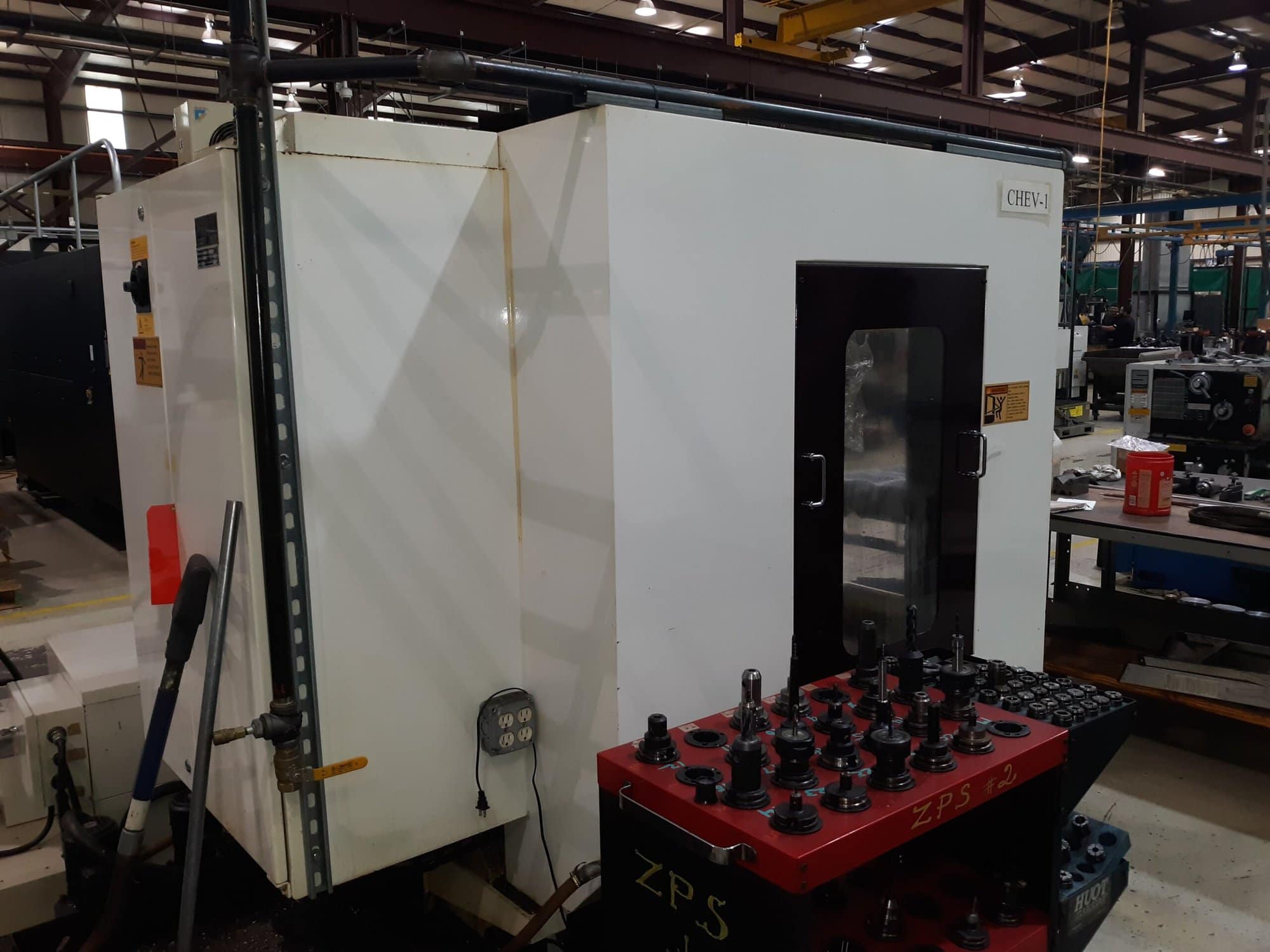

Chevalier 1418 VMC-40
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

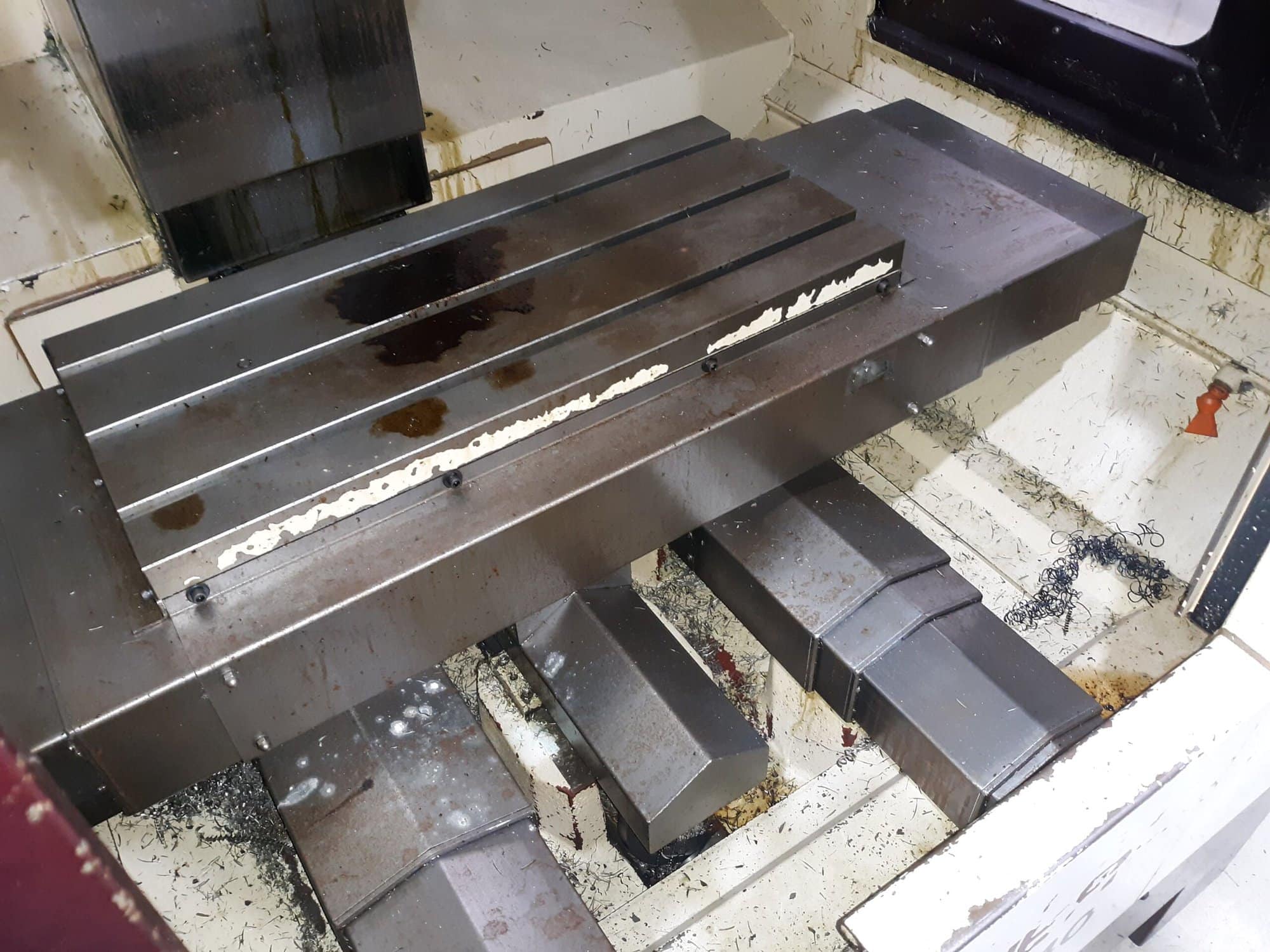

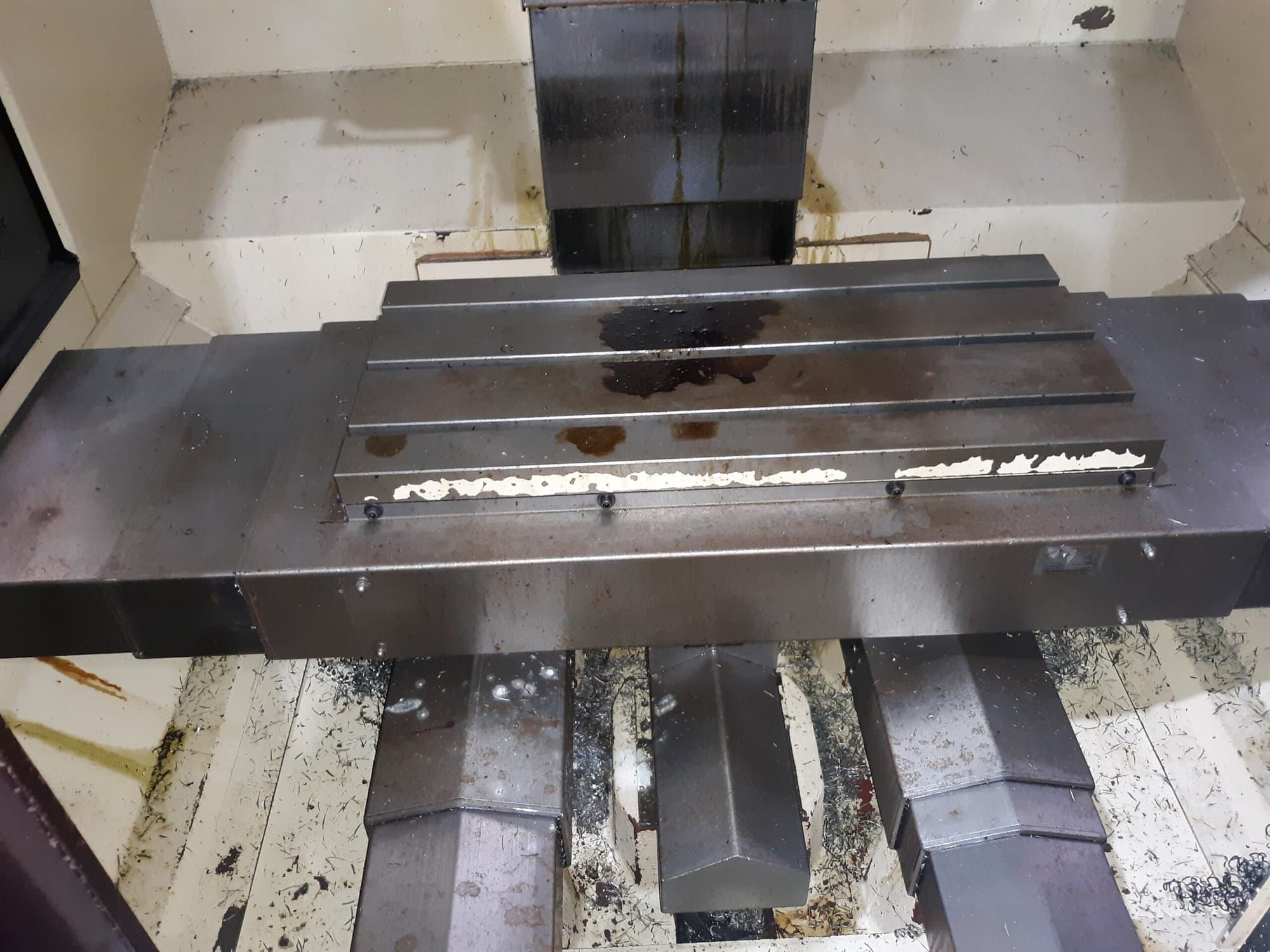

Table: Size 27.6″ x 12.5″
T-Slots: 3″x0.55″x3.84″
Max. Table load: 330 Lbs
Travels:
X travel: 17.7″
Y travel: 13.8″
Z travel: 15″

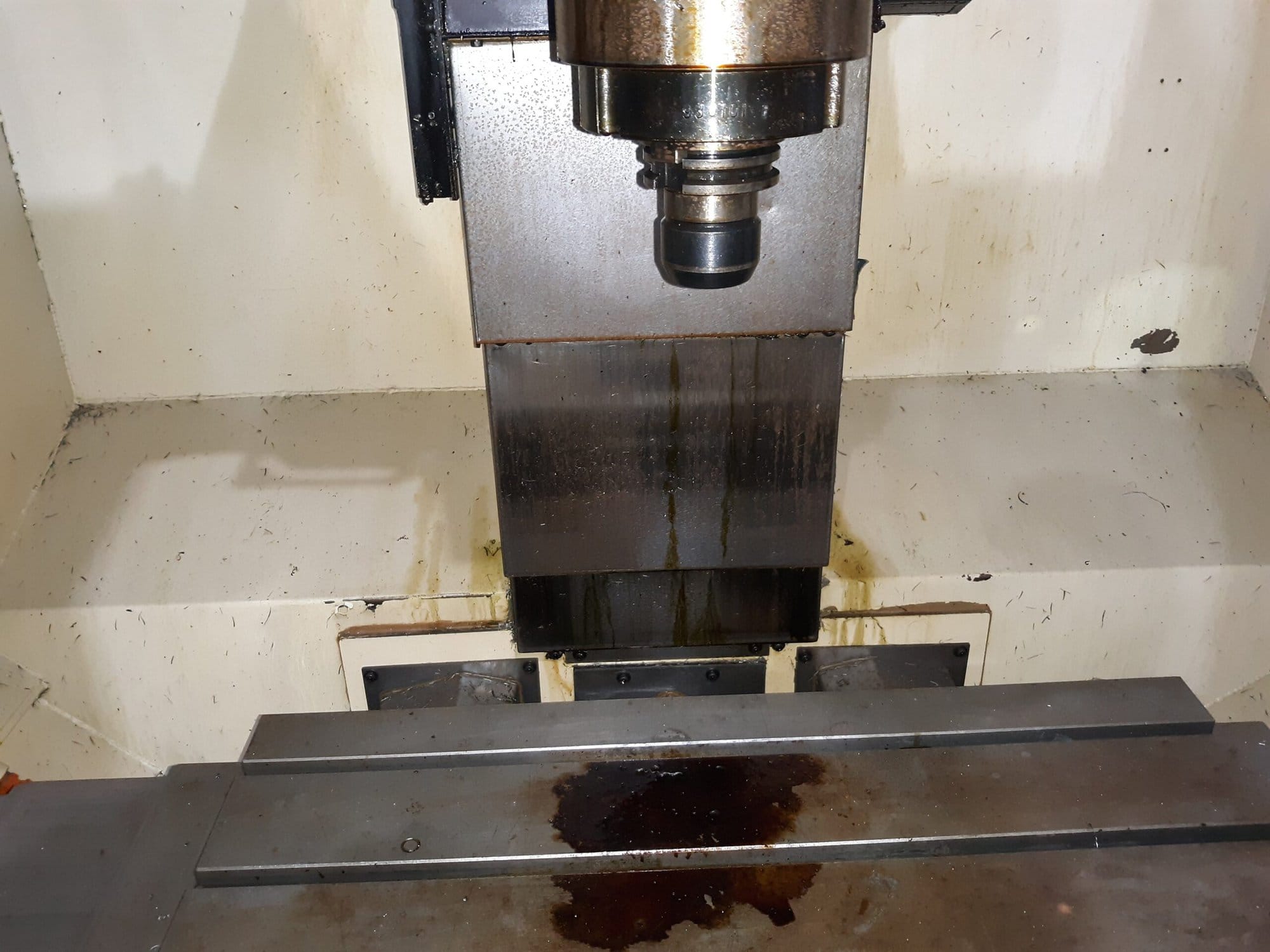

Spindle:
Nose to table: 5.9″ – 20.9″
Spindle center to column: 16.9″
Spindle taper: #40
Spindle speed: 80-10,000 RPM
Feedrates:
Rapid on X, Y & Z axes: 1417/1417/1417 IPM
Accuracy (When New):
Positioning: +/- 0.0002″
Repeatability: +/- 0.0001″

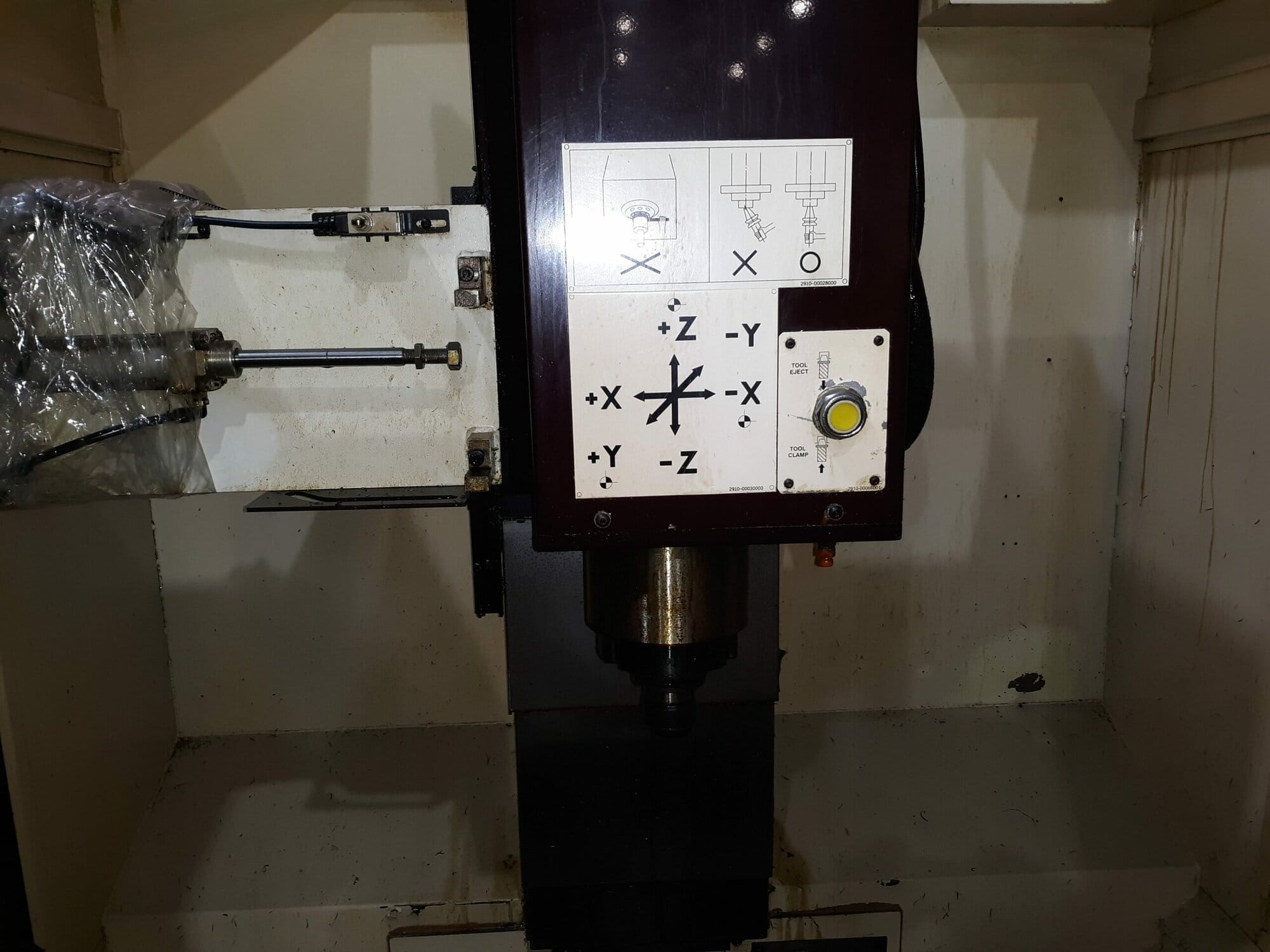

Tool changer:
Tool capacity: 12
Tool shank: CT-40
Pull stud JMBTA Std 45 Deg Motor:
Spindle motor: (30 Min) 11.4 HP
Drive motor: X & Y 1.3 HP
Drive motor: Z 1.9 HP
Note: Tool changer casting is broken, part is available
