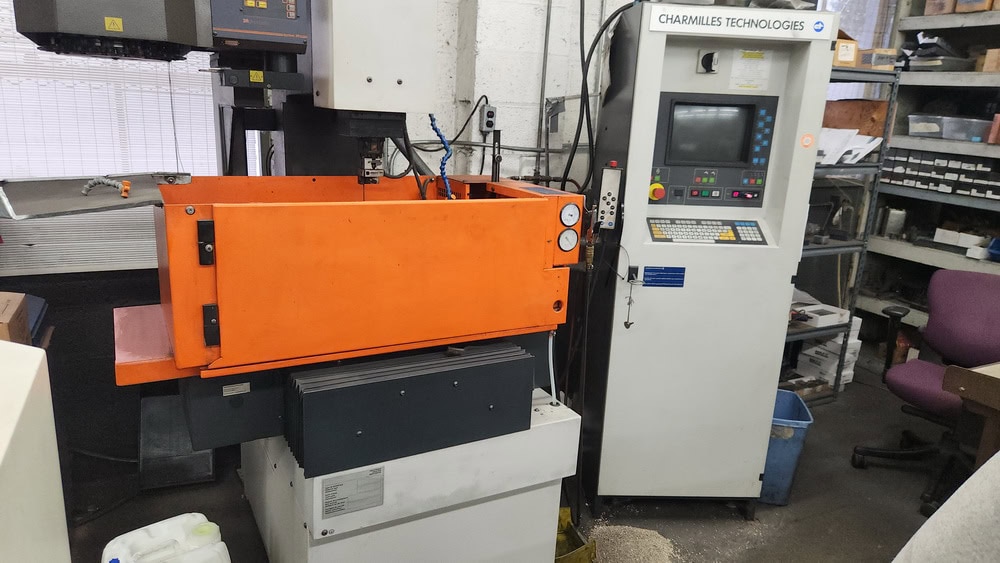

Charmilles Roboform 20A EDM Ram Sinker, 1999 – Chiller, C-Axis, 16 ATC, 3R Tooling

Name: Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling
SKU: 30480955737
Availability: InStock

$19,900.00

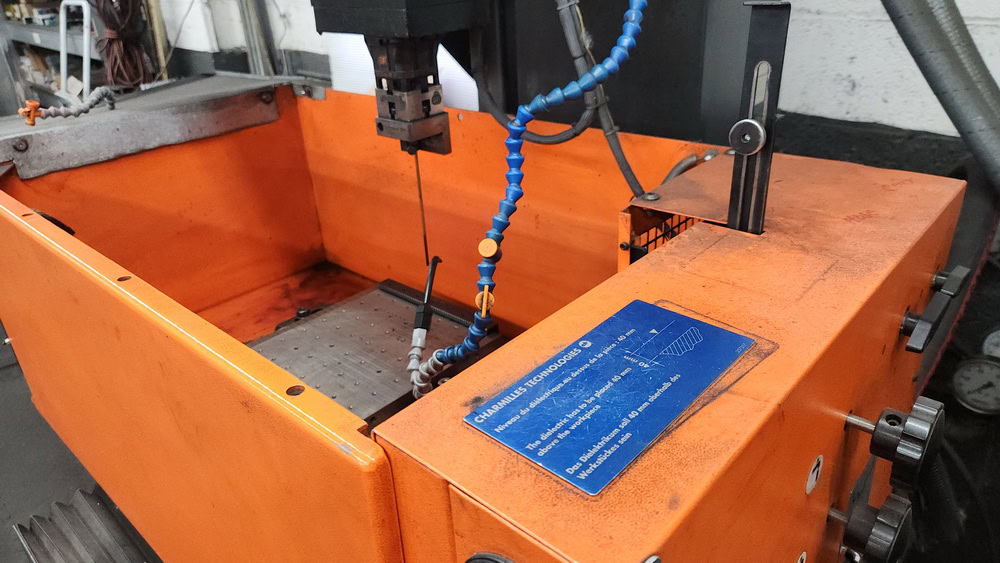

Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling - Image 2

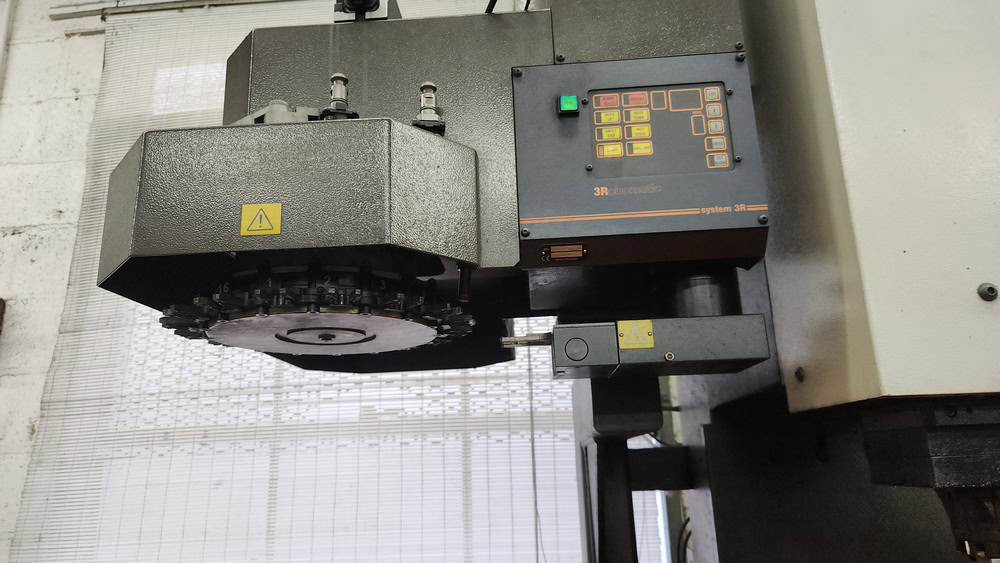

Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling - Image 3

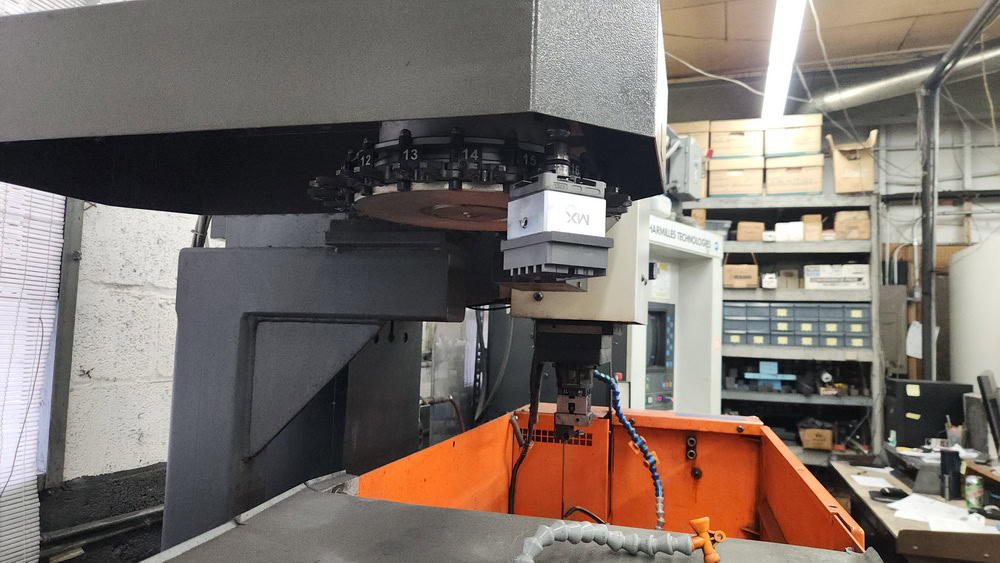

Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling - Image 4

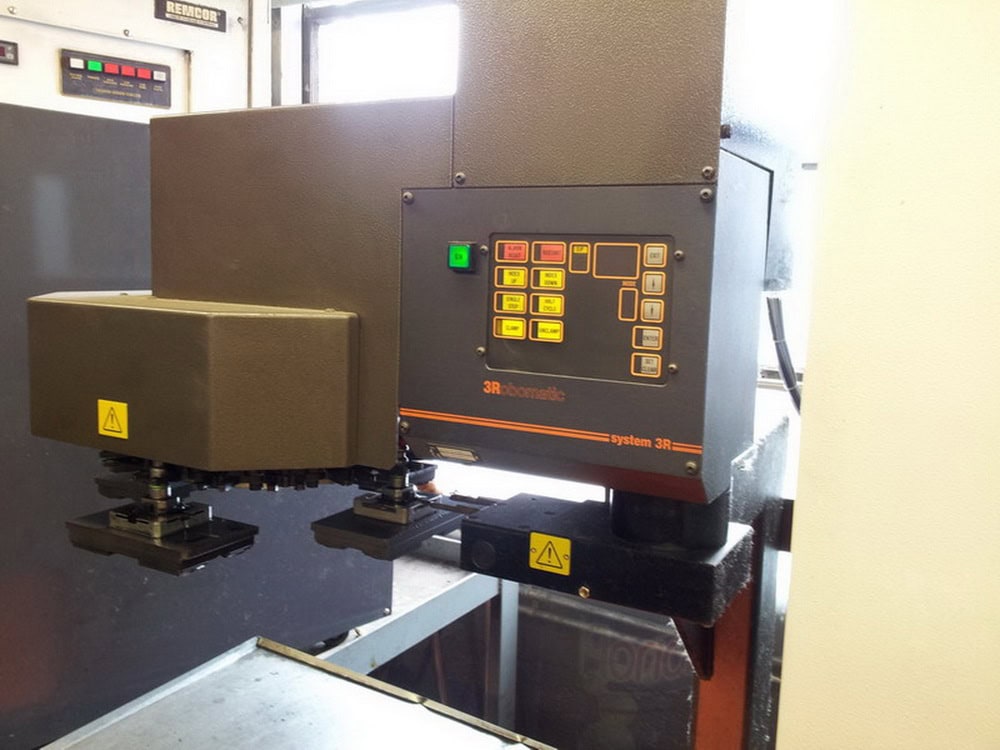

Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling - Image 5

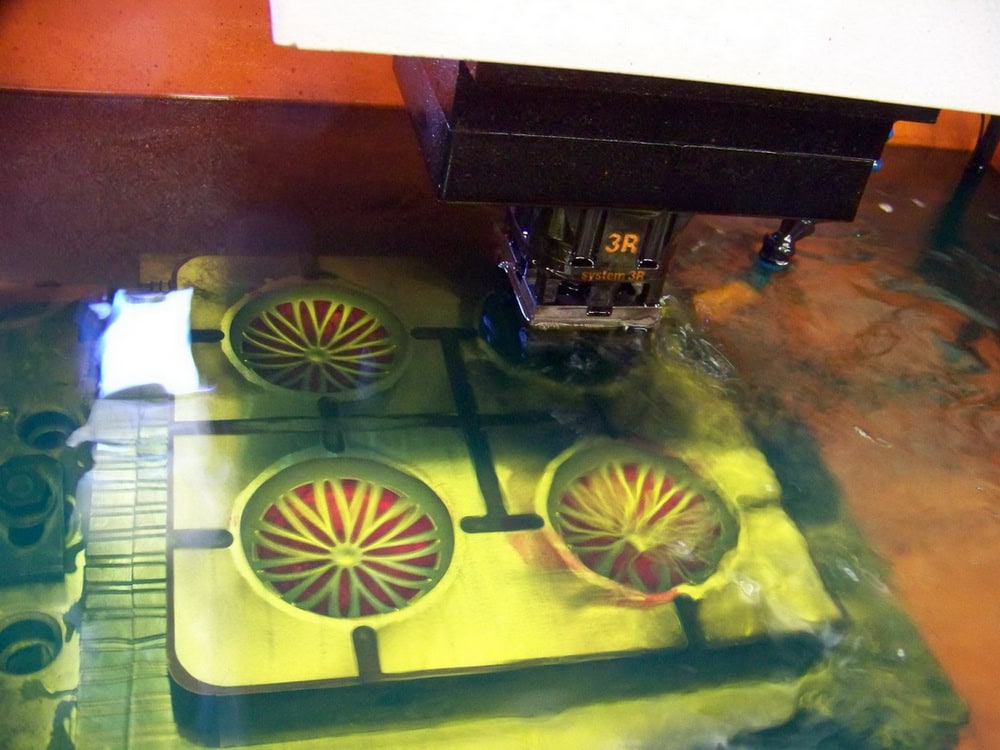

Charmilles Roboform 20A EDM Ram Sinker, 1999 - Chiller, C-Axis, 16 ATC, 3R Tooling - Image 6

Add to Wishlist

Request a Quote to Instantly See Pricing

Call Now

Machine Type: EDM
Make: Charmilles
Model: Roboform 20A
Year: 1999
Machine Location: New York
Stock #: 955737

Power Requirements: 400 volts/3 phase/60hz
X-Axis Travel: 11.81″
Y-Axis Travel: 9.85″
Z-Axis Travel: 9.85″
Max Workpiece Length: 27.56″
Max Workpiece Width: 19.69″
Max Workpiece Height: 10.24″
Work Tank Size: 25″ x 17″ x 9″
Table Working Surface: 15.7″ x 11.8″
Max. Workpiece Weight: 440 lbs

Equipped with:
Charmilles CNC Control
Chiller
16 Position Tool Changer
Rotating Indexing Spindle
3R Maco / coin interface
Assortment of 3R Electrode Holders
64 AMP Generator
12″ LCD Flat Screen

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
