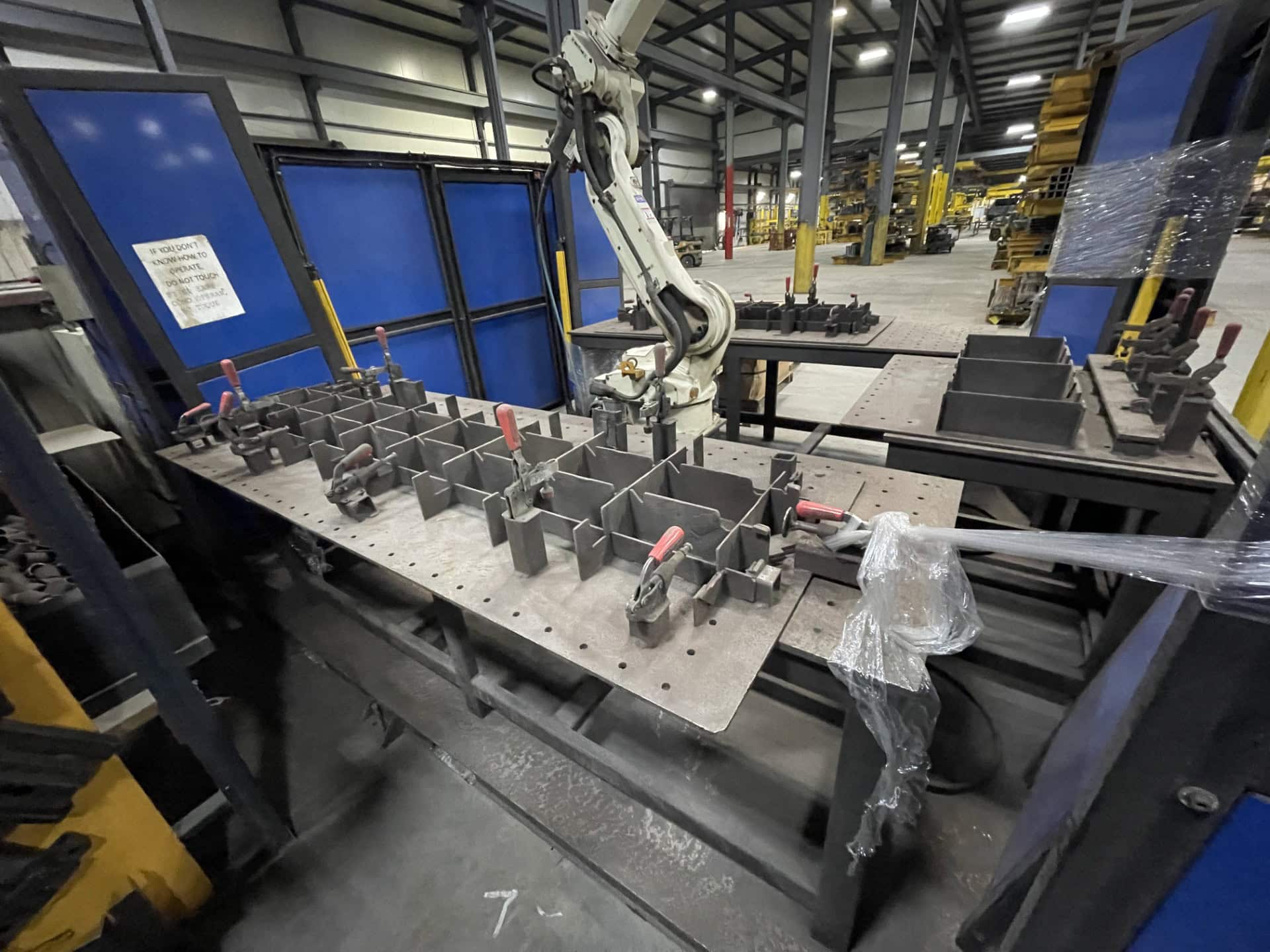

Capital Robotics FusionArc 300L 3-Station Weld Cell, 2018 – Daihen OTC FD-B6L 6-Axis Robot
$72,750.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Robot
Number Of Axes: 6
Working Range (R): 2008 mm (79″)
Max Payload Capacity: 6 Kg (13.2 Lbs)
Additional Payload (Axis 3): 20 Kg (44 Lbs)
Protection Class (Base & Lower Arm J1–J4): IP54 Equivalent
Protection Class (Upper Arm J5–J6): IP65 Equivalent
Installation Type: Floor, Wall, Ceiling
Weight: 278 Kg (613 Lbs)
Ambient Temperature: 0–45 °C
Humidity: 20–80 % RH (No Condensation)
Axis 1 Range: ±170° (+/–50° Note 2)
Axis 1 Max Speed: 225°/s (175°/s With Limitation)
Axis 2 Range: –155° To +100°
Axis 2 Max Speed: 205°/s
Axis 3 Range: –170° To +190°
Axis 3 Max Speed: 220°/s
Axis 4 Range: ±155° (+/–170° Note 4)
Axis 4 Max Speed: 430°/s
Axis 4 Wrist Load Inertia: 0.28 Kg·m²
Axis 5 Range: –45° To +225°
Axis 5 Max Speed: 430°/s
Axis 5 Wrist Load Inertia: 0.28 Kg·m²
Axis 6 Range: ±205° (+/–360° Note 4,5)
Axis 6 Max Speed: 630°/s
Axis 6 Wrist Load Inertia: 0.06 Kg·m²
Welding Power Source
Rated Output: 500A (DC) / 400A (Pulse)
Output Adjustment Range: 30-500A (DC) / 30-400A (Pulse)
Rated Load Voltage: 39.0V (DC) / 34.0V (Pulse)
Rated Input Power: 25.2kVA, 24.1kW
Rated Input Current: 31.6A
Rated Duty Cycle: 60% (DC) / 80% (Pulse)
Mass: approximately 158.7 lbs
Dimensions: approximately 15.6 in x 28.0 in x 31.9 in
Welding Process: CO2/MAG/MIG (with pulse)
Equipped With:

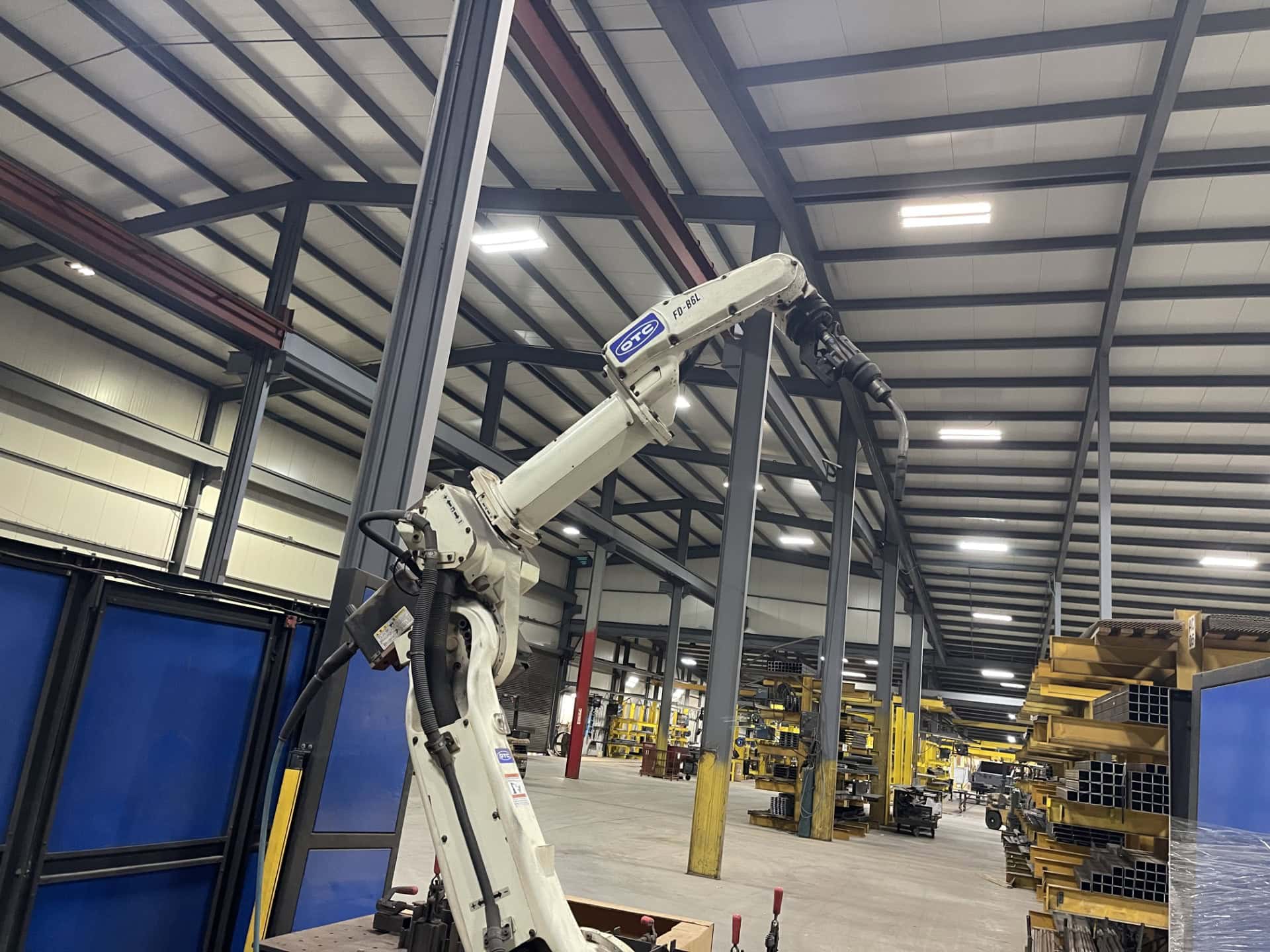

Daihen OTC FD-B6L 6-Axis Robotic Welding Manipulator

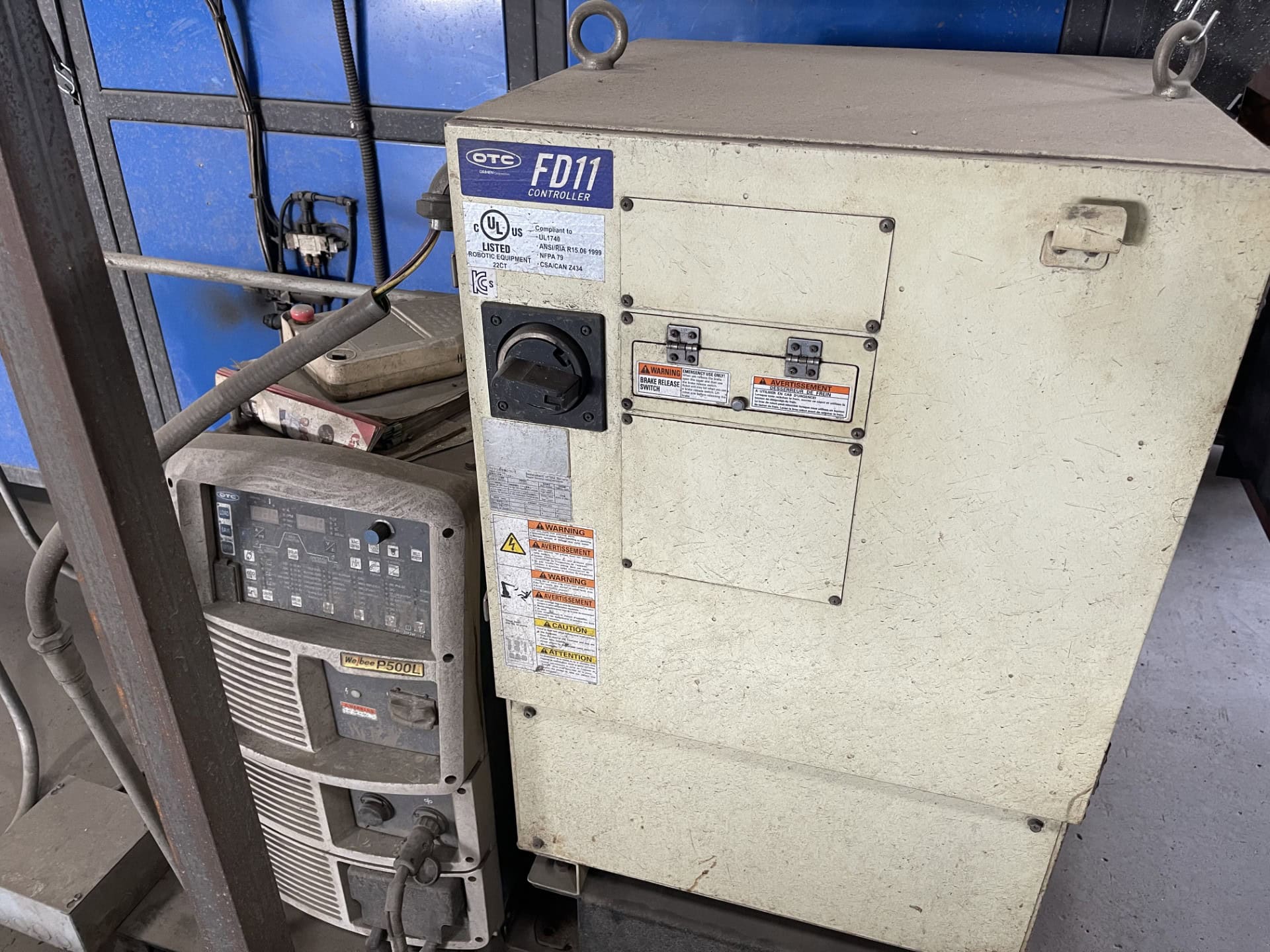

Daihen OTC Welbee WB-P500L Power Source
Light Curtains
Pneumatic Air Door
All Additional Parts, Accessories, Grease, Etc.
