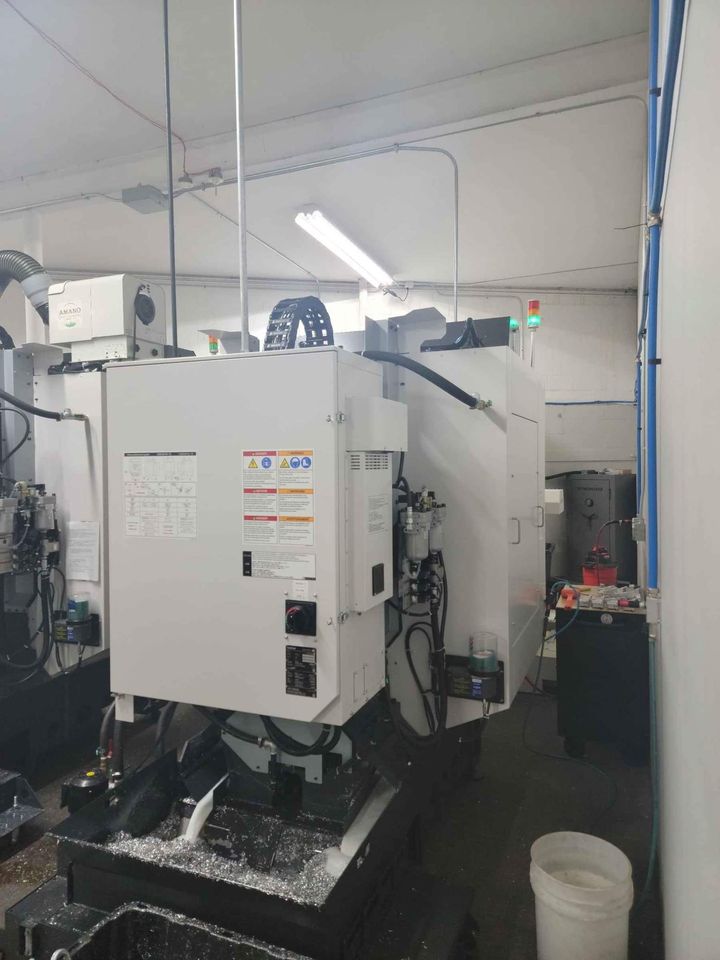

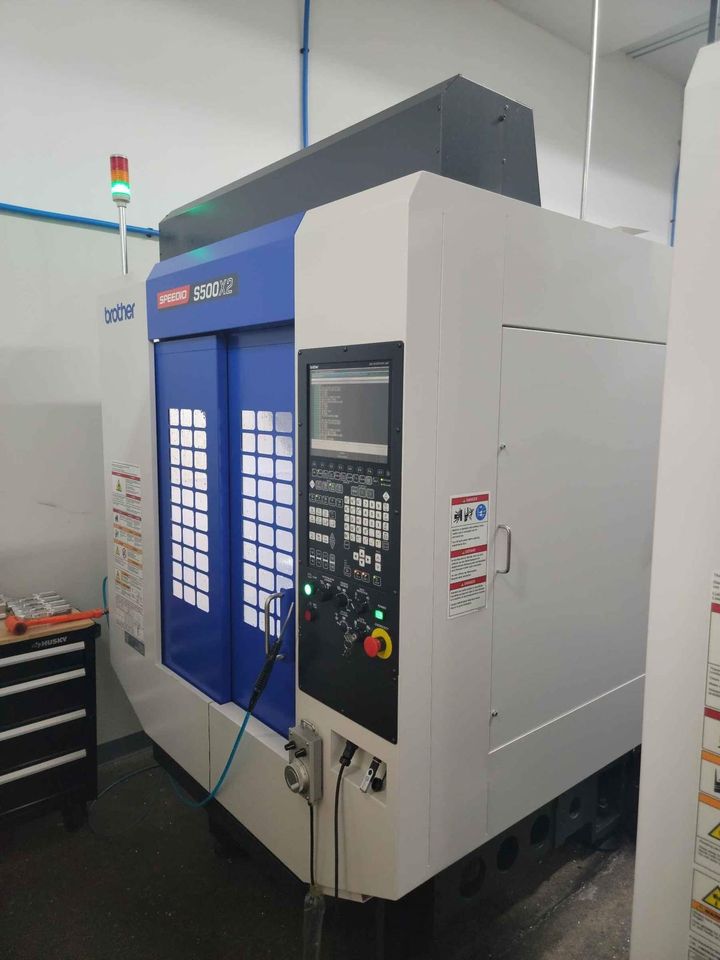

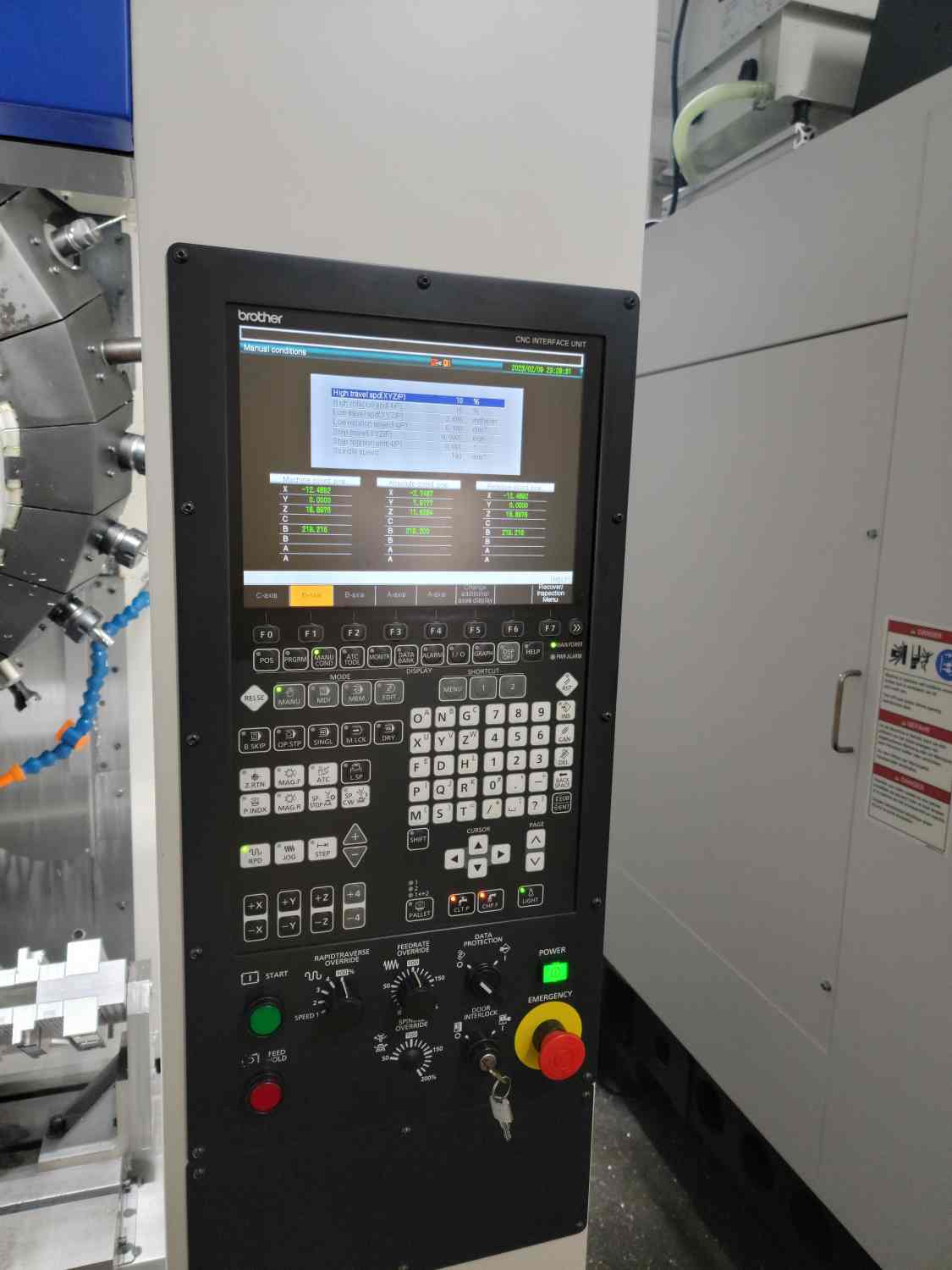

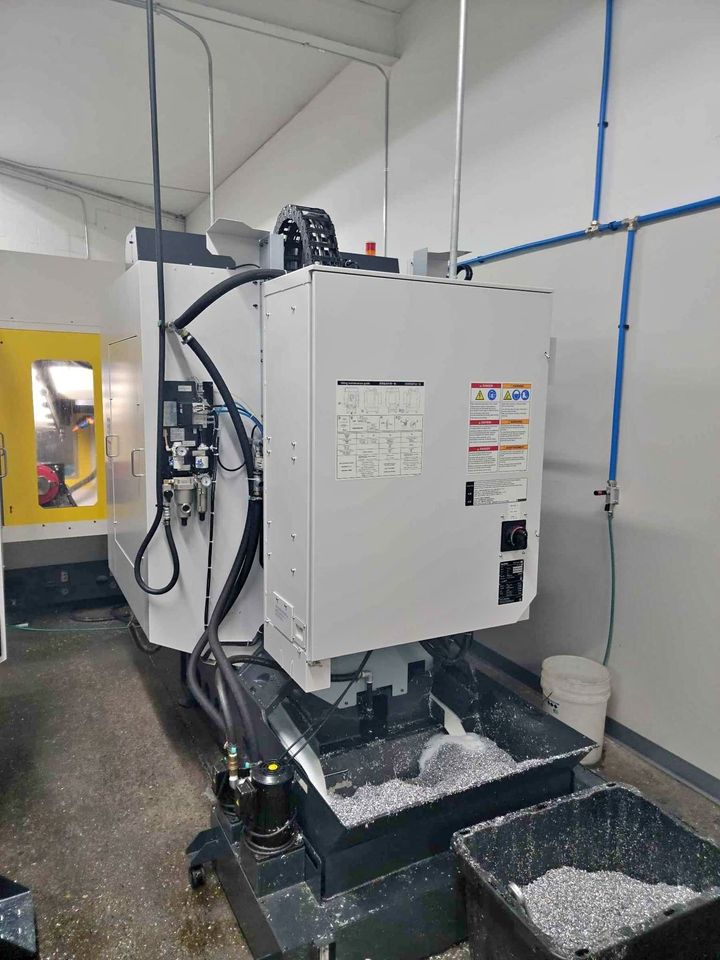

Brother Speedio S 500X2 4-Axis CNC Drill Tap VMC, 2020
$84,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
X Axis Travel: 19.7″
Y Axis Travel: 15.7″
Z Axis Travel: 11.8″
Spindle RPM: 16,000
Tapping RPM: 6,000/8,000
Rapid Traverse: 1,969 IPM (2205 Z-Axis)
Cutting Feed rate X, Y, Z: 1~30,000 (0.04 ~ 1,181) when using high accuracy mode

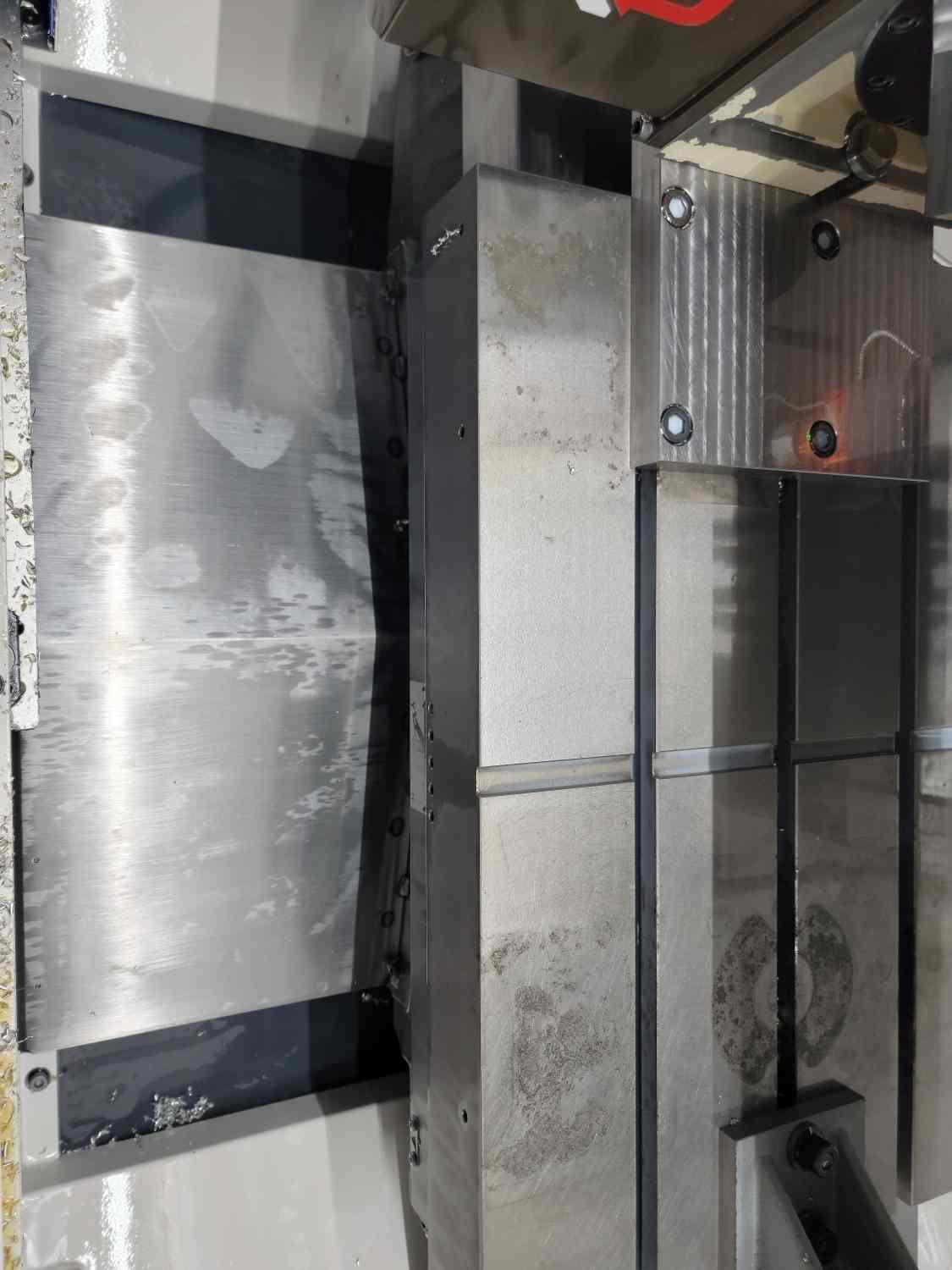

Table Size: 23.4″ x 15.7″
Maximum Loading Capacity: 551 Lbs

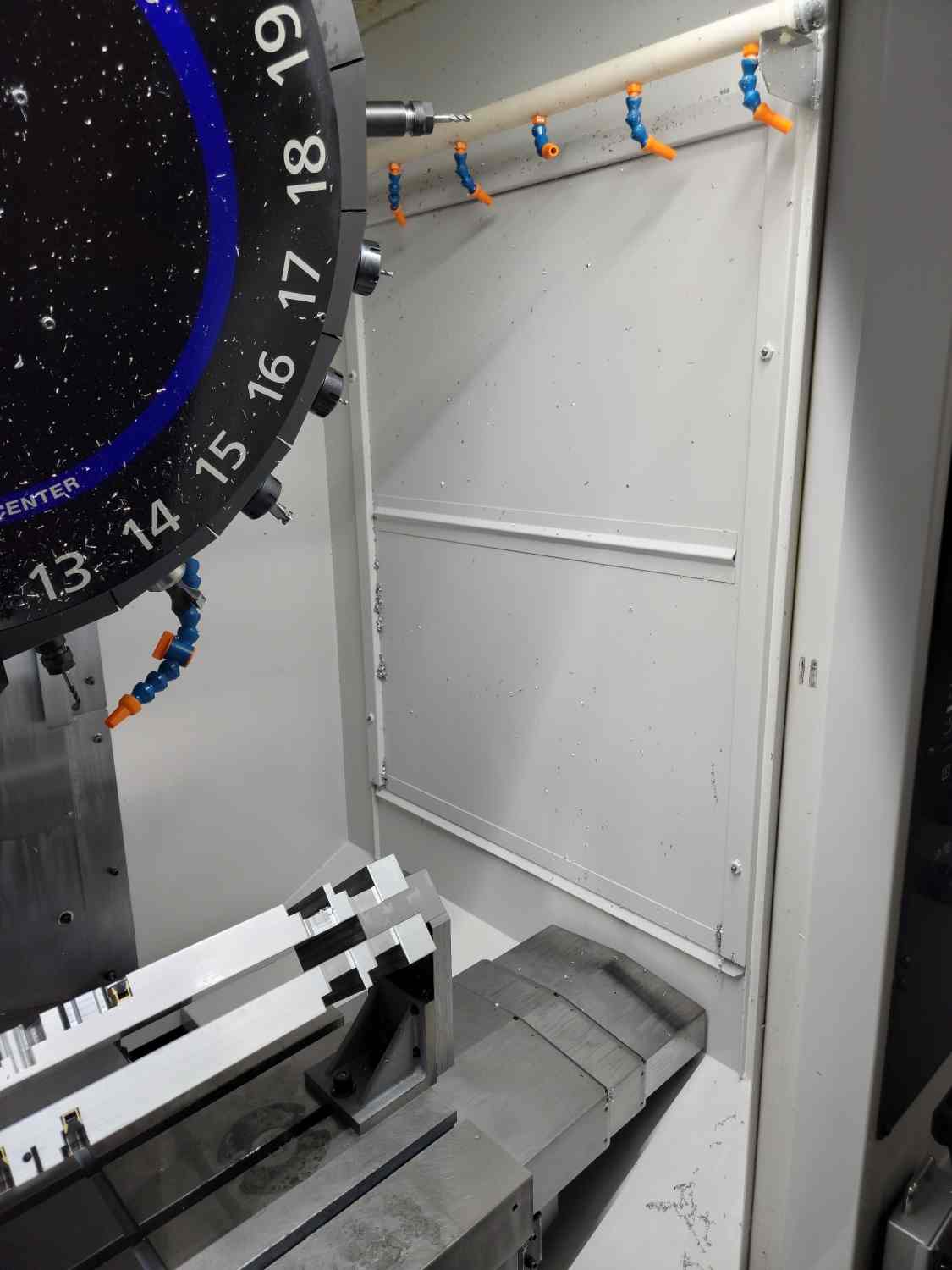

ATC Capacity: 21
Tool To Tool Time? 0.7 sec
Chip to Chip Time? 1.3 sec
Tool Shank Type: MAS-BT30
Maximum Tool Length: 9.8″
Maximum Tool Diameter: 4.3″
Maximum Tool Weight: 6.6 Lbs
Overall Dimensions (L x D x H): 61.4 x 87.4 x 106 inches / 1,560 x 2,200 x 1,080
Machine Weight: 4,960 lbs
Equipped With:

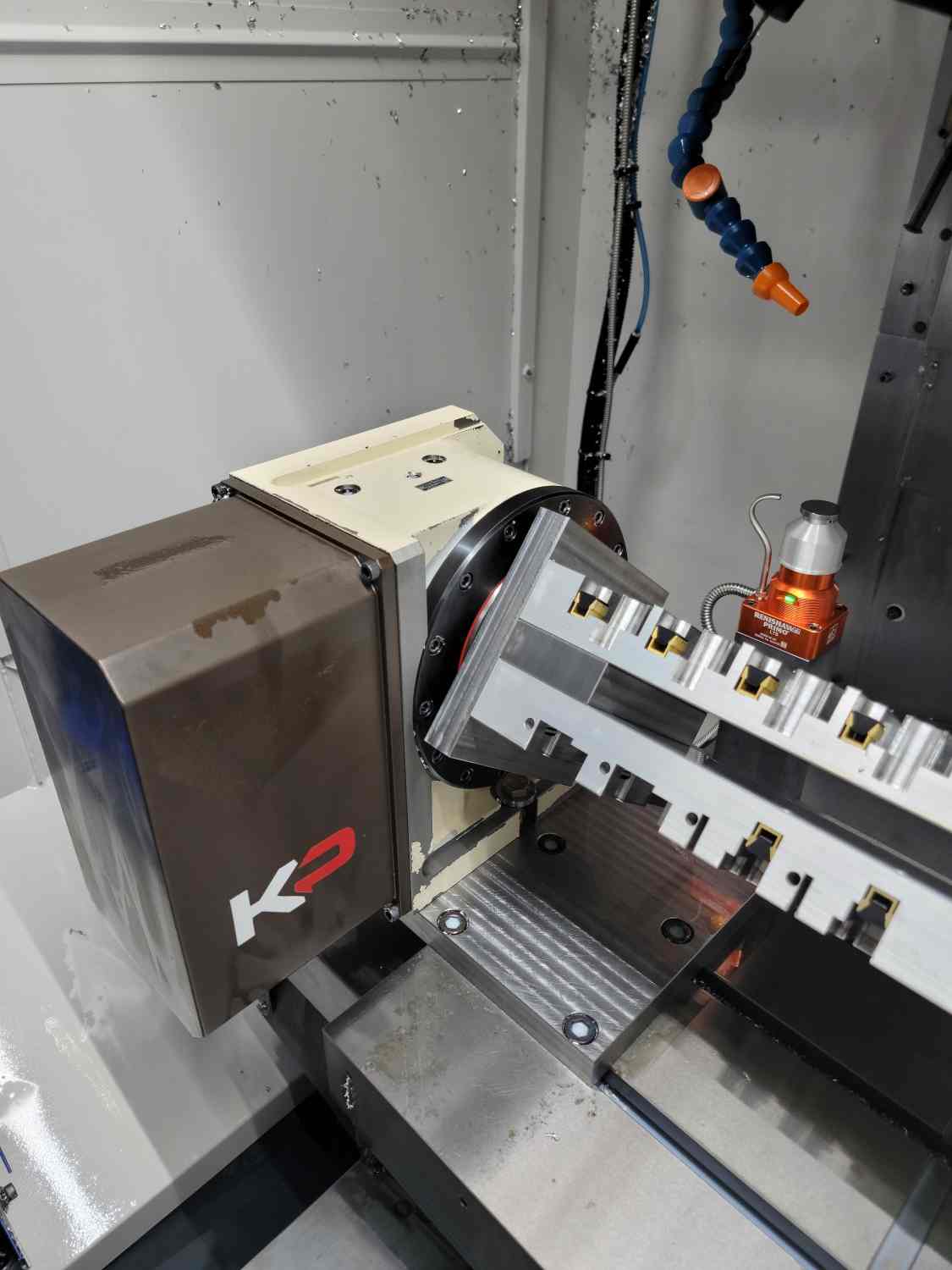

Koma RWE200 4th Axis Indexer

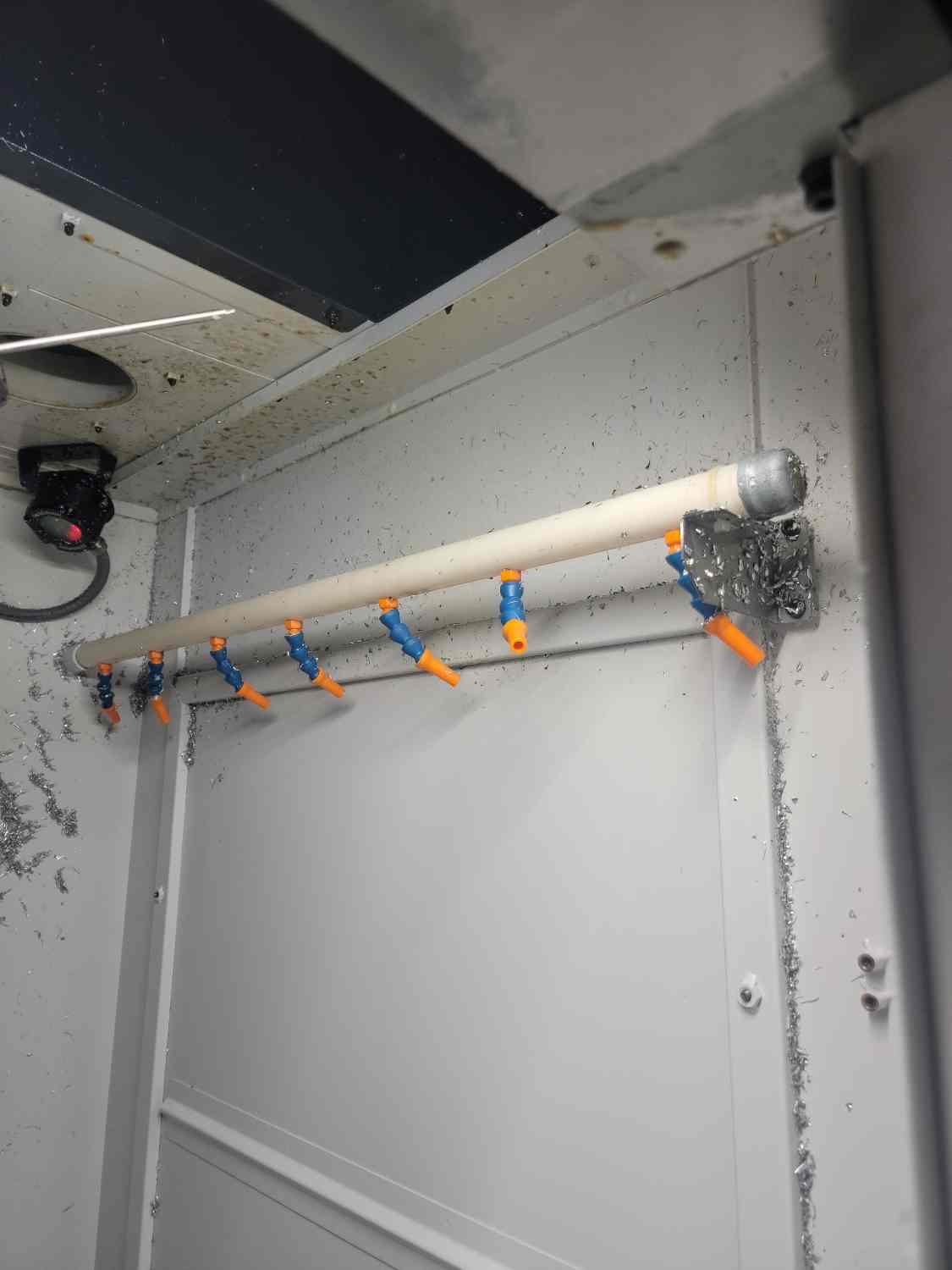

150L Chip Tank with Chip Flush
RWE-200L Indexer System
Renishaw Tool Breakage Detection
