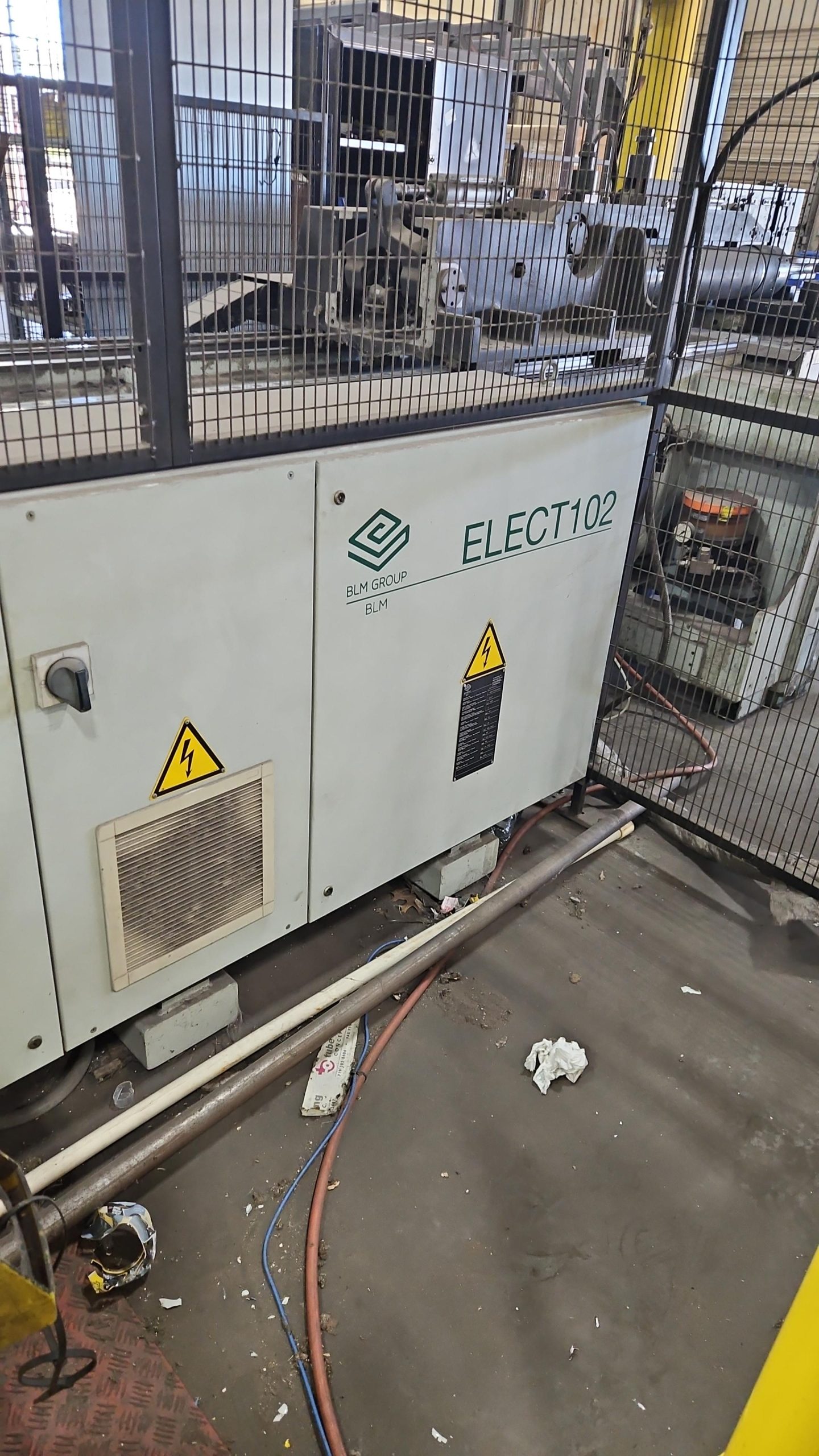

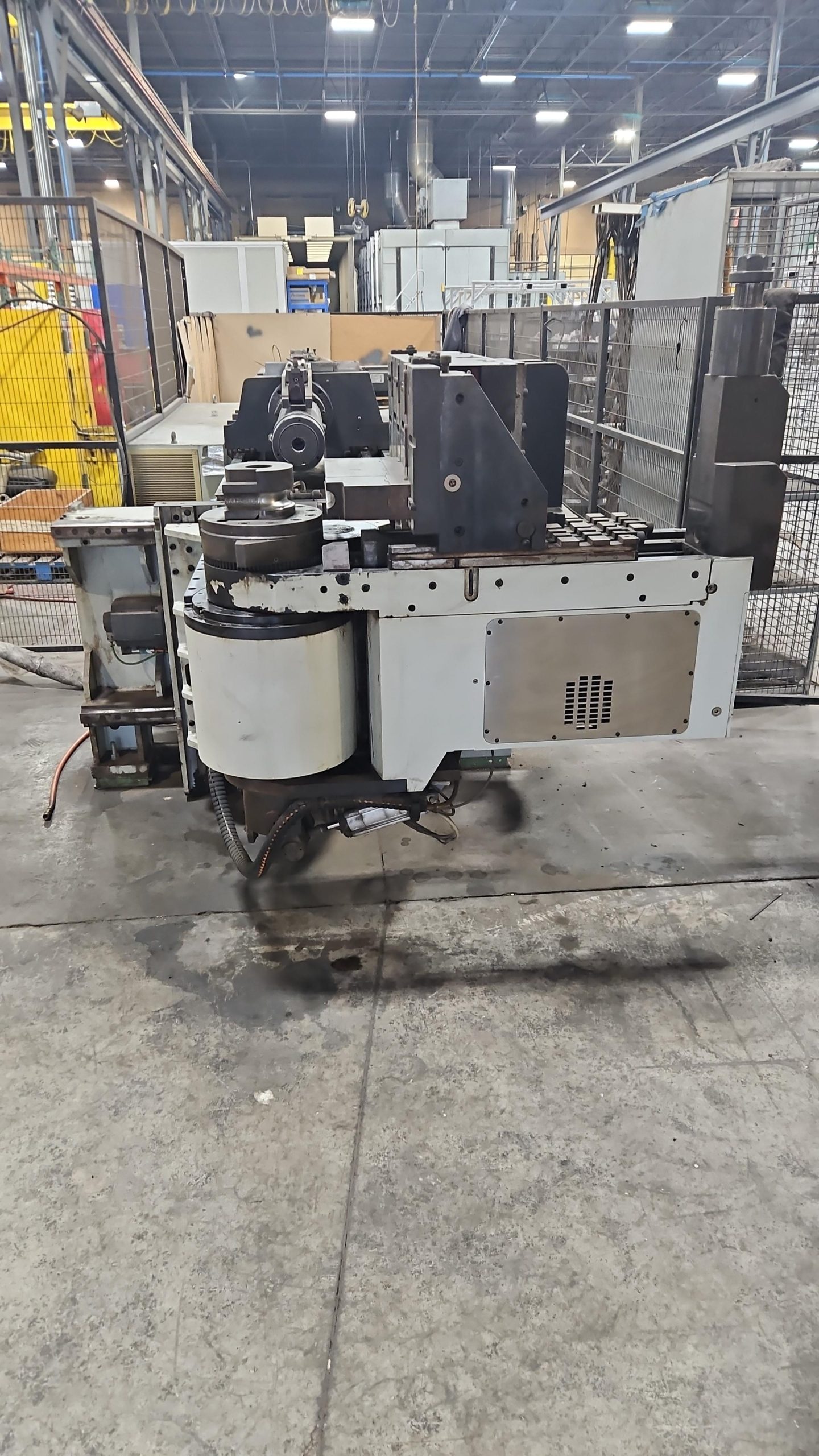

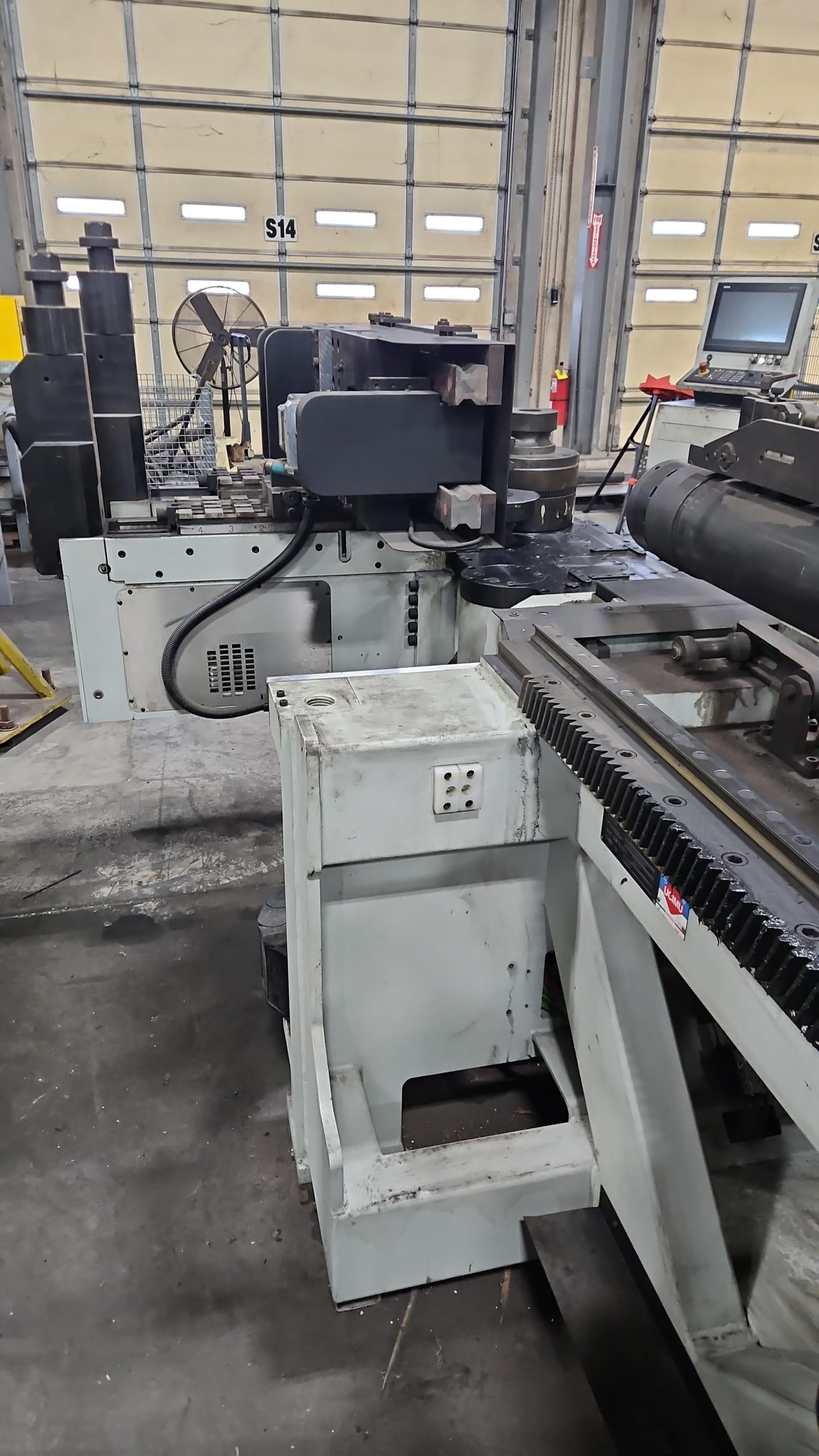

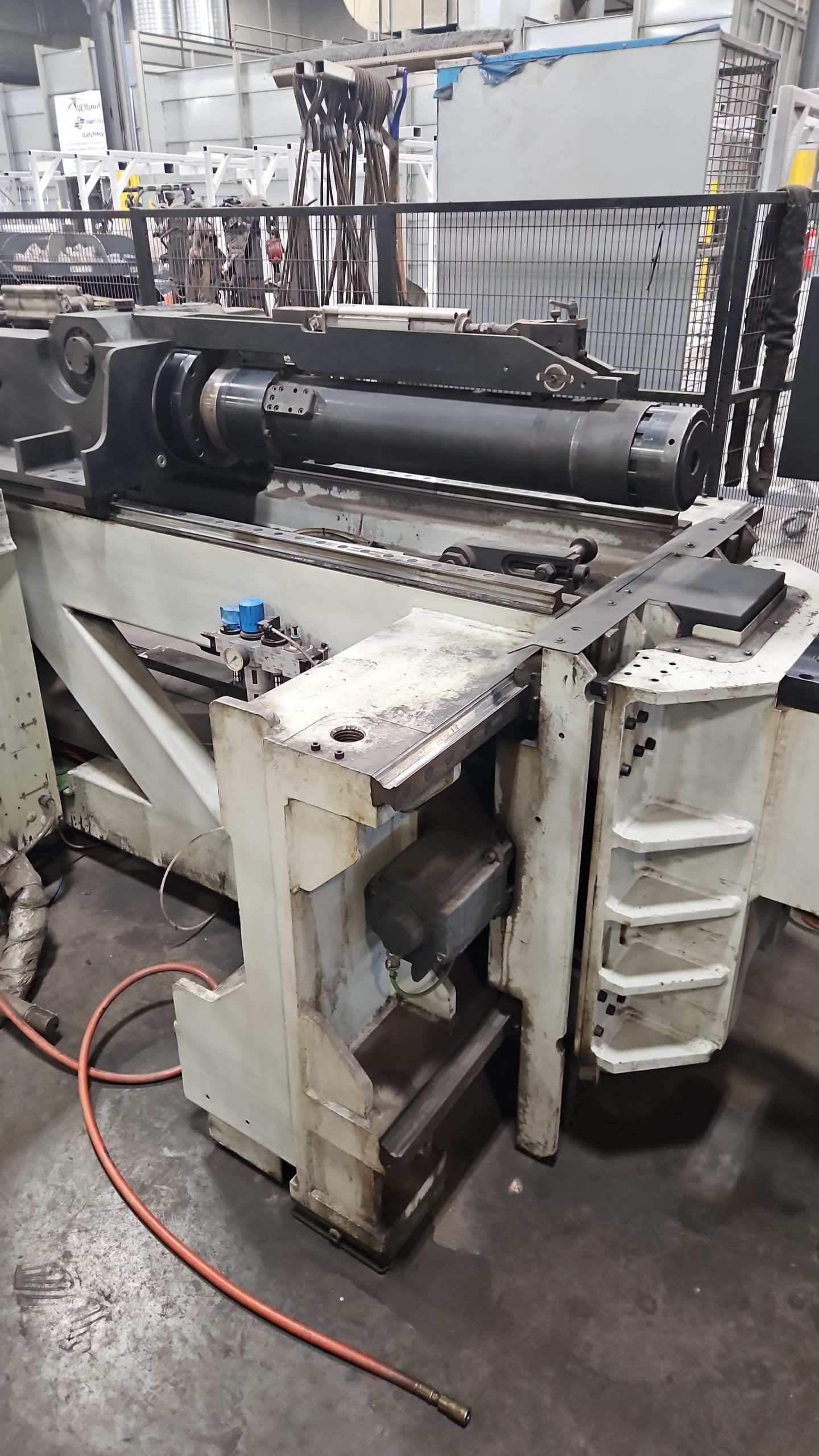

BLM Elect 102 Tube Bender, 2017
$324,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: Max Tube OD of 4″/ 102mm
Bending Direction: In-process right or left-handed, convertible.
Tooling: Multi-stack, up to 8 tools simultaneously, suitable for fixed or variable radii.
Axes: All-electric, 8+2 optional.
Accuracy: Y and Z axes: 0.05″
X-axis: 0.002″
Performance: Boost power up to 60,000 N allowing for tight radius bends without deformation.

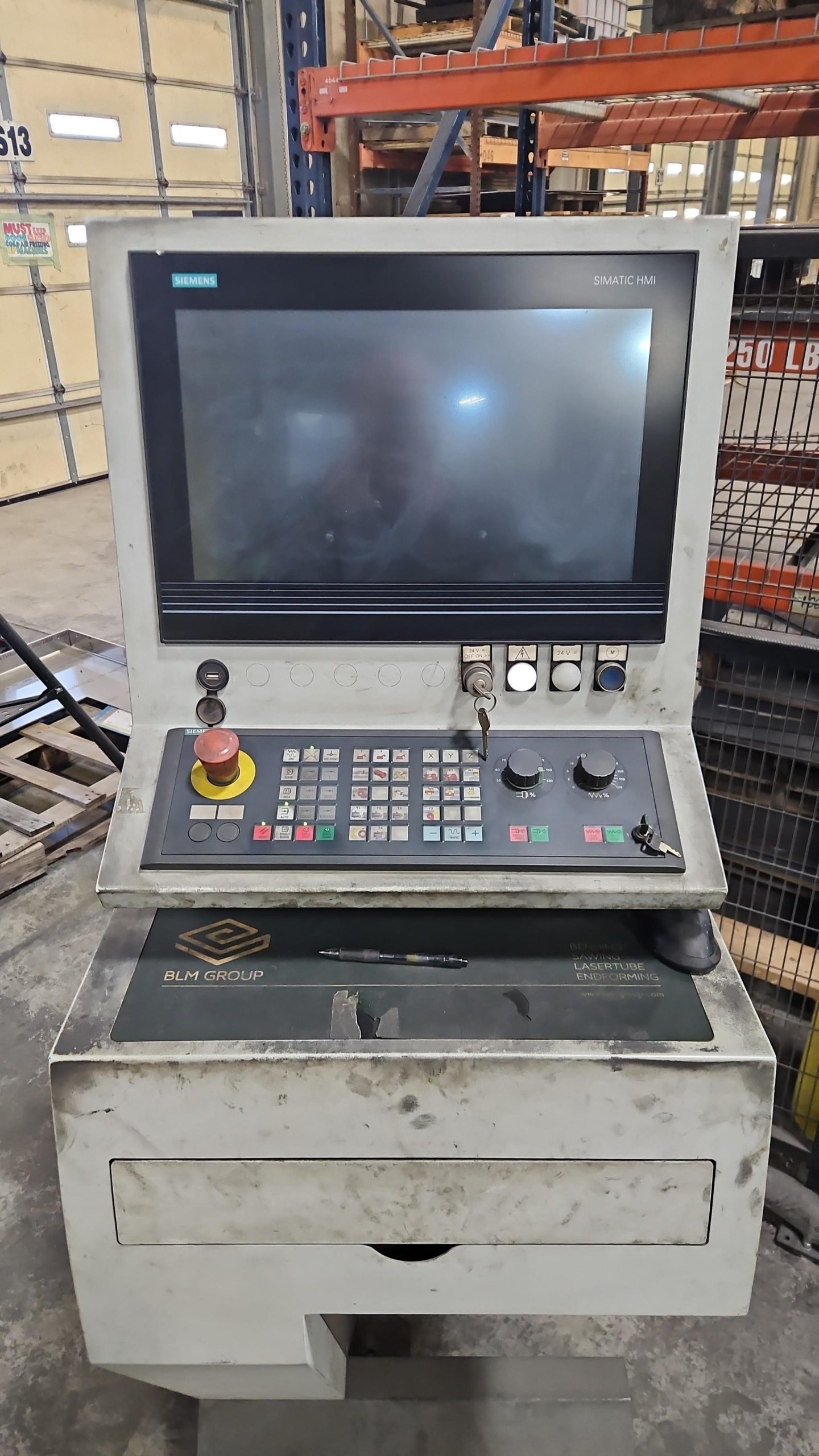

Control/Software: SIEMENS Simotion D435-2 CNC, utilizing VGP3D graphical software.
Dimensions/Weight: Approx. 35,000LBS
The 2017 BLM Elect 102 is an all-electric, CNC mandrel tube bending machine capable of handling tubes up to 4.0″ (102mm) OD. It features multi-stack, right/left-hand in-process bending with up to 12 axes, high precision (0.005″ for Y/Z axes), and an average noise level of 65db(A)
Spec Sheet Available Upon Request
