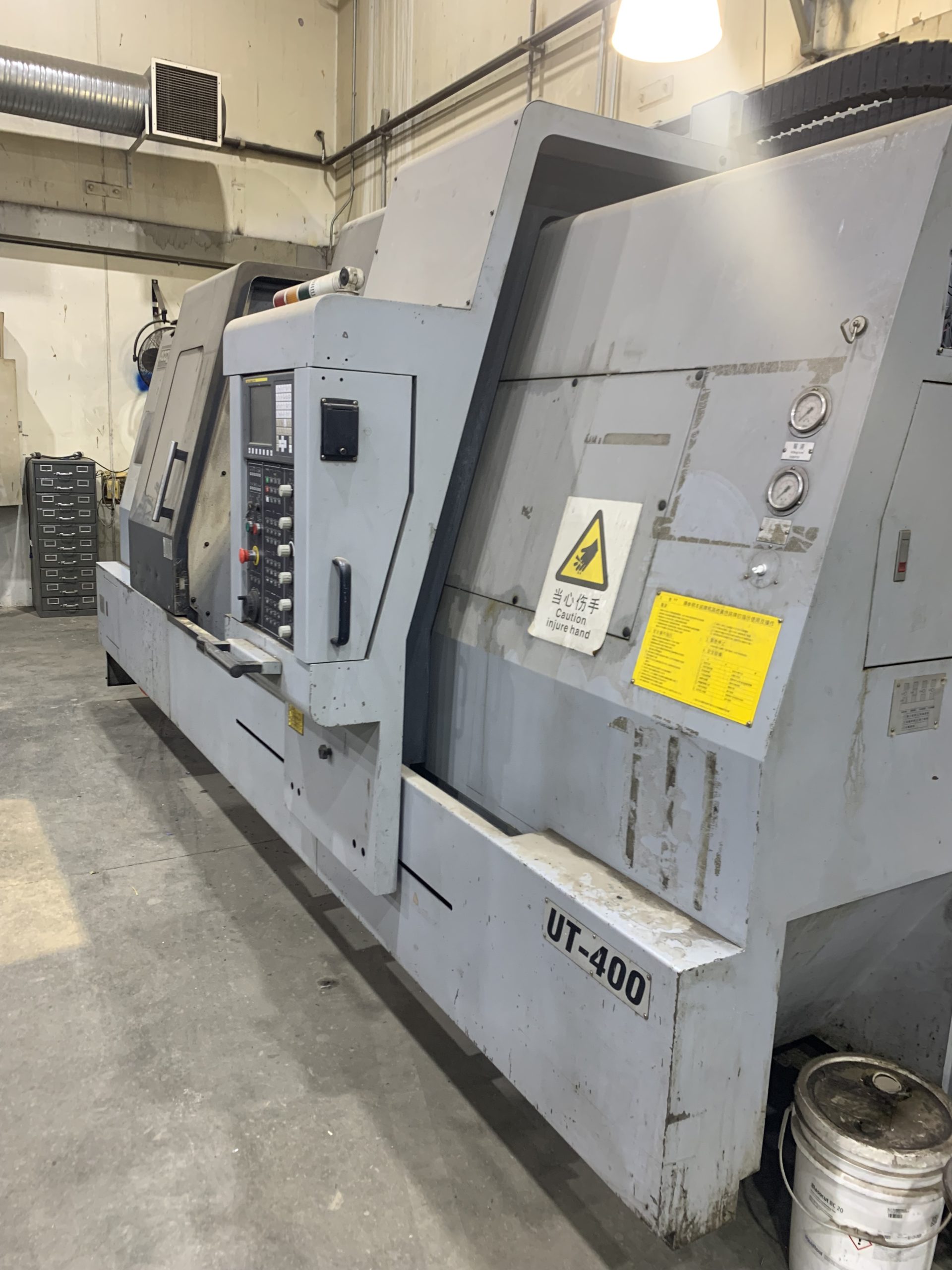

AccuWay UT-400LX CNC Lathe, 2012- 8″ spindle bore, Chip Conveyor, Tailstock
$79,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 30”
Swing Over Carriage: 29.33”
Distance Between Centers: 60”
Maximum Turning Diameter: 27.56”
Maximum Turning Length: 51.18”
Main Chuck Diameter: 24”
Spindle Speed: 800 RPM
Spindle Nose: A2-15

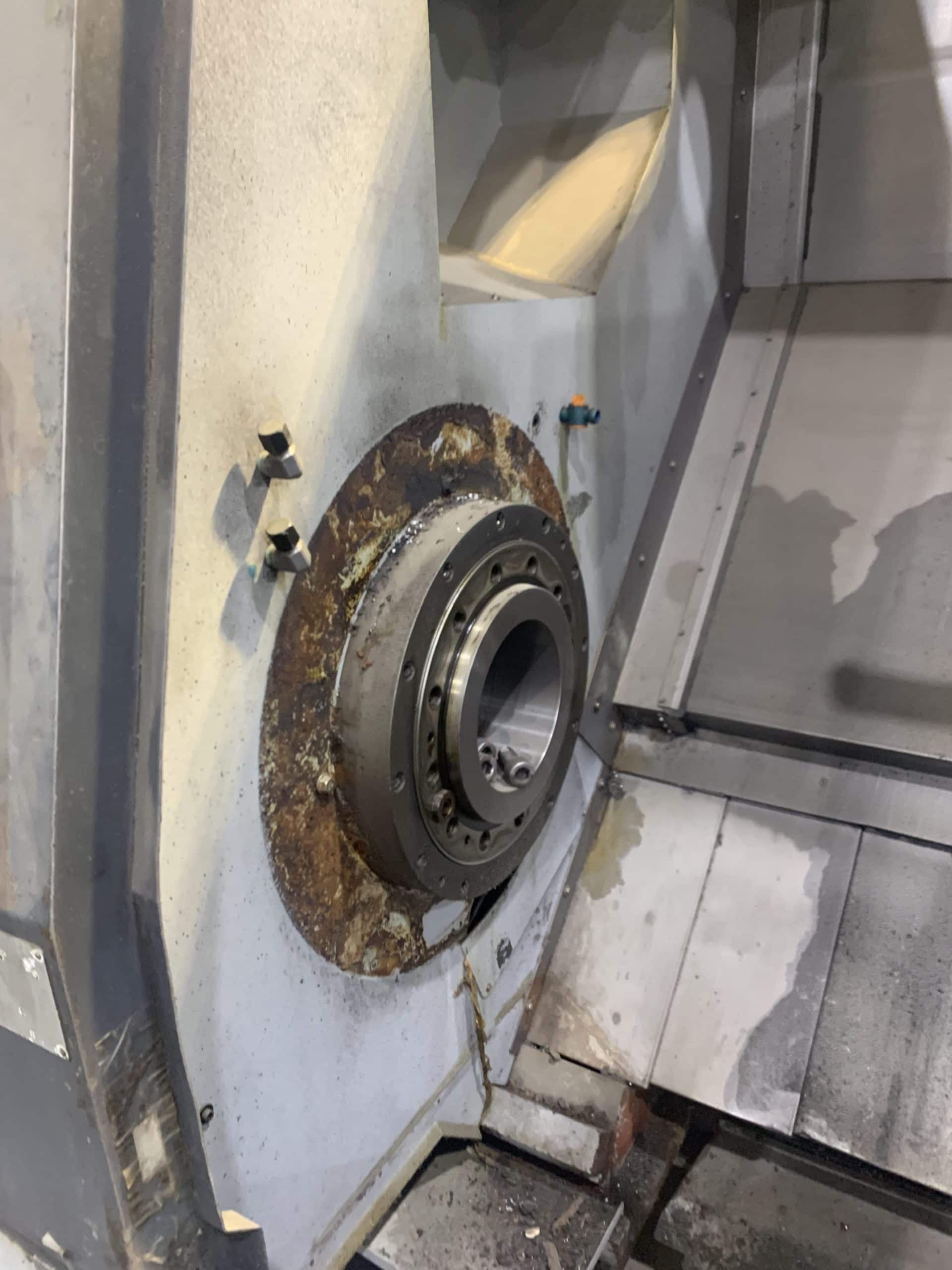

Spindle Bore: 8.07”
Spindle Motor: KW 15/18.5
X Axis Travel: 14.96”
Z Axis Travel: 59.05”

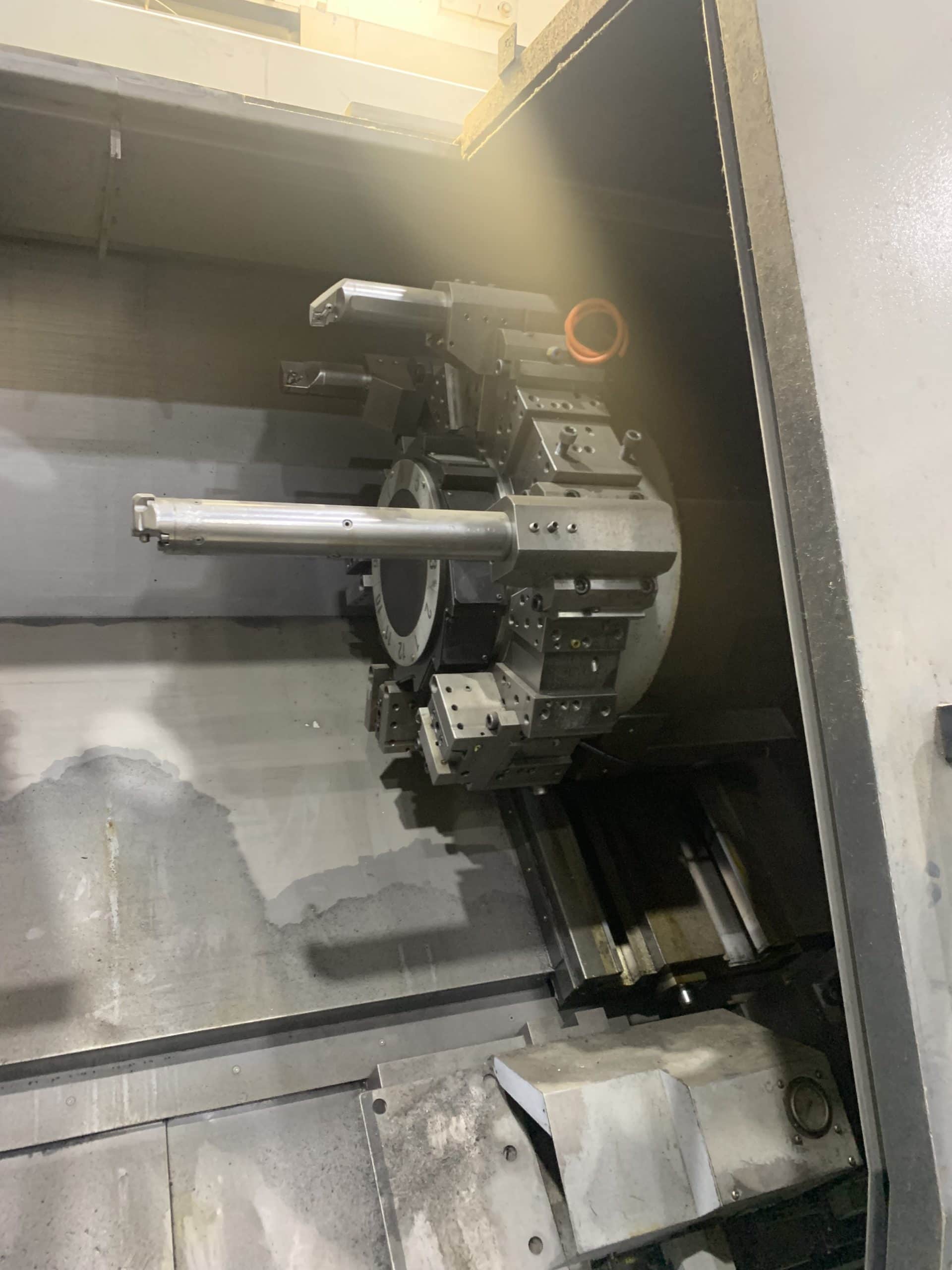

Turret Station: 12
Tailstock Taper: MT#5
Machine Dimensions: 244” x 110” x 91”
Weight: 33,000 lbs.

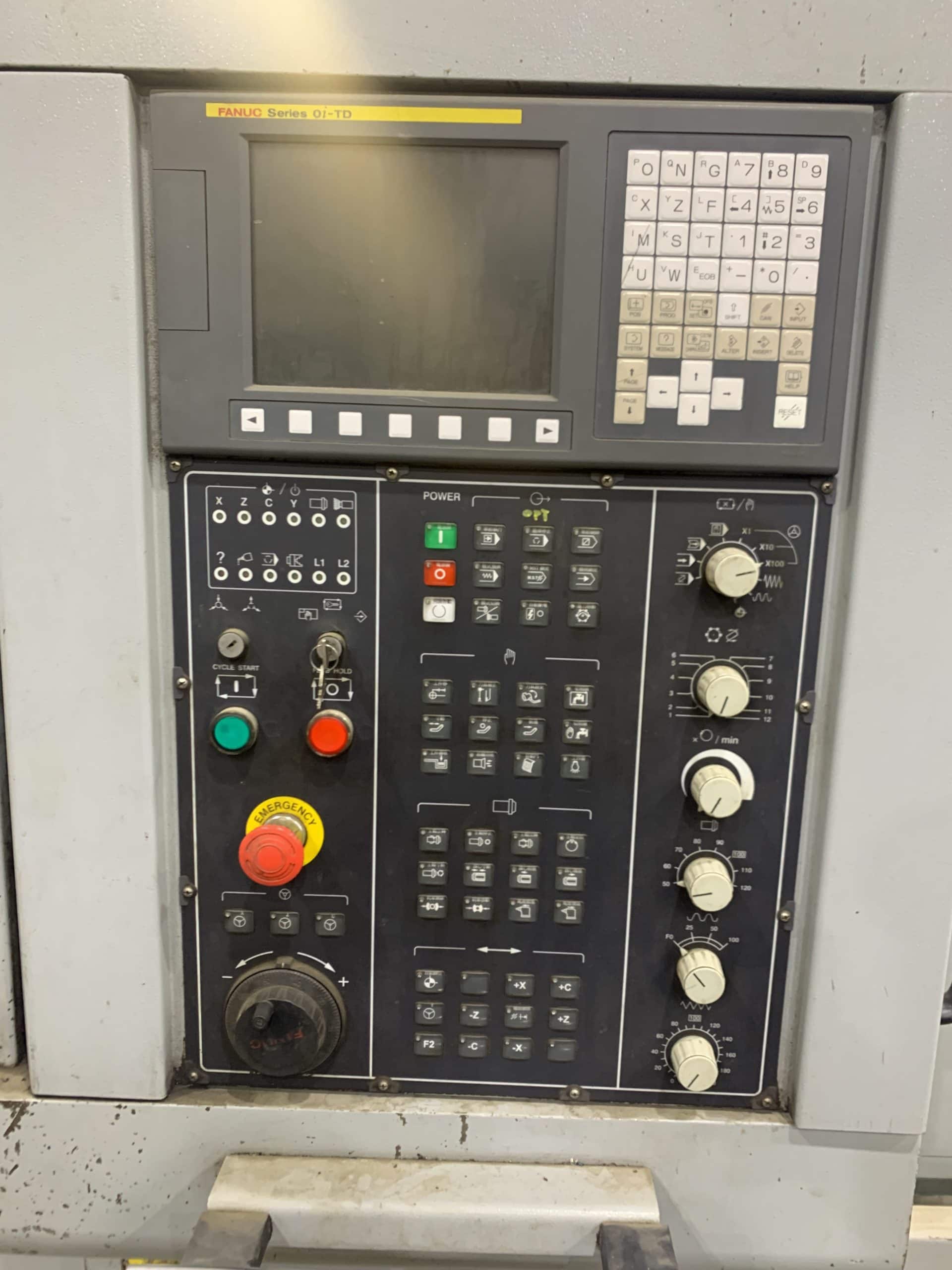

Control Type: Fanuc 0i-TD

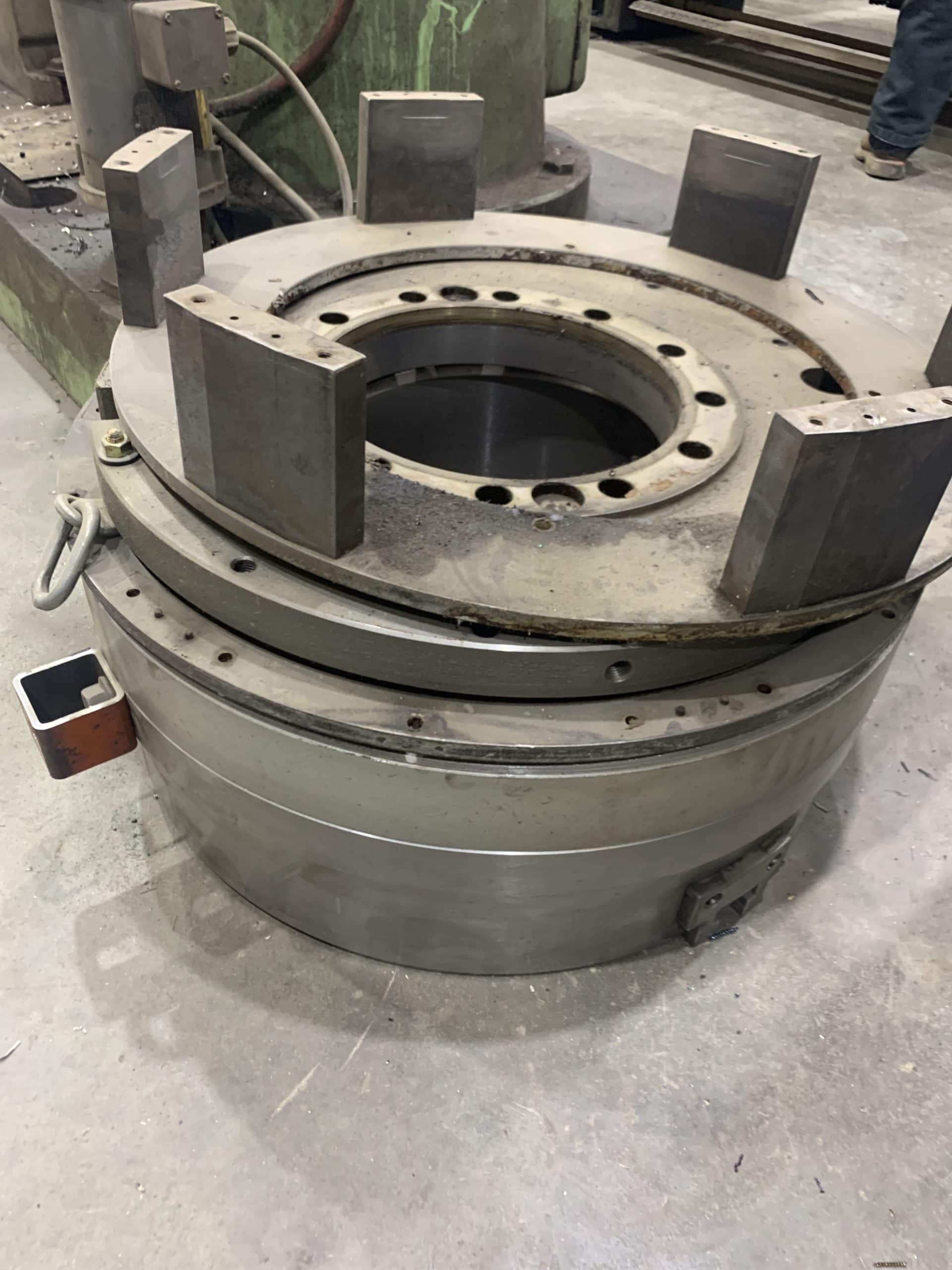

24″ 3 Jaw Chuck
Tailstock
High Pressure Coolant
Transformer
Chip Conveyor
