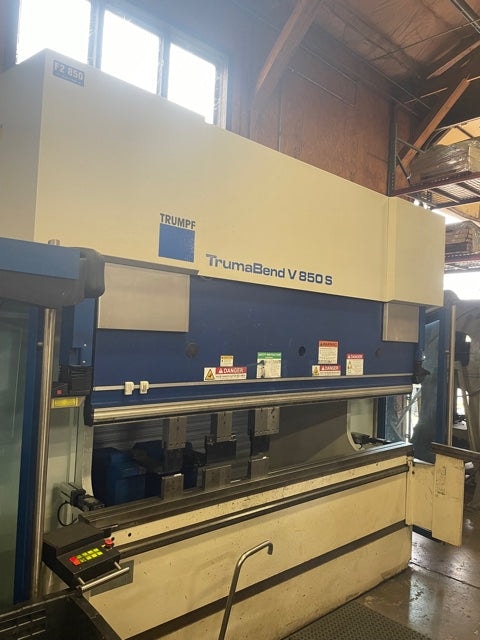

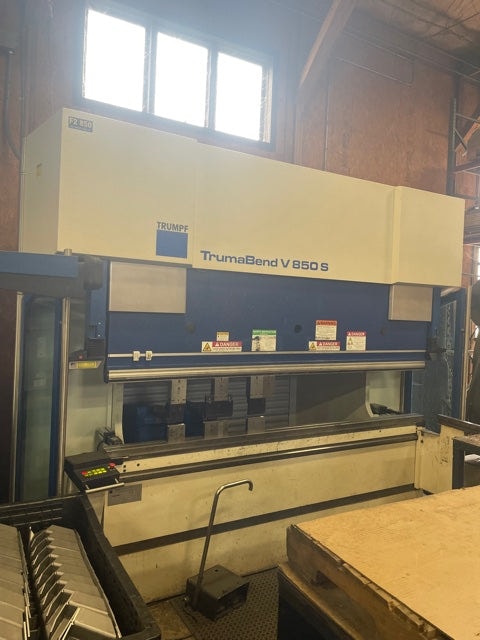

95 Ton x 8′ Trumpf TrumaBend V850SX CNC Press Brake, 2006 – 6-Axis Back Gauge, Extra Open Height and Stroke
$55,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage: 95 Ton
Bending Length: 107″
Stroke: 17.5”
Max. Bed-Press Beam Distance: 29”
Effective Open Height: 24.2″
Inclination of Beam: +/- 0.4″
Distance Between Side Frames: 89″
Throat Depth: 16.5″
Width of Bed: 4.7″
Operating Height: 41.3″
Max. Distance in X: 33.9”
Travel in X Axis: 23.6”
Max. Speed of Travel in X: 2,358 ipm
Travel R Axis: 9.8”
Max. Speed of Travel in R: 780 ipm
Max. Speed of Travel in Z: 2,358 ipm
Y Rapid Speed: 520 ipm
Y Press Speed: 0.24 – 24 ipm
Y Return Speed: 522 ipm
Drive Motor: 9.2 kW
Oil Capacity: 40 gal.
Weight: 18,960 lbs.
Dimensions: 68.5”L x 111.8”H
Equipped With:

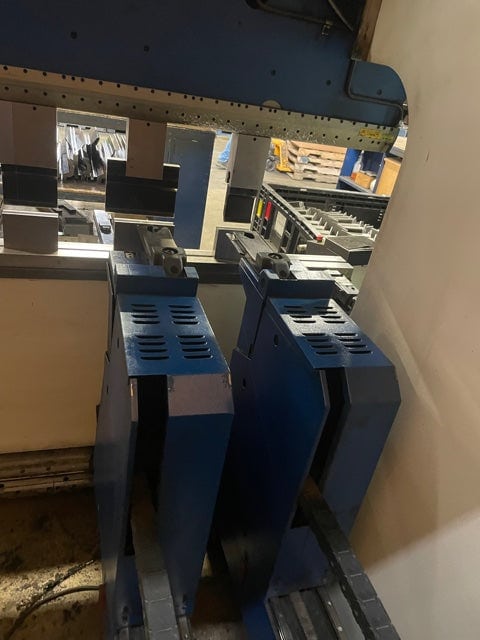

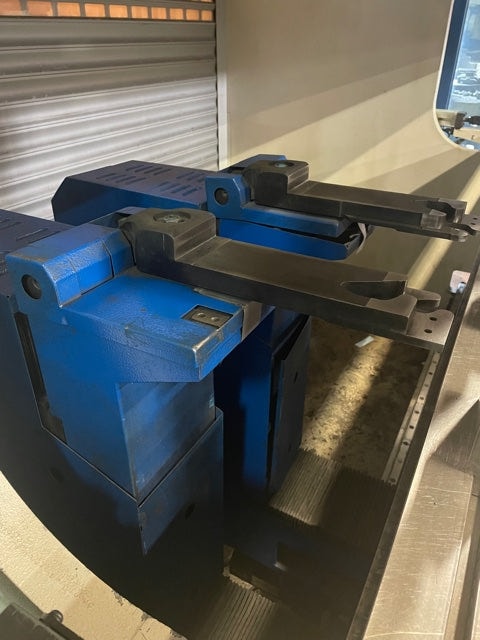

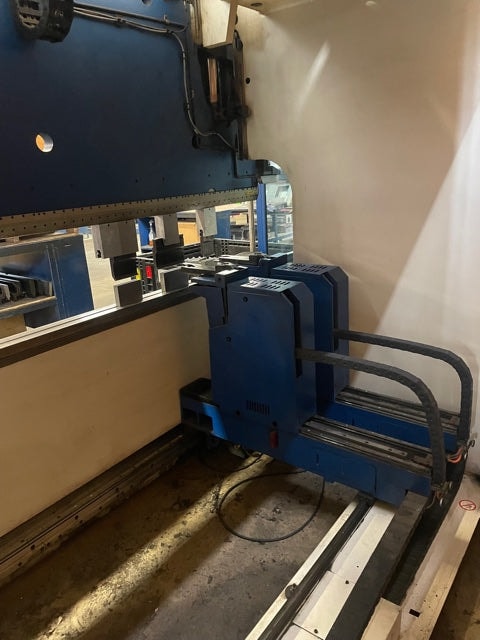

6-Axis Backgauge (X1/X2, R1/R2, Z1/Z2)

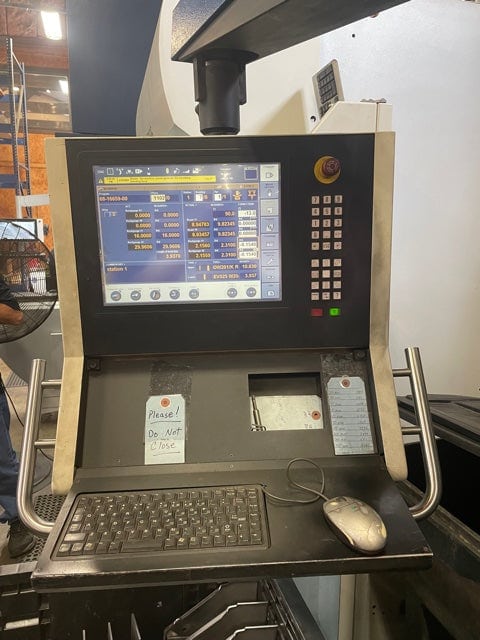

TRUMPF Control
Upper and Lower Hydraulic Clamping
CNC Crowning
I Axis
