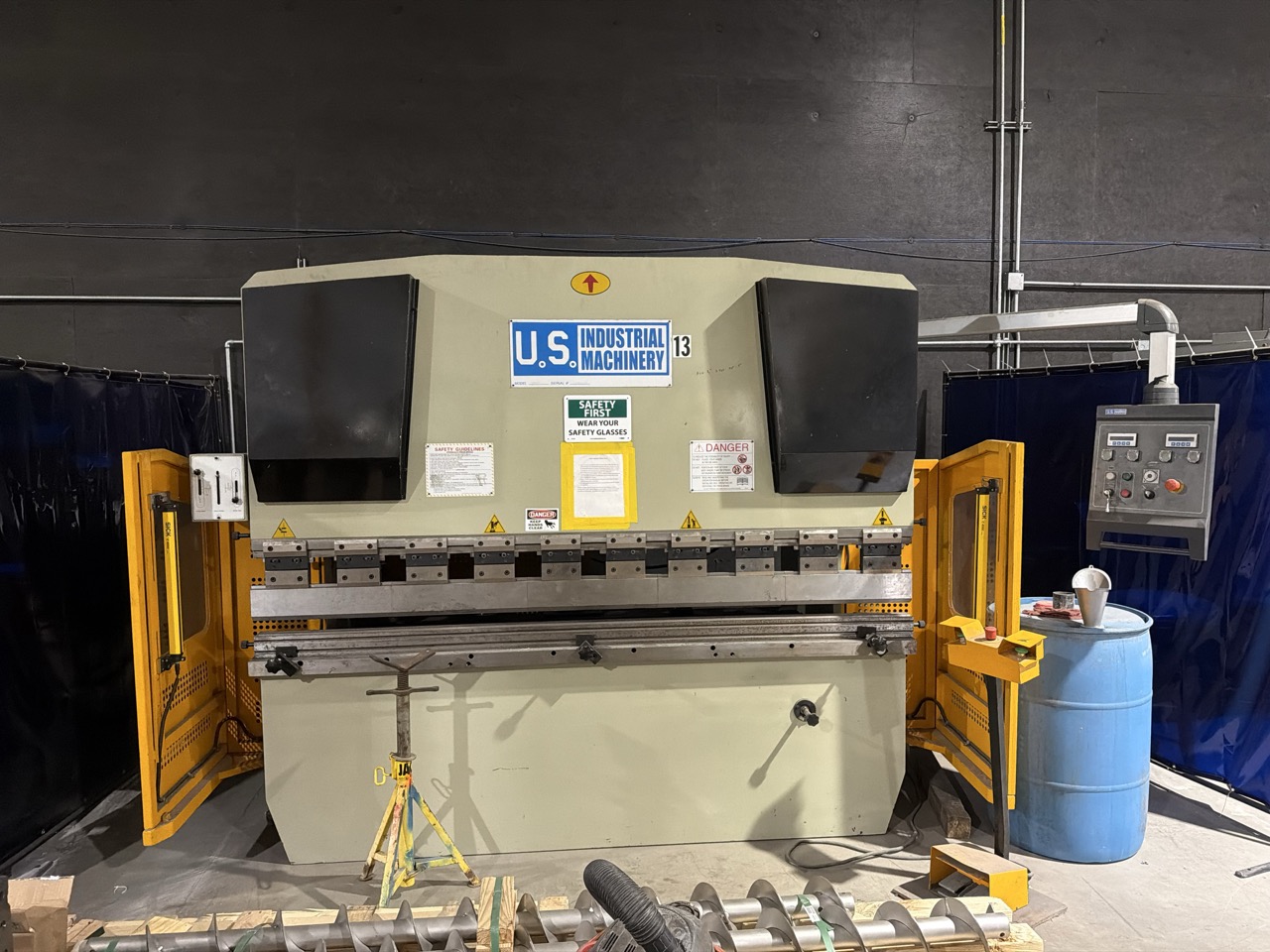

88 Ton x 8′ US Industrial USHB88-8M Hydraulic Press Brake, 2016 – Backgauge
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Working Pressure: 88 Tons
Length of Working Table: 98.4″
Distance between Housings: 81.8″
Throat Depth: 9.8″
Stroke Adjustment of Ram: 1.96″
Ram Travel: 3.93″
Open Height: 13.7″
Rapid Ram Travel Speed: 2.4″/sec
Rapid Ram Retreat Speed: 2.0″/sec
Backgauge Travel: 24″
Pressing Speed: Dependent on Tool Load
Hydraulic Oil Capacity: 60 gal
Net Weight: 12,500 LBS
Equipped With:

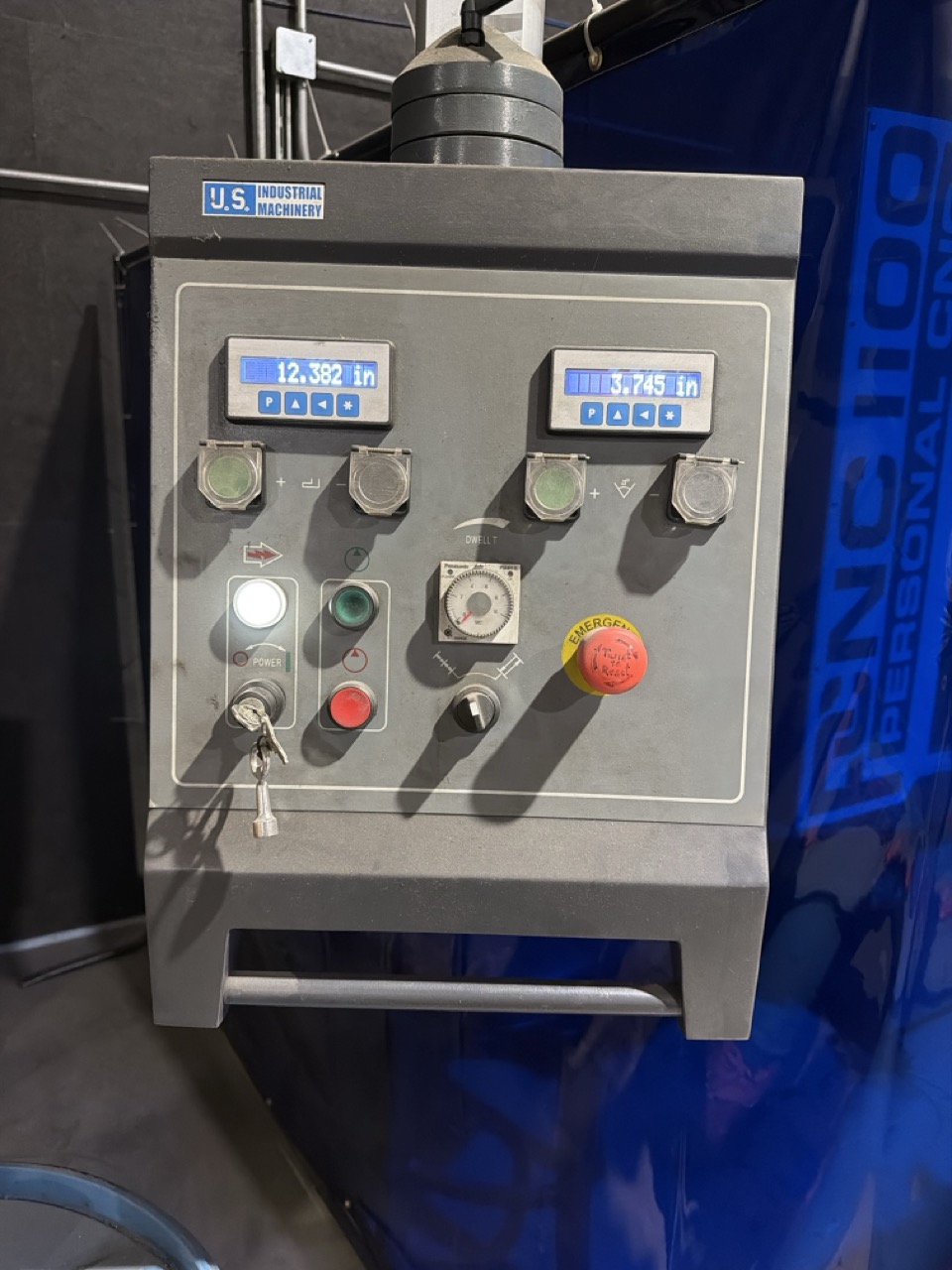

Power Ram Depth Control, motorized with fine adjustment Hand Wheel

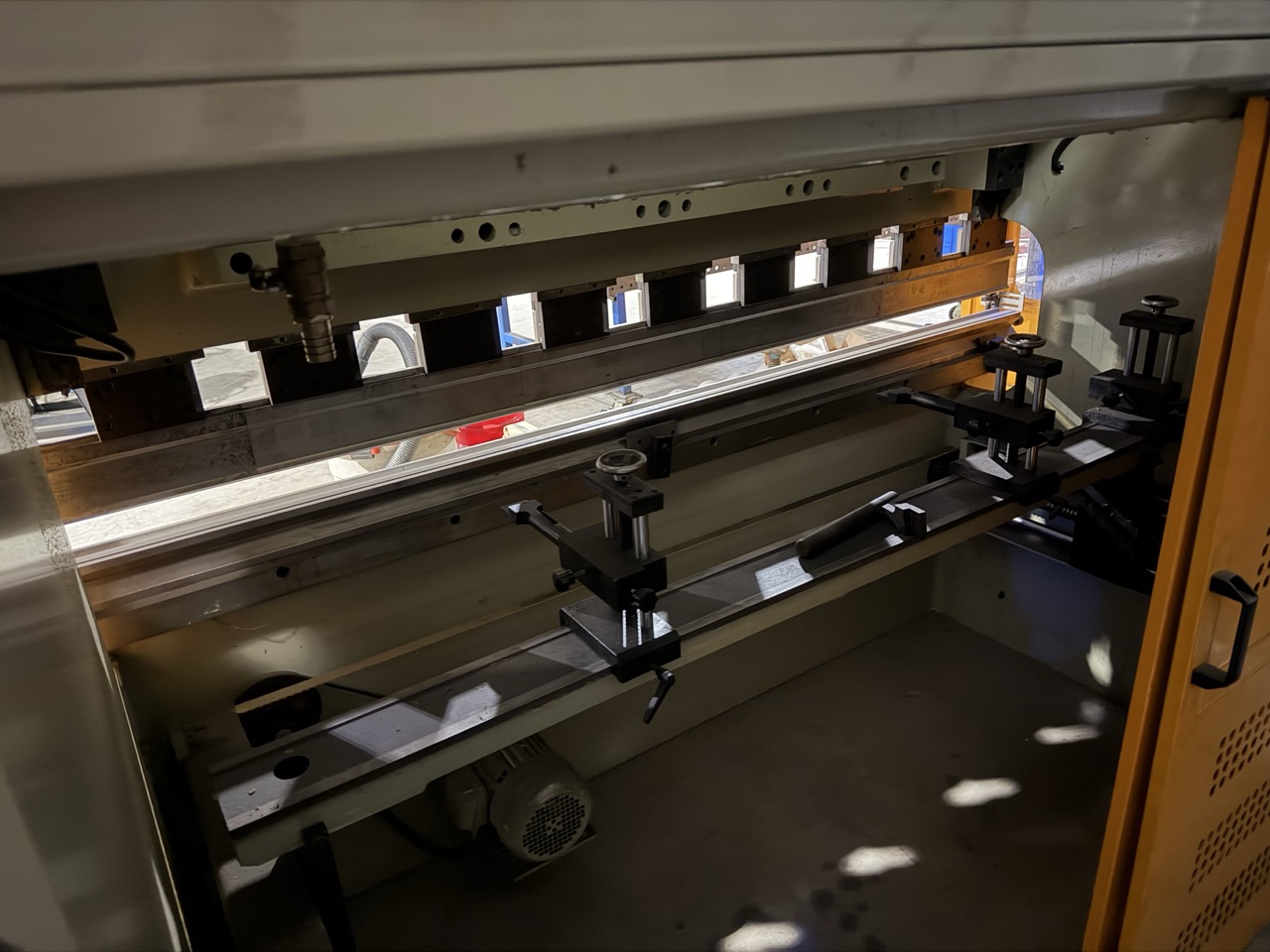

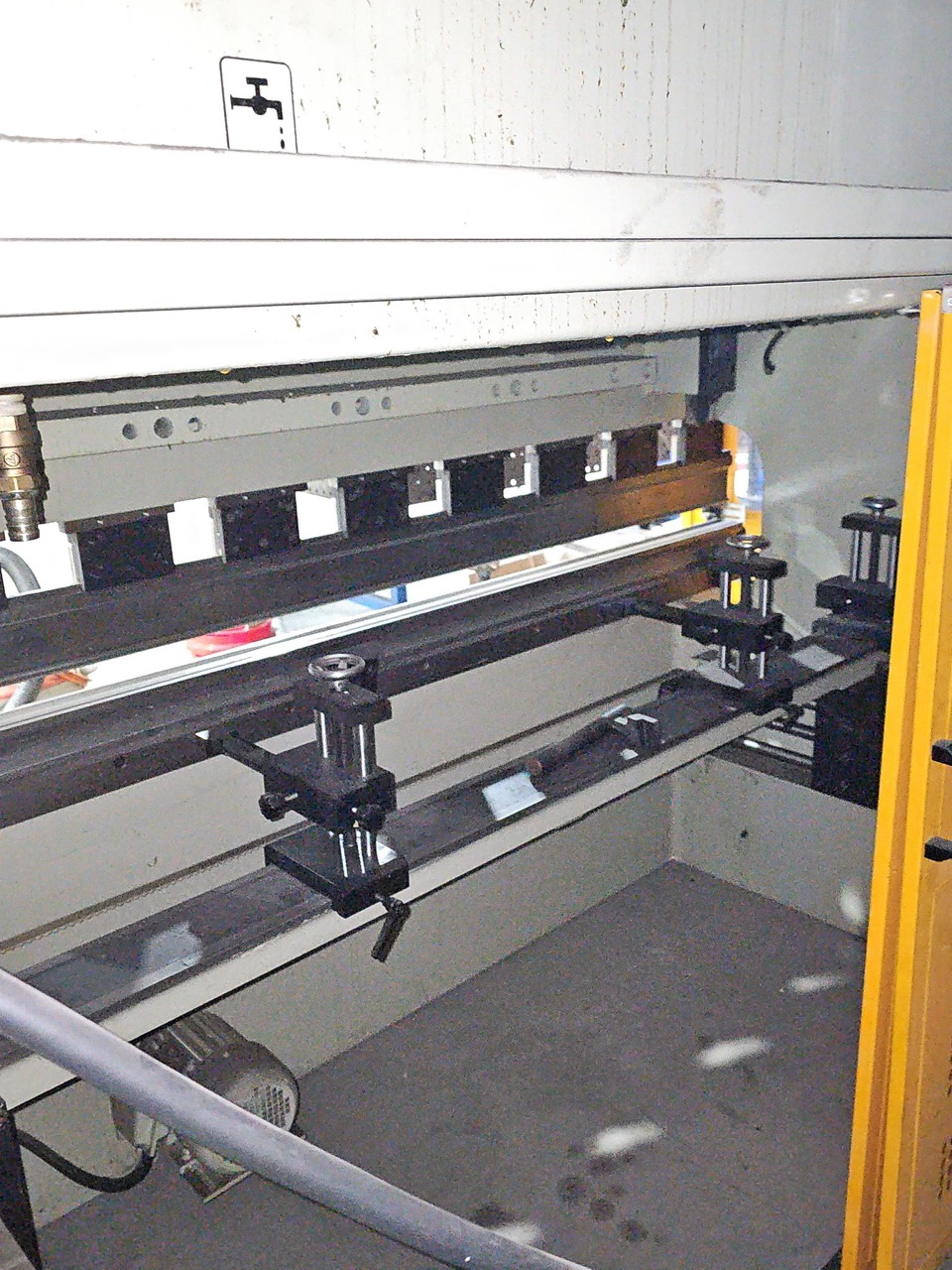

Backgauge

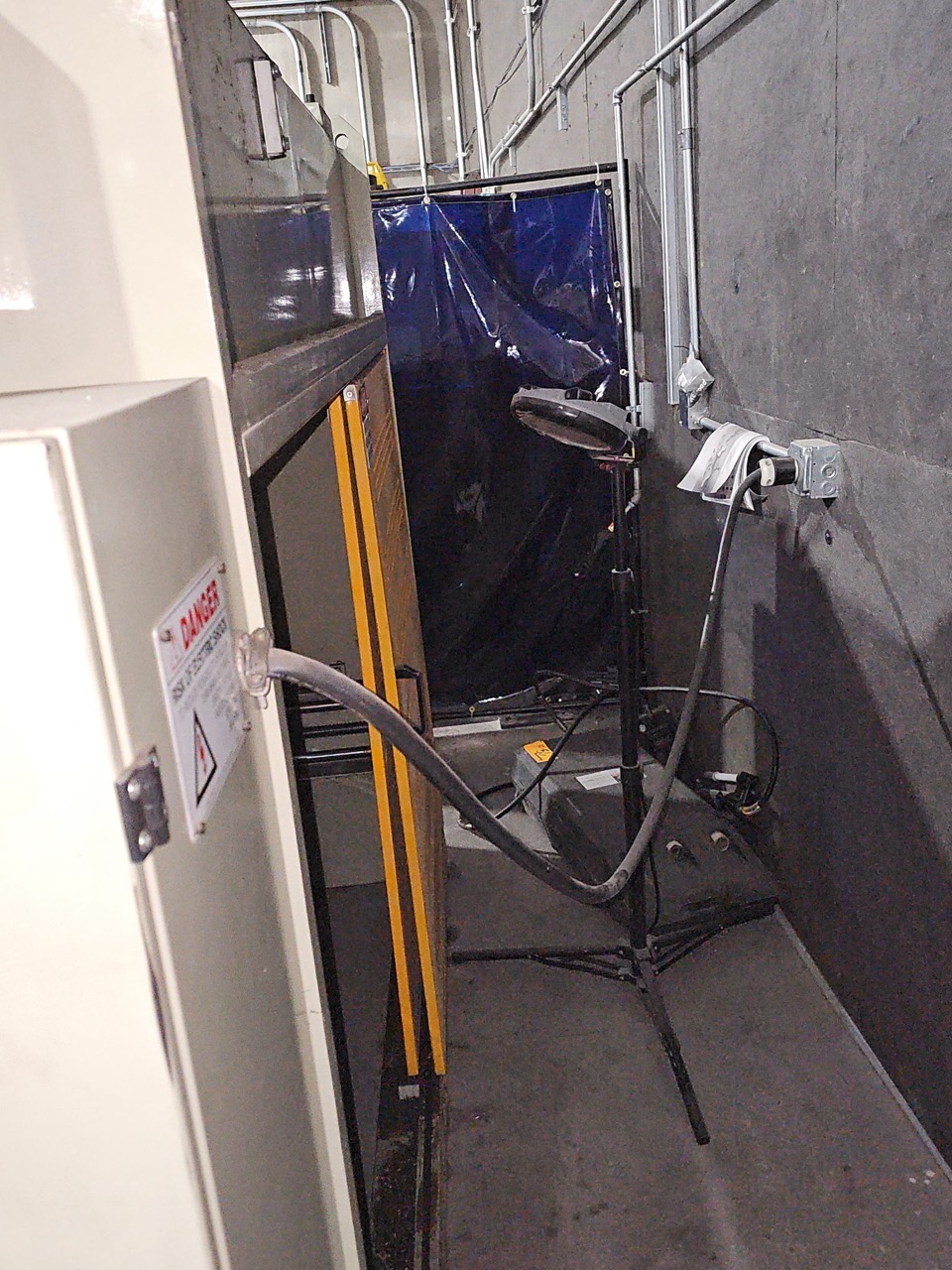

Light Curtains
