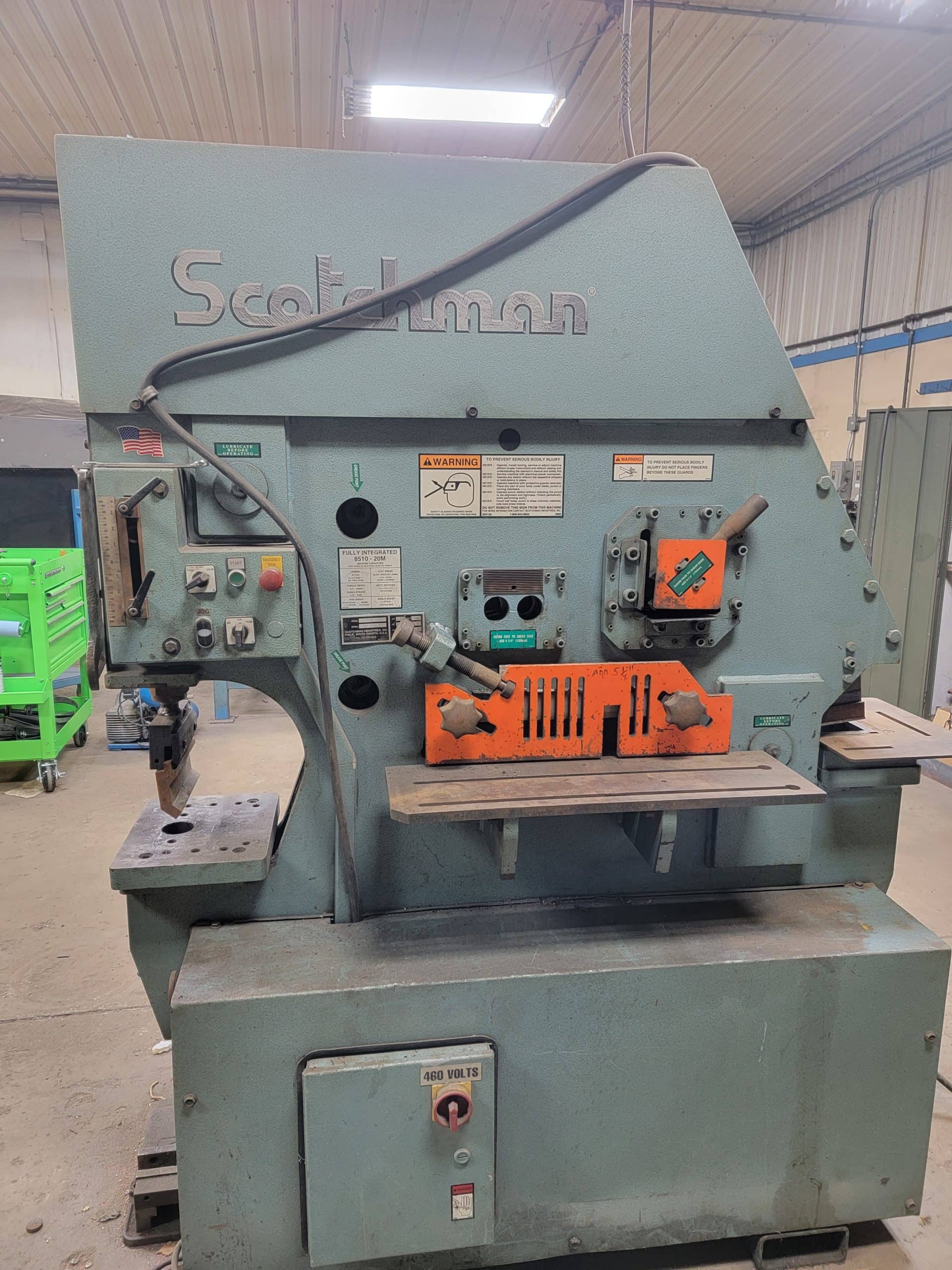

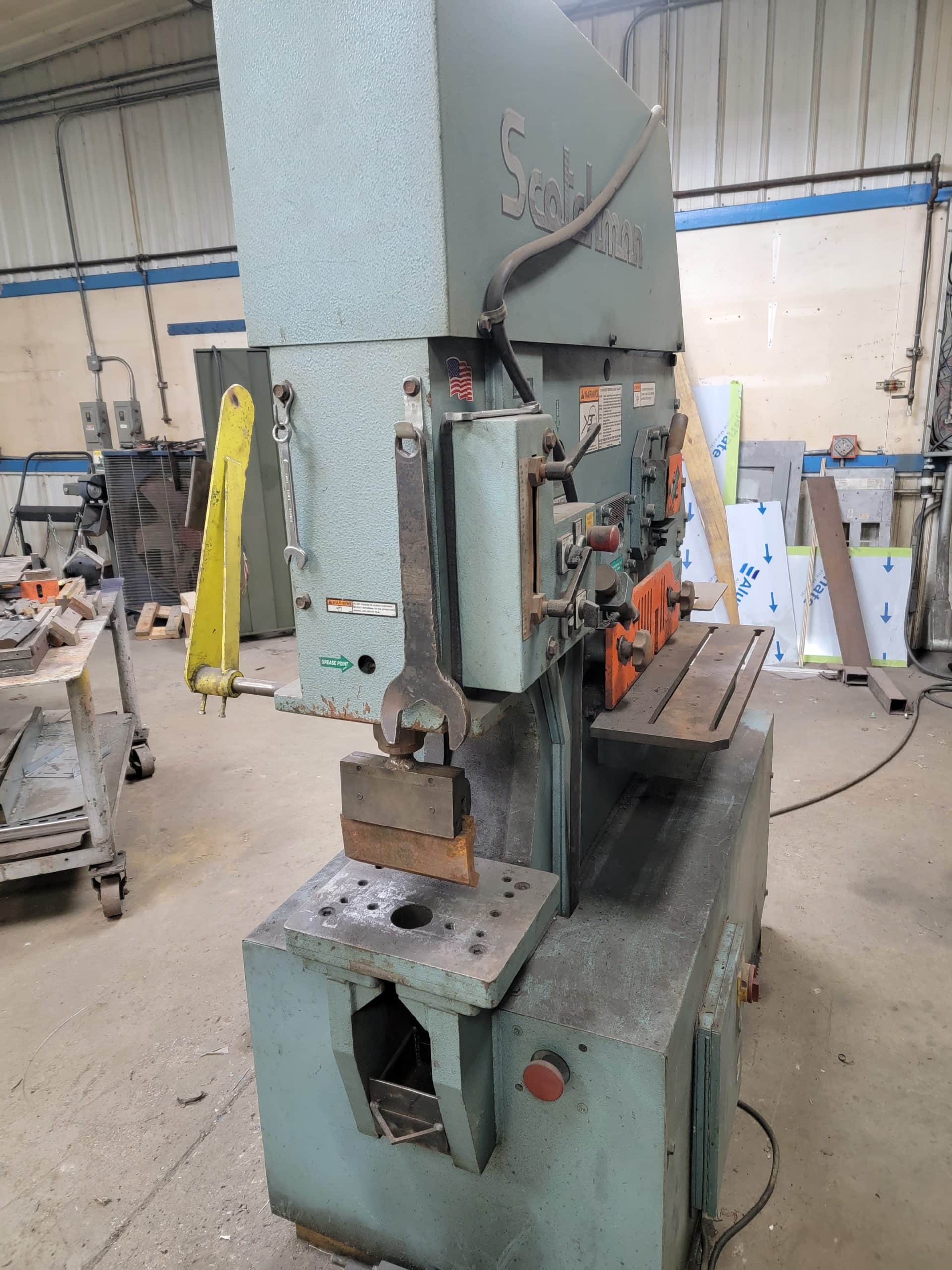

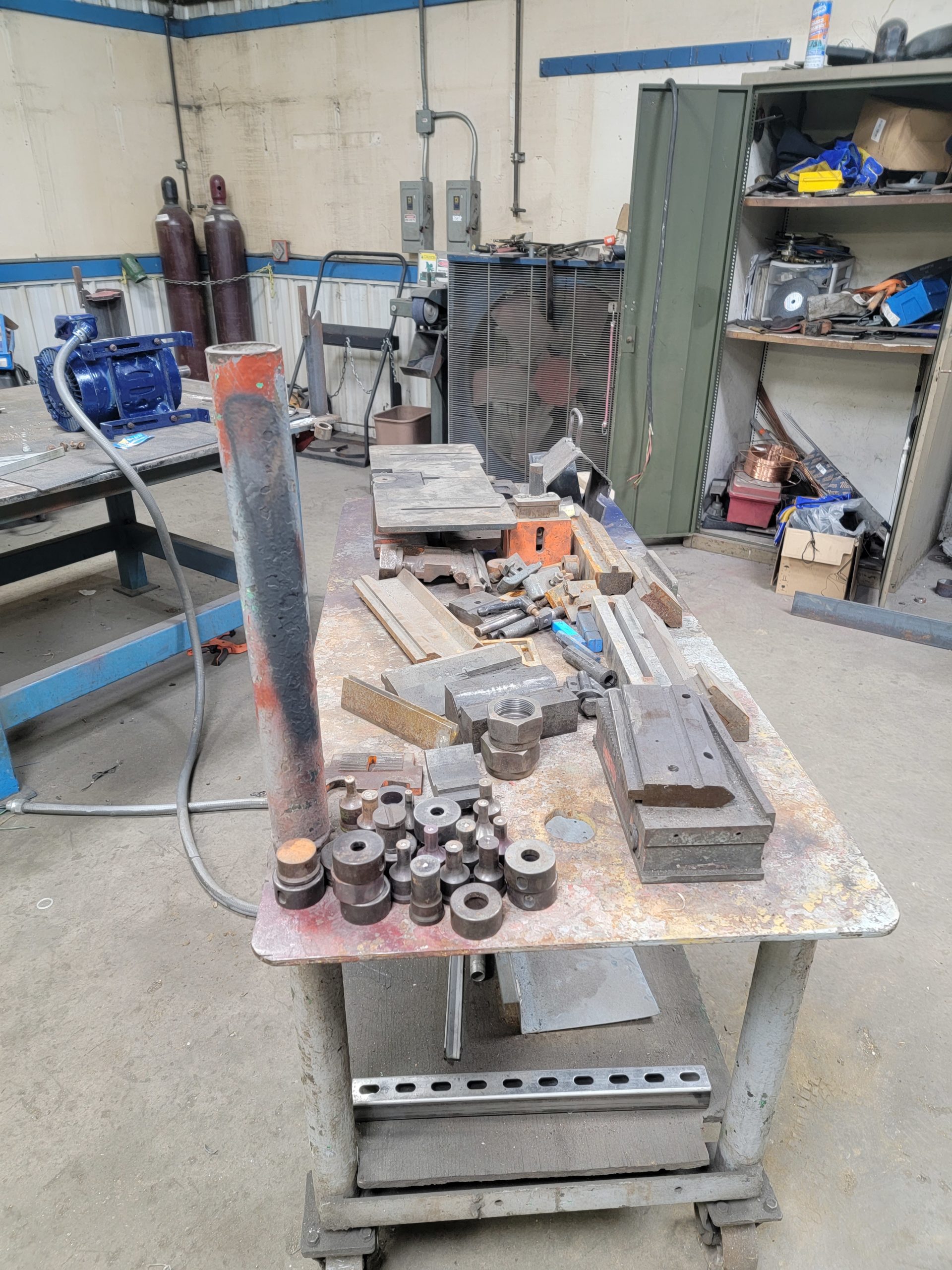

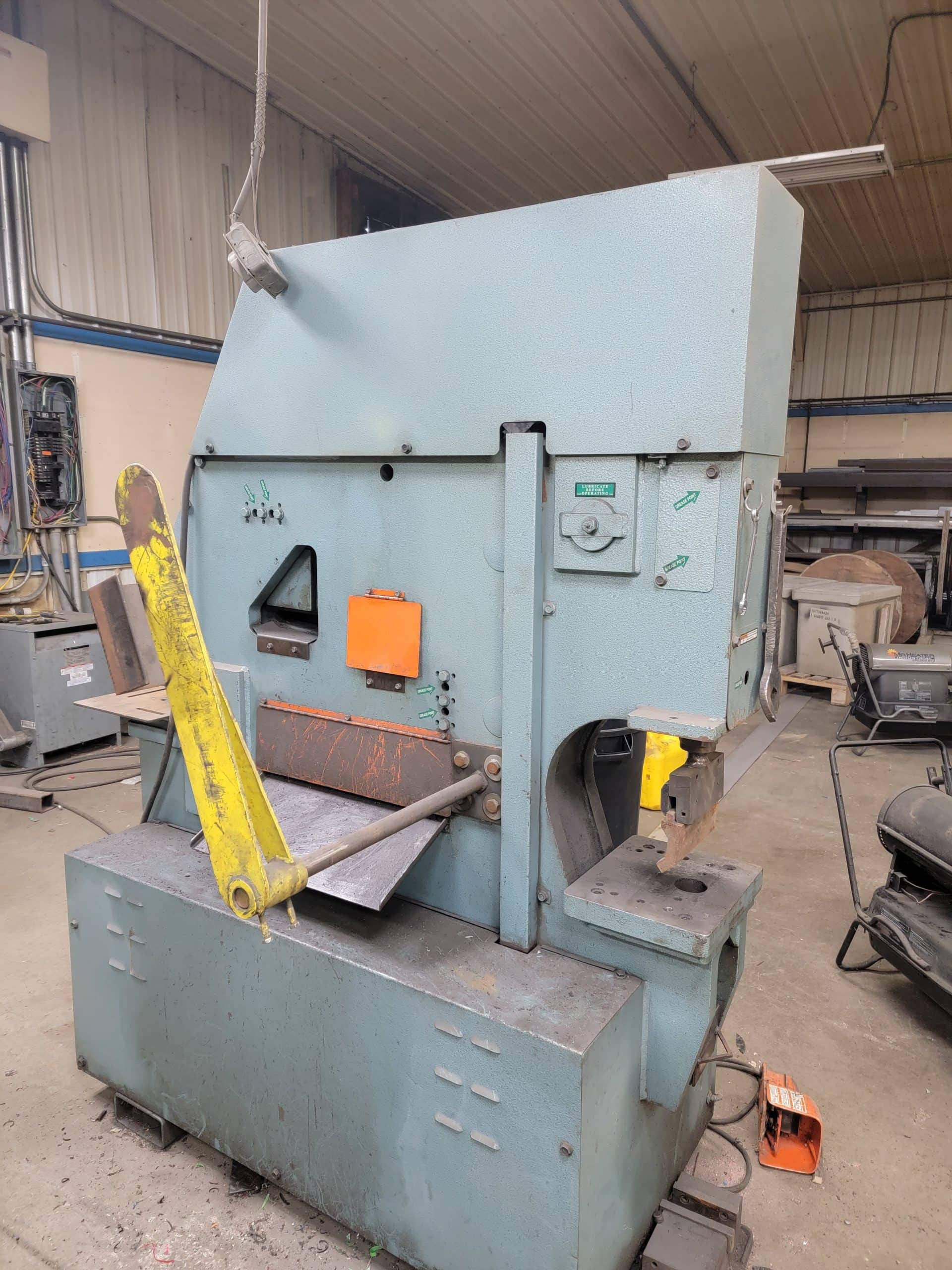

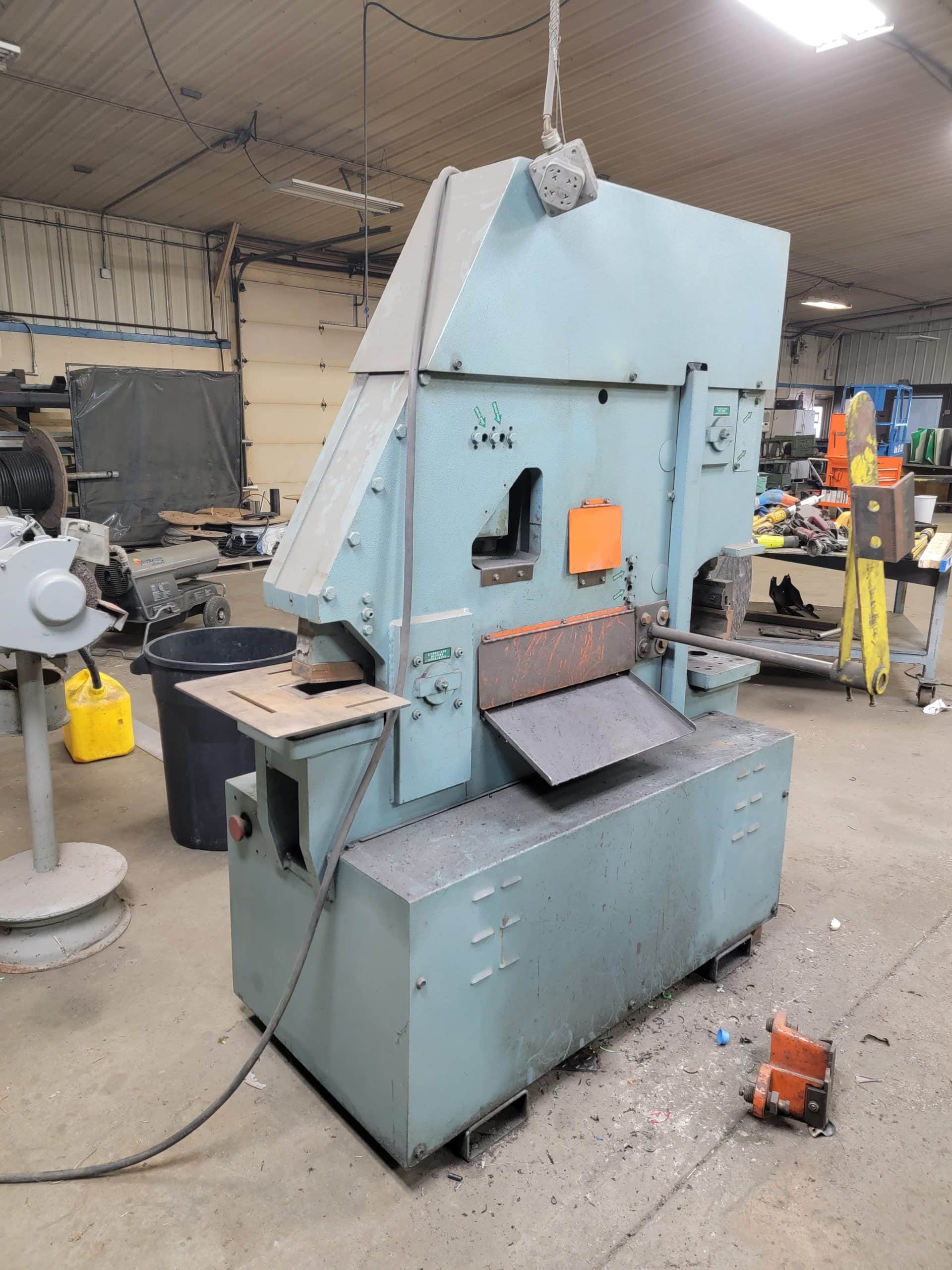

80 ton Scotchman FI8510-20 Ironworker 2005 – Lightly Used, Tooling Included
$13,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Punching Capacity: 80 Ton
1-1/8″ In 1″
Special Tooling: 4″ Maximum Diameter
Throat Depth: 12″
Flat Bar Shear: 24″ Length
1″ x 8″
3/4″ x 12″
1/2″ x 16″
1/4″ x 24″
Optional Saber Blade: 1/2″ x 22″
3/8″ x 24″
Angle Shear, 90 Degrees: 6″ x 6″ x 1/2″
45 Degrees: 4″ x 4″ x 1/2″
Brake 12″*: 50 Ton
Brake 24″*: 40 Ton
Pipe Notcher, Schedule 40 I.D.*: 3/4″, 1″, 1-1/4, 1-1/2″, 2″
Rectangle Notcher*: 2″ x 2-1/2″ x 3/8″
90 Degree V-Notcher*: 6″ x 6″ x 5/16″
Channel Shear: 2″ to 6″ Adjustable
Rod Shear
Round Rod: 1/4″ to 1-1/4″, 9 Cavity
Square Rod: 1/4″ to 1″, 1 Cavity
Square Tube Shear*: 1/2″ to 2″, 14 Gauge
Picket Tool Housing*: 1/2″, 3/4″, 1″
Strokes Per Minute, Light Material: 56 SPM (1/4″ Stroke)
Strokes Per Minute, Heavy Material: 19 SPM (3/4″ Stroke)
Hydraulics: 2600 PSI
Standard Motor: 5 HP, 3 Phase 230V
*Optional Equipment Available
Dimensions: 26″W x 76″L x 70″H
Approximate Weight: 4000 Lbs.
