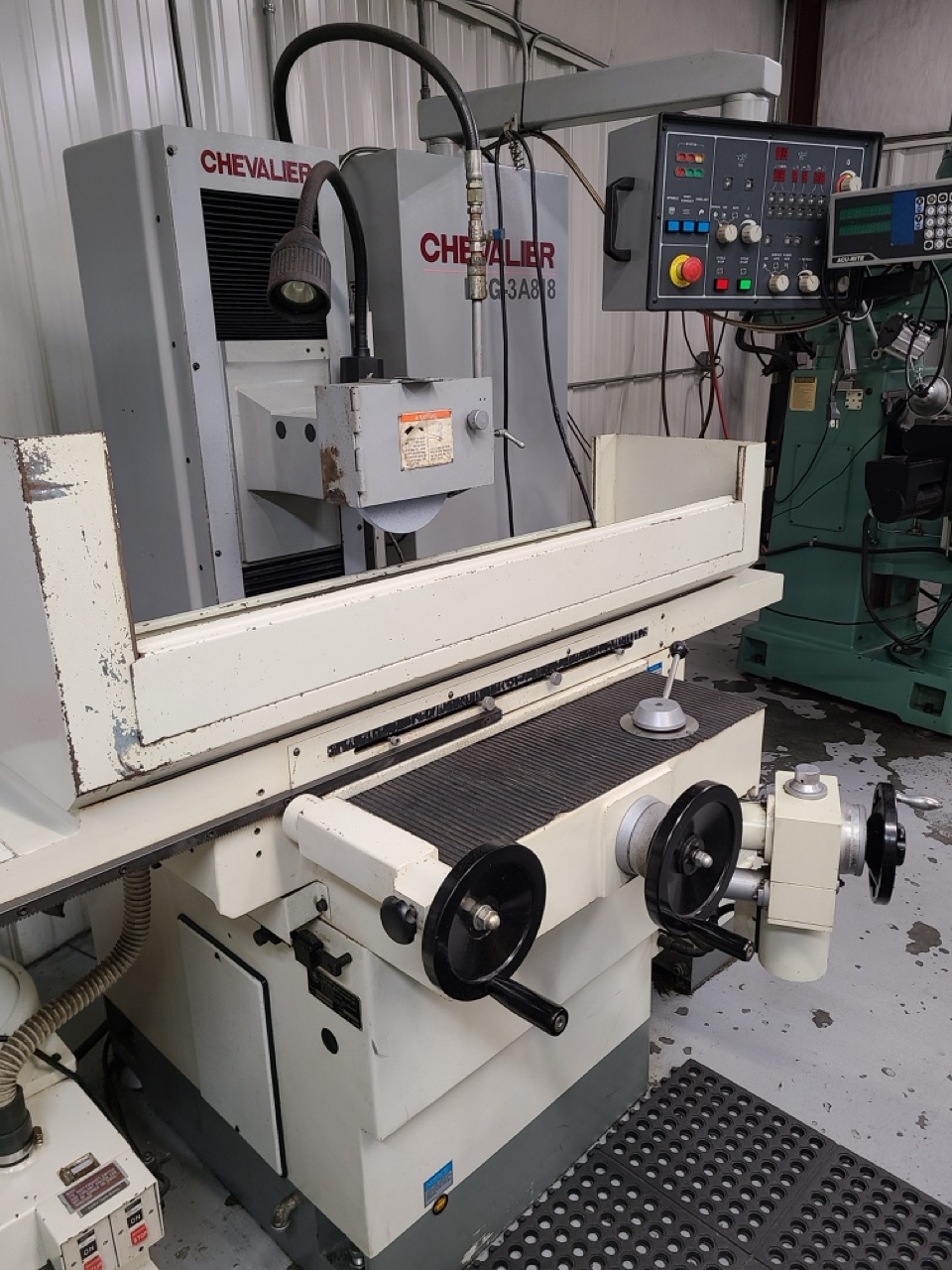

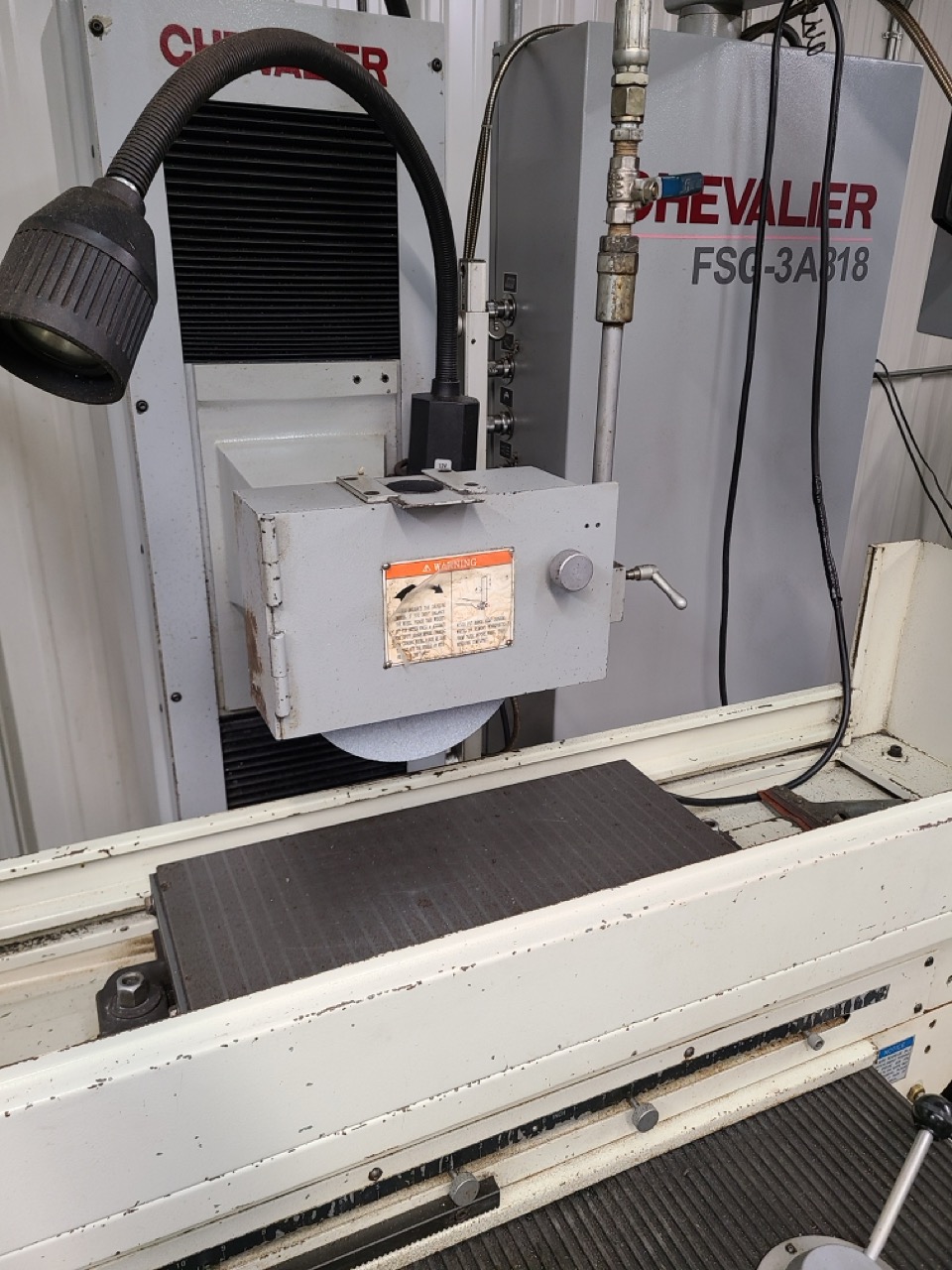

8″ x 18″ Chevalier 818 Wet Grinder, 2007

Grinding Length: 18.0″
Grinding Width: 8.0″
Distance Table To Centerline Of Wheel: 17.7″
Max. Table Load: 551 Lbs.
Table Size: 8.0″ X 18.0″
Max. Table Travel – Manual: 20.9″
Table Speed (Variable): 16 ~ 82 Fpm
Feed Speed: 37 Ipm
Auto Traverse Movement: 0.02″ ~ 0.24″
Max. Manual Travel: 9.4″
Spindle Speed: 60hz 3,450 Rpm / 50hz 2,850 Rpm
Spindle Motor: 2 Hp
Wheel Dimension (Od X Width X Bore): Ø 8” × 0.5” × Ø 1.3”
Floor Space (W X D X H): 88.6″ X 70.5″ X 74.8″
Net Weight: 2,910 Lbs.
