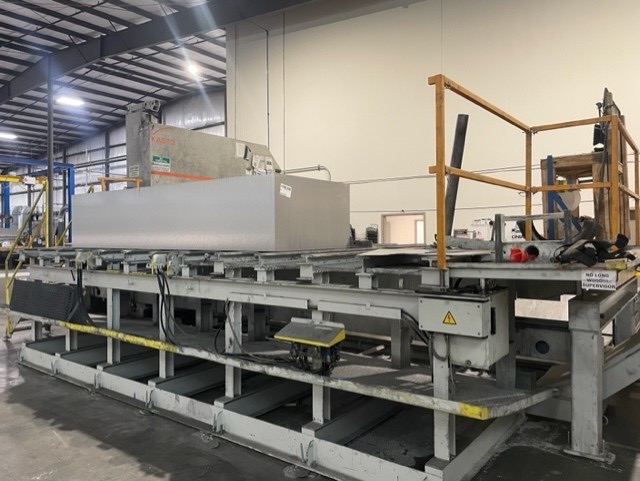

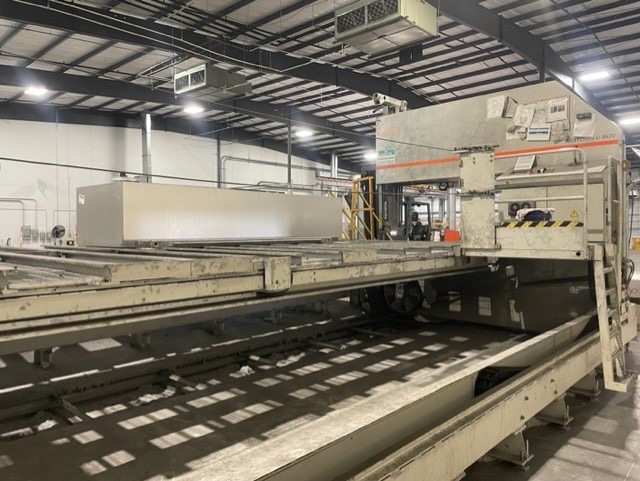

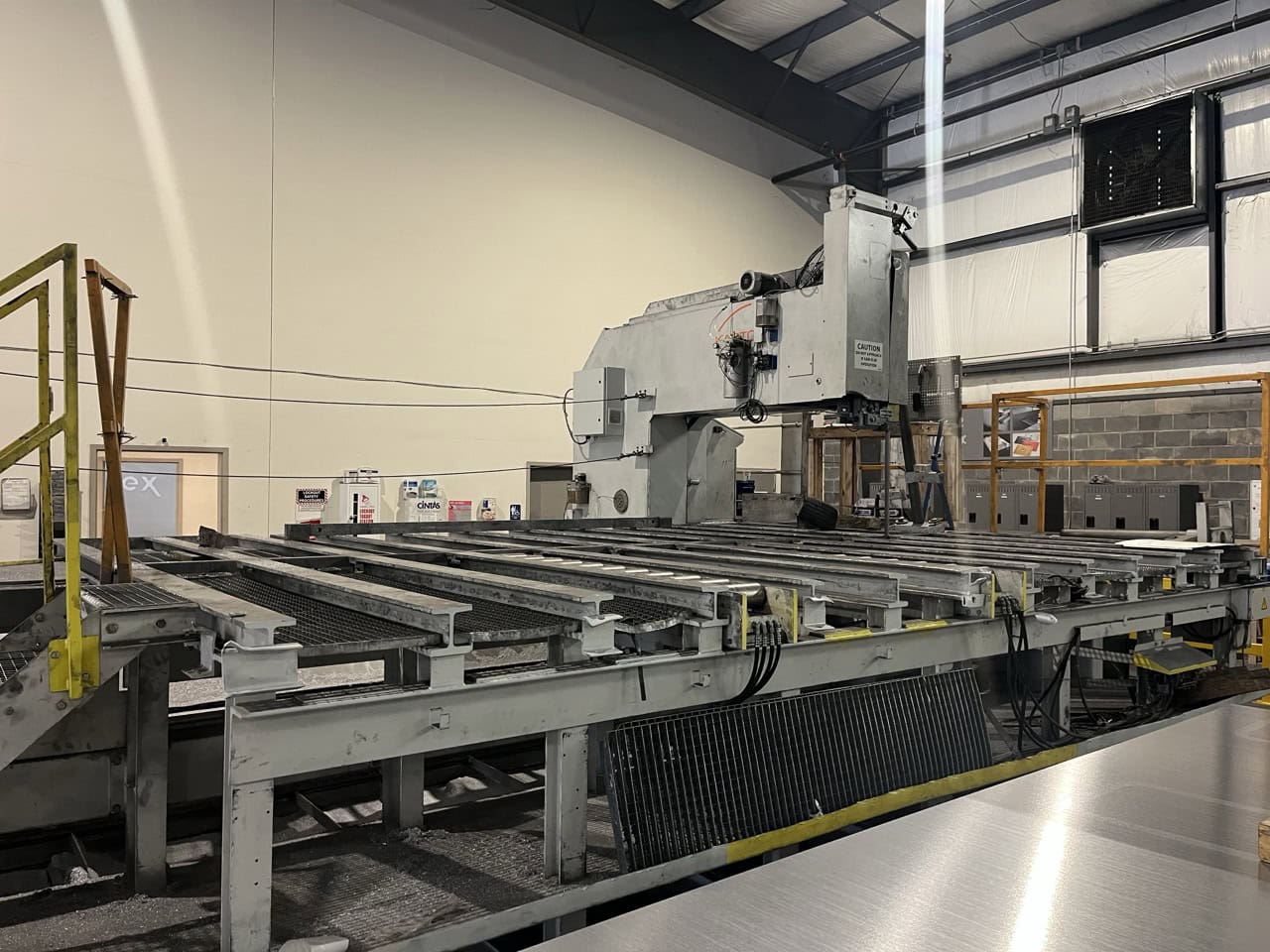

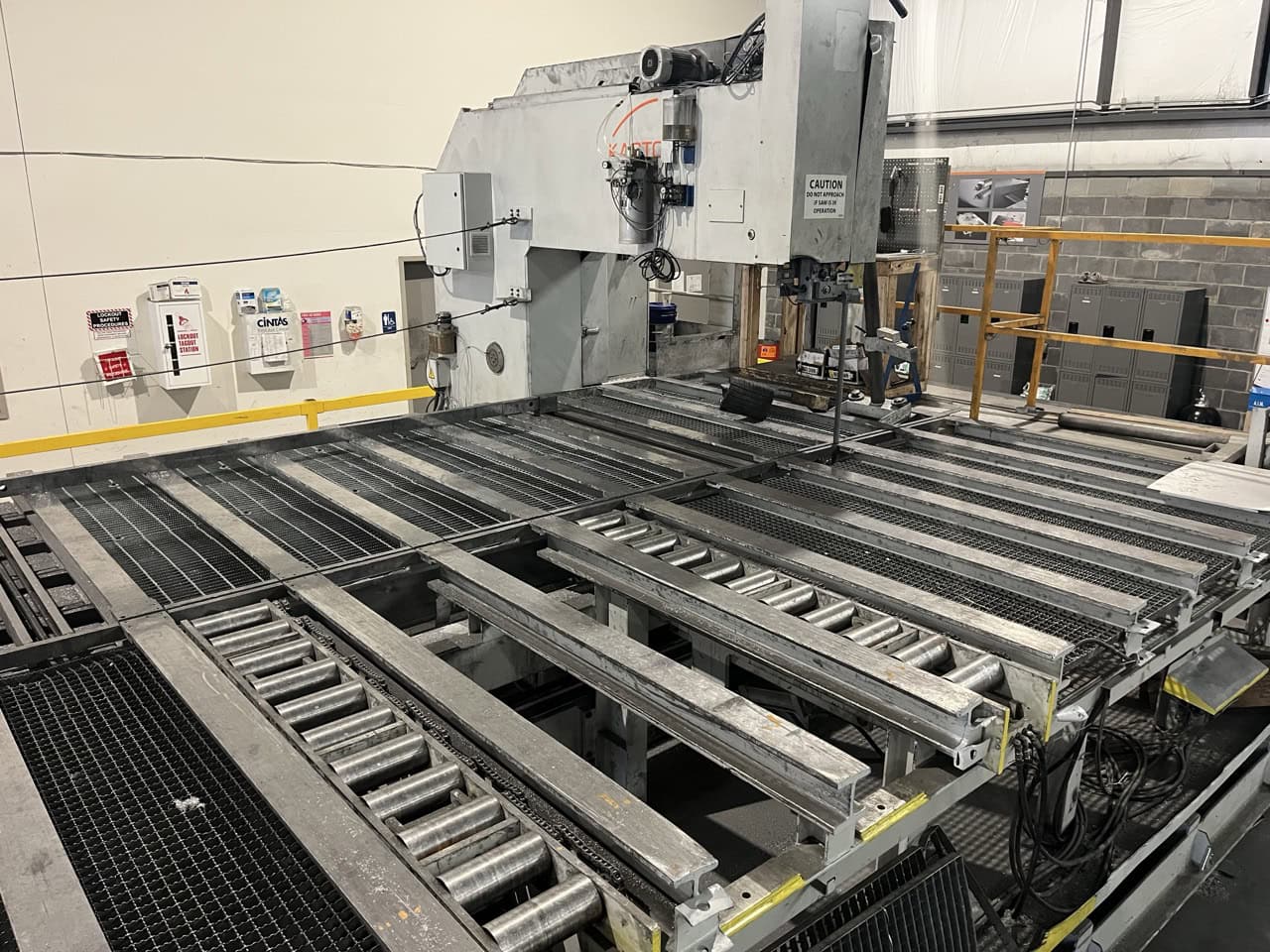

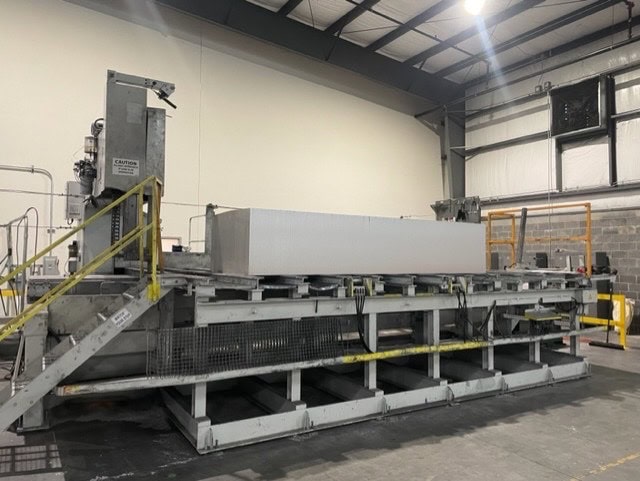

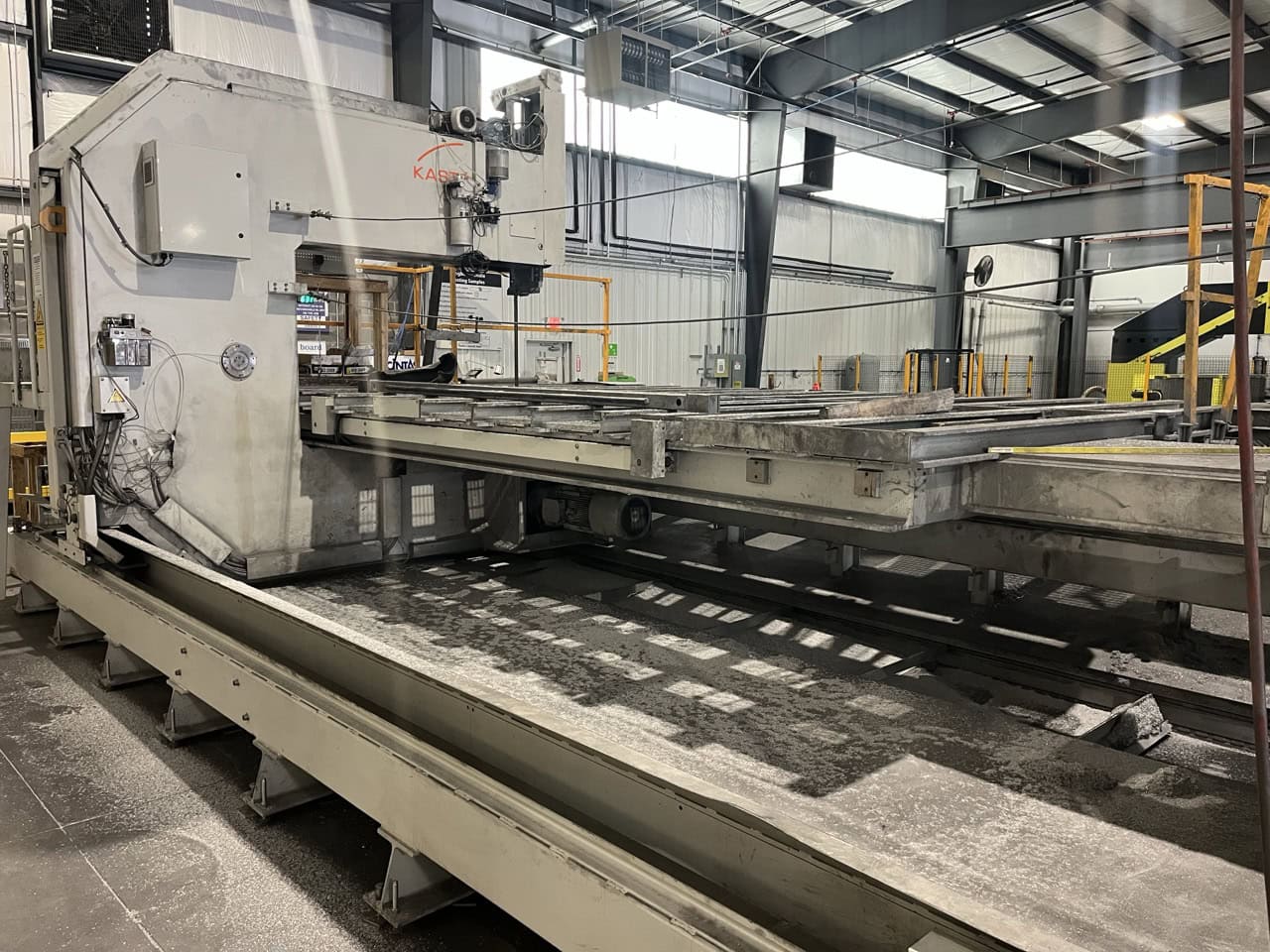

79″ x 220″ Kasto BBS U8x20 Semi-Automatic Vertical Bandsaw, 2016 – Infinitely Variable Bandsaw Blade Speed

Max cutting Thickness- 35″
Max cutting length- 220″
Smallest cut Width-.4″
Largest cut Width- 78.7″
Min/Max blade speed- 13-130m/min
Min/Max feed Rate- 0.7-270mm/min
Part adjustment roller capacity- 15tons
Power supply 440V/80A/60Hz

Standard Dimensions
Width when protective cover is Open: 288.4”
Height without line laser unit: 155.9”
Height with line laser unit: 179.5”
Height of material; support table: 61.0”

Cutting Ranges
Maximum cutting height
With band control: 33.9”
Without bang control: 35.4”
With pressure rollers: 30.7”
Smallest cut-piece width: 0.4”
Largest cut piece width
With electro motive measuring stop: 78.7”
With manual measuring stop: 70.9”
Without measuring stop: 81.1”

Speeds
Cutting speed: 13-130 m/min.
Feed rate: 0.7 – 270 mm/min

Saw Blade
Standard: 384” x 2.1” x 0.06”
As an alternative: 384” x 2.6” x 0.06”
Tooth set width: 0.1”
Saw blade guide: Carbide
Saw blade back guide: Roller
Saw blade clamping: Hydraulic
Saw blade clamping pressure
With saw blade width 54 mm: 40
With saw blade width 67 mm: 67
Saw blade cleaning: Plastic brush

Measuring ranges for measuring stops
Manually movable
Range: 0 – 78.7”
Motorized
Range (a): 0 – 66.5”
Range (b): 12.2” – 78.7”
Drive capacity: 17.4”
Saw motor: 10.1”

Equipped with:
Infinitely Variable Bandsaw Blade Speed
Bi-Metal or Carbide Saw Blades
Semi-Automatic Operation
Vibration-Free Performance
Space-Saving Design
Set of Old flywheels
8 blades (Available for Extra Cost)
