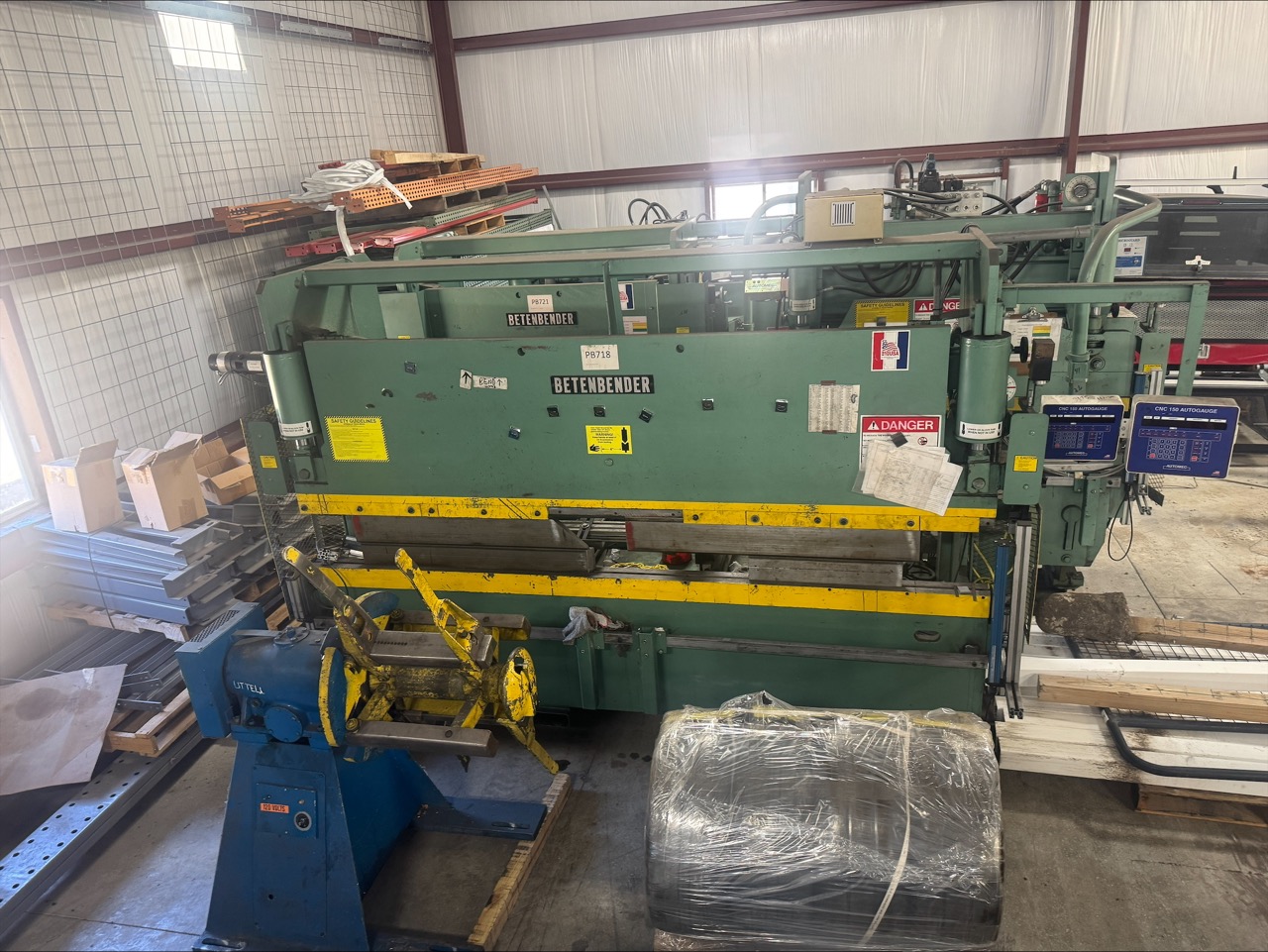

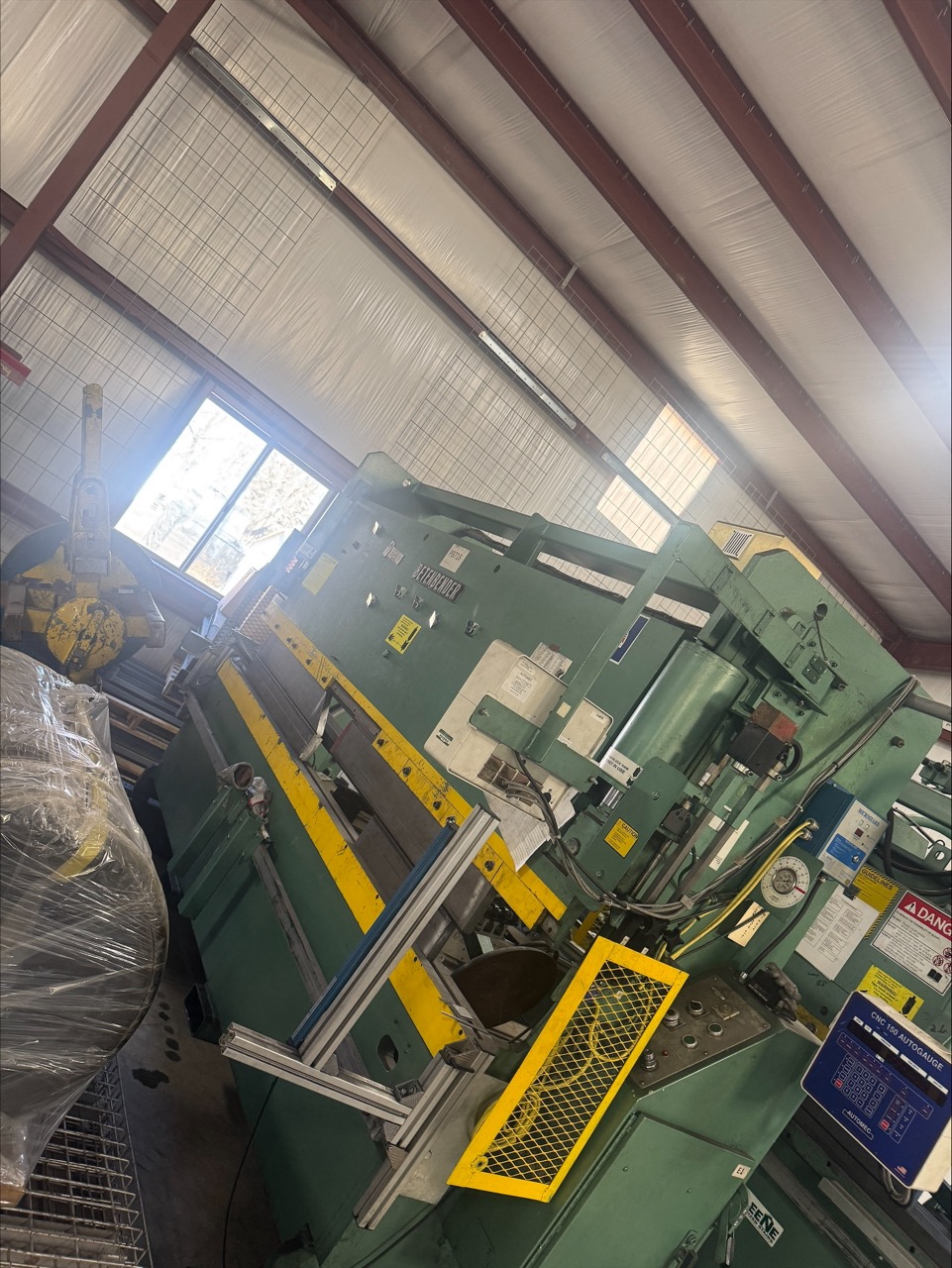

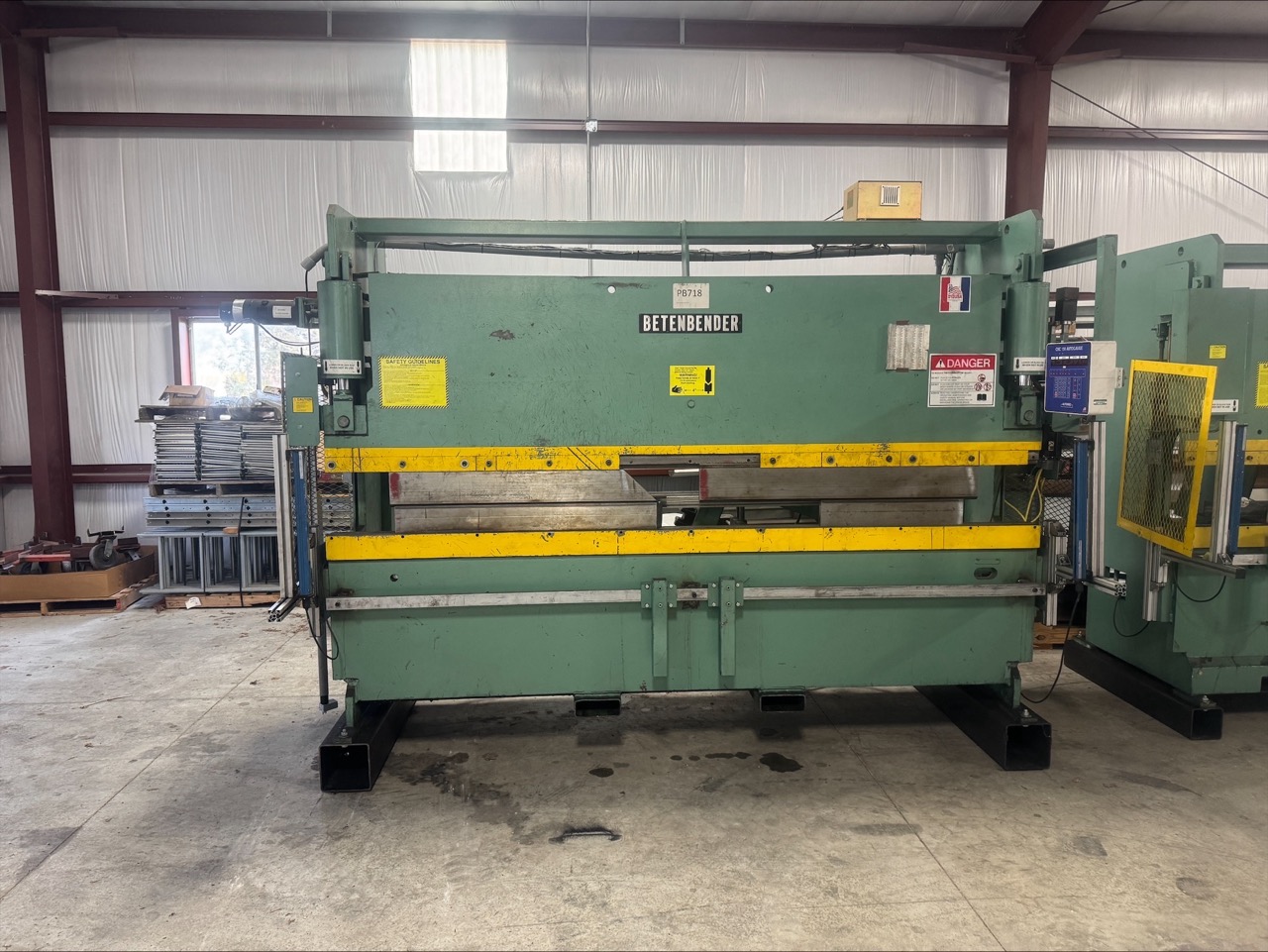

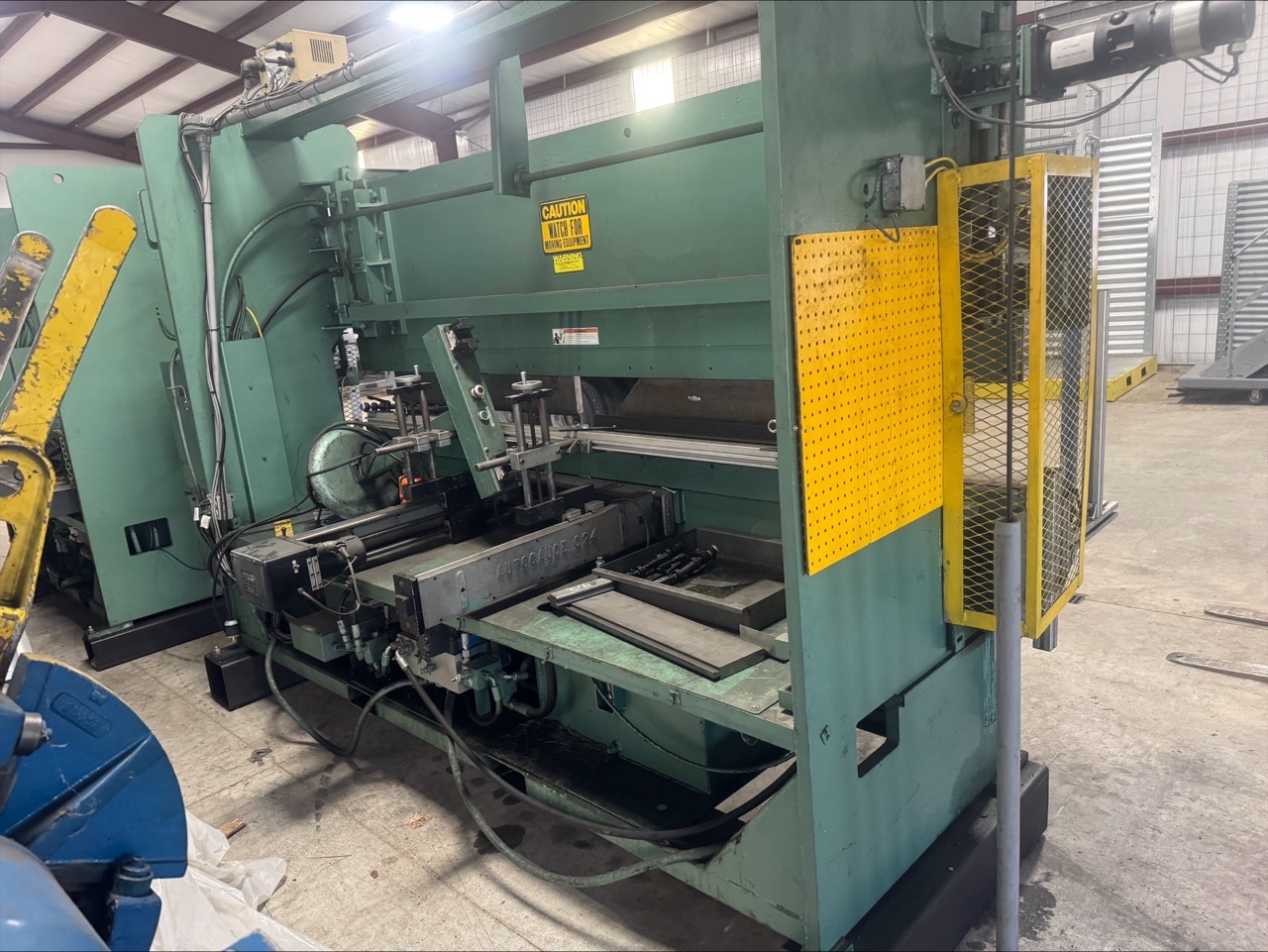

70 Ton x 10′ Betenbender Press Brake – Fully Rebuilt in 2013, CNC Automec Backguage
$28,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
SPECIFICATIONS:
Tonnage………………. 70
Bending length………… 120”
Dist. Between Housings…. 102-1/2”
Throat Depth………….. 8”
Stroke Length…………. 8”
Ram Adjustment………… 8”
Fast Approach Speed……. 44 IPM
Fast Return Speed……… 63 IPM
Press Speed…………… 0-44 IPM
Motor Size……………. 10 HP – 220/440V – 3 Phs
Weight……………….. 13,000 Lbs
Dimensions (LxWxH)…….. 135″ x 45″ x 104″
Equipped with:
Light curtains

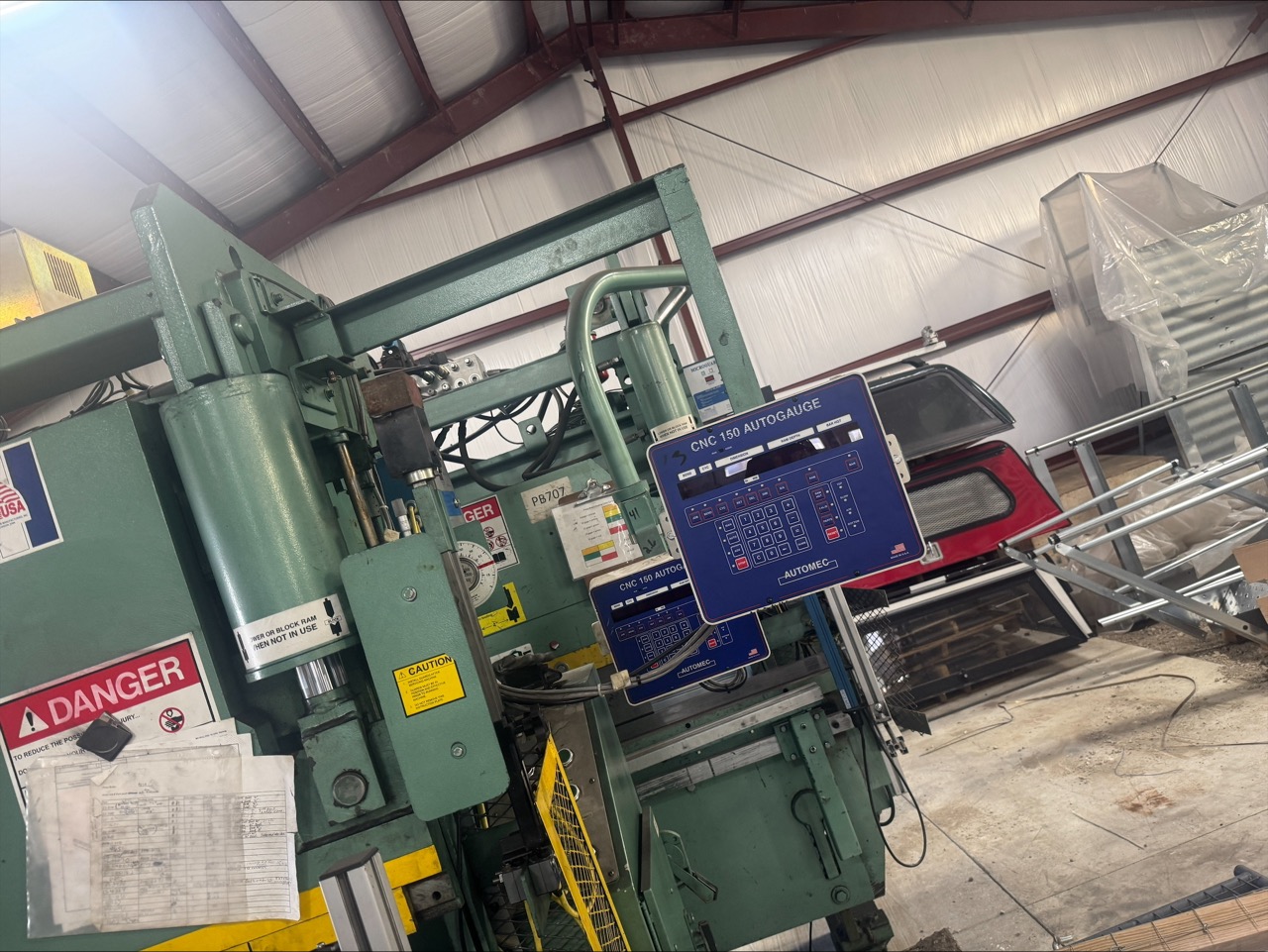

Cnc Automec control
(ram y1,y2 and x axis powered)
Machine was completed refurbed by Betenbender in 2013.
New replacement cost $80,000
