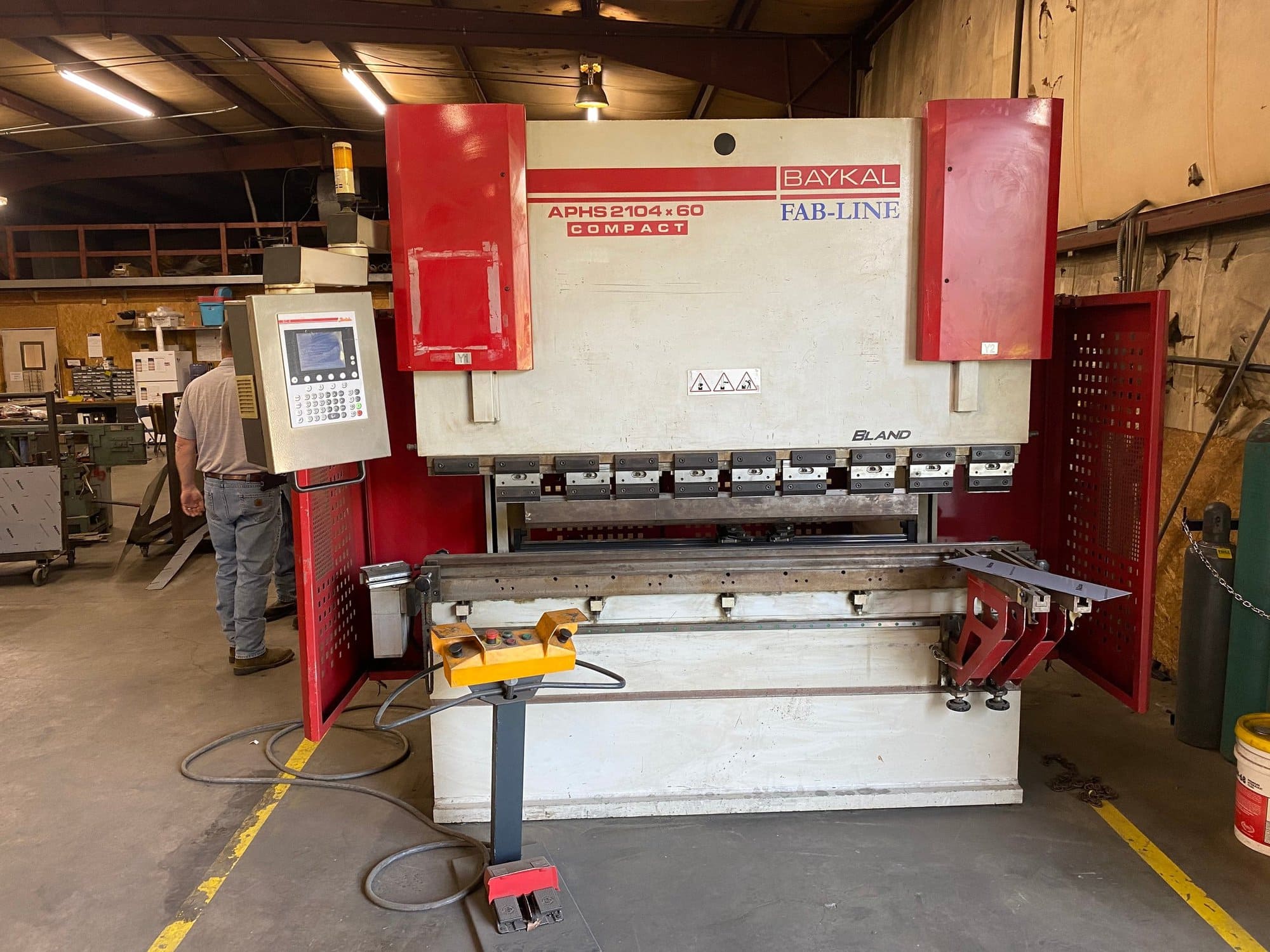

67 Ton X 7′ Baykal APHS2104x60 CNC Press Brake , 2008- CNC Crowning, With Tooling
$26,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Maximum Tonnage Capacity: 67 Ton
Overall Length Of Bed & Ram: 82.67″
Distance Between Housings: 62″
Open Height: 18.70″
Throat Depth: 16.14″
Stroke Length: 8.27″
Approach Speed: 210 IPM
Bending Speed: 22.2 IPM
Return Speed: 189 IPM
Main Motor: 7.4 HP
Approximate Dimensions: 85″L x 62″W x95″H
Approximate Shipping Weight: 12,125 Lbs
EQUIPPED WITH:

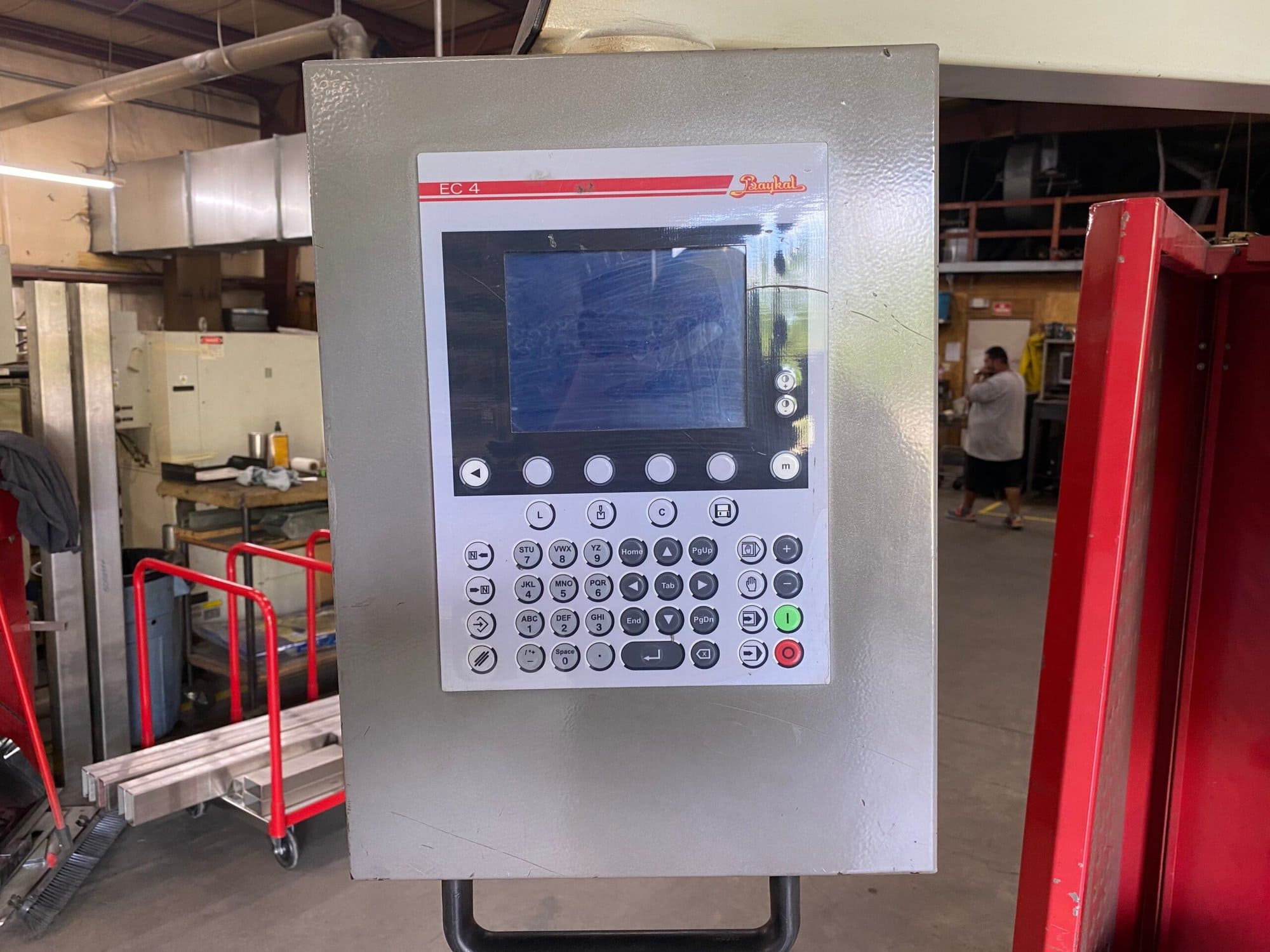

EC4 4-Axis CNC Control
CNC Crowning
Programmable Ram Depth (Y1,Y2)

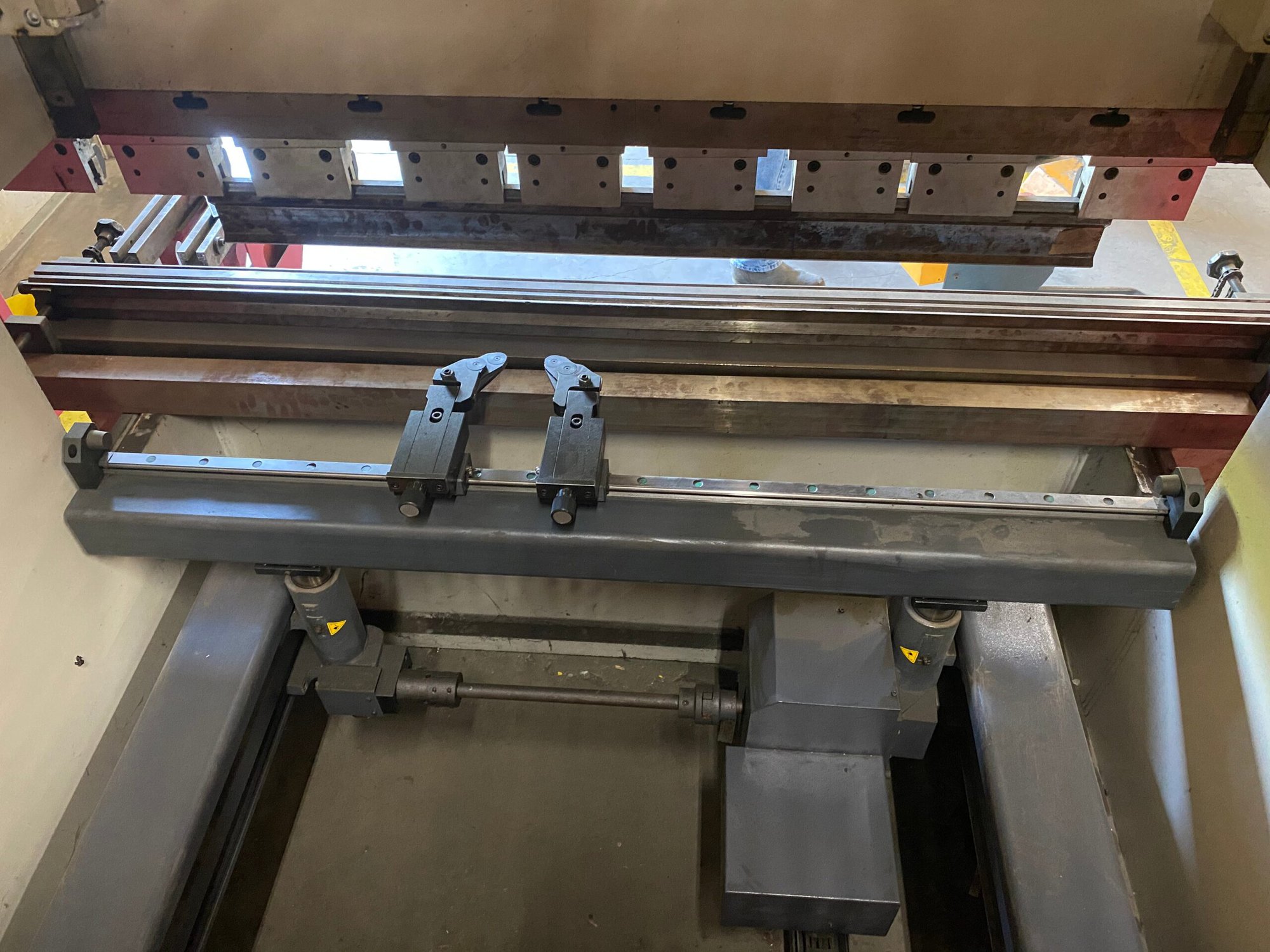

2-Axis CNC Back Gauge (X,R,)
Electric Foot Switch Control
Pedestal Palm Button Control
Some Tooling
