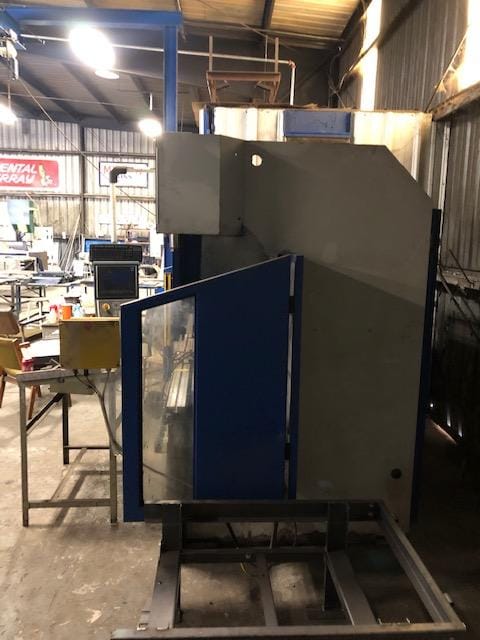

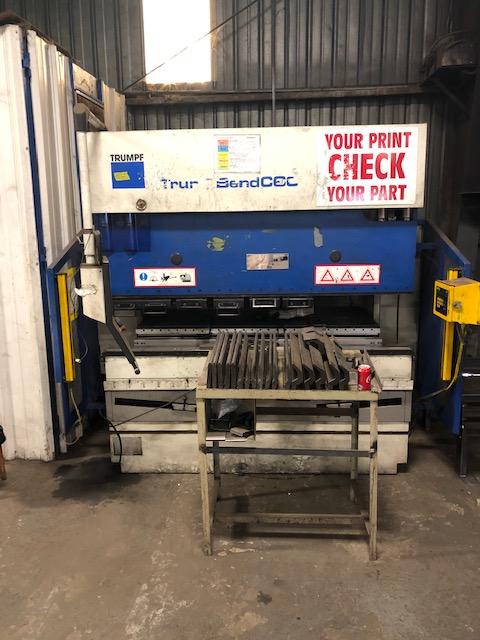

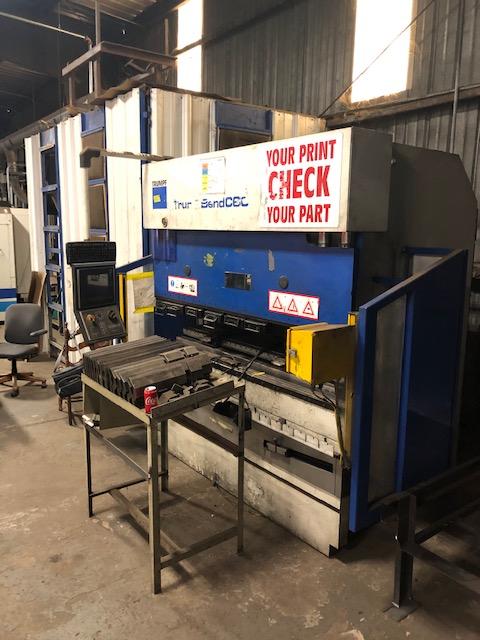

66 Ton x 6.5′ Trumpf TrumaBend C60 CNC Press Brake, 2001 – Backgauge, Light Curtains
$24,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 66 Tons
Maximum Bending Length: 82″
Distance Between Housings: 69″
Stroke Length (Y1/Y2 Axis): 8″
Throat Depth: 16.5″
Open Height: 13.4″
Bed Width: 3″
X-Axis Travel (Back Gauge In/Out): 20″
R-Axis Travel (Back Gauge Up/Down): 13″
Stop Range in X-Axis: 28″
X-Axis Travel Speed: 827 IPM
R-Axis Travel Speed: 236 IPM
Y-Axis Fast Approach Speed: 472 IPM
Y-Axis Press Speed: 47 IPM
Y-Axis Return Speed: 472 IPM
Main Motor: 10 HP
Approximate Machine Dimensions: 96″ x 65″ x 95″
Approximate Machine Weight: 11,000 LBS
EQUIPPED WITH:

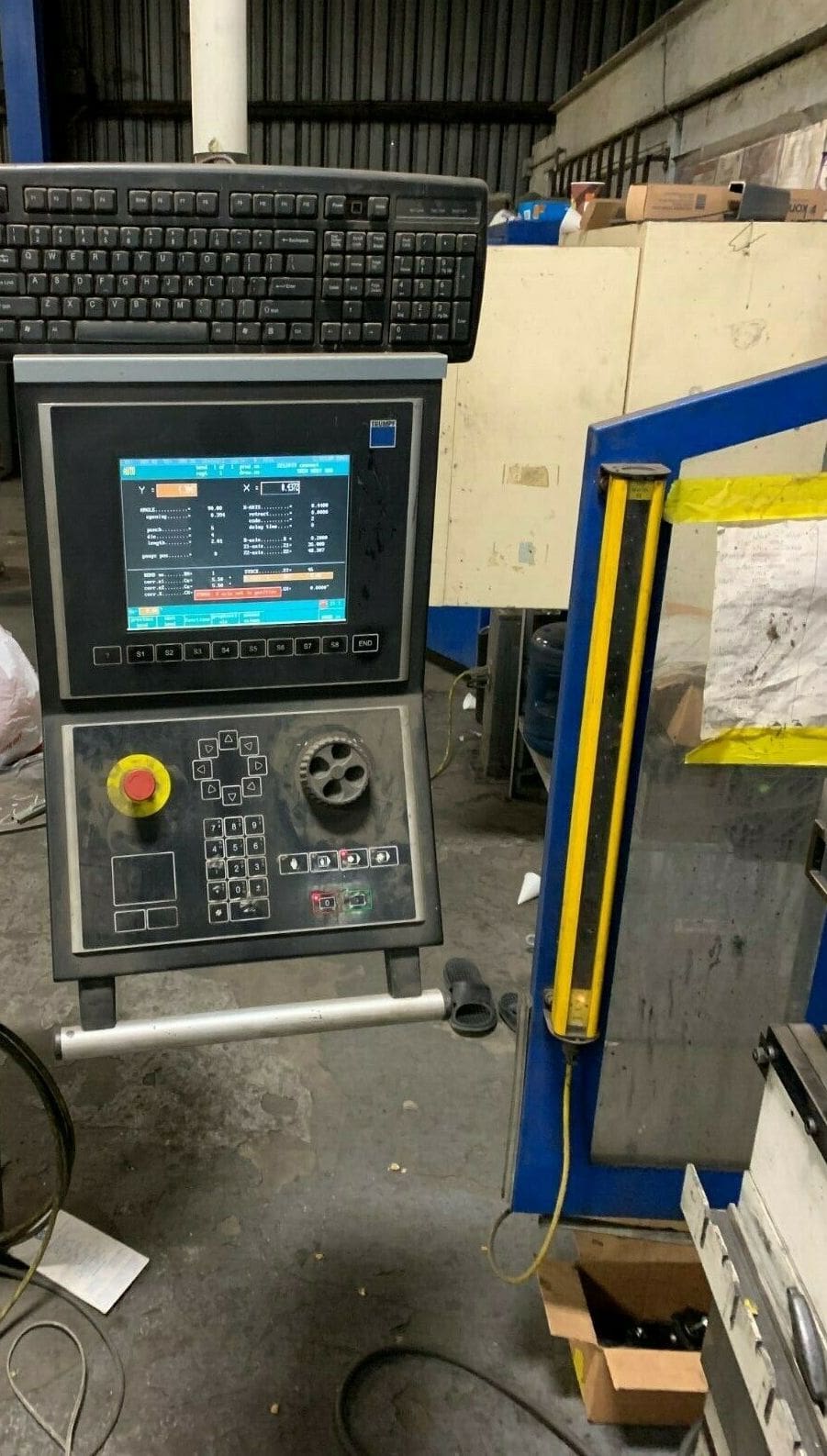

Delem 6 Axis CNC Control
4-Axis Backgauge
Light Curtains
Rear Guarding
Foot Pedal
Tooling (Upper punches only)
