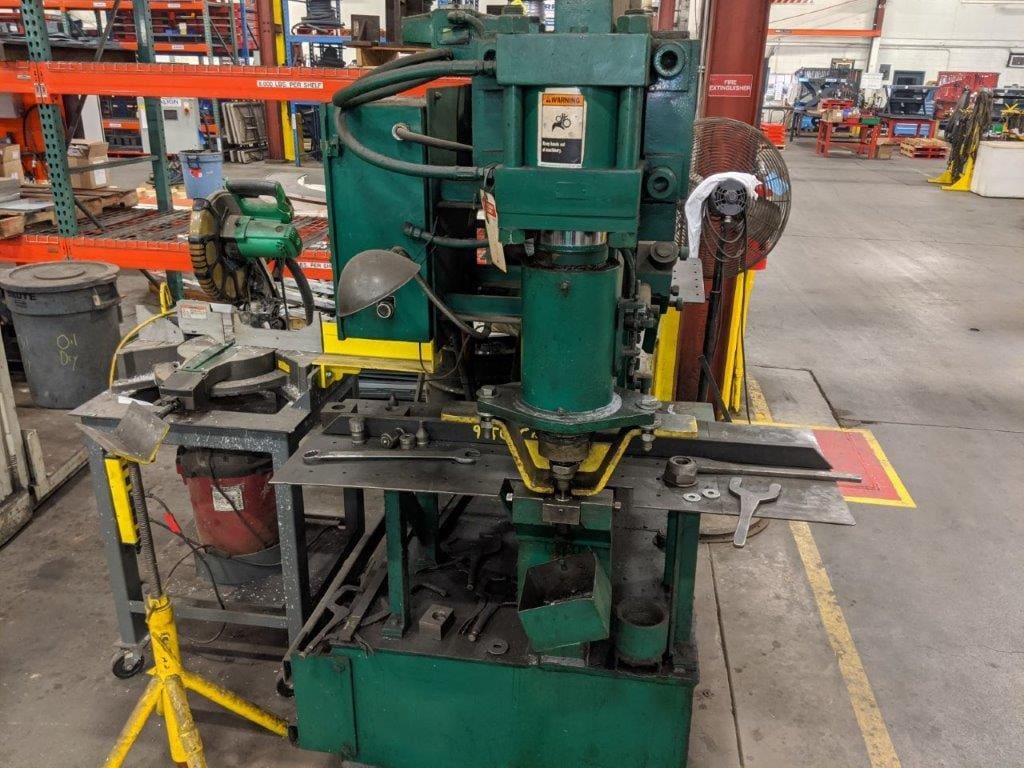

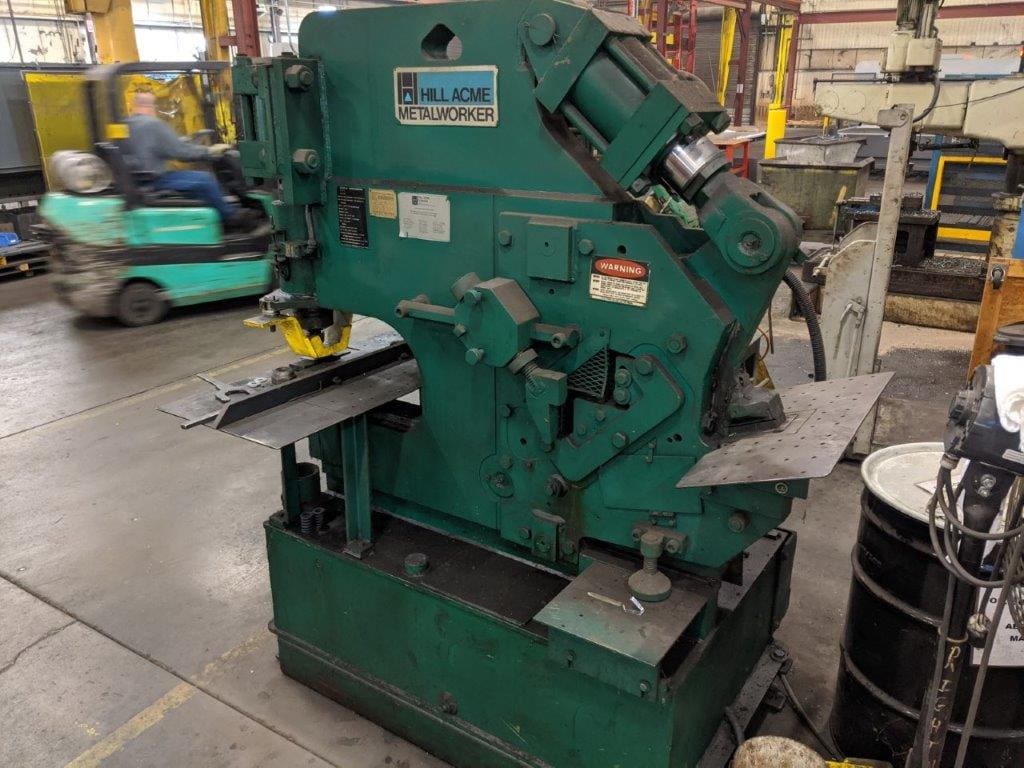

65 Ton Hills Acme Ironworker, Tooled
$9,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Diameter Thru Thickness 1-1/16″ thru 5/8″ TK
Dia. Thru Max Thickness: 7/8″ thru 3/4″ TK
Shearing:
Flats: 5/8″x7″, 1/2″ x 8″, 3/8″ x 8-1/2″
Rounds: 1-3/4″
Squares: 1-1/2″
Angles 90 Degree: 4″x4″x1/2″
Angles 45 Degree: mitre 3″x3″x5/16″
Tees 3″x3″x3/8″
Coping:
Sq. Notch 2-3/4″ x 2-3/4″x3/8″
90 Degree “V” cope 2-3/4″x4″x3/8″
Flanges of Beams and Channels 4″ to 7″
