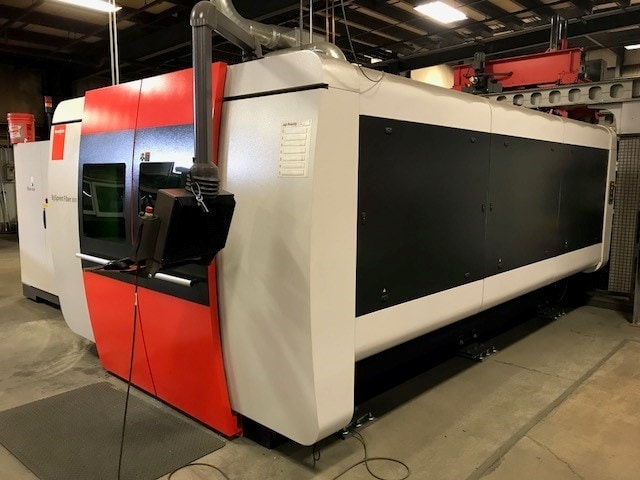

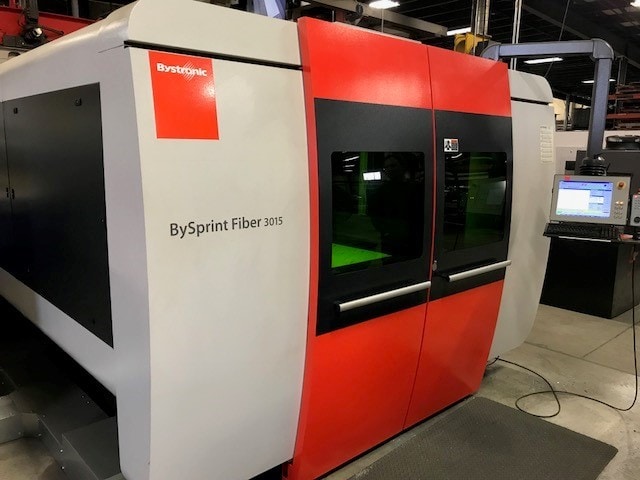

6000 Watt Bystronic BySprint 3015 Fiber Laser, 2014 5′ x 10′ Table
$299,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Metal Length: 120 in
Metal Width: 60 in
Max Thickness: 20 mm
Travel X: 120 in
Travel Y: 60 in
Travel Z: 275 in
Max Positioning Speed Parallel Axis X/Y:
3937in/min
Maximum Positioning Speed Simultaneous:
5511 in/min
Repeatability (positioning spread) Ps (VDI/DGQ 3441): 0.002 in
Maximum Axis Acceleration: 472 in/S2
Positioning Accuracy Pa 9 (without exhaust, chiller}: 0.004 in
Maximum Workpiece Weight: 1650 lbs.
Machine Weight: 26455

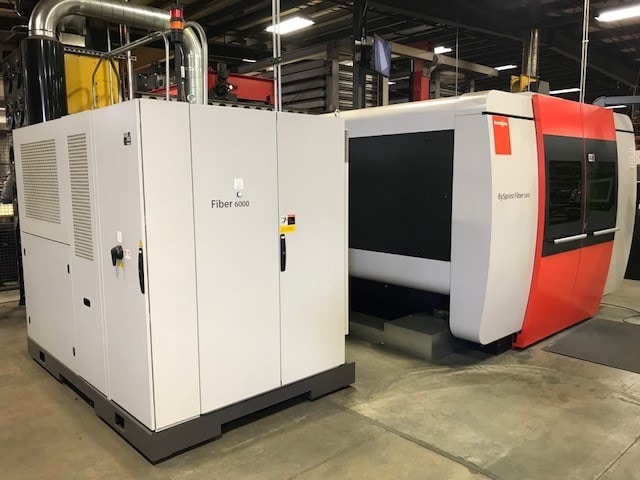

Laser Source Fiber: 6000
Pulse Frequency: 1-2500 HZ
Power: 6000 W
Range of Adjustment: 600-6000W
Wavelength: 1 Um
Steel (max cutting sheet thickness): 0.75in
Stainless Steel (max cutting sheet thickness:
0.625 in
Aluminum (max. cutting sheet thickness: 0.625 in
Brass (max. cutting sheet thickness): 0.394 in
Copper (max. sheet thickness): 0.394 in
Total Electric Consumption of System (with exhaust, chiller): 29KW

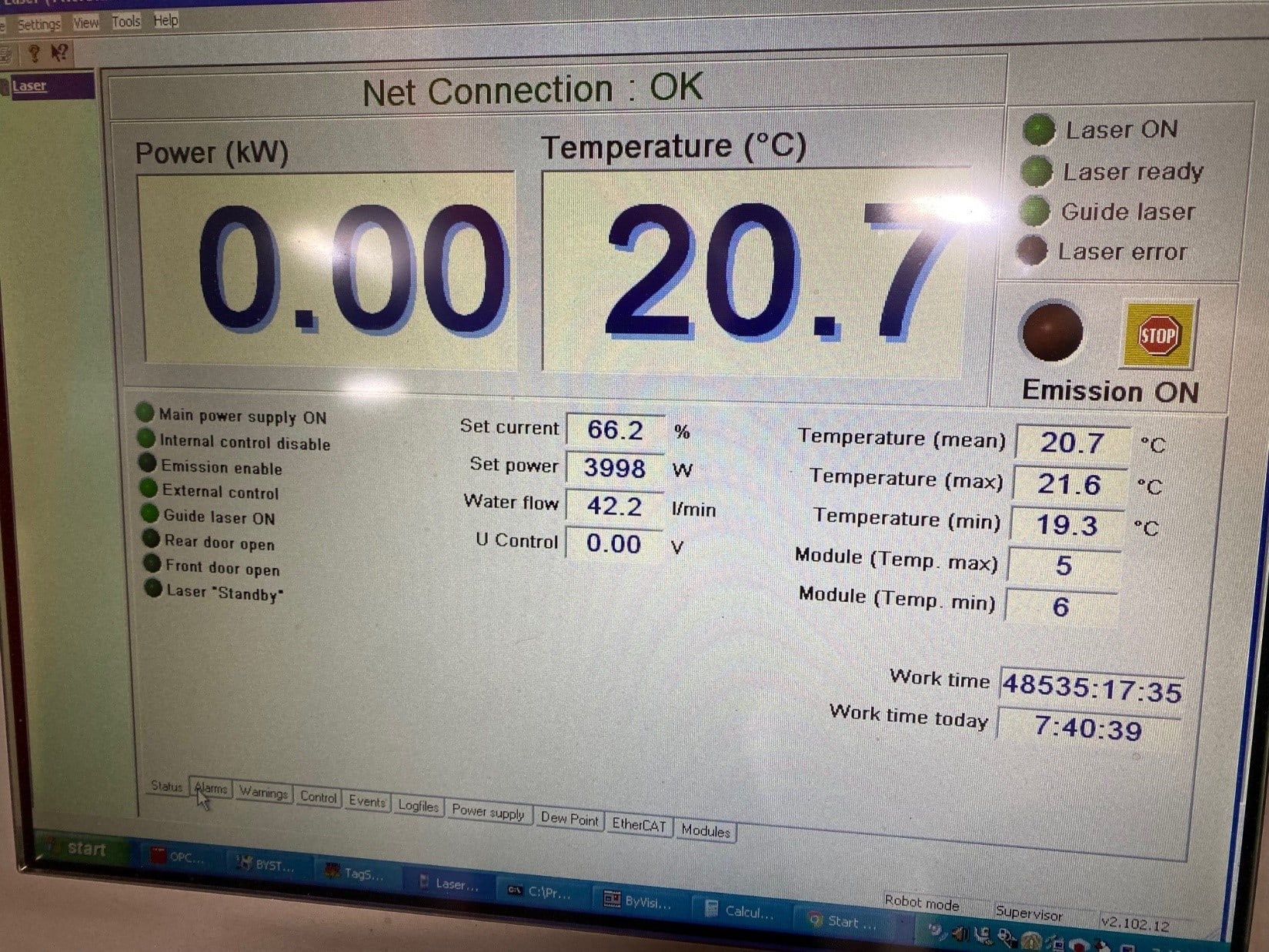

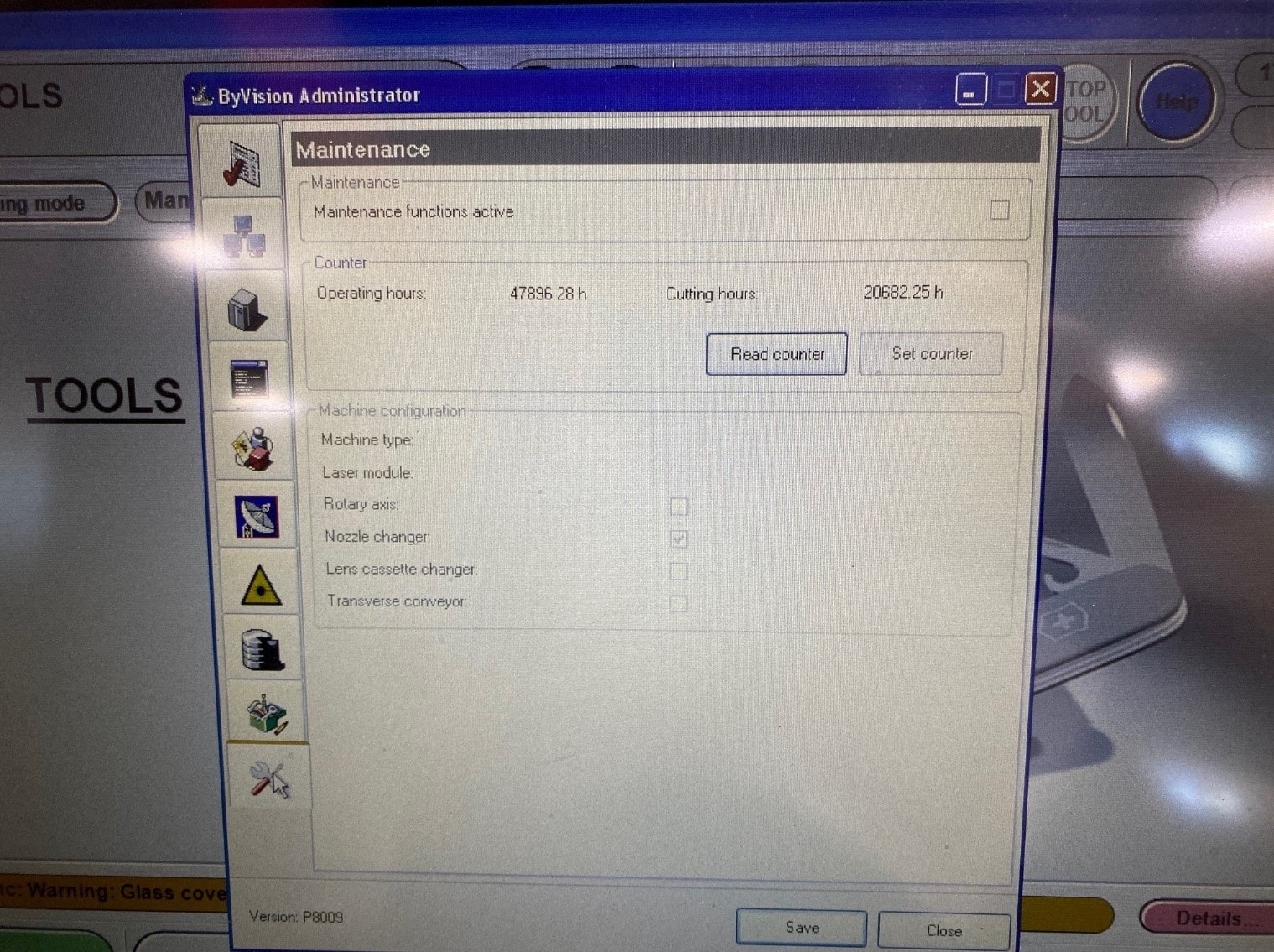

Machine On Hours: 48,000
