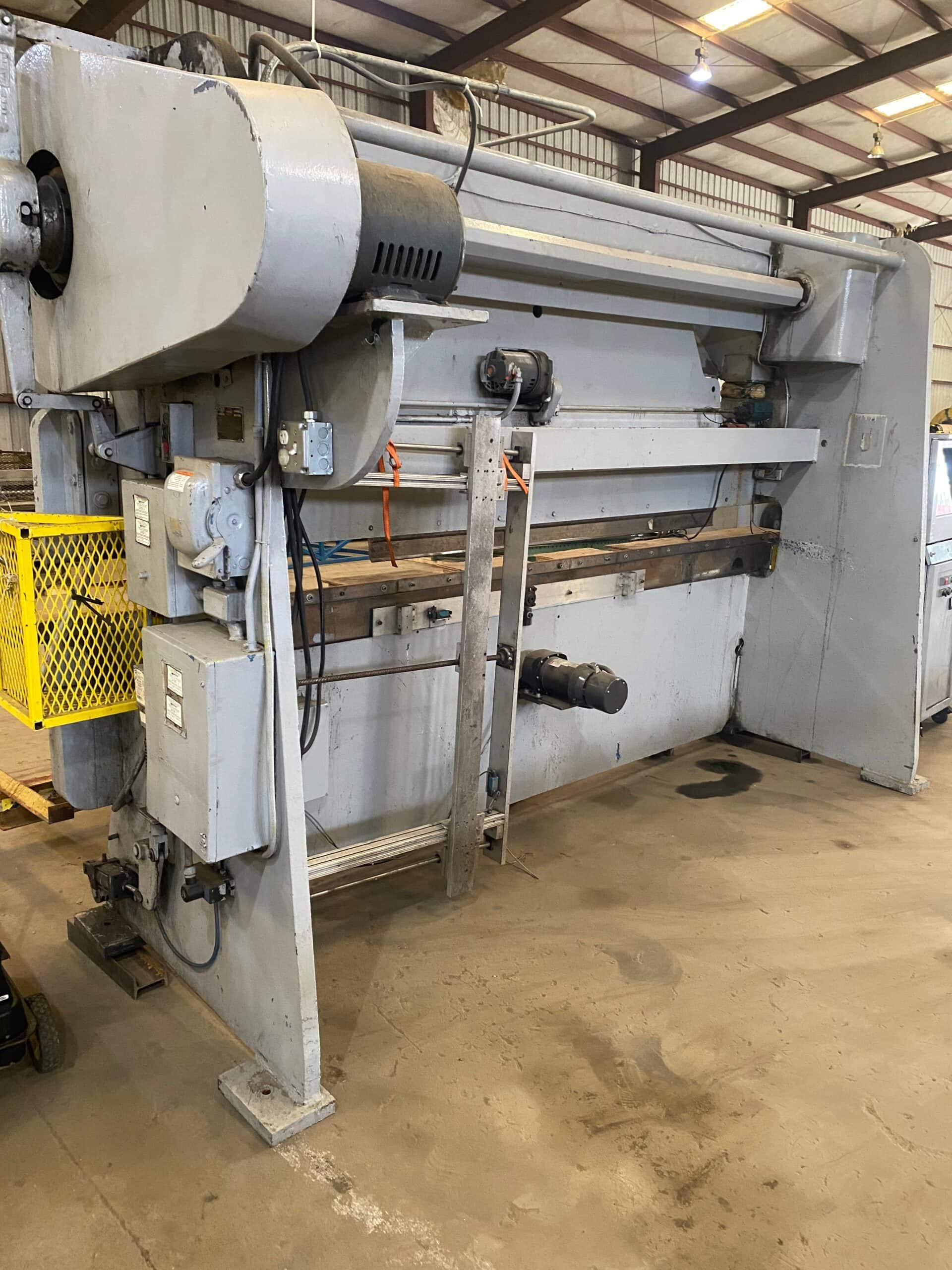

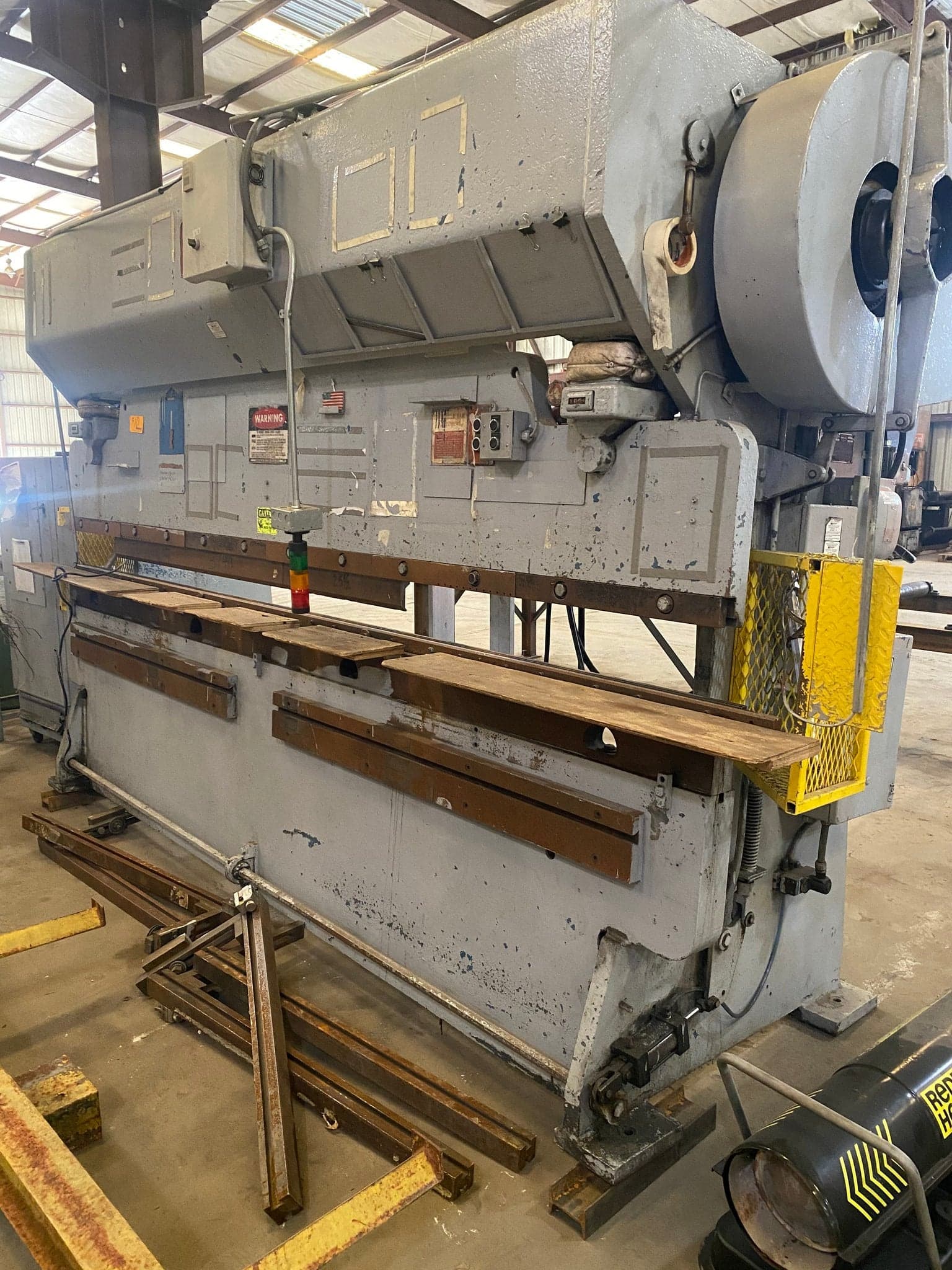

50 Ton x 12′ Chicago 1012L Press Brake
$7,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tonnage Capacity: 60 Tons @ Mid Stroke / 90 Tons Near Bottom
Capacities: 12′ X 12 Ga. Mild Steel / 10′ X 10 Ga. Mild Steel / 8′ X 3/16″ Mild Steel / 5′ X 1/4″ Mild Steel
Overall Length of Bed & Ram: 12′
Distance Between Housings: 10’6″
Stroke: 3″
Ram Adjustment: 4″
Shut Height S.D.A.U.: 12″
Throat Depth: 8″
Width of Bed: 4″
Floor to Top of Bed: 34″
S.P.M. (Approx.): 40
Motor HP: 7.5
Electrical: 230/460V(Wired 460)/3PH
Approx. Shipping Weight: 16,000 Lbs.
Approx. Shipping Dimensions: 152″ L x 56″ W x 99″ H
