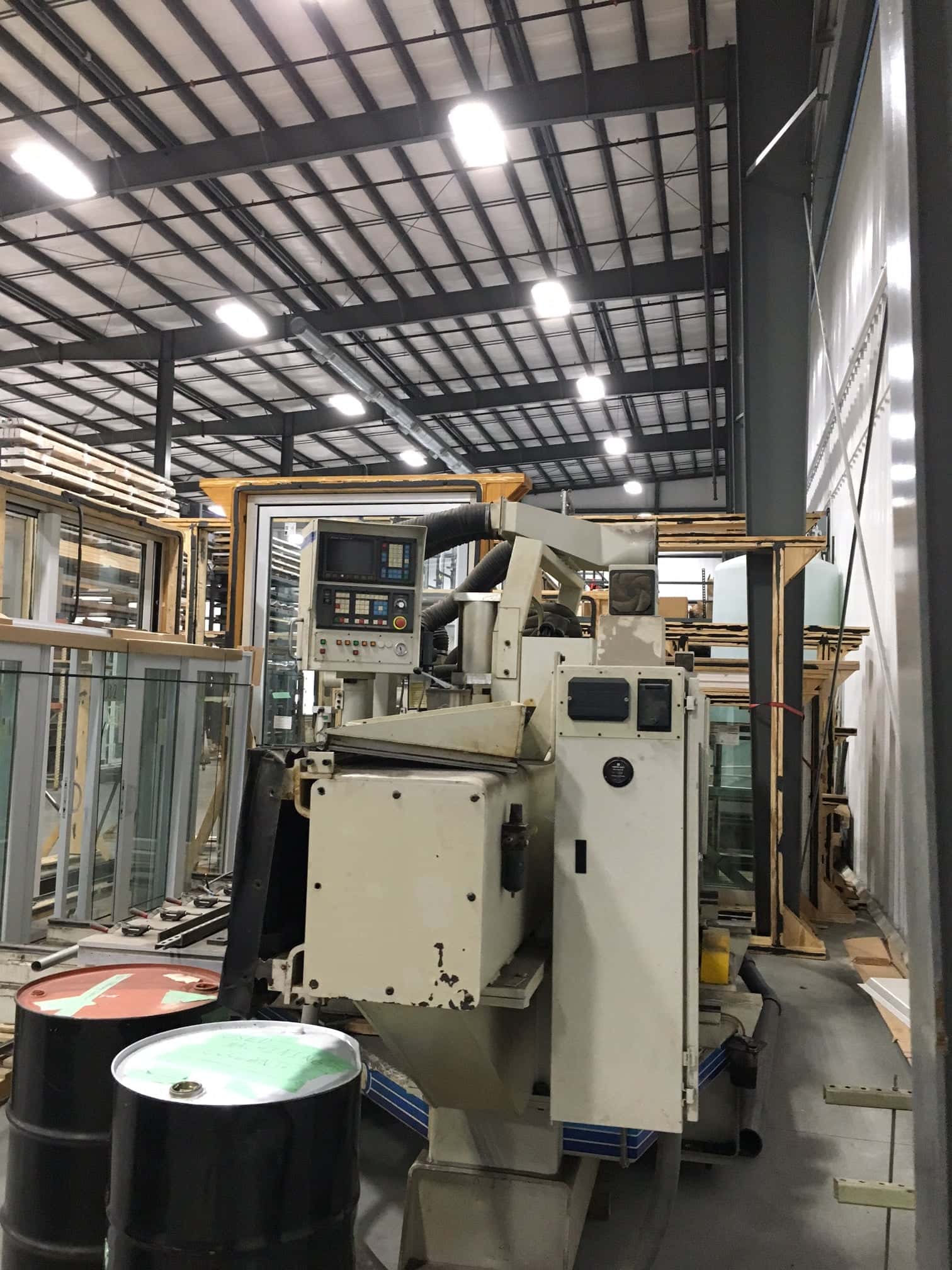

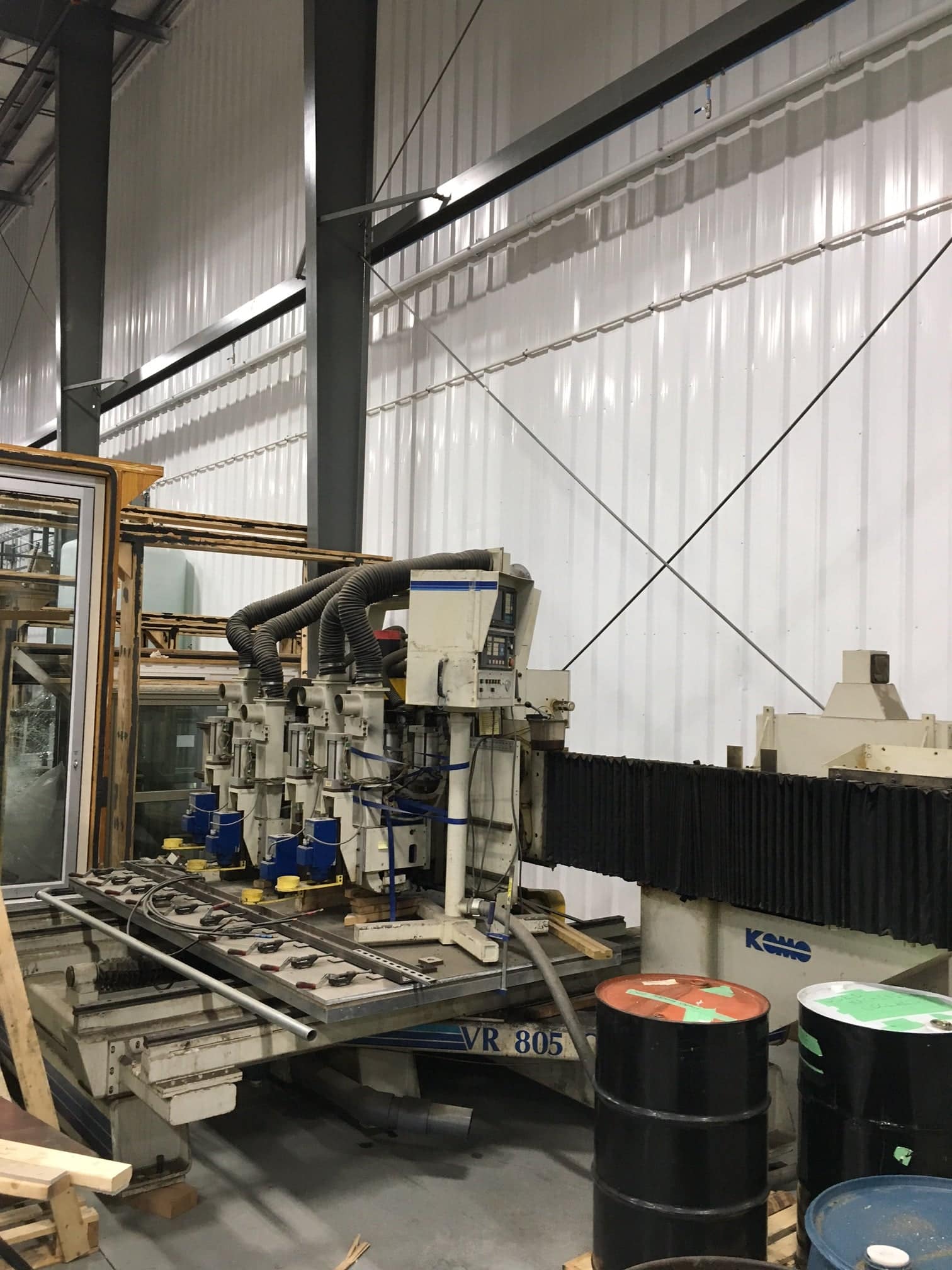

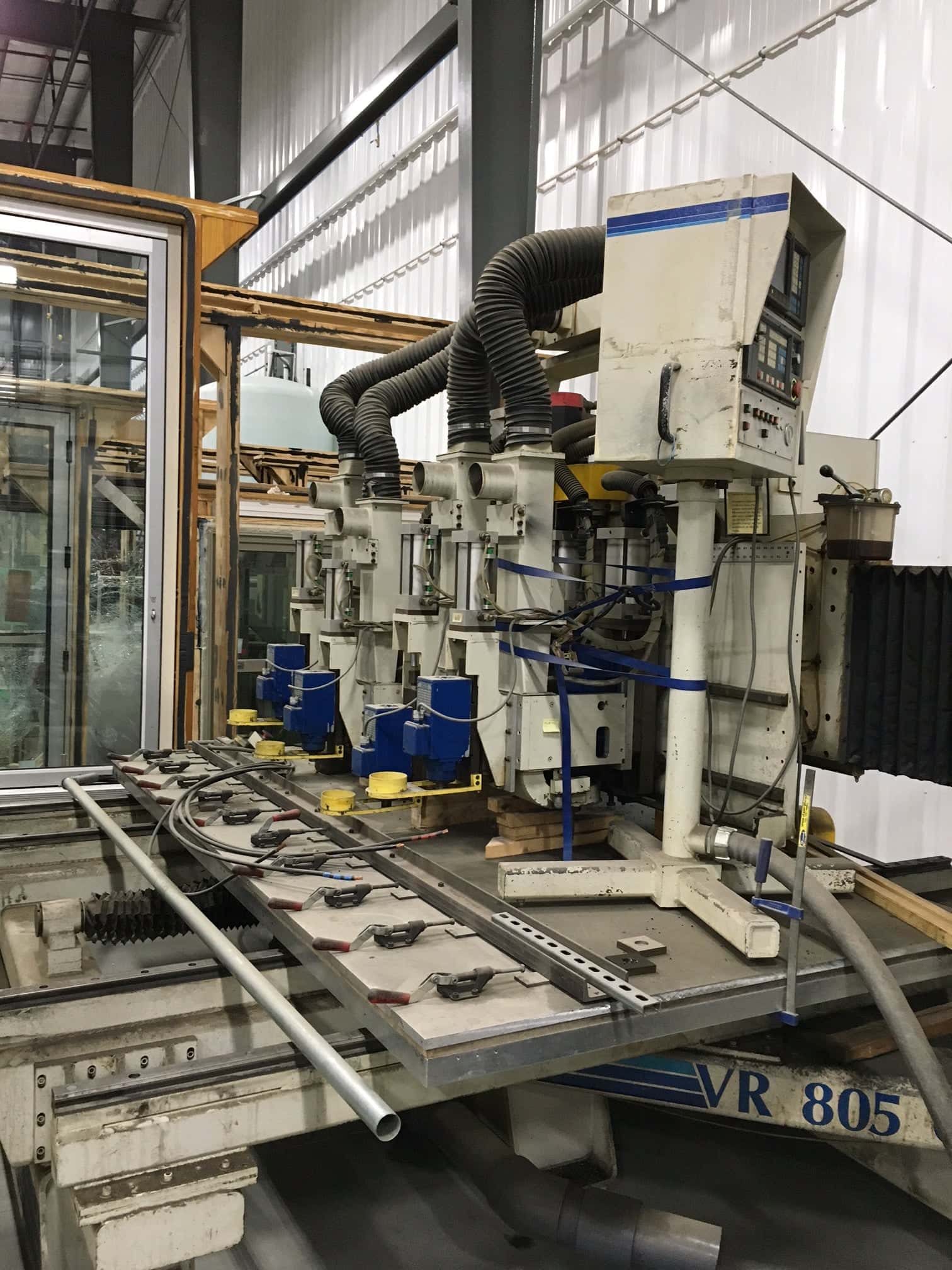

5 ‘X 8’ Komo VR 805 Q CNC Router, 1994
$9,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table:
Table Travel: (Cross) Y-Axis 71-1/2″
Table Dimensions: (W X L) 60″ x 96″
Working Envelope: 96″x60″x8″
Perske 12.5 HP 4
Programmable Spindle speeds through 18,000 RPM
Piggyback high speed drills: 2
Spindle Carriers:
Transverse Travel: (X-Axis) 162″
Spindle Head Travel on Cross Rail: (X-Axis)
Longitudinal travel 244″ to Center of spindle (Adjustable) 10″thru 24″

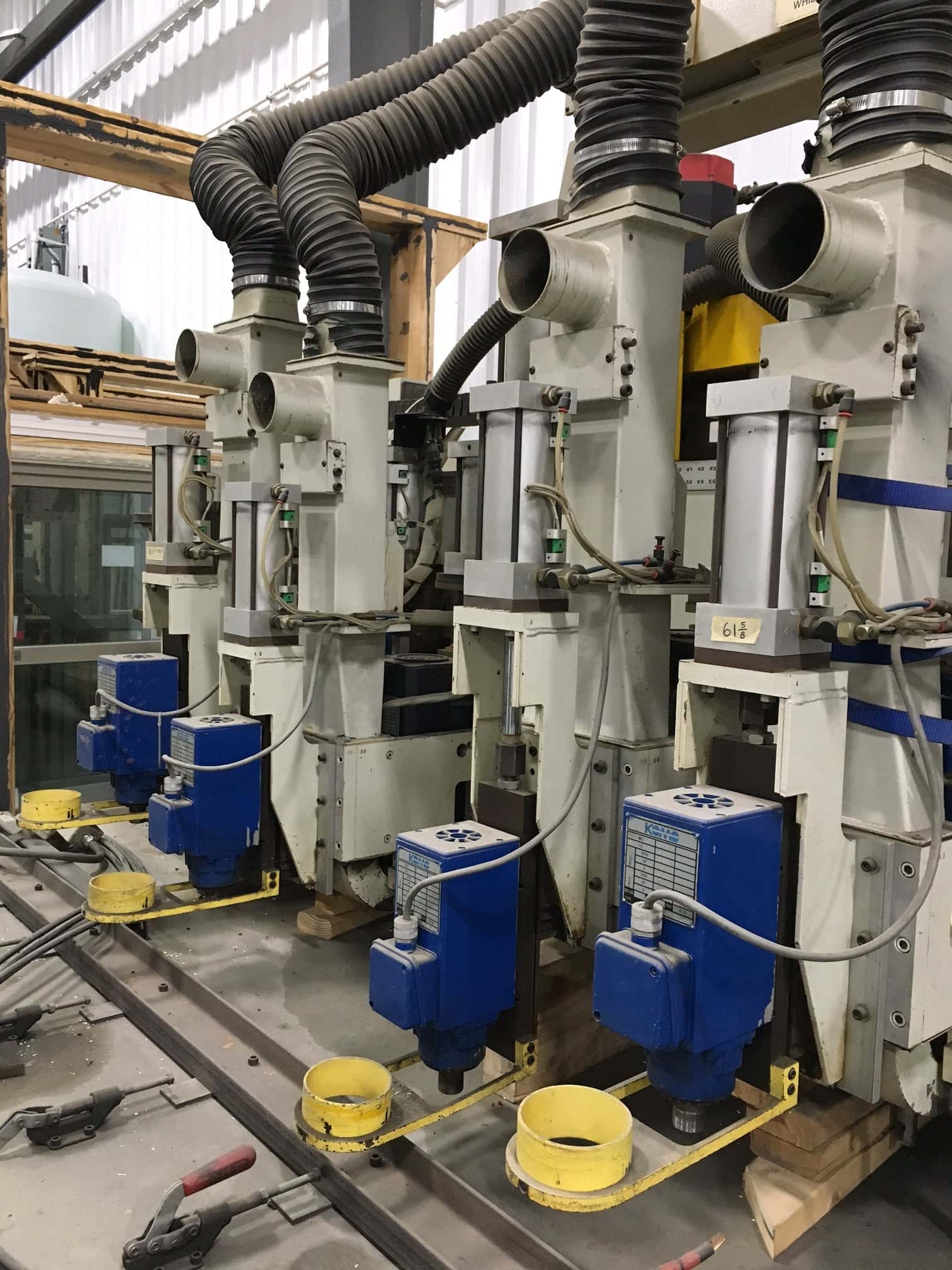

Routers: 4
Variable through 18,000 RPM
Collet Type Quick Change: 1/8″ thru 1″
Vertical Travel: (Z-Axis) 8″
Z Position Slide: 6″
High speed Drills: (Piggyback) 4
RPM: 18,000
Capacity: 3/8″
Drill Chuck Assemblies: 1/2″
Vertical Travel: (Z-axis) 8″
Feed Range Tranverse:
X & Y-Axis: 1000 IPM
Z-Axis: 600 IPM
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
