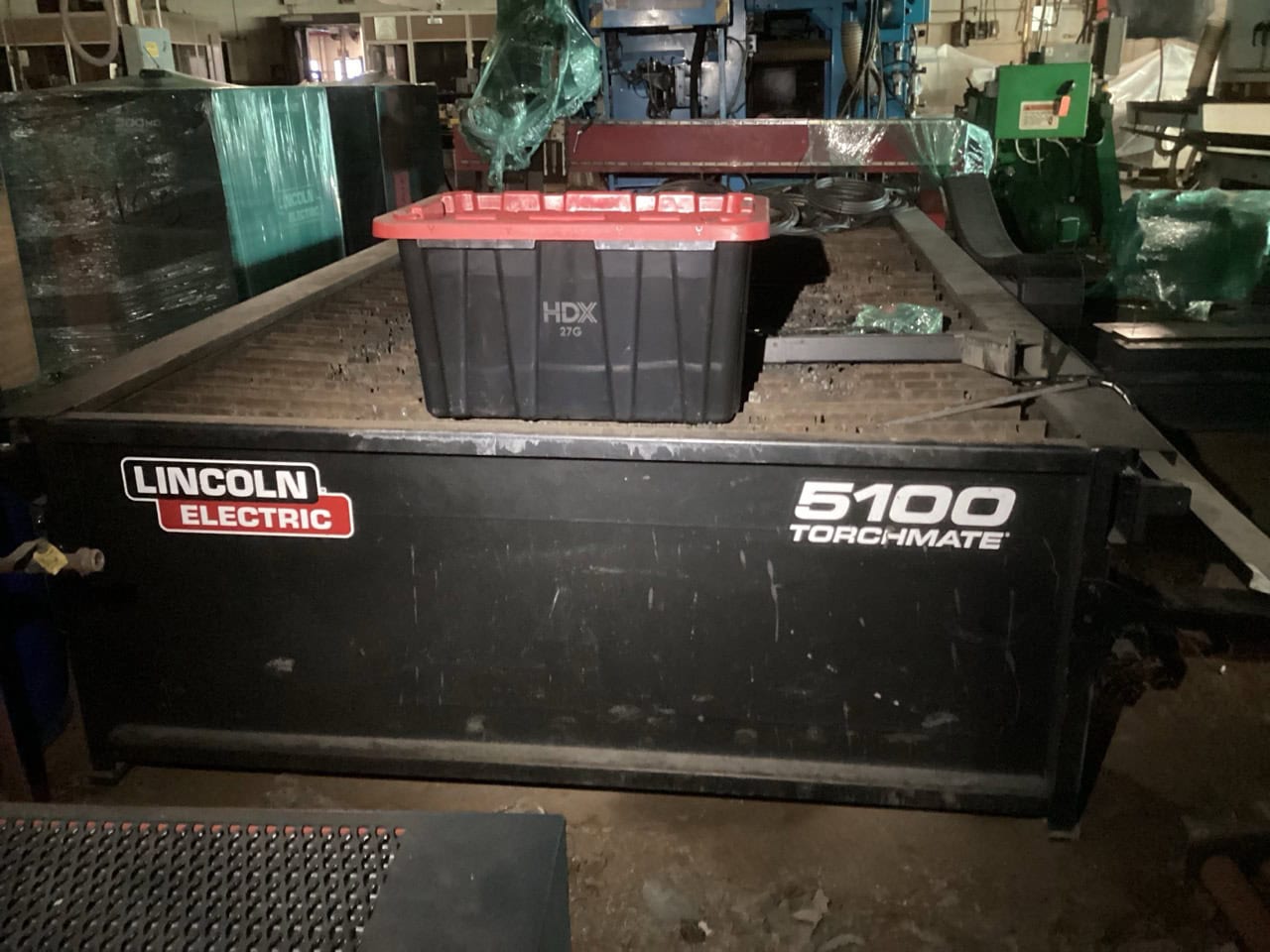

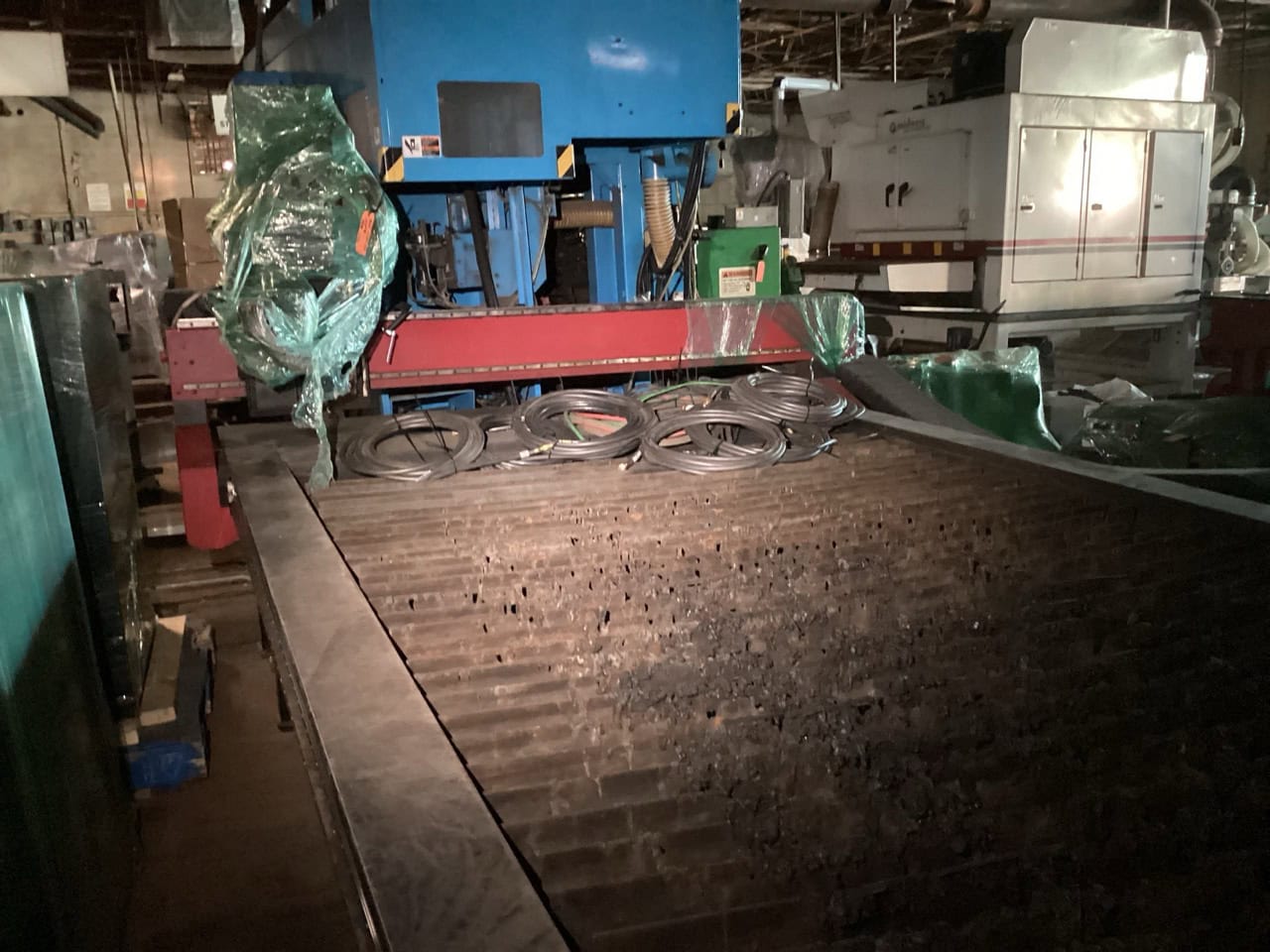

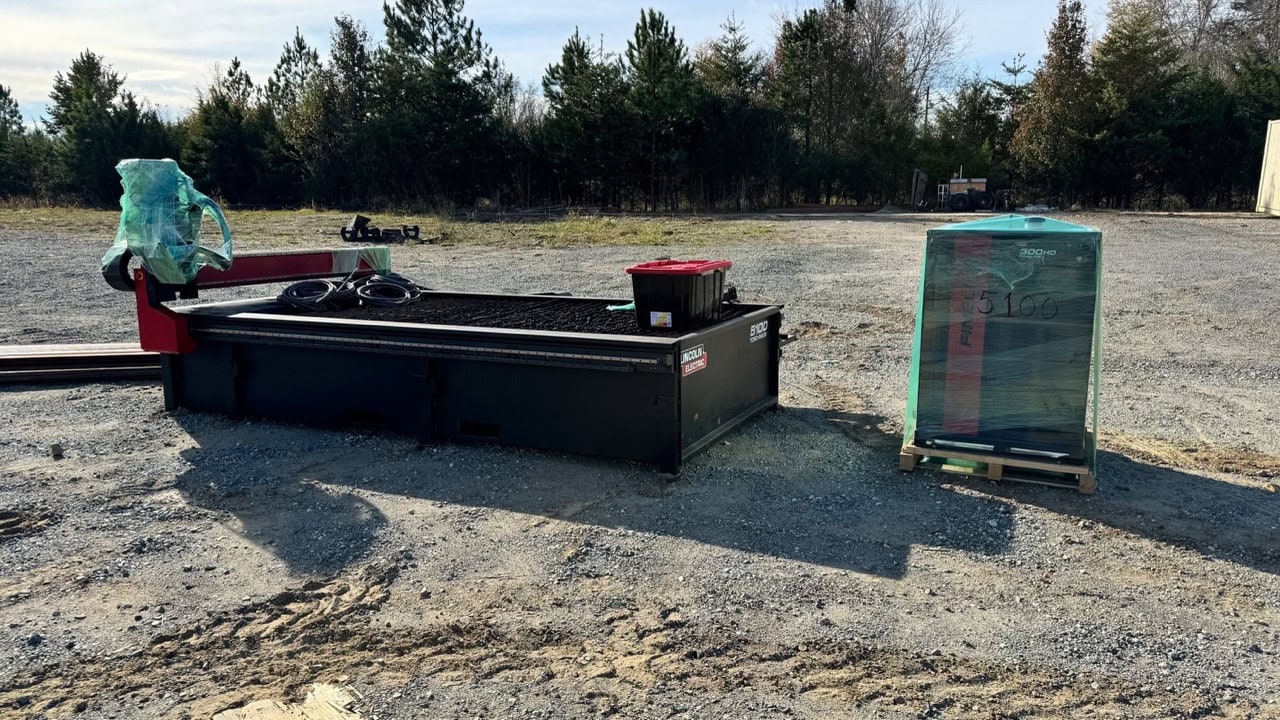

5′ x 10′ Lincoln Torchmate 5100 CNC Plasma Table, 2023 – FL300 Power Supply w/bevel

FineLine Advanced Process Controller

Oxy Station

FL Quick. Disconnect Torch Head

QuickCAM Pro with Bevel

LE Plate Guard (55 Gallon Drum)

Fineline 300 HD CNC Plasma

Water Table

Height Control
• Ohmic Sensing
• Automatic Torch Arc Voltage Height Control
• 6” Z-axis Travel
Bevel Cutting Capabilities
• +/-45° Cut, Dependent on Material Thickness and Plasma
Configuration
Software
• Easy-To-Use Lincoln Electric User Interface
• Optional CAD/CAM with Irregular Part Nesting
Fume Extraction (Optional Accessory)
• 1,030 to 1,438 ft3

/min or 61,800 to 89,990 ft3
/hr
• Automatic Filter Cleaning, Pressure Controlled
Input Power
• 120V / 1Ph / 60Hz Machine
• 380-575V / 3Ph / 50-60Hz
Machine Size
• 60 ̋ x 120” (1524mm x 3048mm) Cutting Area
• 113.5 ̋ x 166” (2882.9mm x 4216.4mm) Footprint
Plate Capacity
• Holds Up to 4” (102mm) 5’x10’ (1524mm x 3048mm) Plate Mild
Steel
Weight [ Configuration Dependent.]
• Estimated 6,600 lbs [2993.71 kg] dry shipping weight
• See OSHA guidelines for proper forklift procedures
Motors
• Servo Motors Fitted with Rotary Glass Encoders Drive
System
• Helical Gear Rack and Hardened Pinion with Lubrication
System

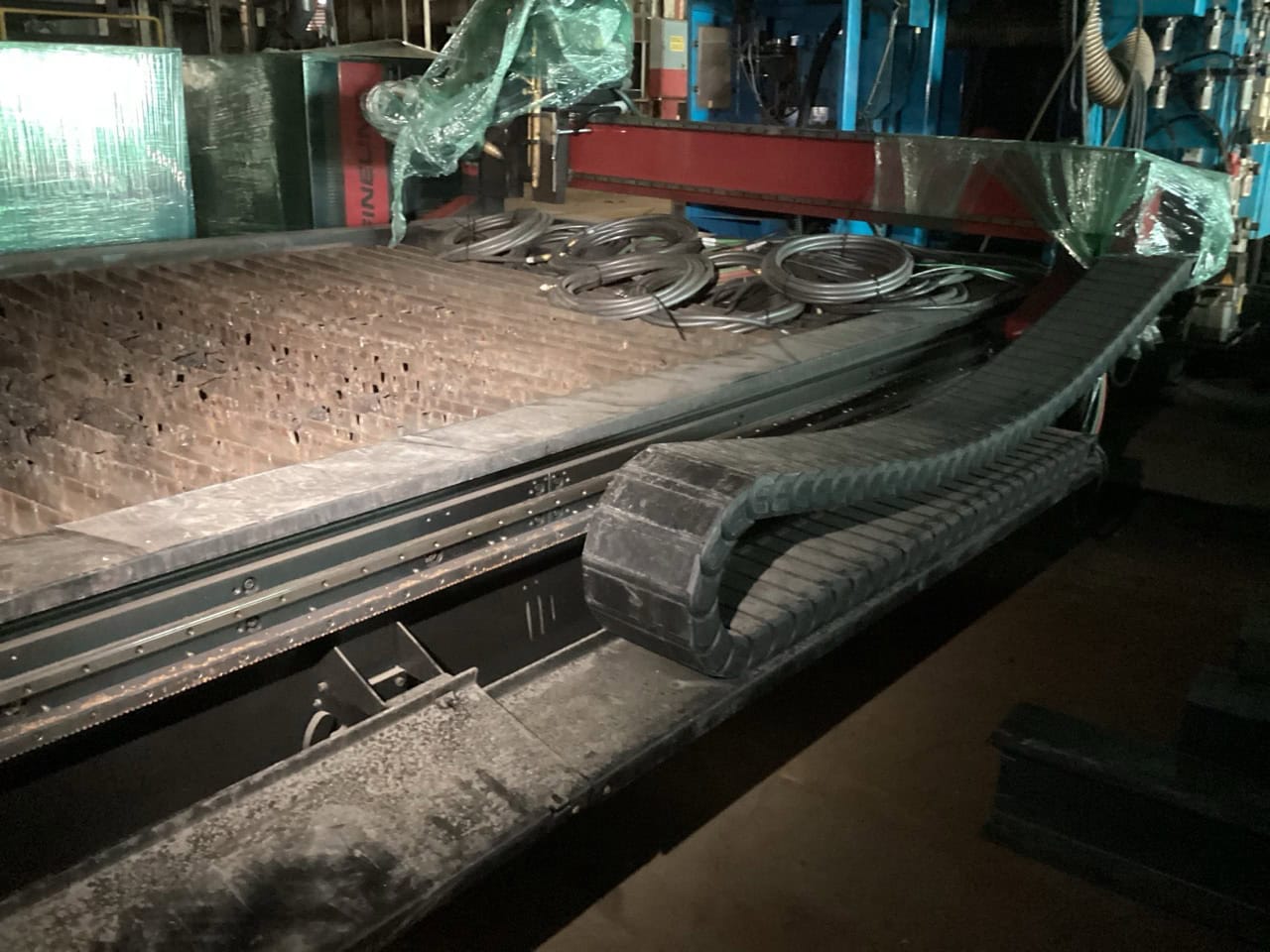

Linear Guidance
• Profile Linear Rail
Acceleration Rate
• 0.05g (0.03g bevel)
Deceleration Rate
• 0.05g (0.03g bevel)
