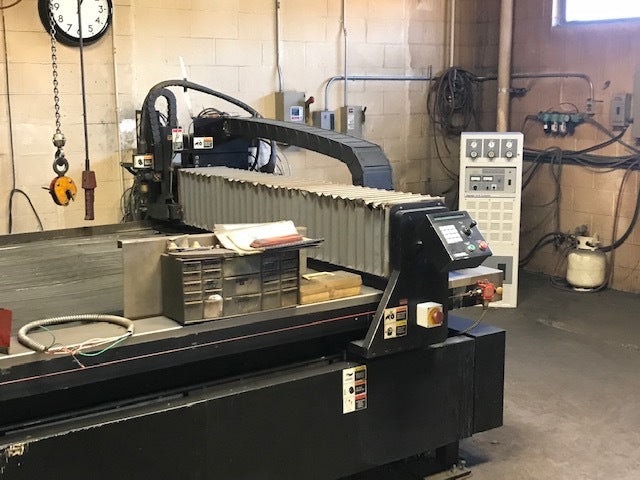

5′ x 10′ Komatsu KCR-1251 Burning Plasma, 1999 – G9120-II 120 Amp Fine Plasma Unit
$12,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Table Size5′ x 10′
Power Requirement460/3/60
Maximum Cutting Width5′
Maximum Cutting Length10′
Thickness Capacity Mild Steel 1″
Thickness Capacity Aluminum 3/4″
Thickness Capacity Stainless Steel.028″-.500″
Cutting Speed30-300 IPM
Rapid Traverse Speed1,000 IPM
Variable Cutting Current3-120 Amps
Positioning Accuracyplus/minus .004″
Repeatability.002″
Pierce Height Accuracyplus/minus .015″
Bevel Angleplus/minus 2 Degrees
Approx Table Dimensions13’10” x 7’4″ x 66″
Approx Weight7,000 lbs
Equipped With:

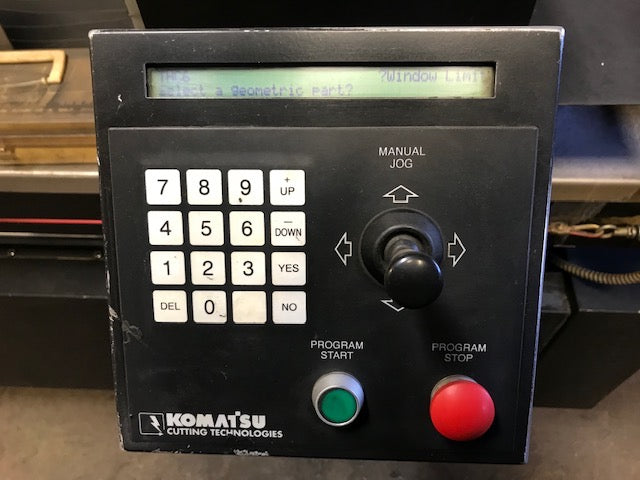

Komatsu Control

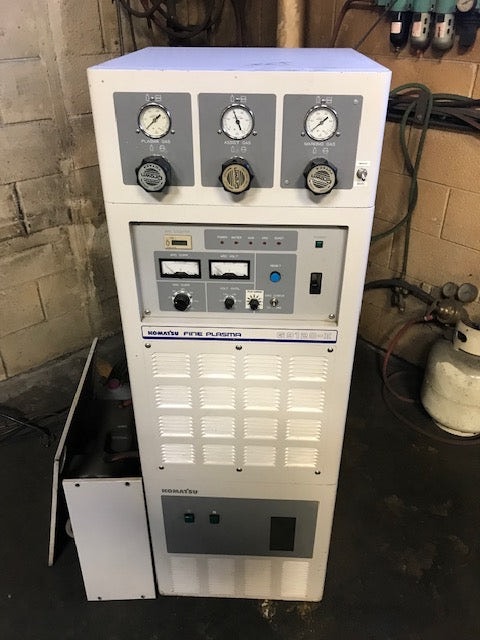

Komatsu G9120-II 120 AMP Fine Plasma Unit
Welded Box Beam Construction
