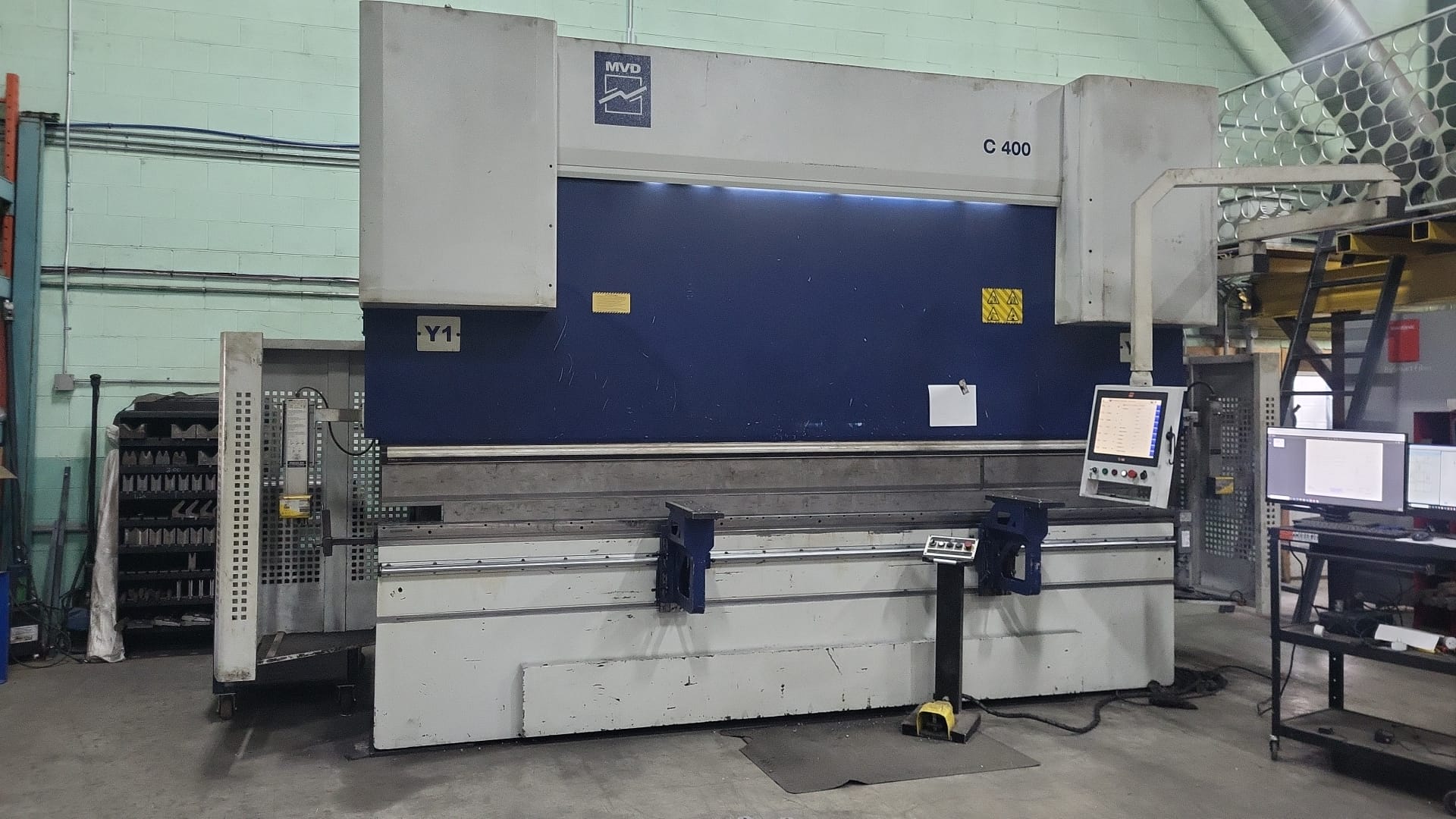

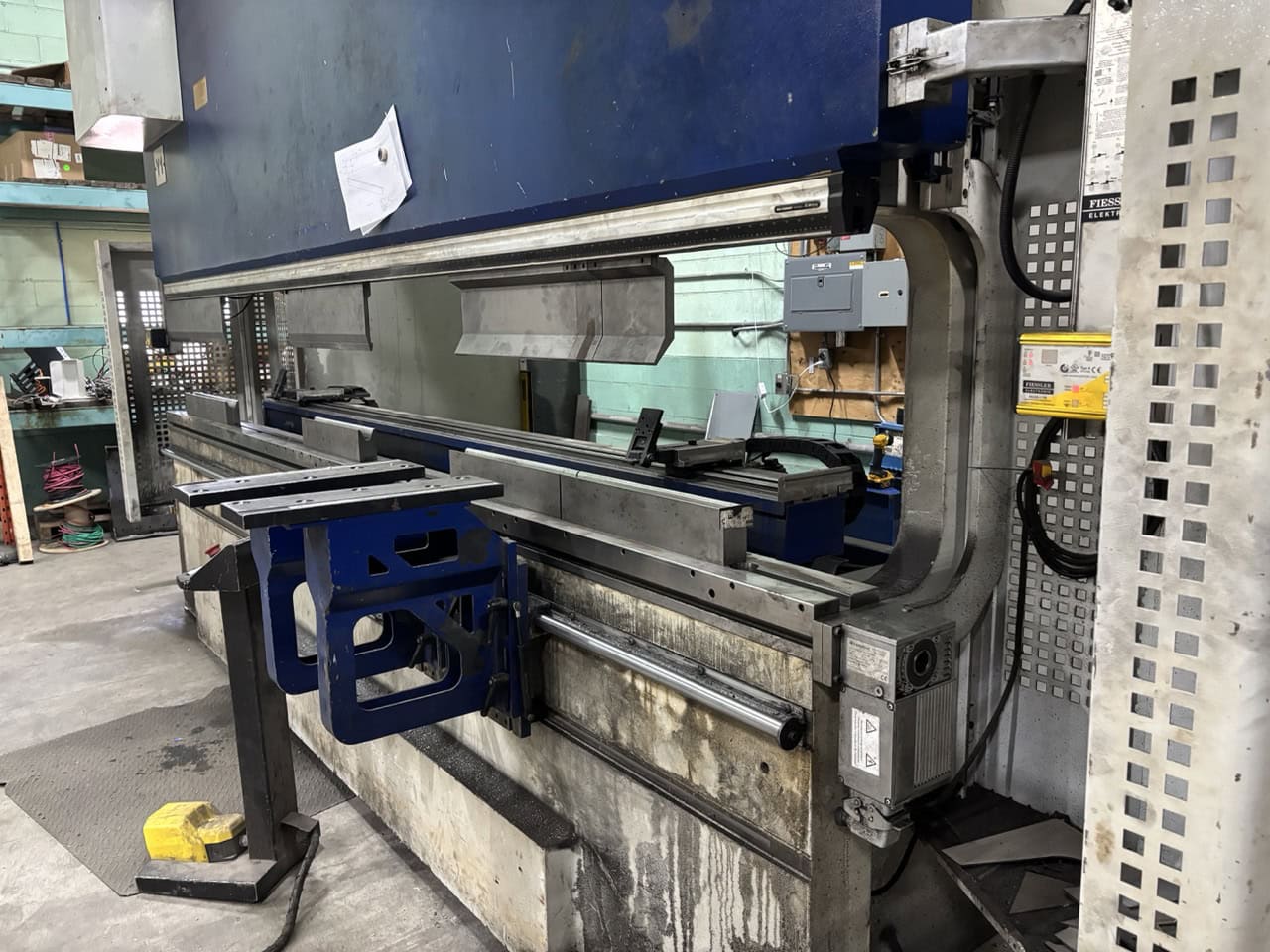

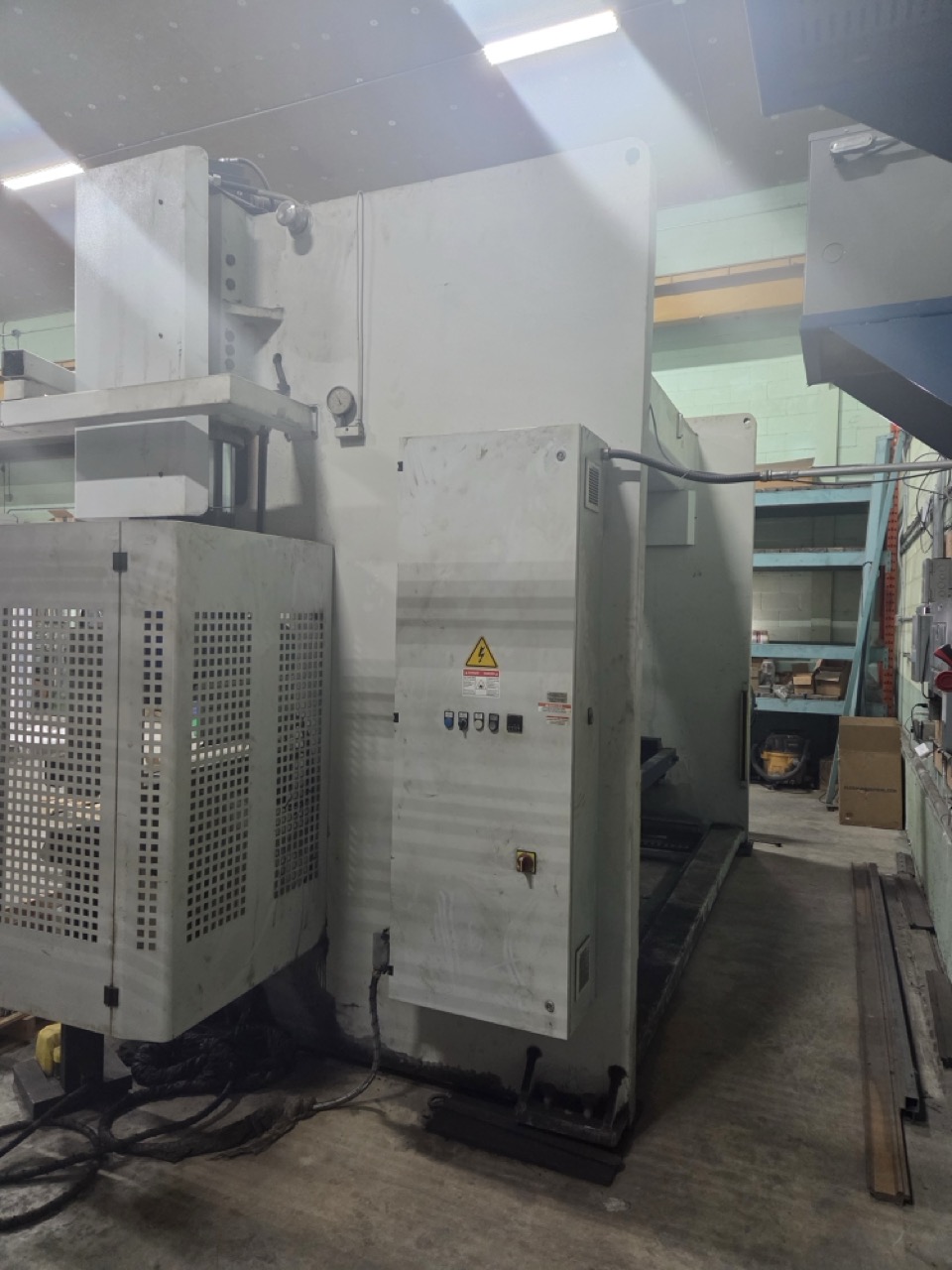

400 Ton x 13′ MVD Wysong CNC Press Brake, 2019 – 4 Axis Backgauge
$119,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Press Force: 400 Tons
Bending Length: 160 inches (4060 mm)
Distance Between Housings: 140 inches (3550 mm)
Daylight: 21 inches (533 mm)
Throat Depth: 16 inches (406 mm)
Stroke: 12 inches (305 mm)

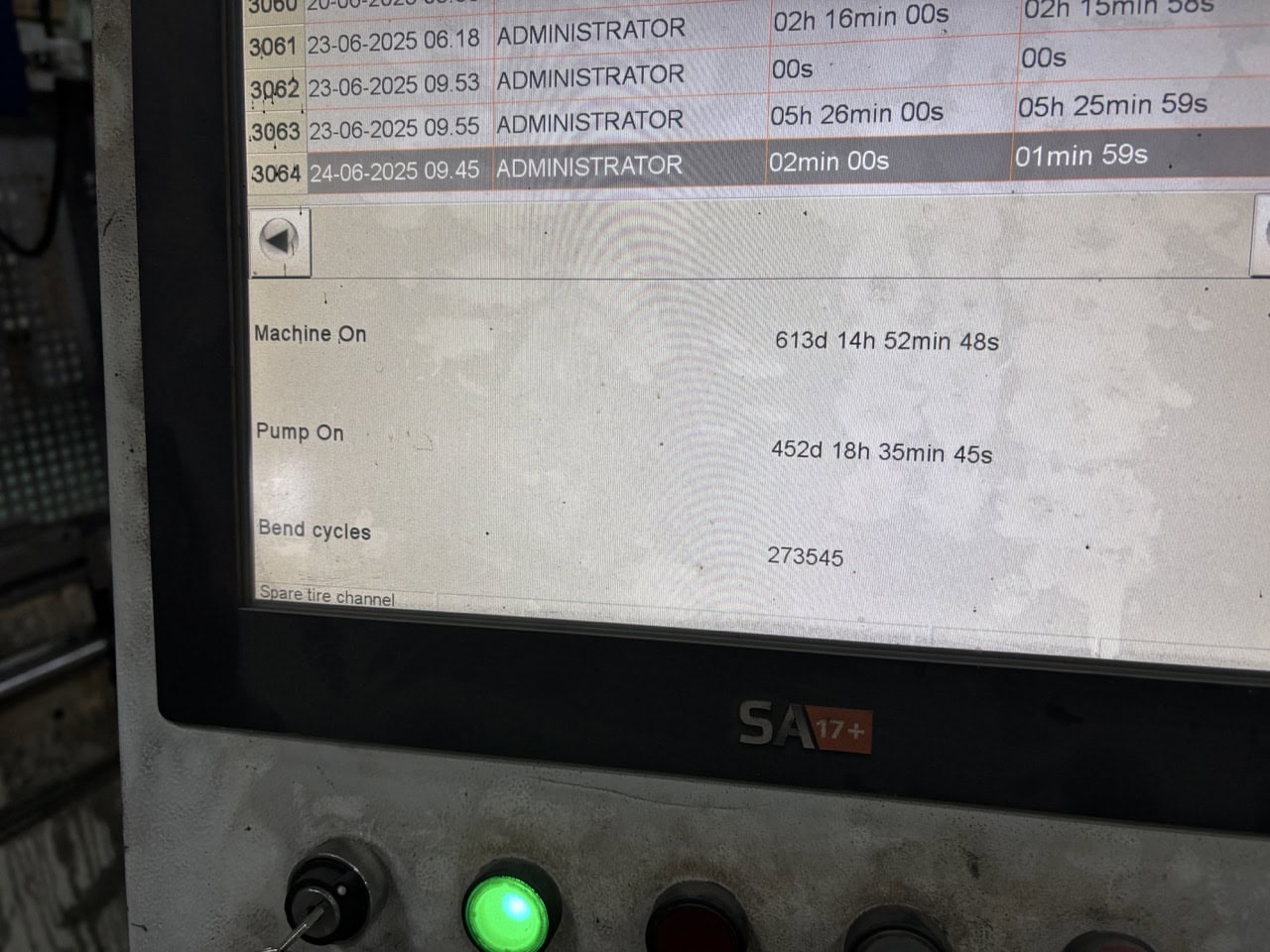

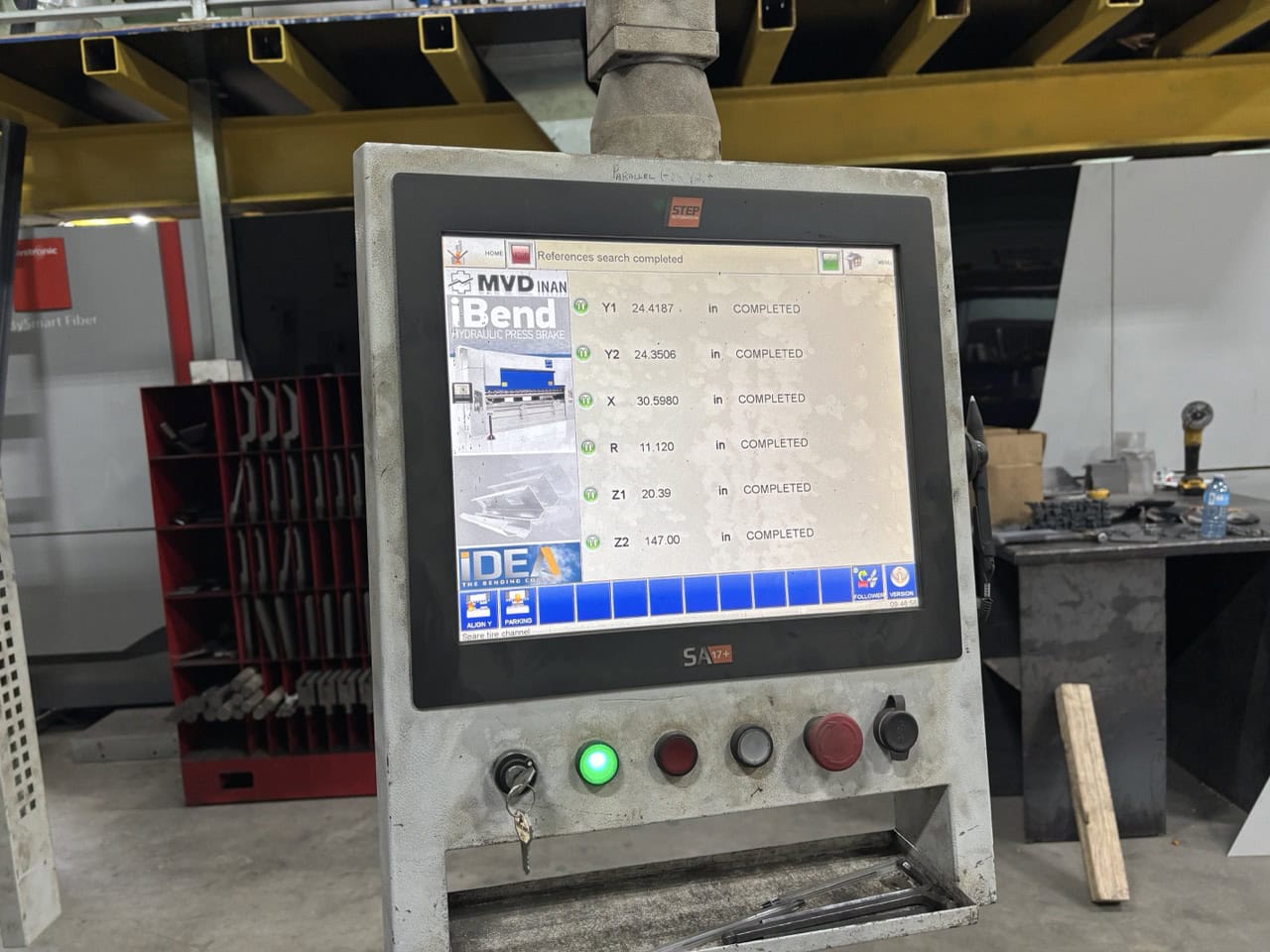

CNC Control: ESA S650 or similar unit

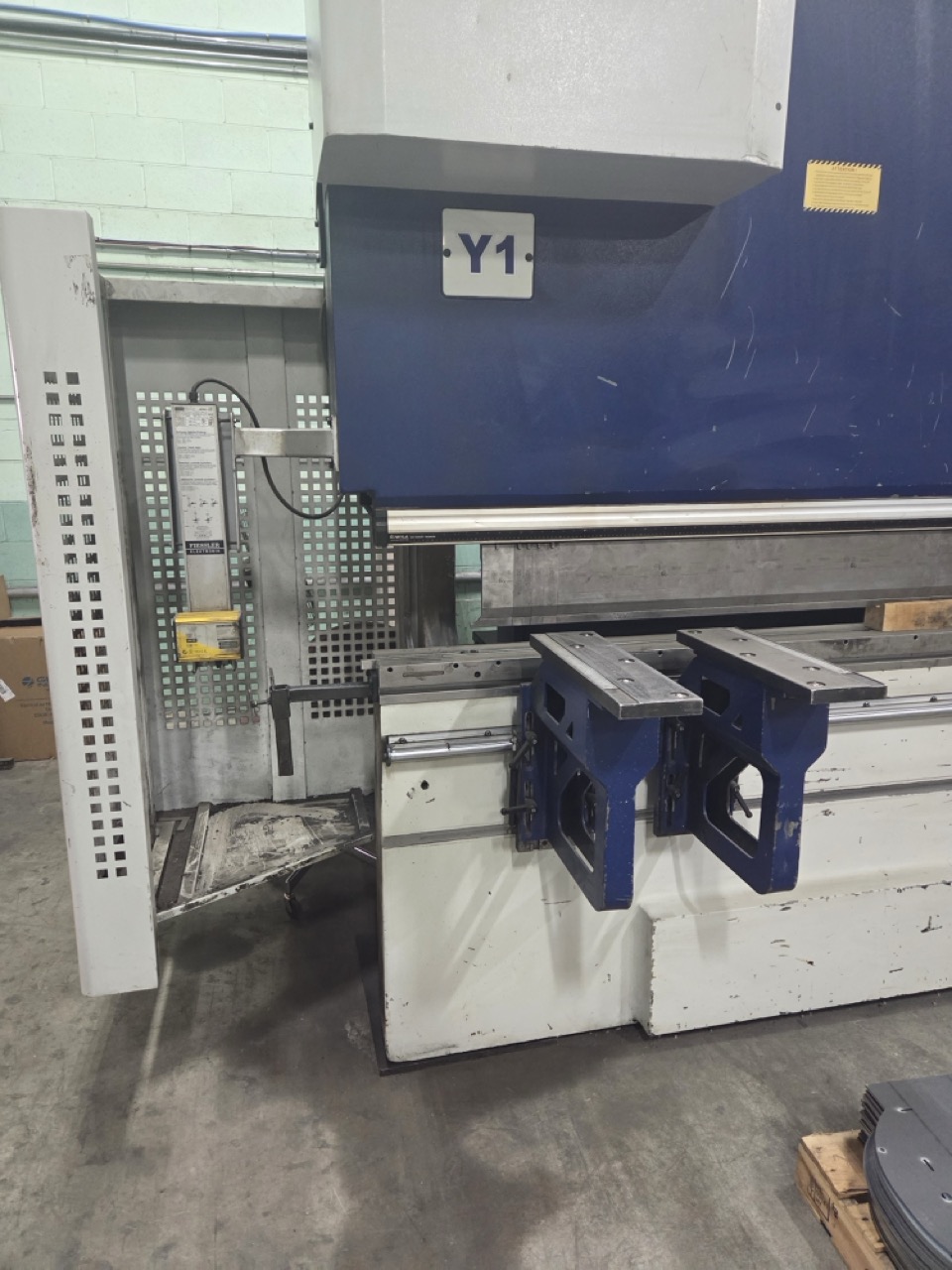

CNC Axes: Y1, Y2, X, R (4-axes)
Back Gauge Accuracy: ±0.03 mm

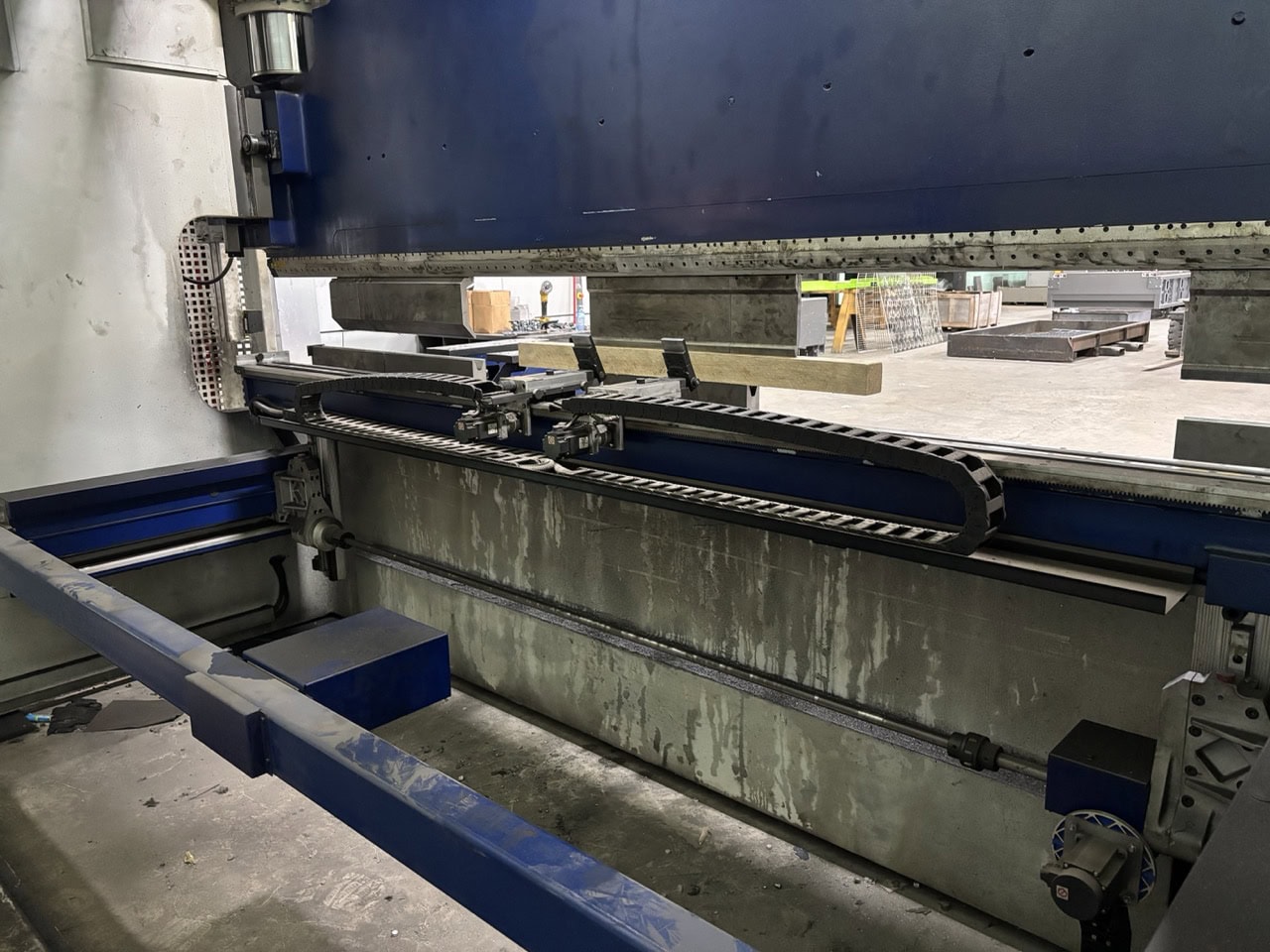

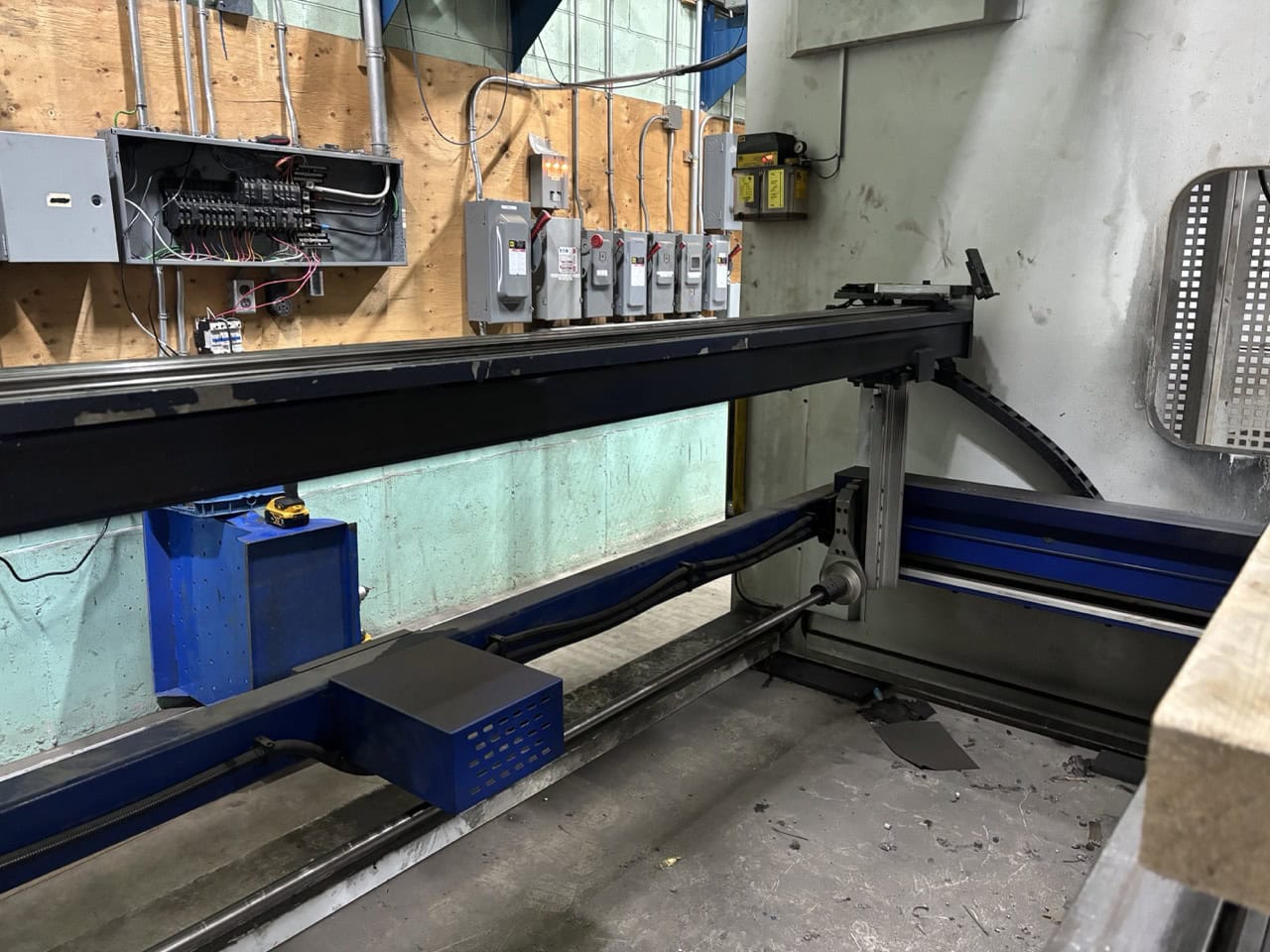

Back Gauge Range: X: 750 mm, R: 250 mm
Hydraulic Clamping: On the ram

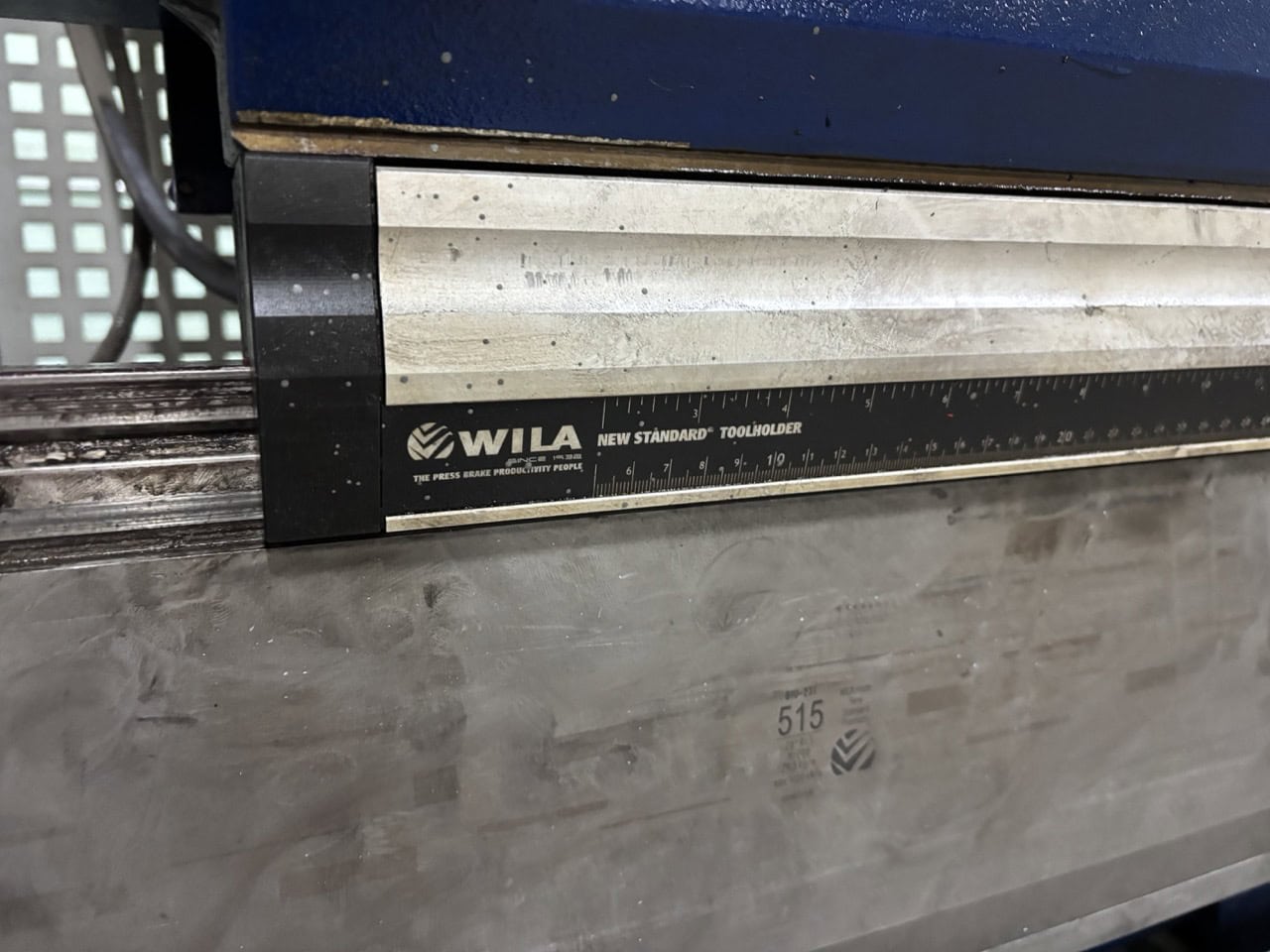

Crowning System: Motorized anti-deflection crowning system with Wila wedges
Tool Clamping: Promecam-type quick clamp punch holder
Front Support Arms: Sliding front sheet support arms

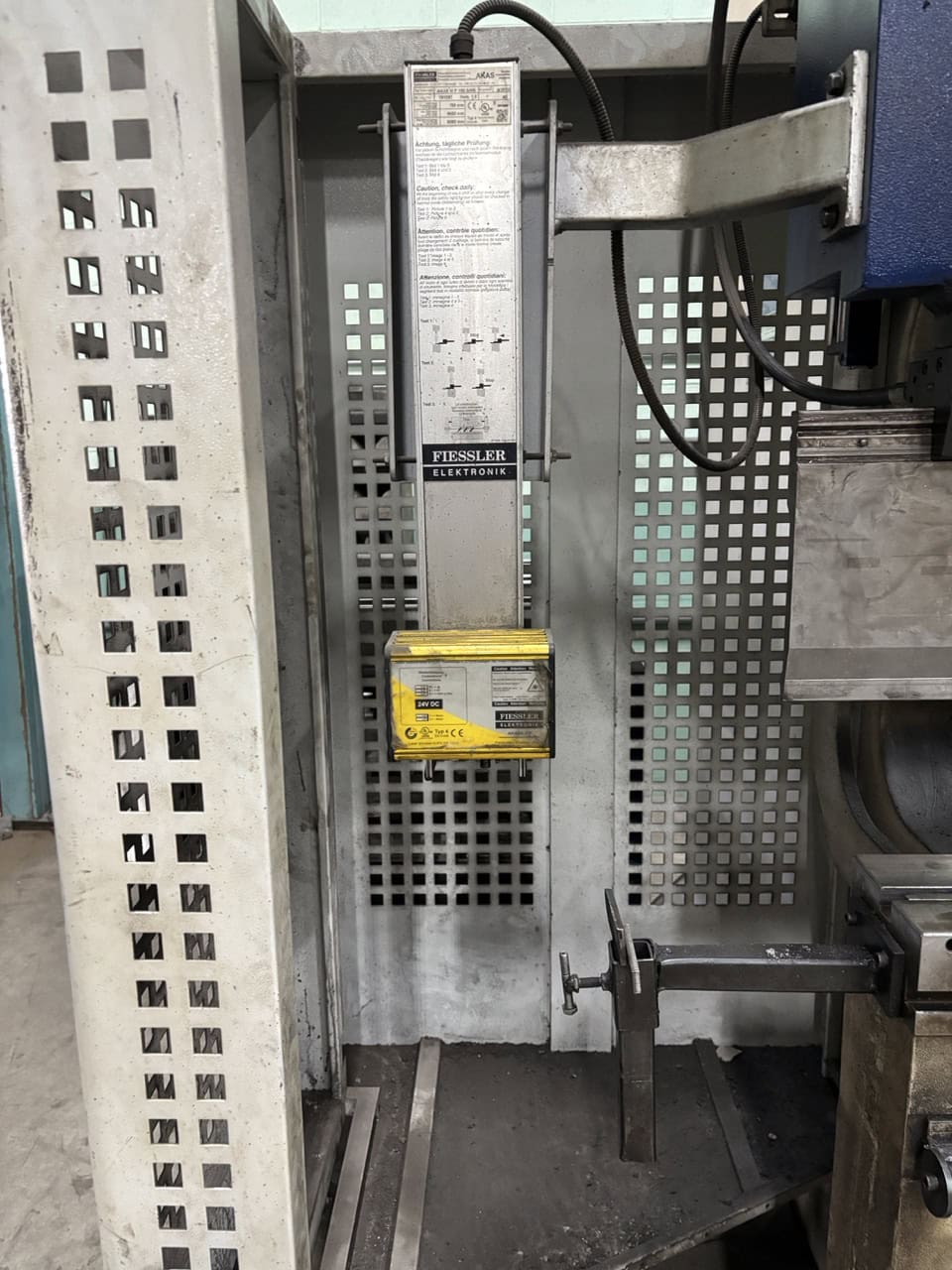

Safety: Rear side protection covers and rear light barriers
TABLE HEIGHT:38.4″
MACHINE DIMENSIONS:240″ X 105.3″ X 132.6″ HIGH
SPEED
APPROACH SPEED: 3.9 IPM
RETURN SPEED: 3.12 IPM
BENDING SPEED:0.312 IPM
WEIGHT:22,500 KG
MAIN MOTOR:30KW
