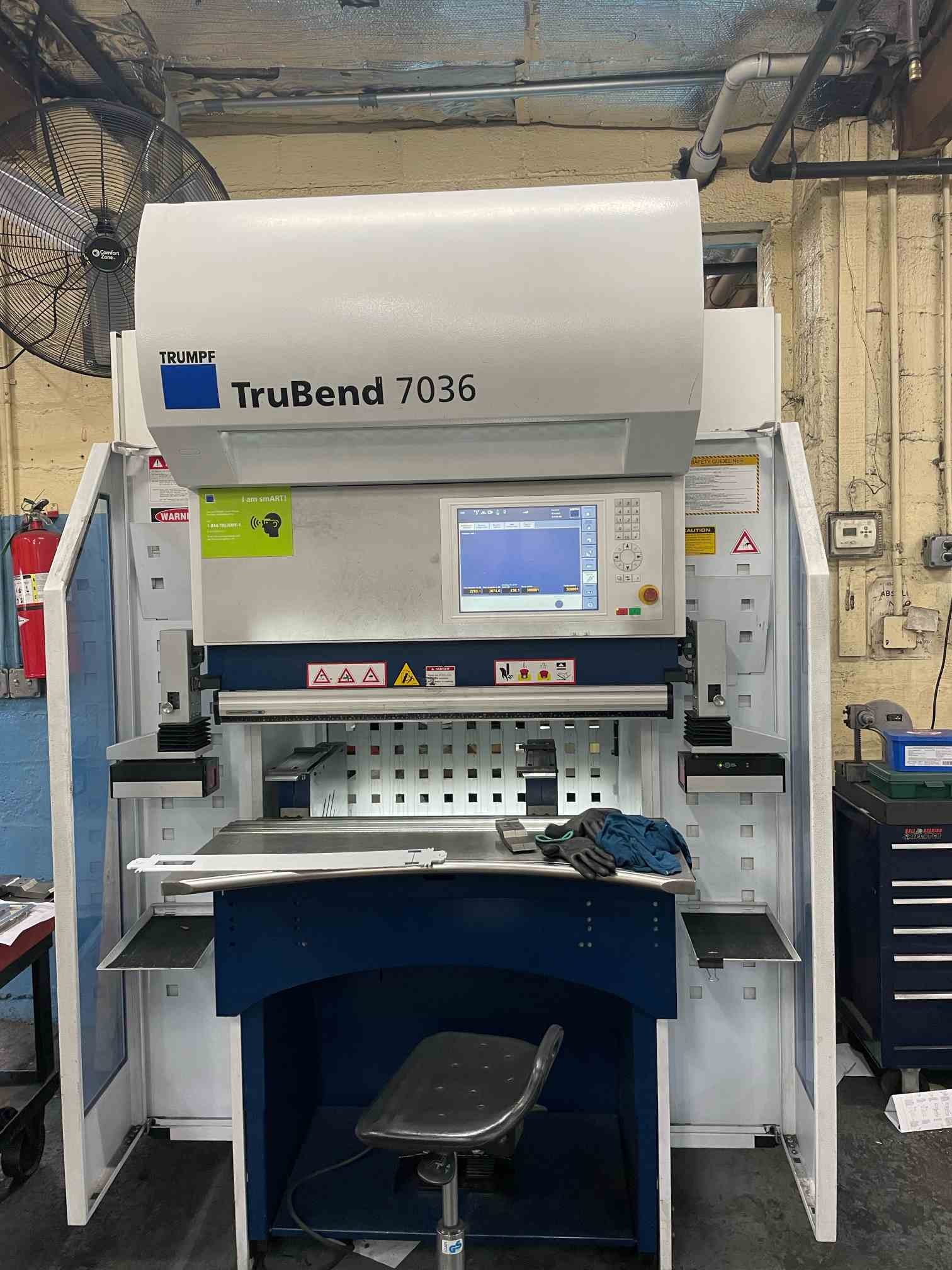

40 Ton x 40″ Trumpf 7036 CNC Electric Press Brake, 2014 – Tooling Included
$84,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Press force: 40 U.S. tons
Bending length: 40″
Width between columns: 37″
Maximum table/beam distance: 16.5″
Usable installation height: 12″
Throat: 6″
Operating height: 45″
Y rapid: 520 Inches per minute
Y working: 59 Inches per minute
Y return traverse speed: 520 Inches per minute
X axis: 2362 Inches per minute
R axis: 780 Inches per minute
Z axis: 2362 Inches per minute
Y axis position accuracy: 0.00008″
X axis position accuracy: 0.0008″
R axis position accuracy: 0.0008″
Y axis stroke: 5″
Travel path x axis: 9″
Max. gauge area in x: 20″
Travel path r axis: 3″

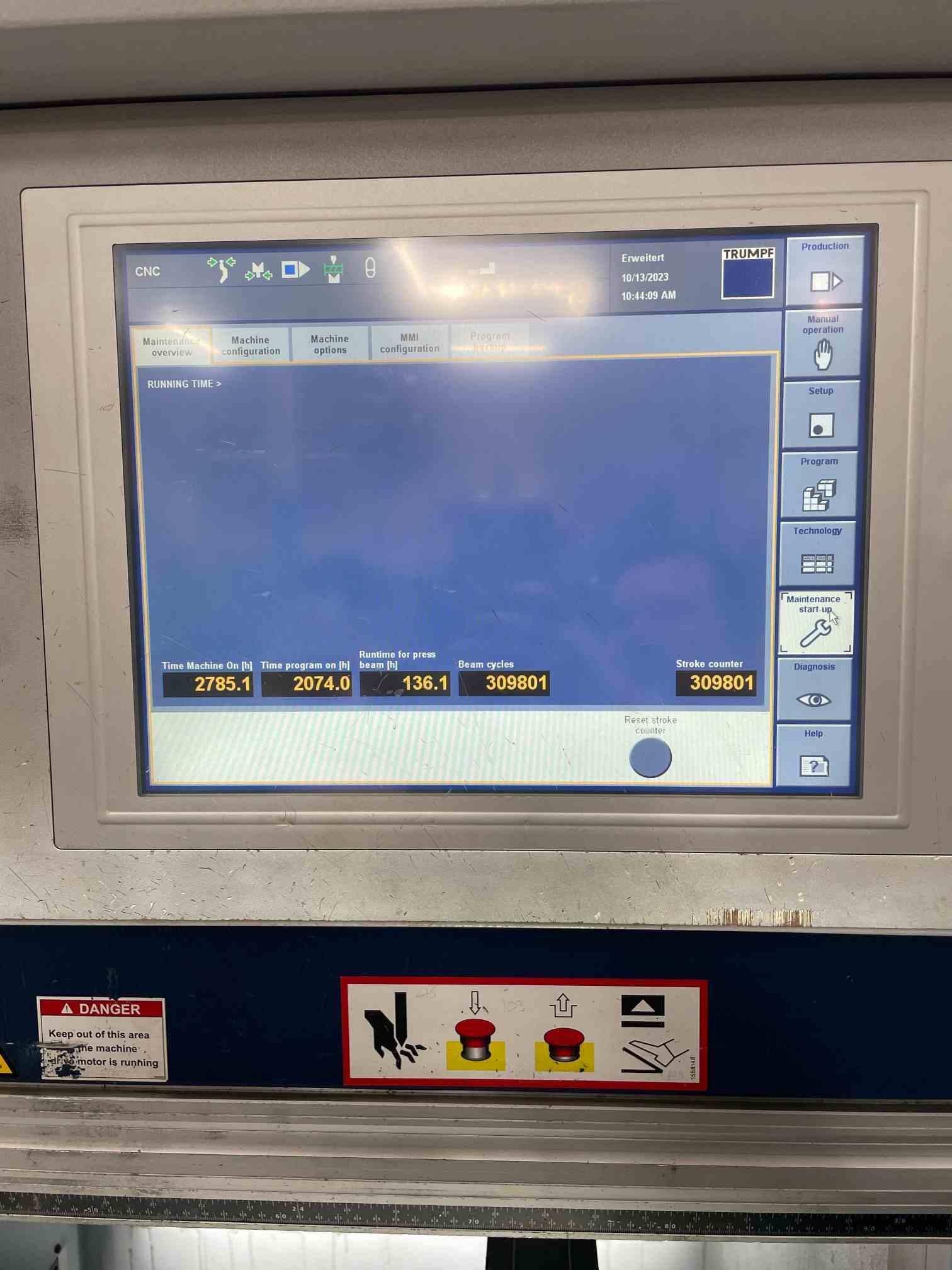

Control: TASC 6000
Connected load: 6 kVA
Mahine Dims: 71″L x 52″W x 94″H
Weight: 5732 lbs.
Equipped With:
6-Axis Backgauge
Tooling Included
