4′ X 8′ Vector 2513F CNC Router, 2021 – Brand New, With Vacuum Table

$25,900.00

4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 2

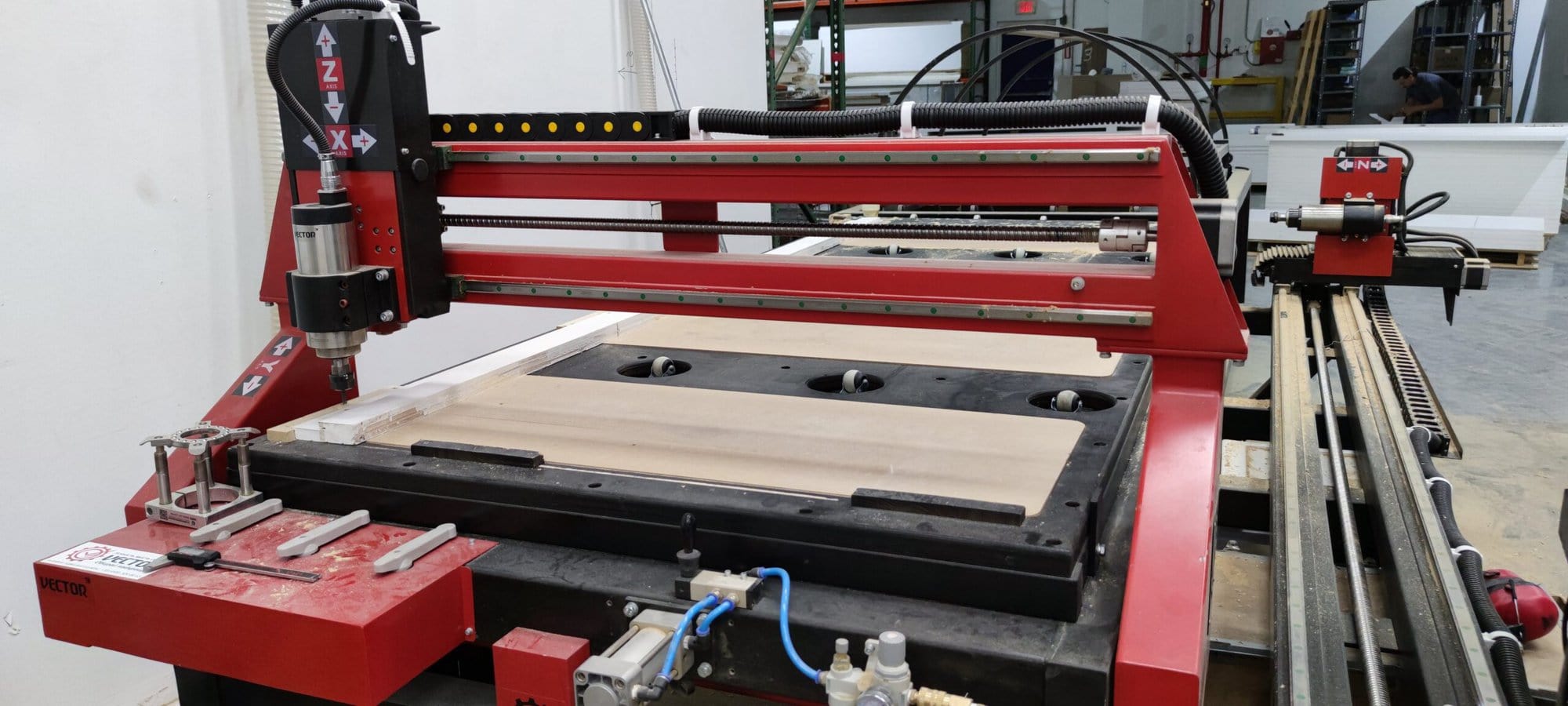

4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 3
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 4
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 5
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 6

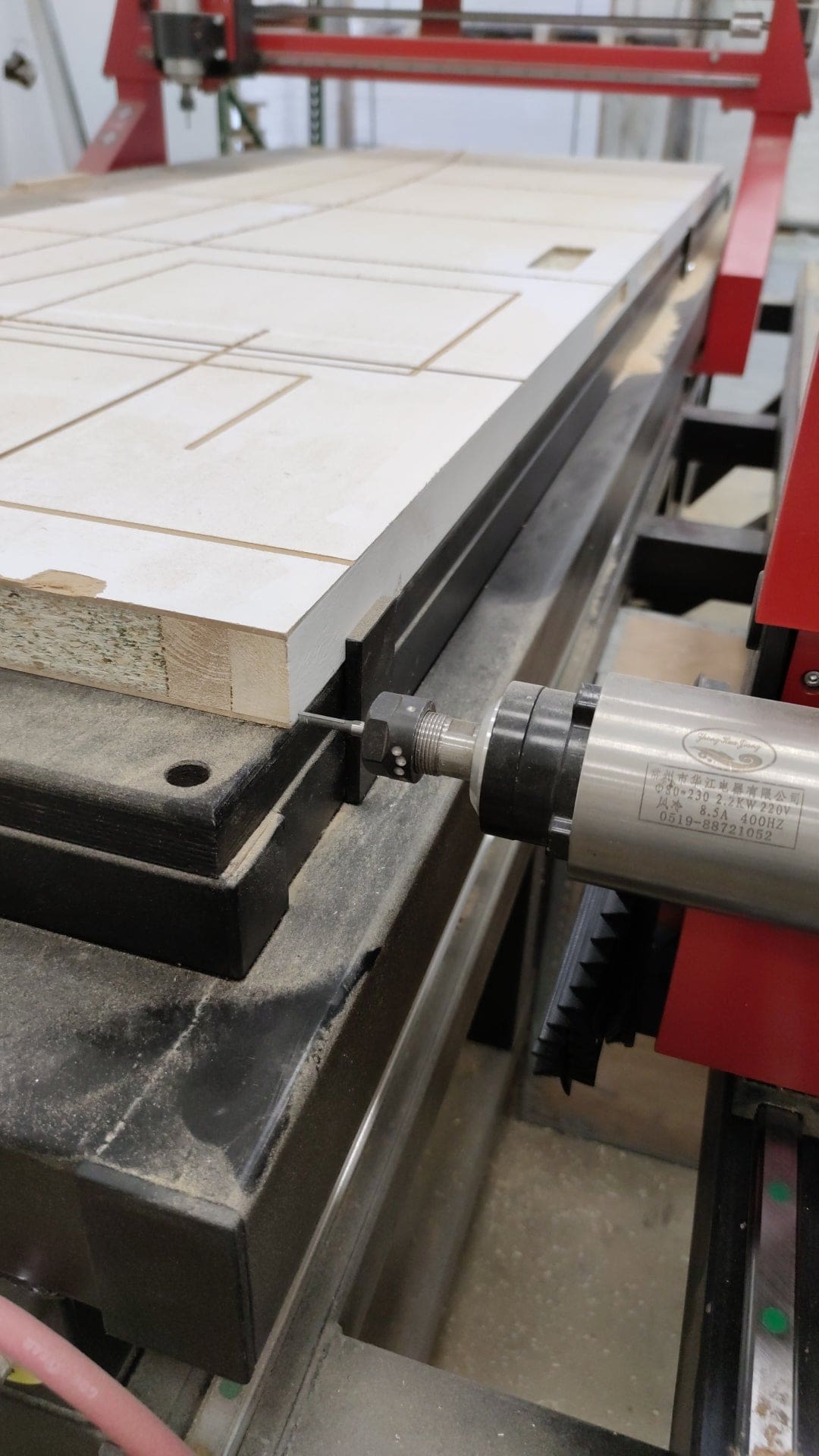

4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 7
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 8

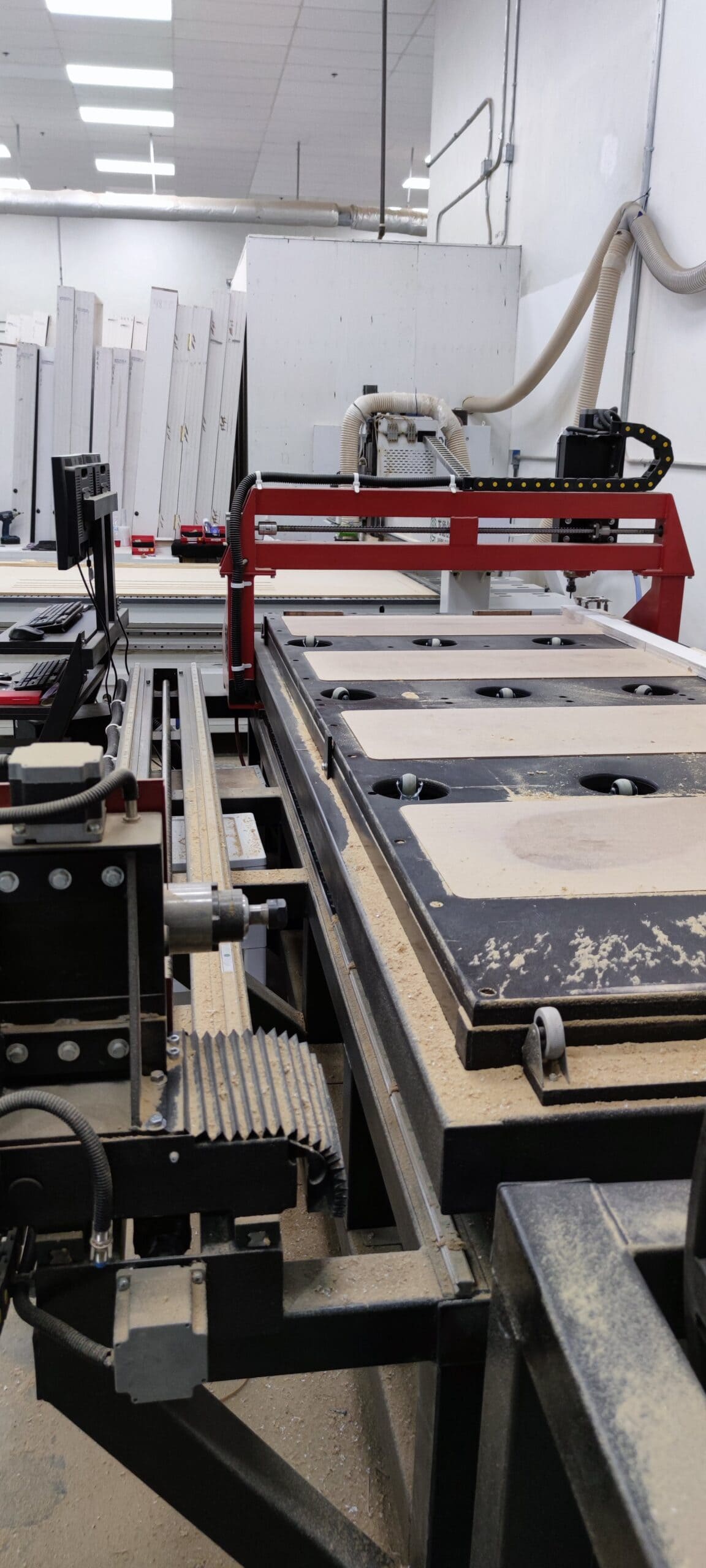

4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 9
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 10
4' X 8' Vector 2513F CNC Router, 2021 - Brand New, With Vacuum Table - Image 11

This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:

Working stroke X, Y, Z, inch (mm): 4`*8`*10” (2500 * 1300 * 250)
Machine frame: all-metal, welded, milled in one go
Desktop:
Coating: waterproof plywood

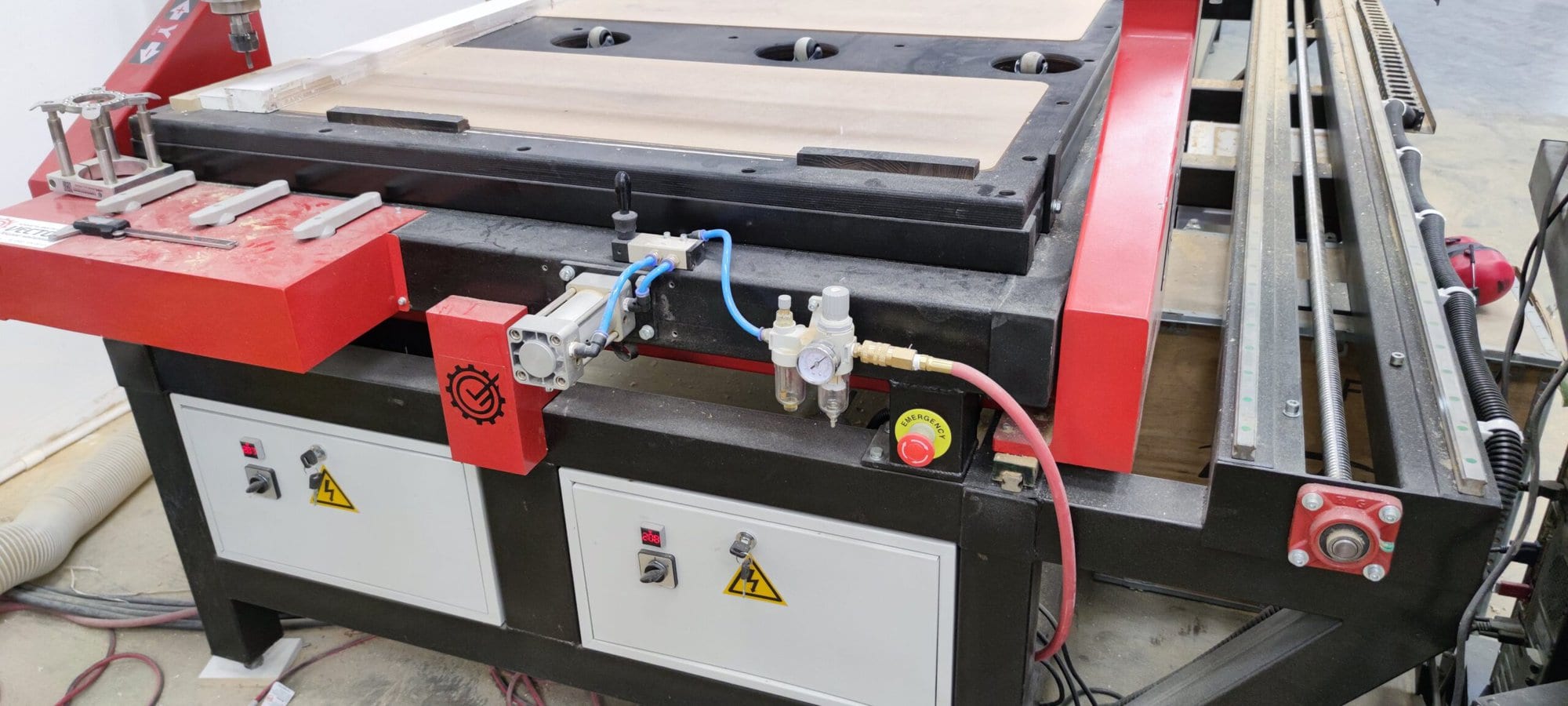

Securing the workpiece: vacuum table
Portal and guides:
Travel speed, idle, m / min: 0-20
Travel speed, working, m / min *: 0-18
Positioning accuracy, inch: 0.002
Travel drive X, Y, Z, mm: Ball screws, Hiwin

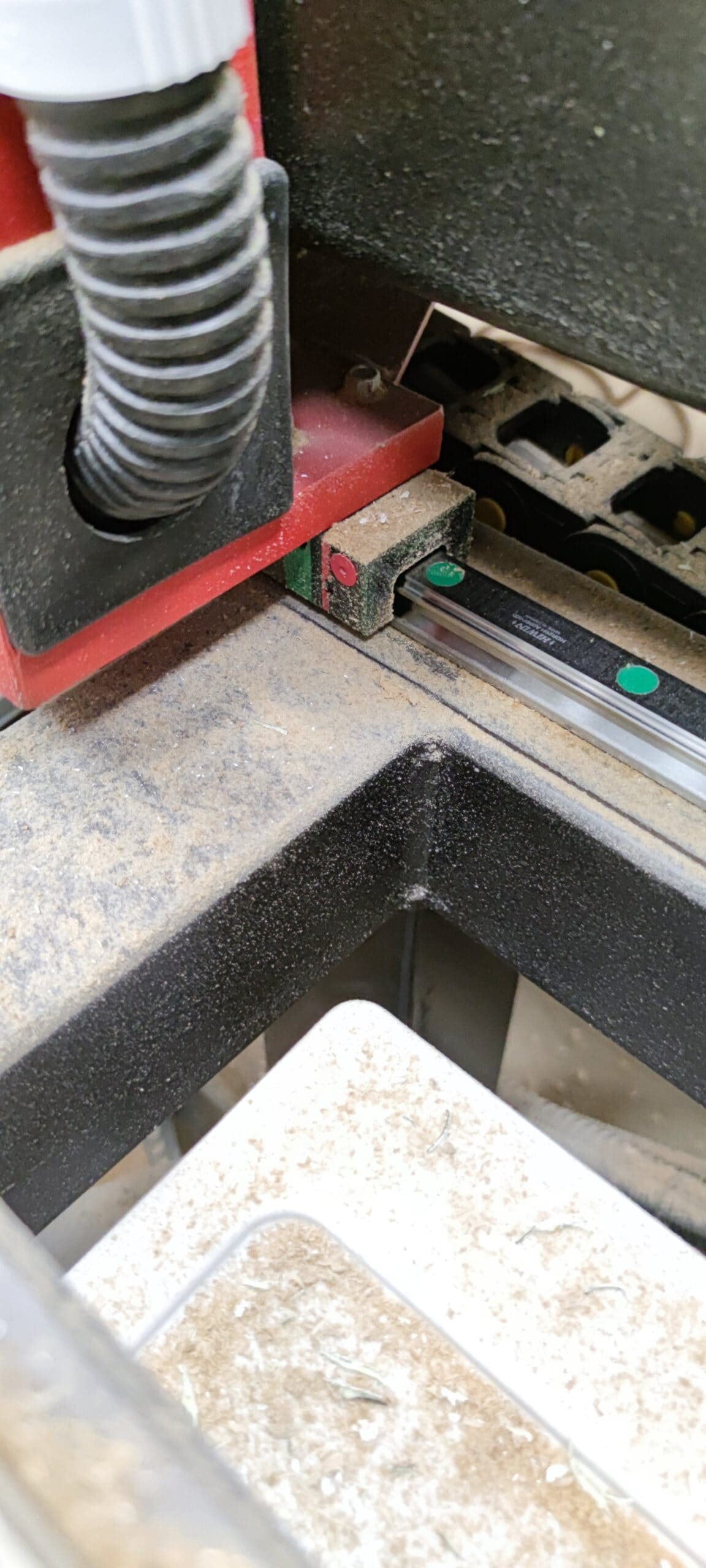

Guide type: Linear, Hiwin
Lubrication cartridges: Hiwin

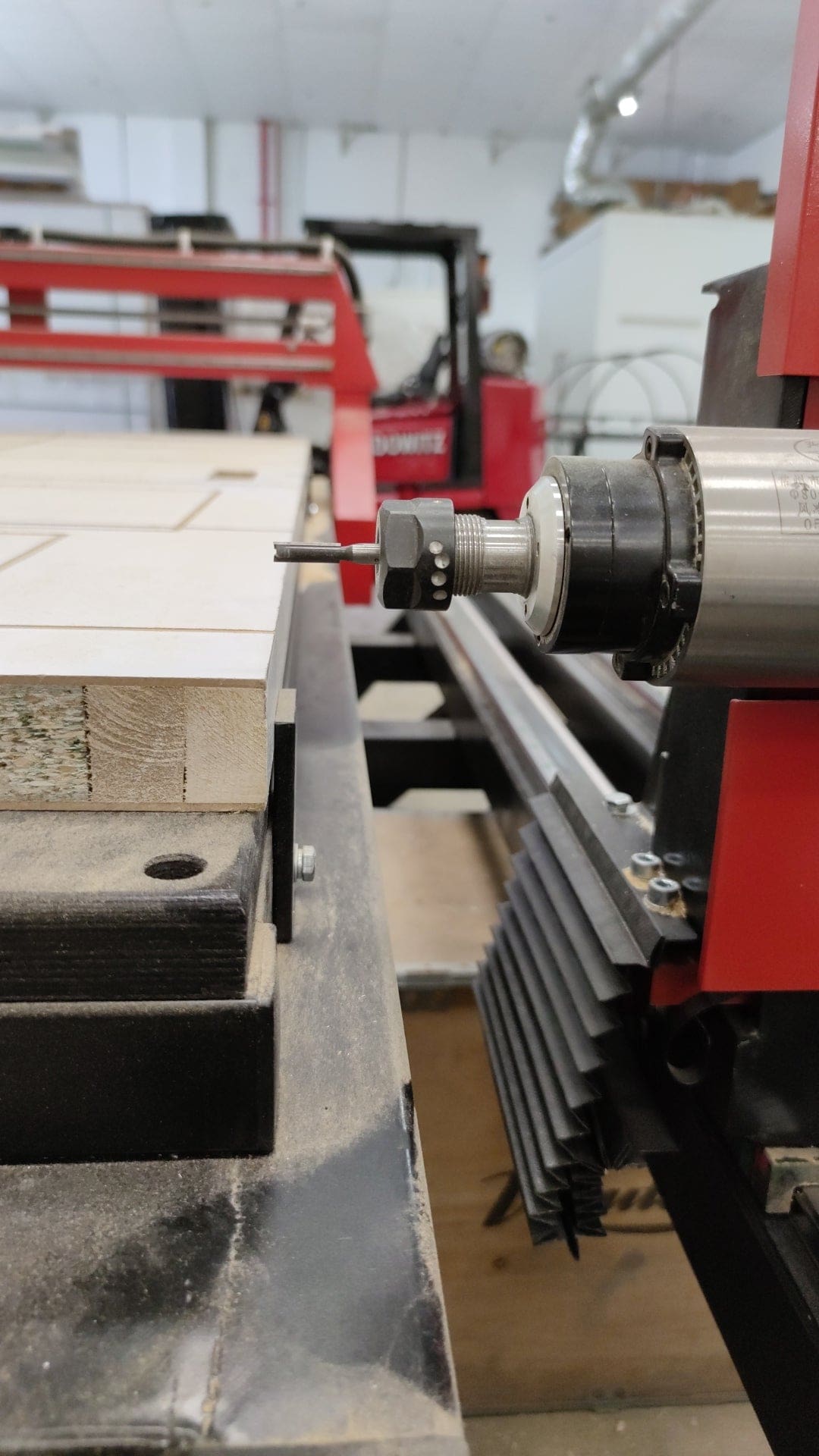

Spindle – TEKNOMOTOR (Italy):
Power, kWt: 2.2
Revolutions, rpm: 6,000 – 24,000
Cooling type: Air
Collet type: ER 20
Max. cutter shank diameter, inch: 0.79
Frequency converter, power, kW: 2.2
Stepper motors:
Dimension: NEMA 34
Current strength, A: 4.2
Shaft diameter, inch: 0.55
Torque, N * m: 4,5
Angle of rotation (step), degrees: 1,8
Drivers: YAKO YKD2608MH
Overall dimensions of the machine, L * W * H, Inches: 118 * 59 * 66
Machine weight, kg: 1000
* The Working Speed of Movement Depends on The Properties of The Material Being Processed, the Depth and Cutting Mode, the Spindle Speed and The Quality of The Tool Used.
