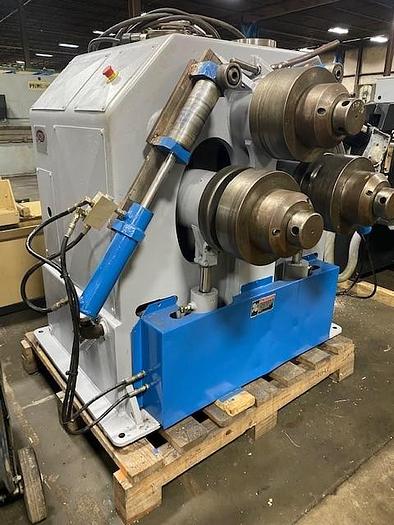

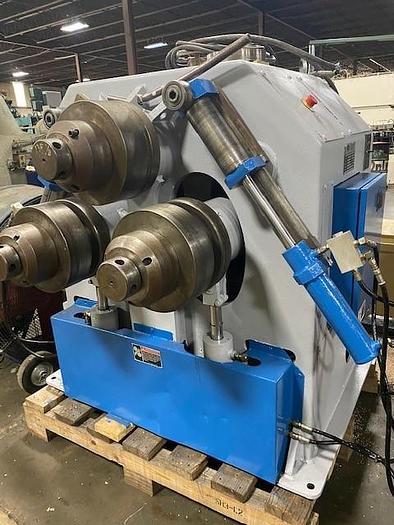

4″ x 4″ x 1/2″ WDM AR-41 Angle Roll, 2006
$44,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Roll Diameter: 12.5″
Bending Pressure: 40 US Tons
Main Shaft Dia.: 5″
Sections Modulus: 2.4″
Drive Type: Mech/Spur/Hyd
Guide Roll Adj.: 6 Way Power
Horizontal/Vertical: Both
Length, Width, Height: 48″ X 50″ X 58″
Weight Approx.: 7,200 LBS
15 HP
The only tooling included is in the pictures.
Angle leg out 4″ x 4″ x 1/2″
Angle leg in 4″ x 4″ 3/8″
Flat on flat 1-1/4″ x 6″
Flat on edge 7/8″ x 4″
Square bar 2-1/2″
Tee leg in T4 x 18.5″
Tee leg out WT x 12#
Schedule 40 pipe 3″
Schedule 80 pipe 3″
Schedule 120 pipe 2-1/2″
Schedule xxh steel pipe 2-1/2″
Round tube 5 x 12″ GA
Square tube 3 x 3 -16″
Rectangular 4 x 1-1/2 x 11″ GA
Channel flange out C7 x 14.75″
Channel flange in C7 x 14.75″
I-beam on web W4 x 13″
I-beam on flange S4 x 7.7″
