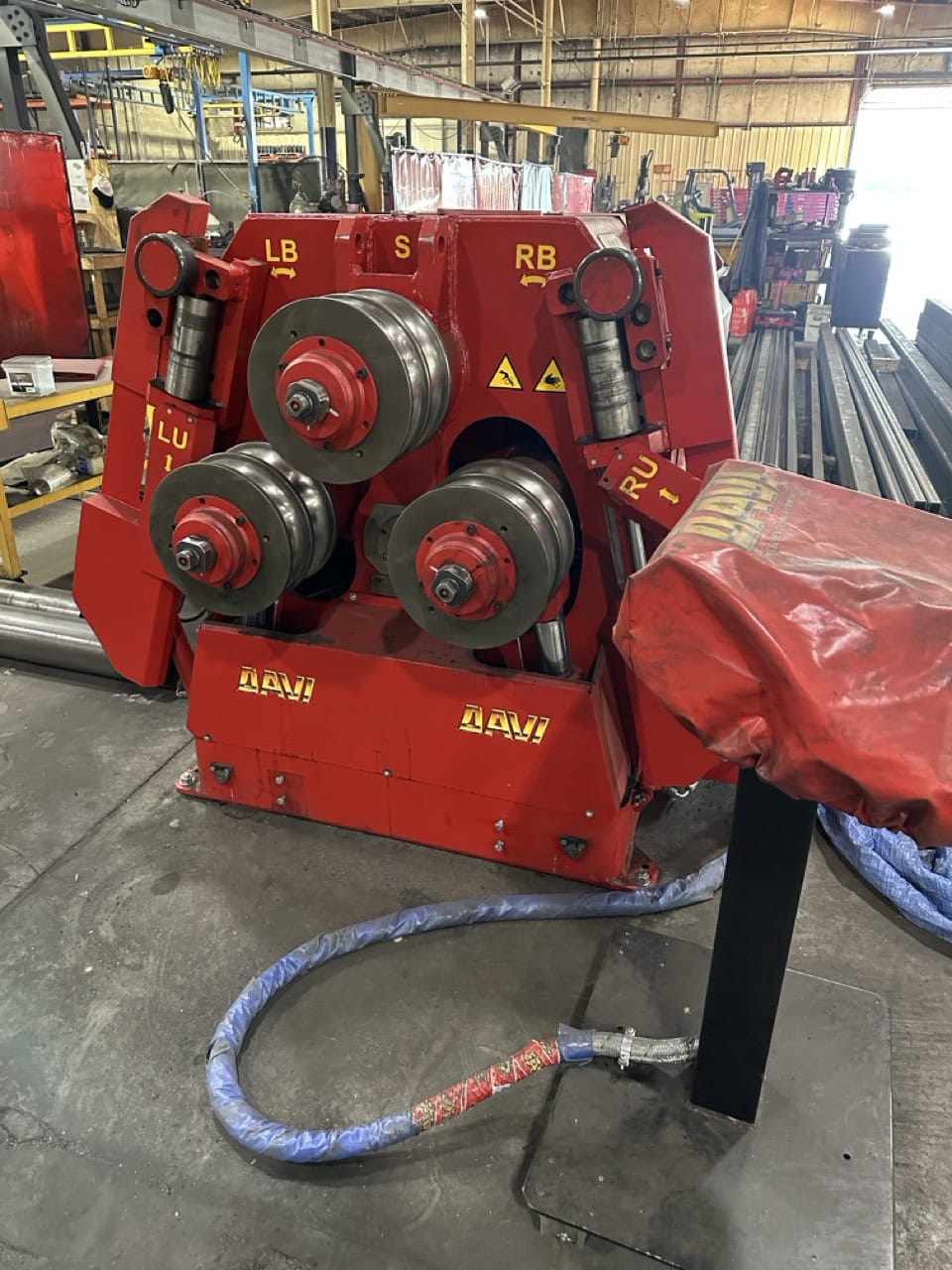

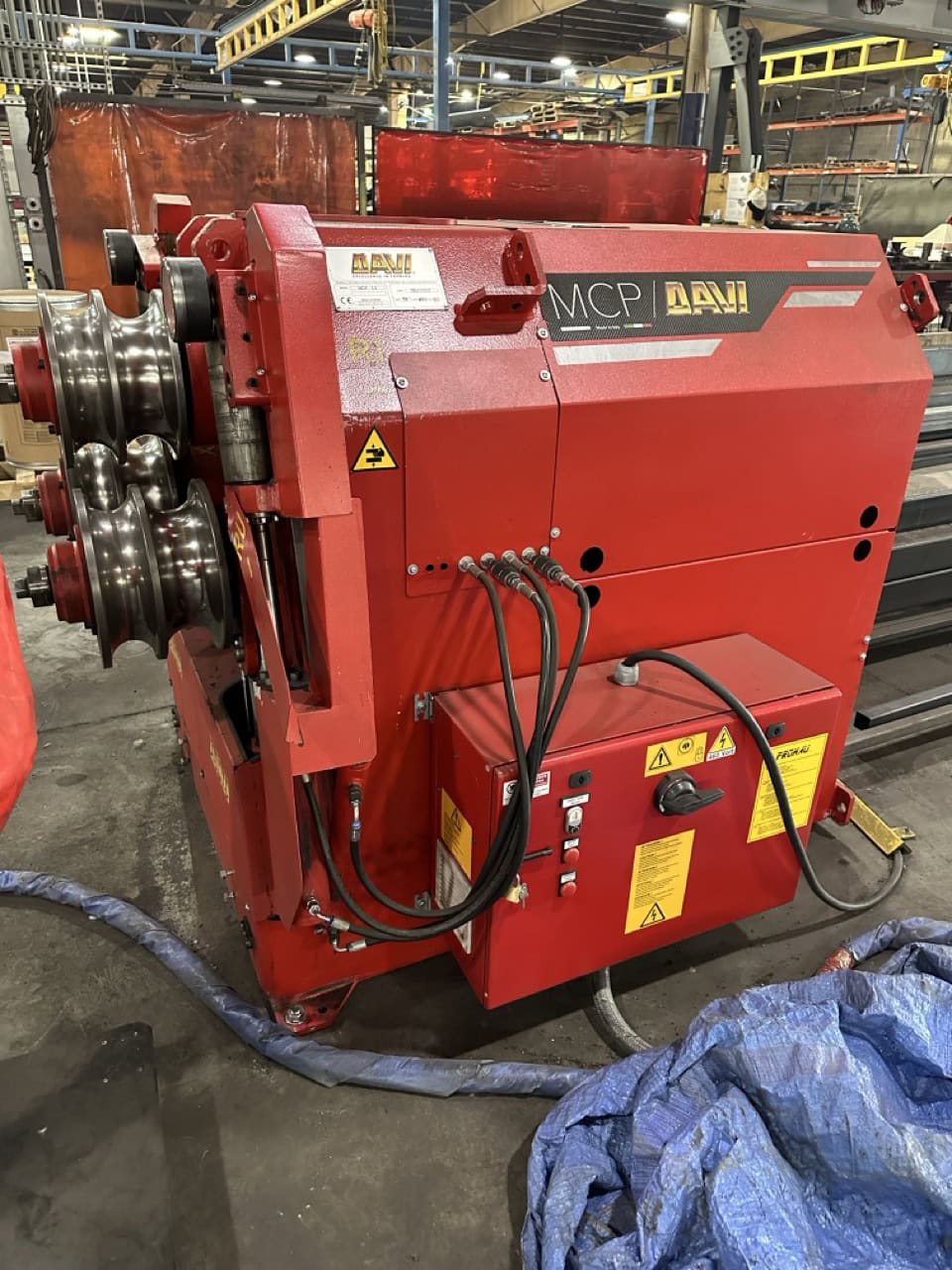

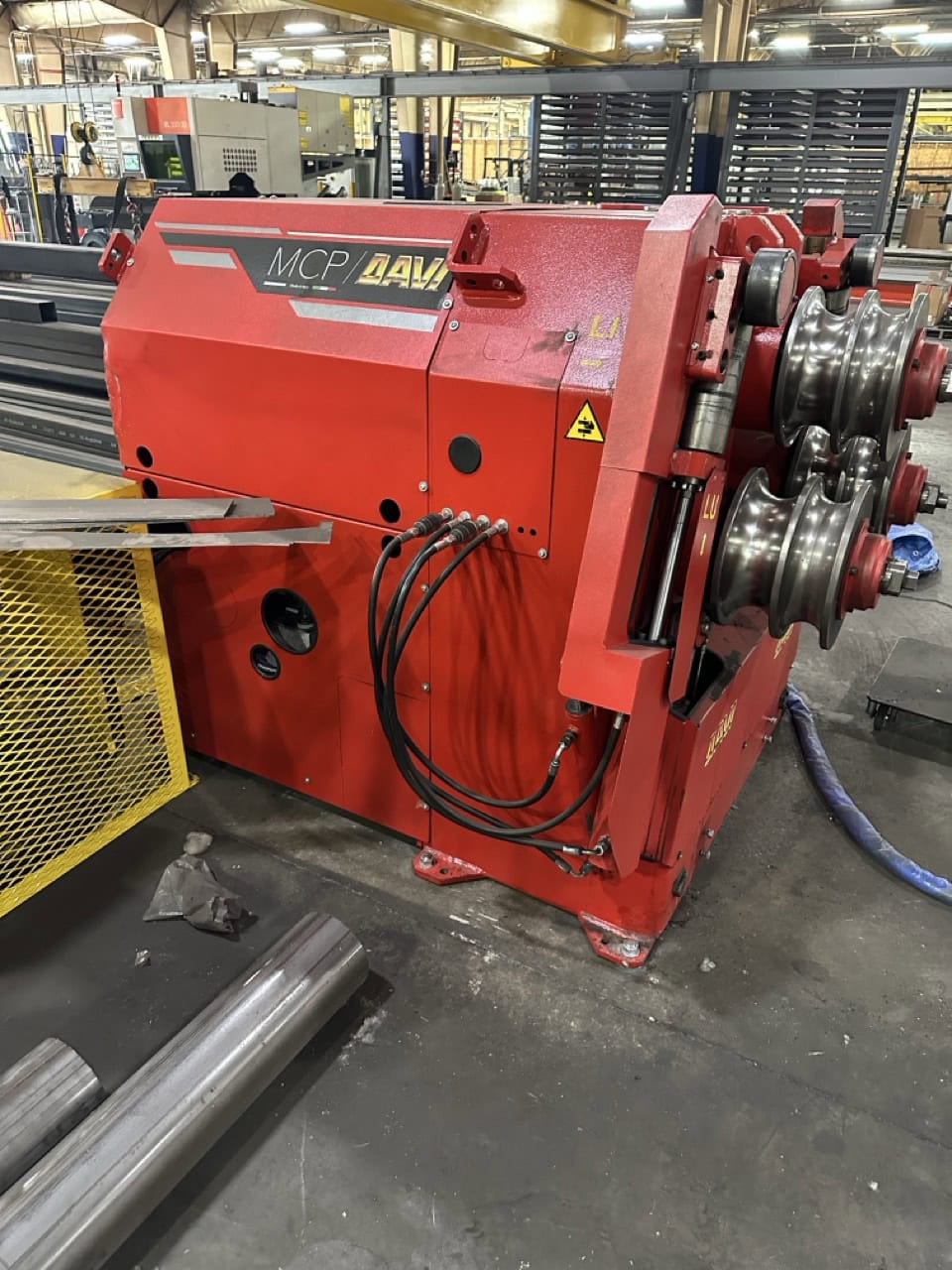

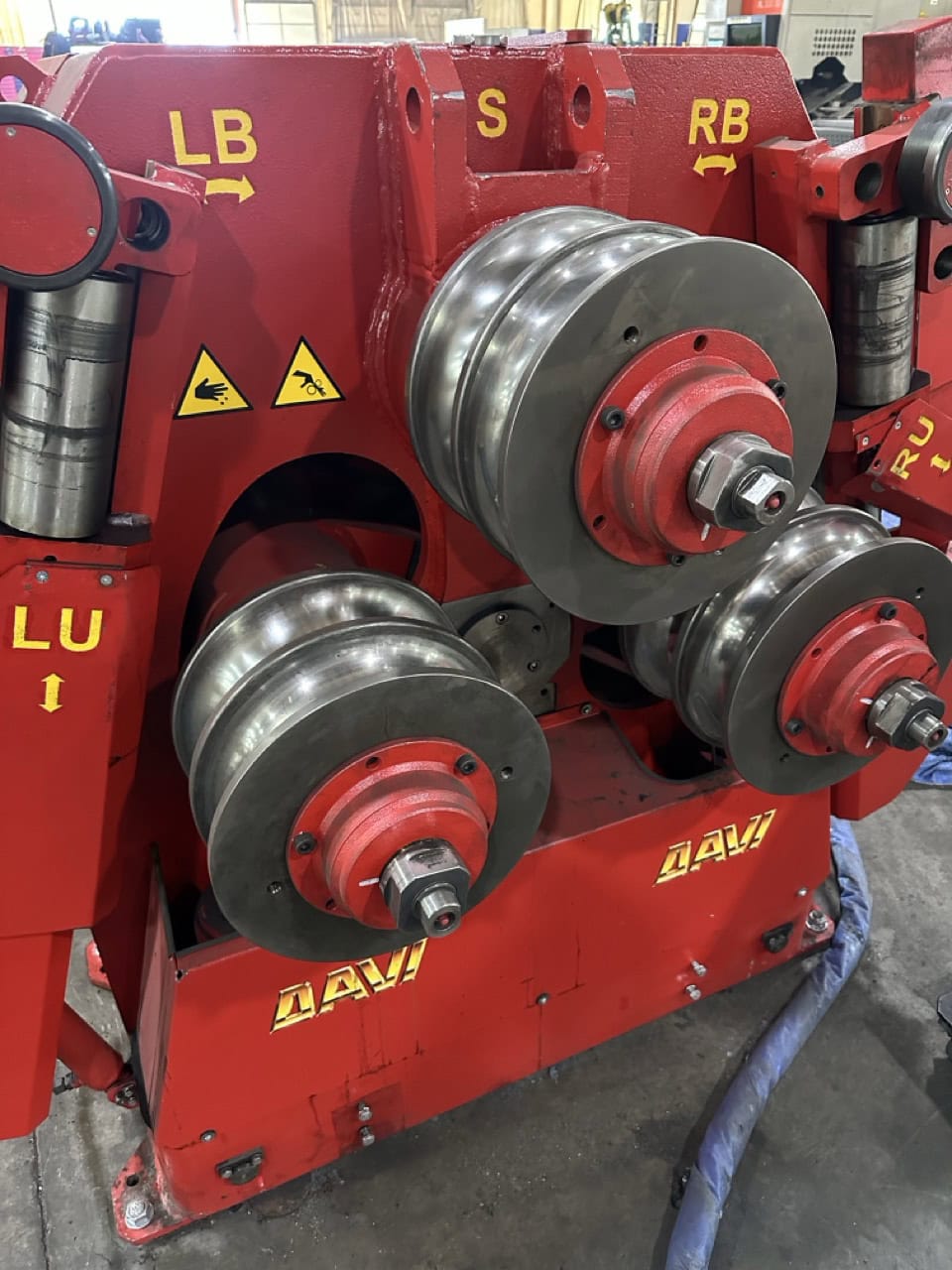

4′ x 4′ x 1/2″ Davi MCP-11 Hydraulic Angle Roll, 2021 – 3 Roll, Tube/Pipe, Low Usage
$89,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
4′ x 4′ x 1/2″ Davi MCP-11 Hydraulic Angle Roll, 2021 – 3 Roll, Tube/Pipe, Low Usage
Angle (L1): 4″
Angle (L2): 4″
Angle (T): 0.5″
Year: 2021
Model: MCP-11
Angles, leg out – 4” x 4” x 1/2” ø 45”
Angles, leg in – 4” x 4” x 3/8” ø 45”
Channels, leg out – C 7”X14.75# ø 30”
Channels, leg in – C 7”X14.75# ø 35”
Flats, on edge – 4” x 1 ø 28” ø 28”
Flats, on flat – 8” x 1” 3/8 ø 24”
Rounds – 2-5/16” ø 36”
Squares – 2” 9/16 x 1 ø 27”
Tube – 5” Schedule 10 ø 118”
Pipe – 4” Schedule 40 ø 45”
Approximate dimensions, vertical position – 72″ LR x 69″ FB x 60″ H

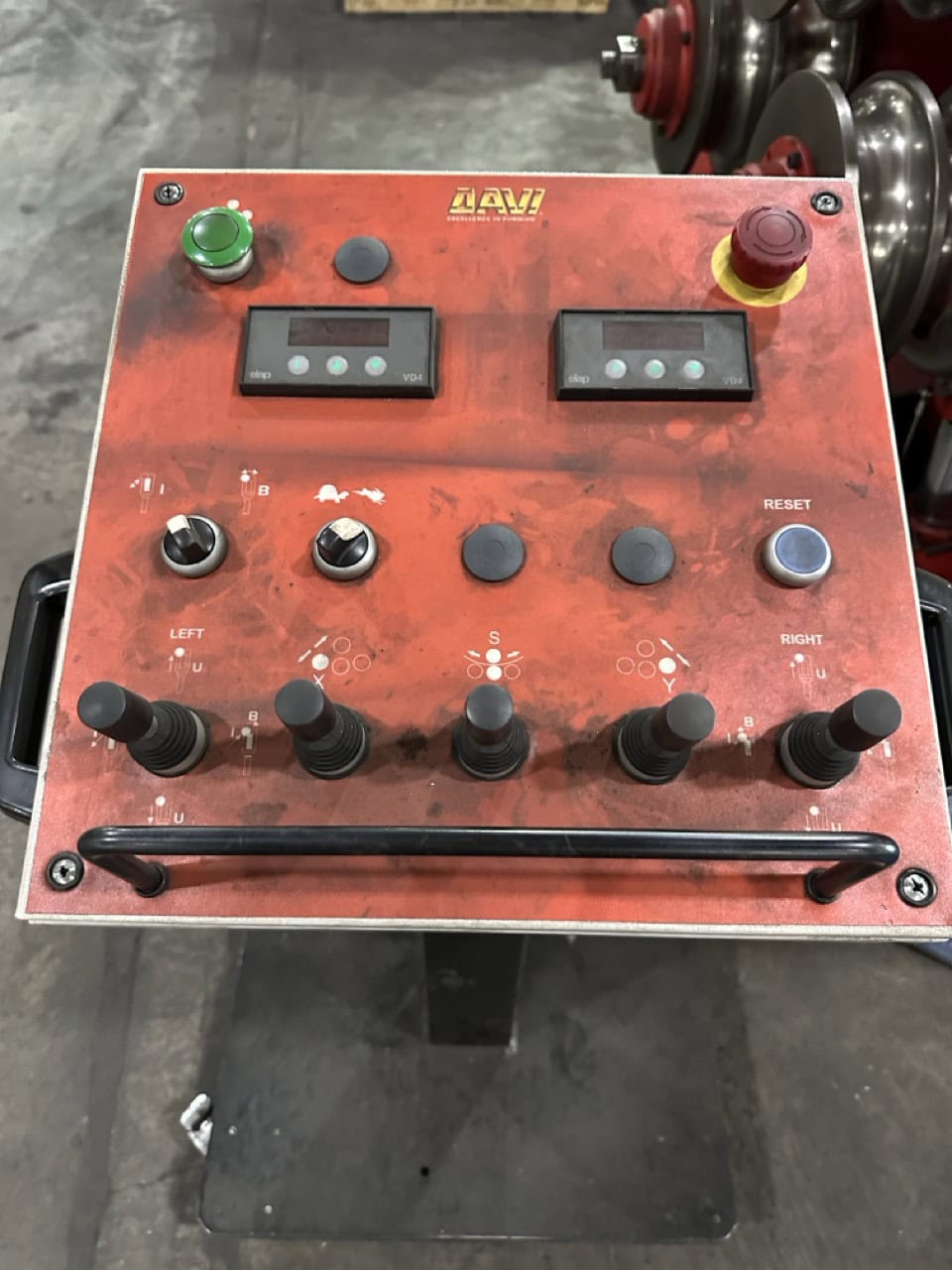

Operator Control Station – 19″ FB x 20″ LR x 55″ H
Approximate weight – 5,500 lbs

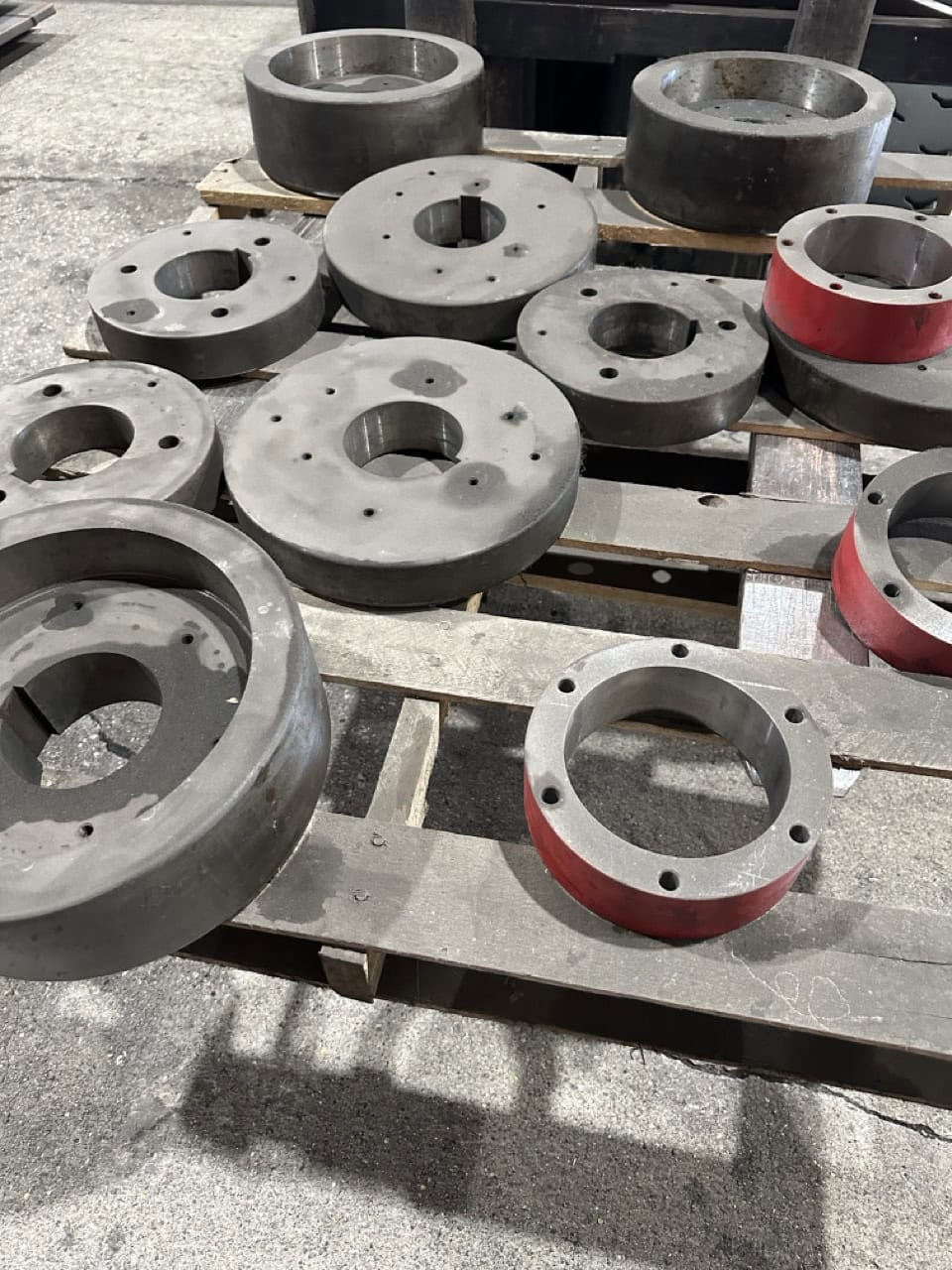

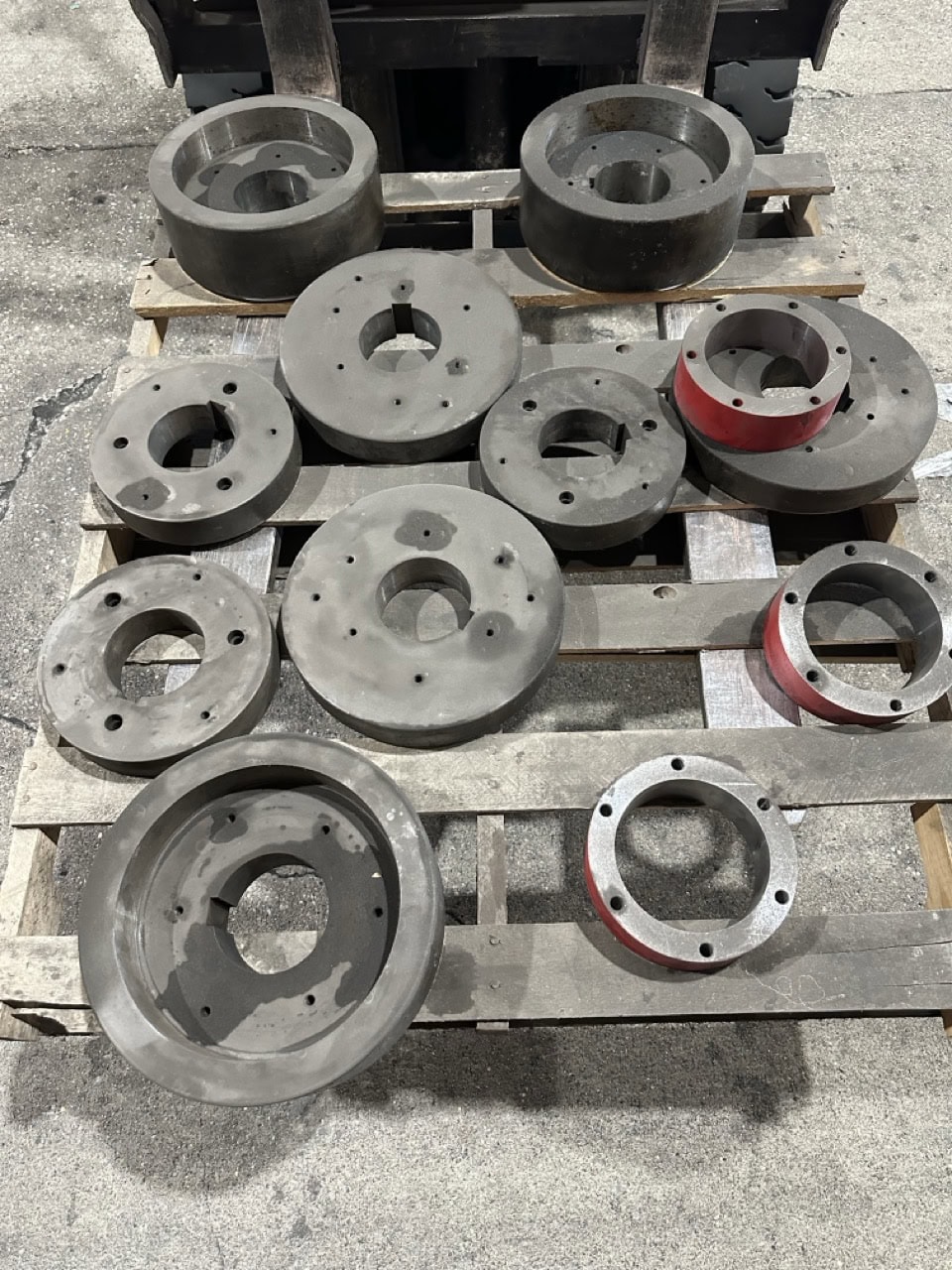

Pallet of tooling – 1,500 lbs
