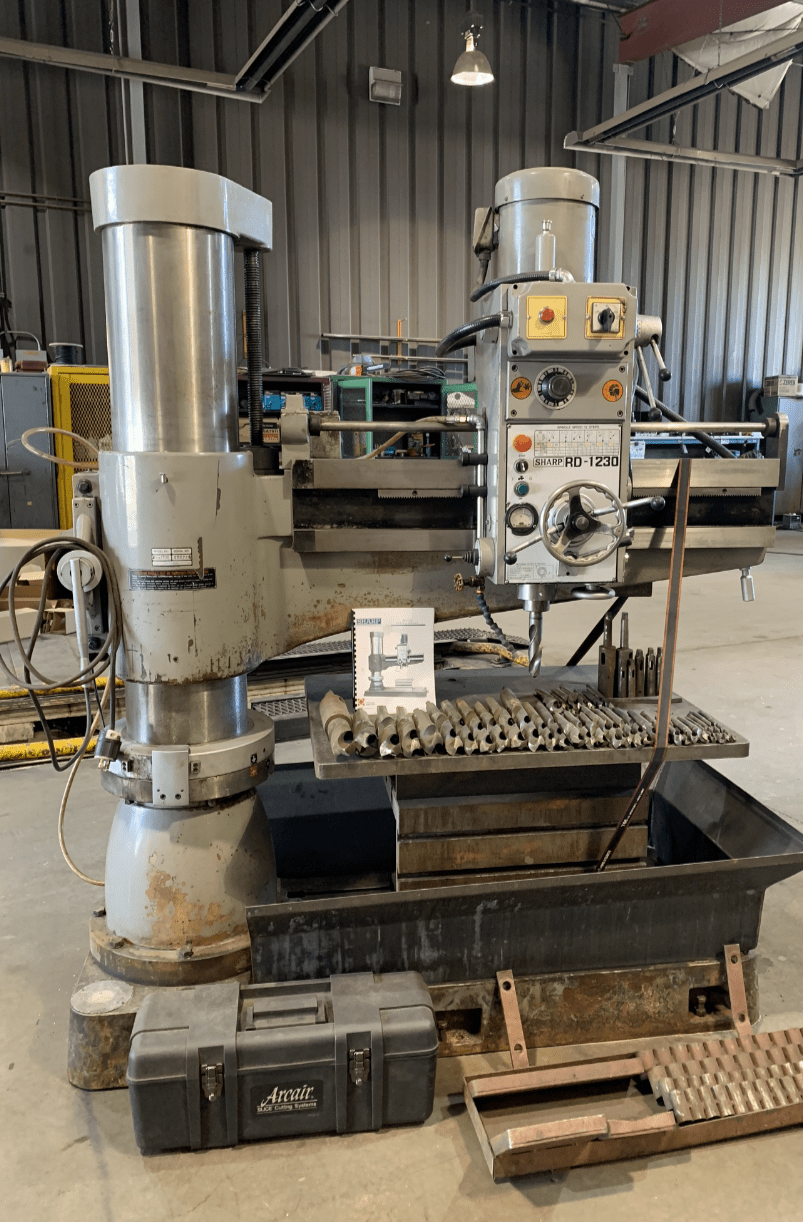

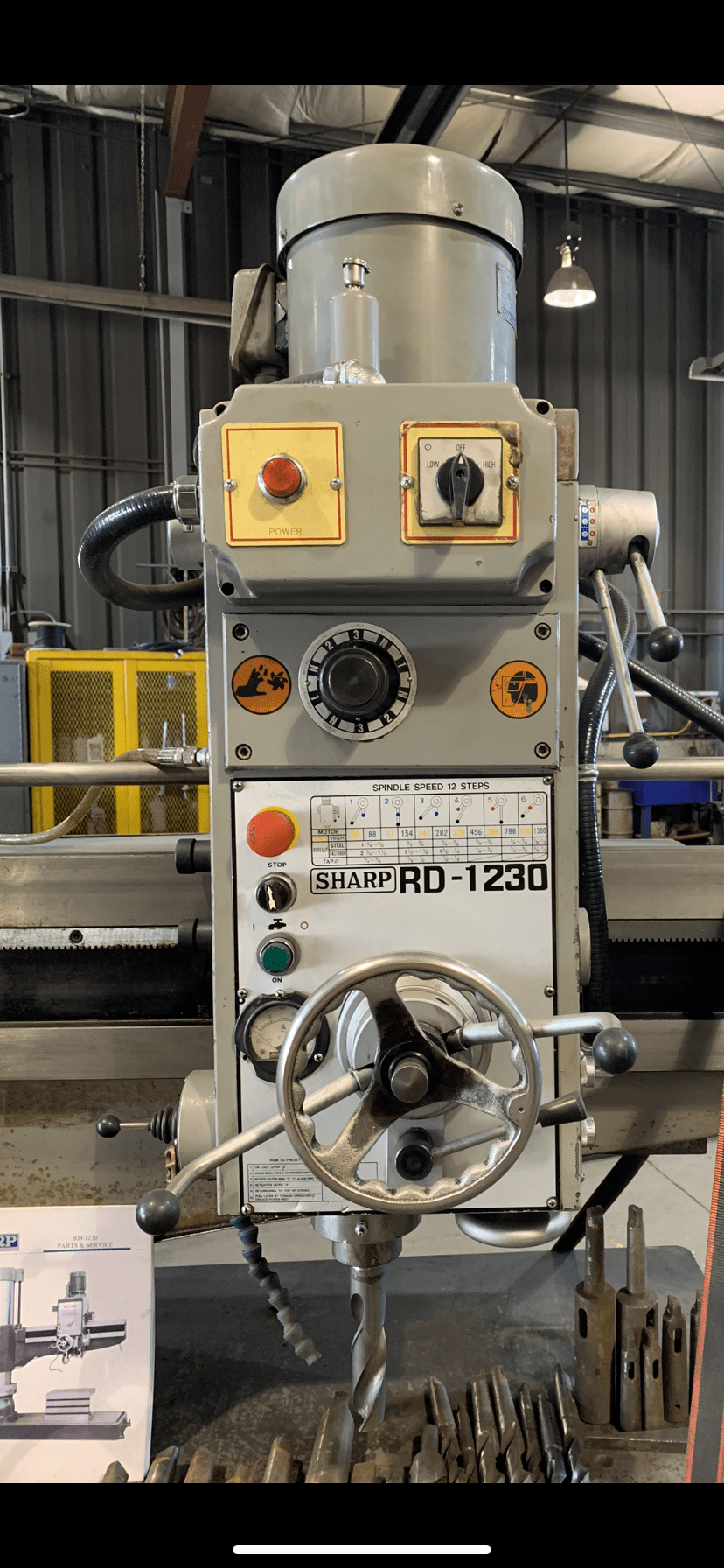

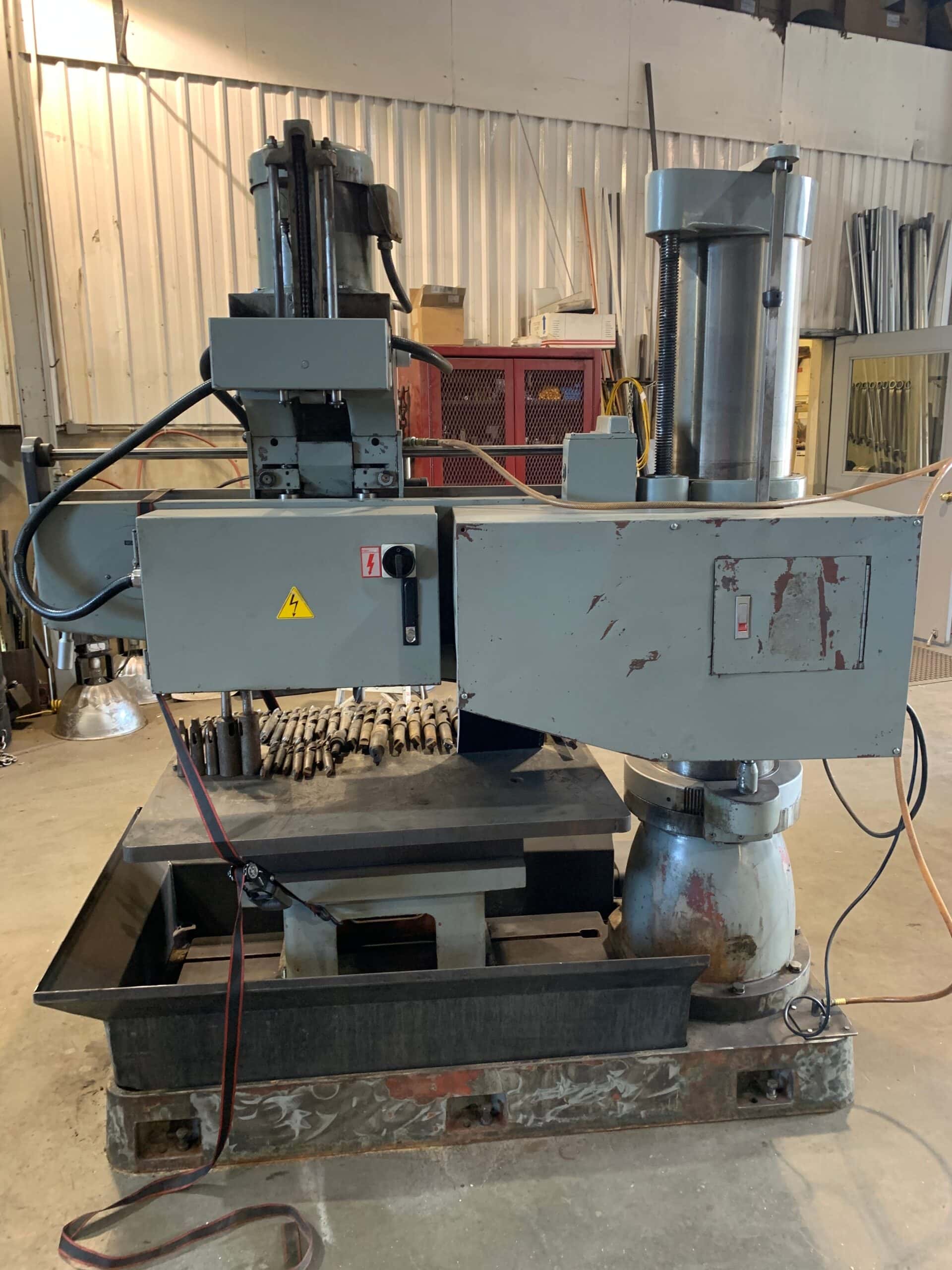

4′ x 12″ Sharp RD-1230 Radial Arm Drill, 2005
$4,067.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Diameter of column: 11-13/16″
Distance from column surface to spindle center, max: 48-1/2″
Distance from column surface to spindle center, min: 13-3/8″
Travel of spindle head: 35″
Distance from base surface to spindle end, max: 54″
Distance from base surface to spindle end, min: 19-3/8″
Elevating height of arm: 34-5/8″
Effective area of table: 27-5/8″ x 19-5/8″ x 15-3/4″
Dimensions of base: 67-11/16″ x 27-15/16″ x 6-1/2″

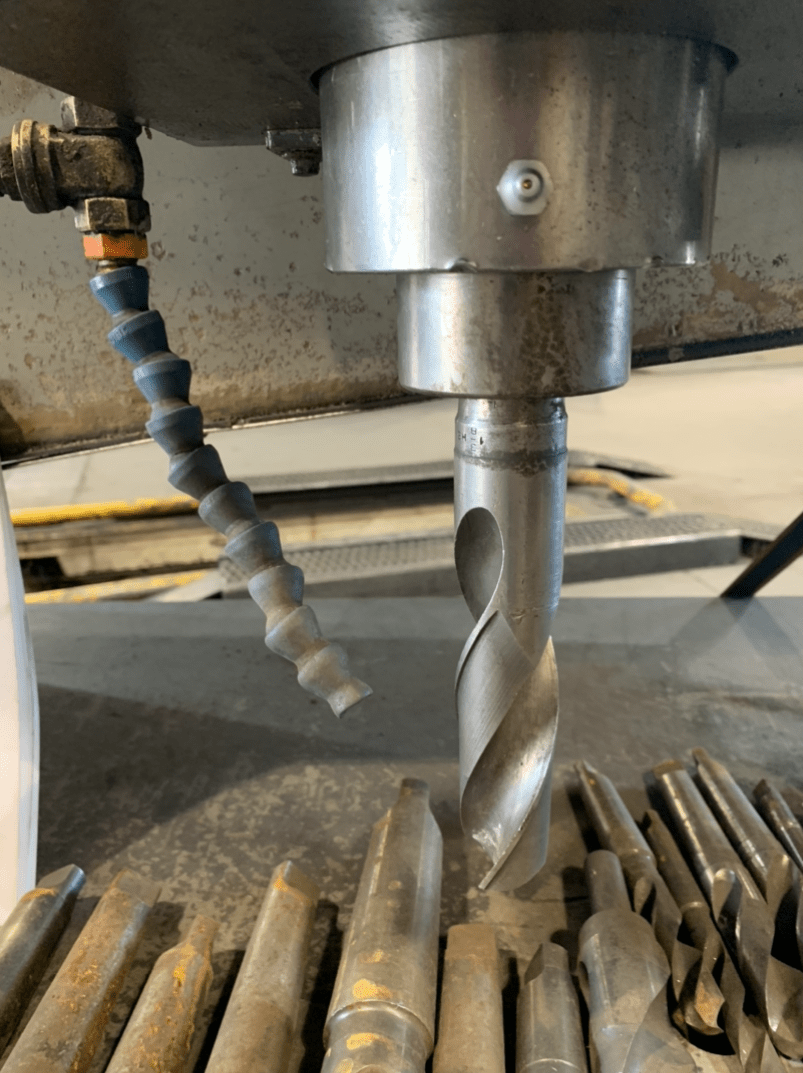

Taper hole in spindle: #4MT
Stroke of spindle: 9-7/8″

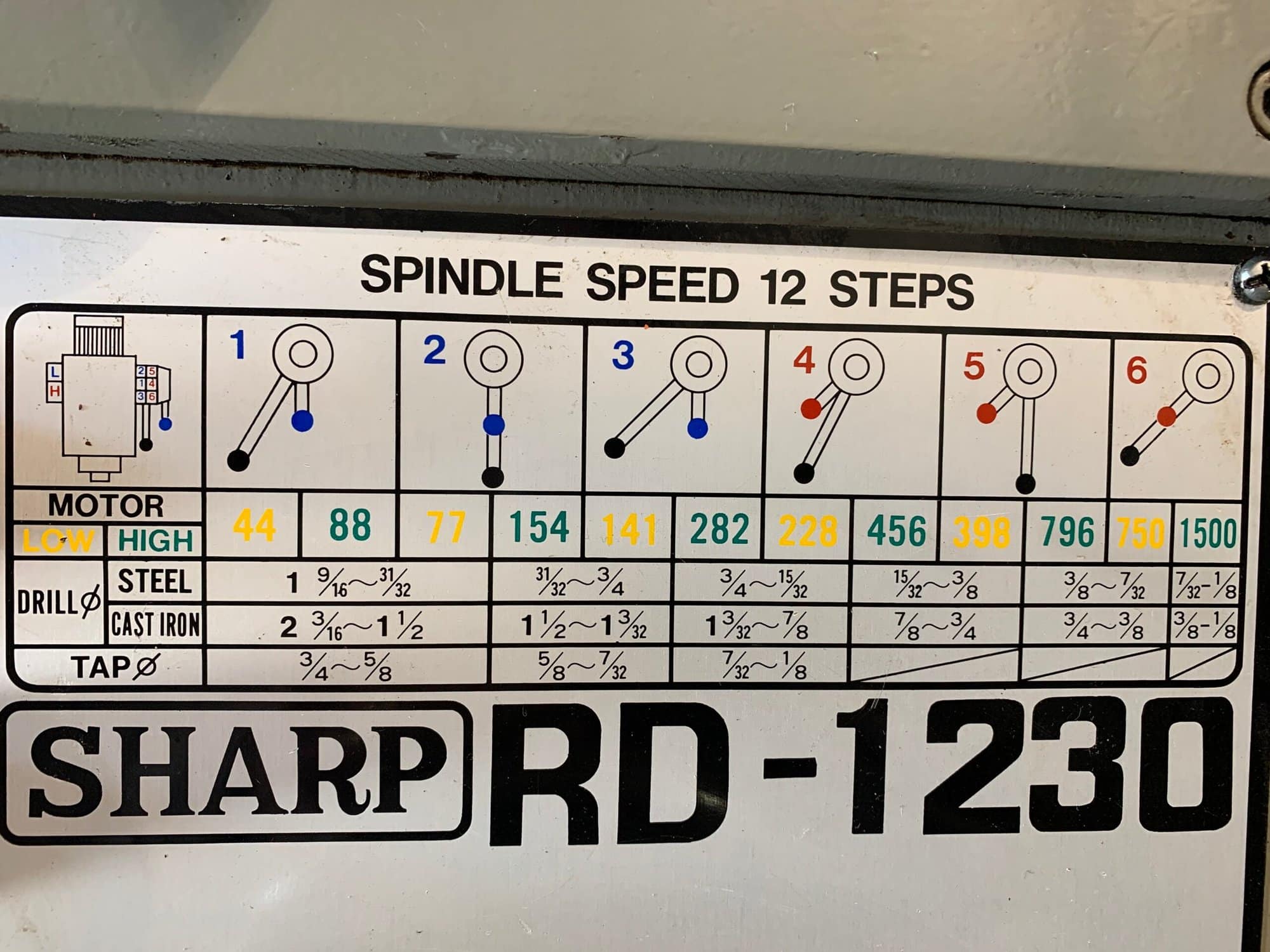

RPM of spindle (RPM range x steps) 44 – 1500 x 12 steps
Feed of spindle (1 PR x steps): 0.002″ x 0.006″ x 3 steps
Main motor (hp): 5 hp (2 speed motor)
Elevating motor: 1 hp
Clamping motor for column and gear-box: 1 hp
Clamping motor for arm: 1 hp
Coolant pump: 1/8 hp
Measurement (L x W x H): 80″ x 39″ x 89″
Approximate shipping weight: 4,950 lbs.
