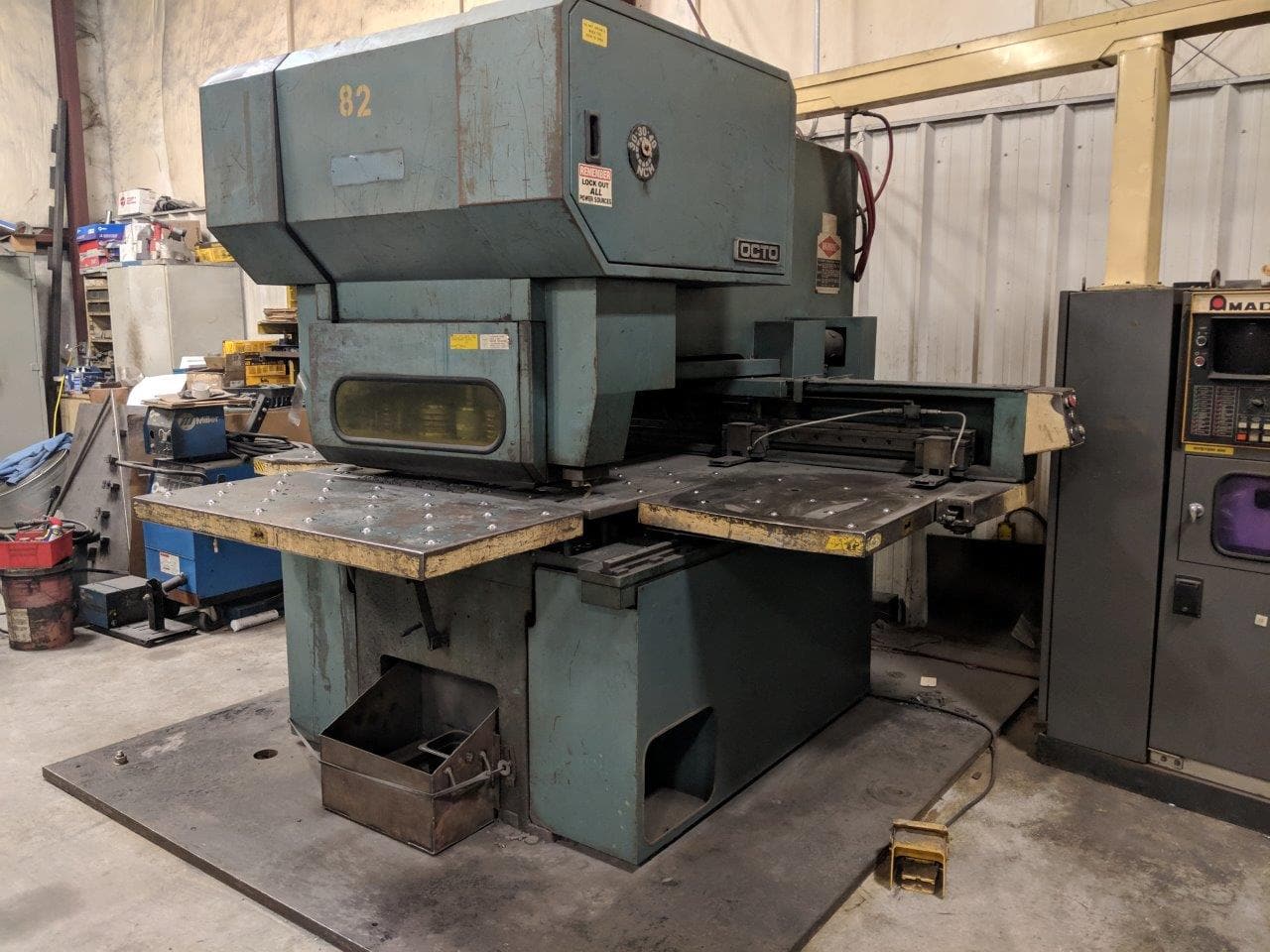

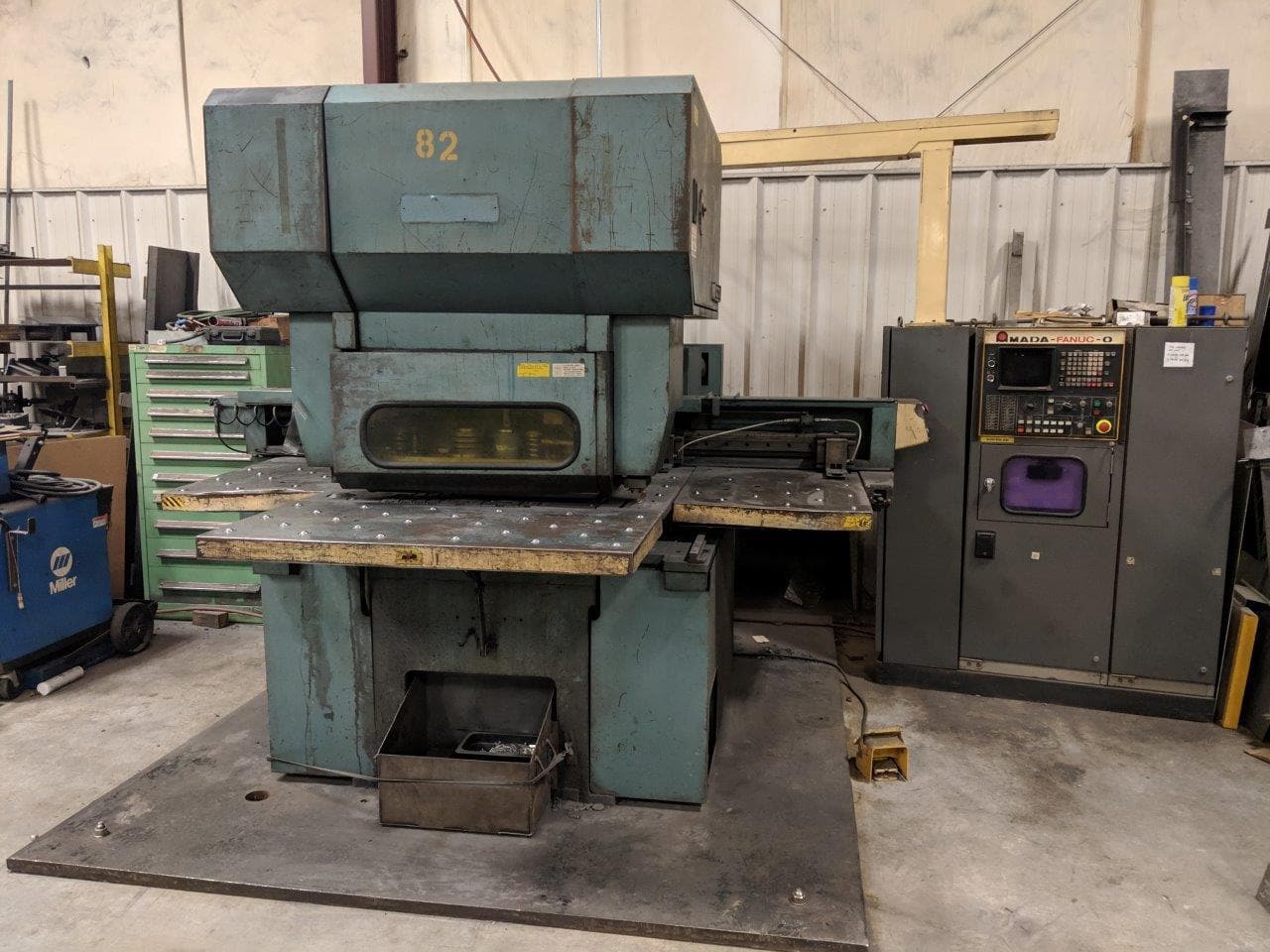

33 Ton Amada Octo-334 CNC Turret Press, 1986
$16,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 33 Ton
Number of Stations: 8 (Thick-W/One Auto Index)
Maximum Traverse: 29.928″ x 39.37″
Maximum Sheet With Repositioning: 29.928″ x 78.740″
Maximum Sheet With Appropriate Support Tables.60″ x 120″
(Has Rear Address Clamps)
Maximum Sheet Thickness: 250″
Press Stroke: 300 S.P.M.
Hits Per Minute (on 1″ Centers): 150
Feed Speed: 1,575. I.P.M.
Accuracy (When New: .005″
OVERALL DIMENSIONS
F To B (With Table Down): 94.84″
L to R: 120.67″
Height: 87.48″
Weight: 20,000 lbs.
EQUIPPED WITH:
One (1) Auto Index Station

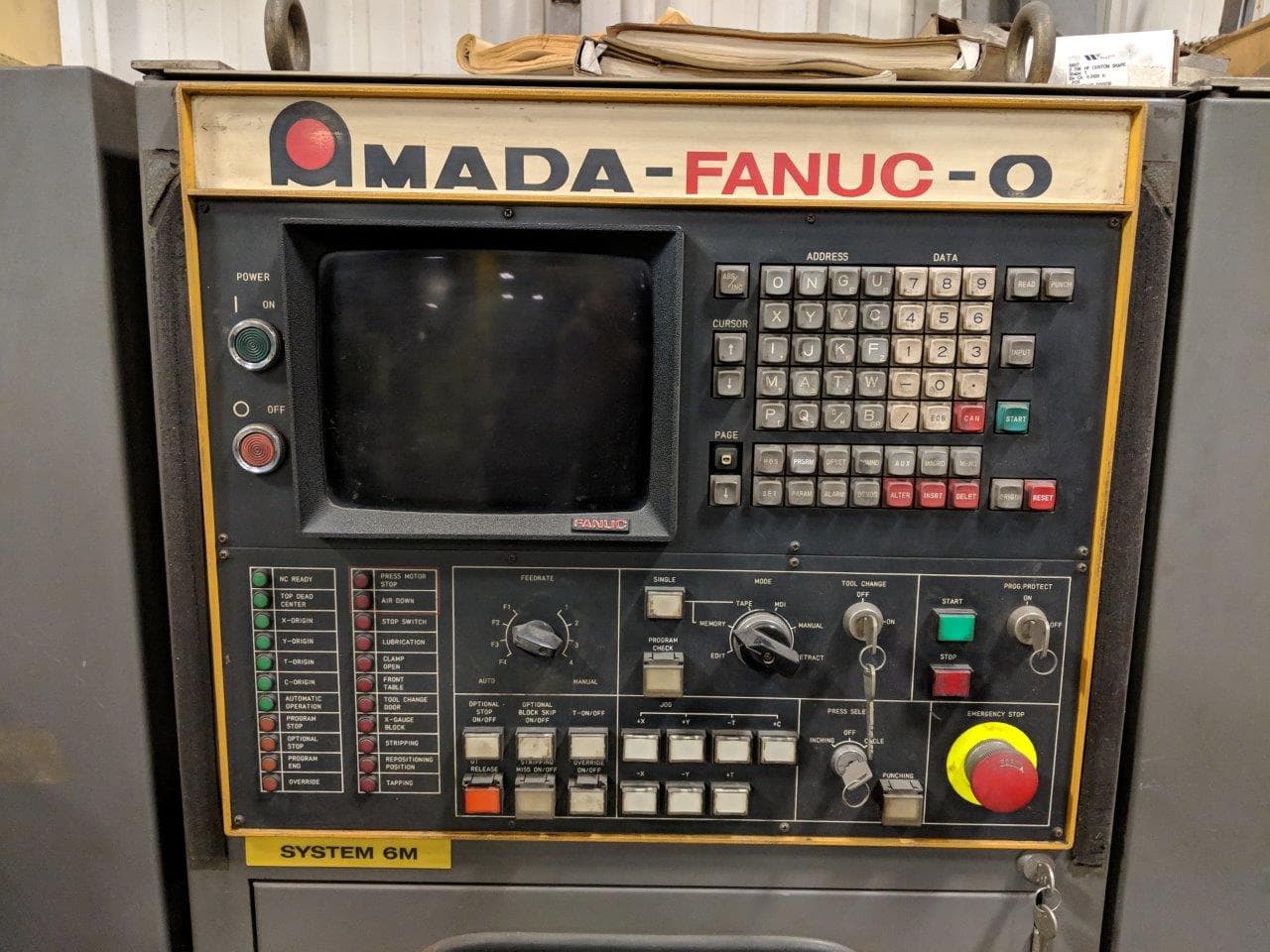

Fanuc System 6M CNC Control

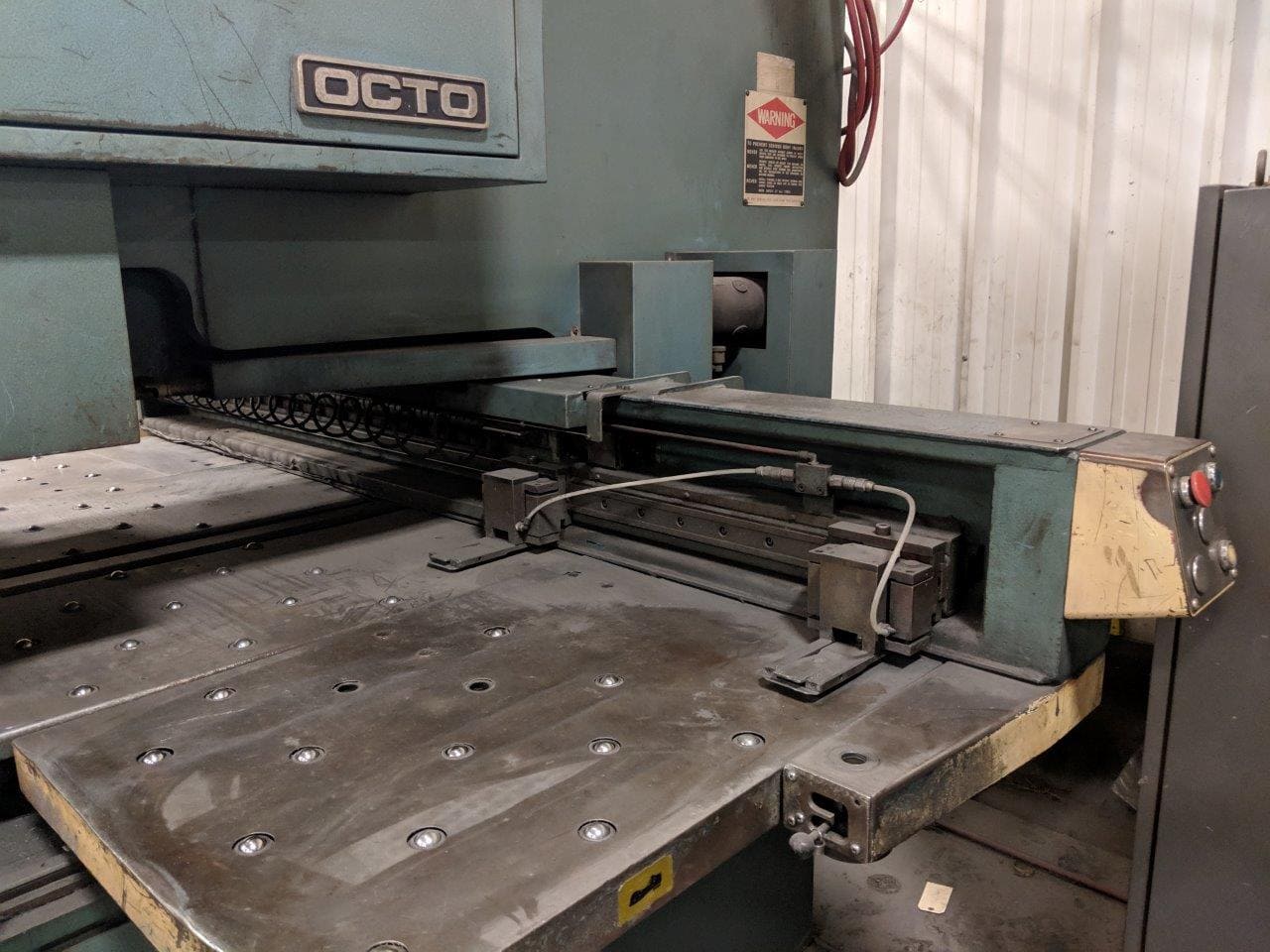

Auto Sheet Repositioning
Rear Address Clamps (Sheet Can be Flipped Front to back for 60″ W.)
Thick Style Turret
Horsepower: 5
Approx. Shipping Weight: 32,000 Lbs.
Approx. Shipping Dimensions: 13′ L x 8′ W x 7′ H
