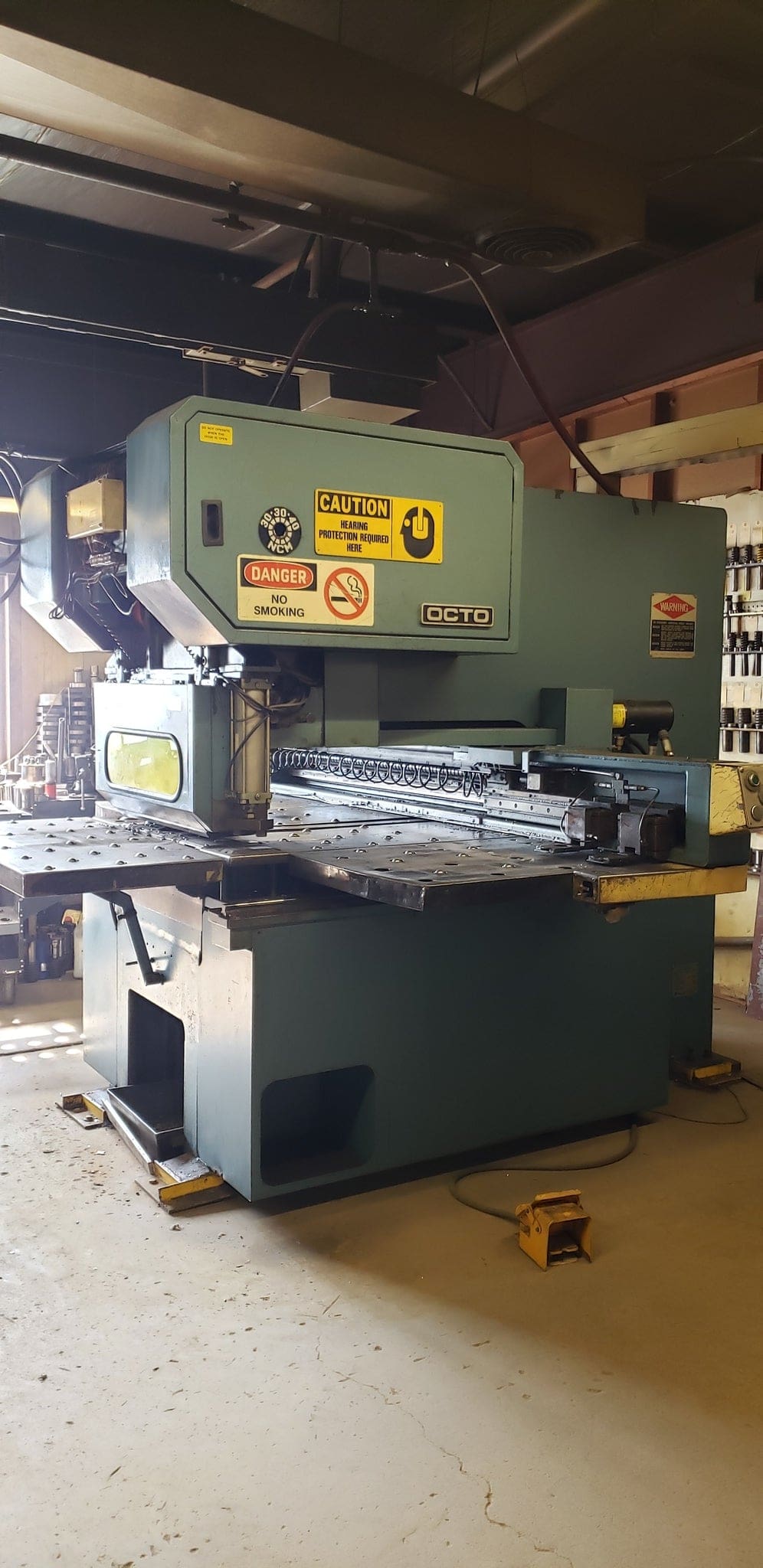

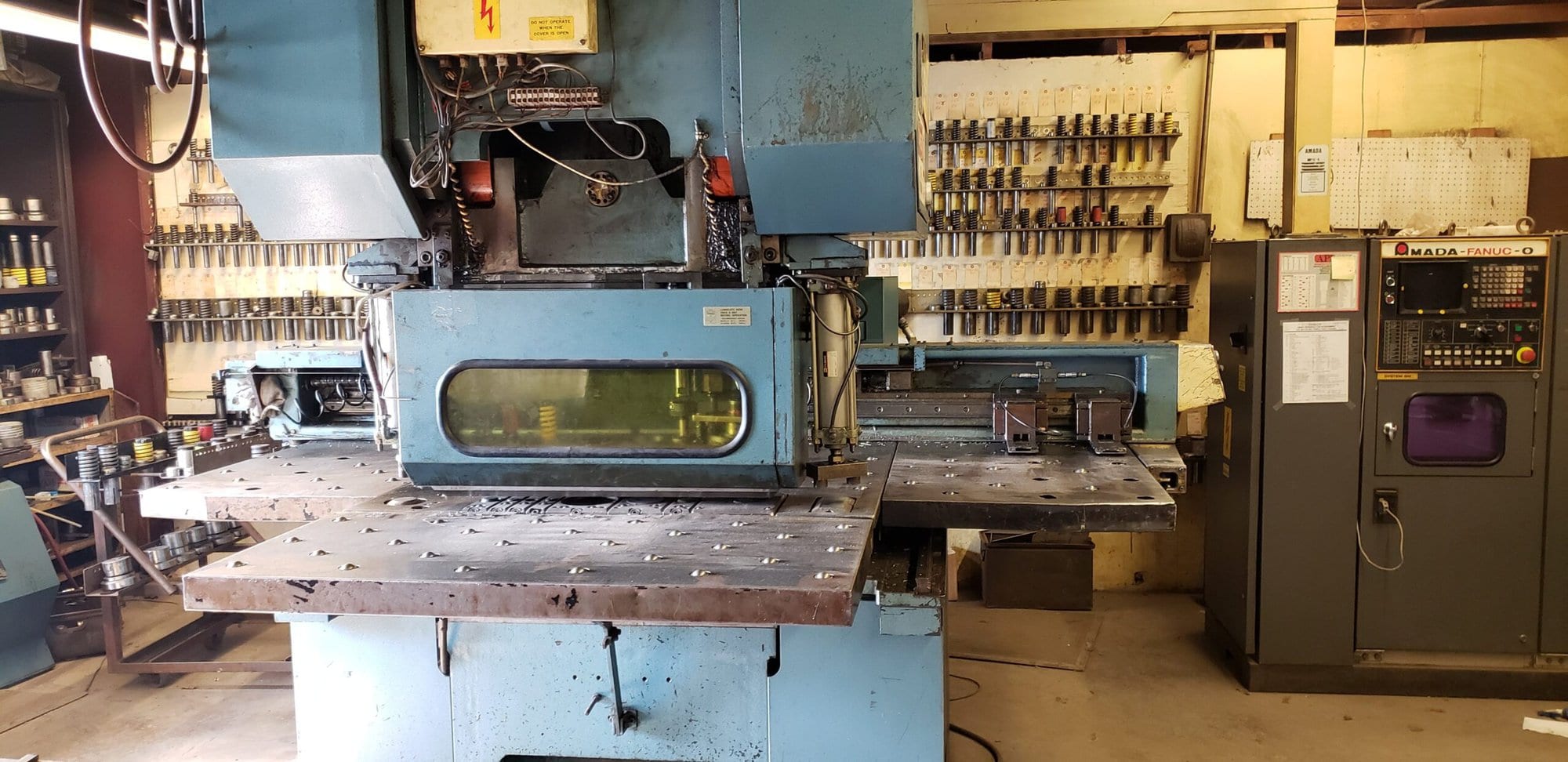

30 Ton Amada Octo-334 CNC Punch Press, 1985
$11,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity: 30 Tons
No. Of Stations: 8
-Three stations at 1/2″ (A)
-Three stations at 1 1/4″ (B)
(One of these “B” stations, is an auto-index)
One station is at 2″ (C)
One station is at 3″ (D)
Power Req: 12kva
Weight: 9.8 Tons

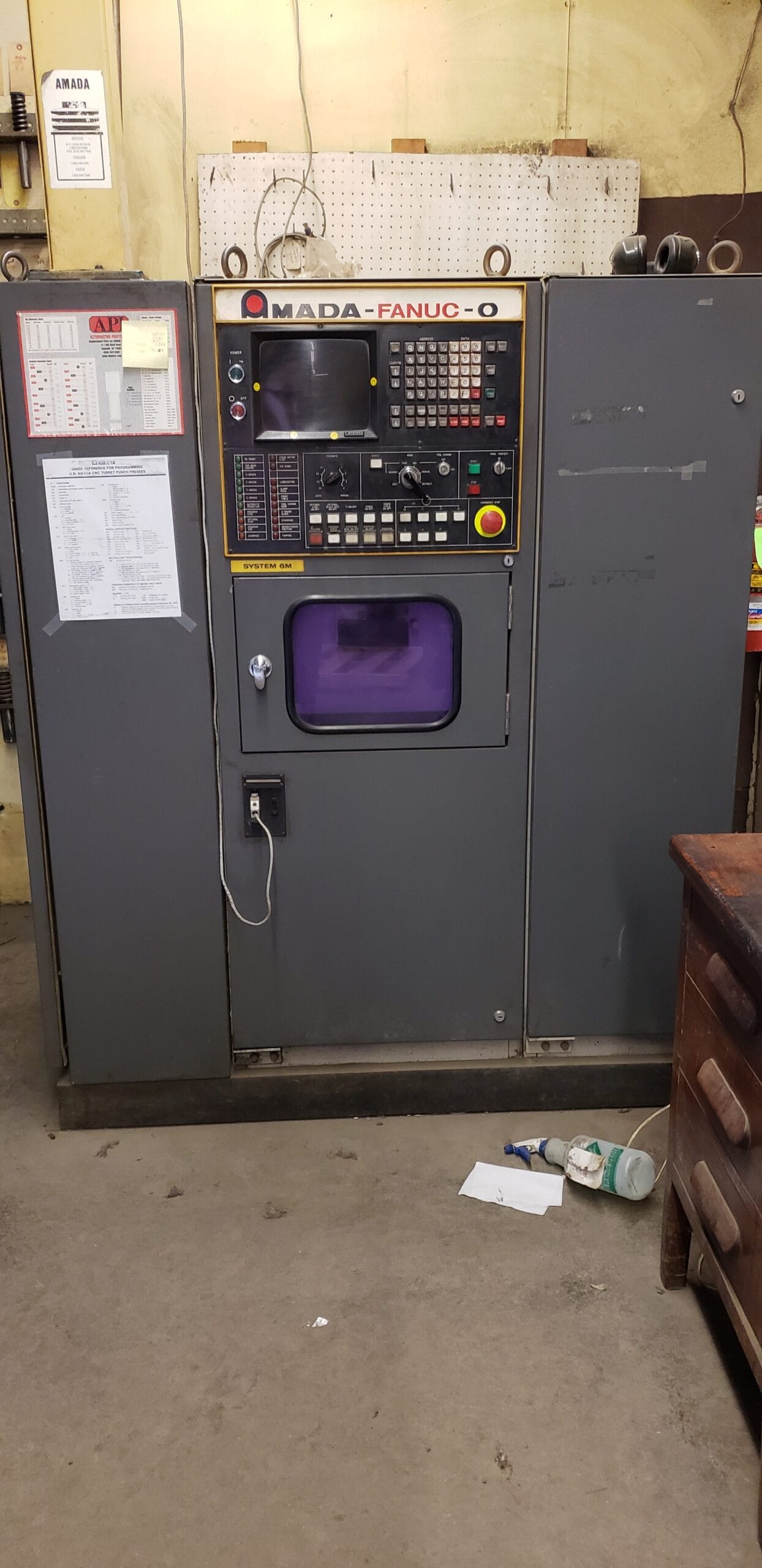

Control: Amada-Fanuc-0
Thickness Material: 1/4″
Max Hole Diameter: 3.5″
Axis Speed: 1575 IPM
Hits Per 1 Min. 1″ Centers: 150 HPM
