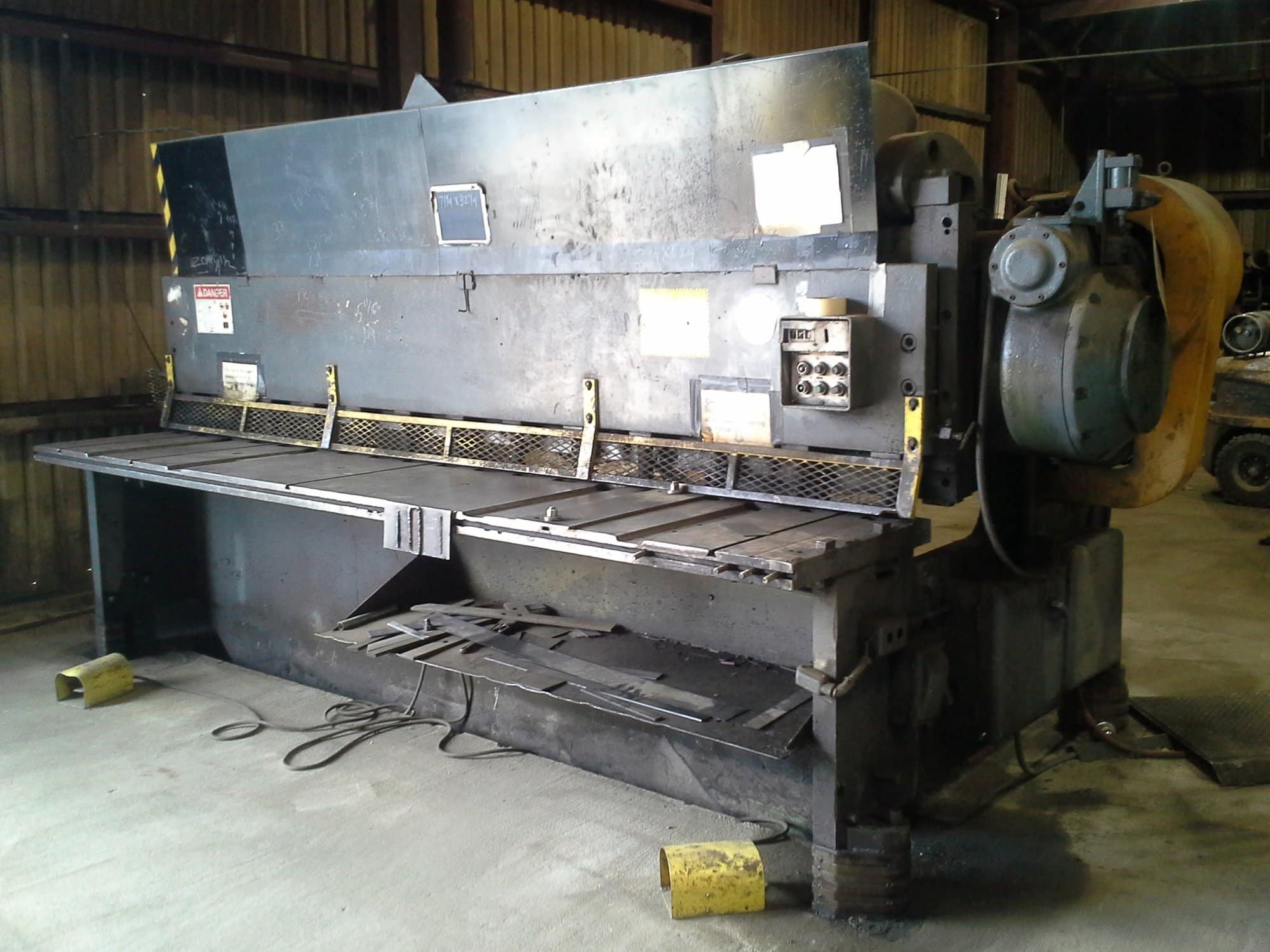

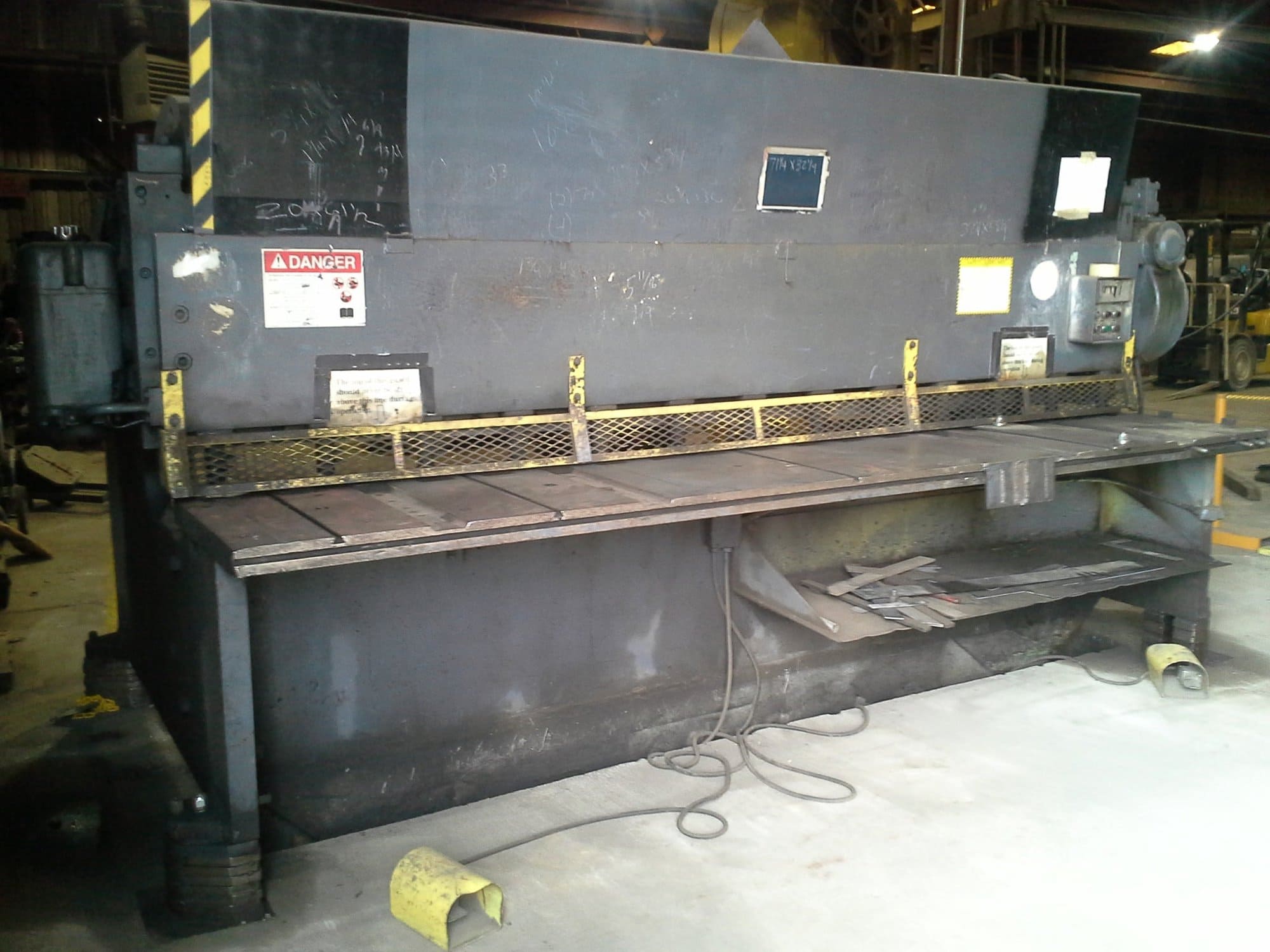

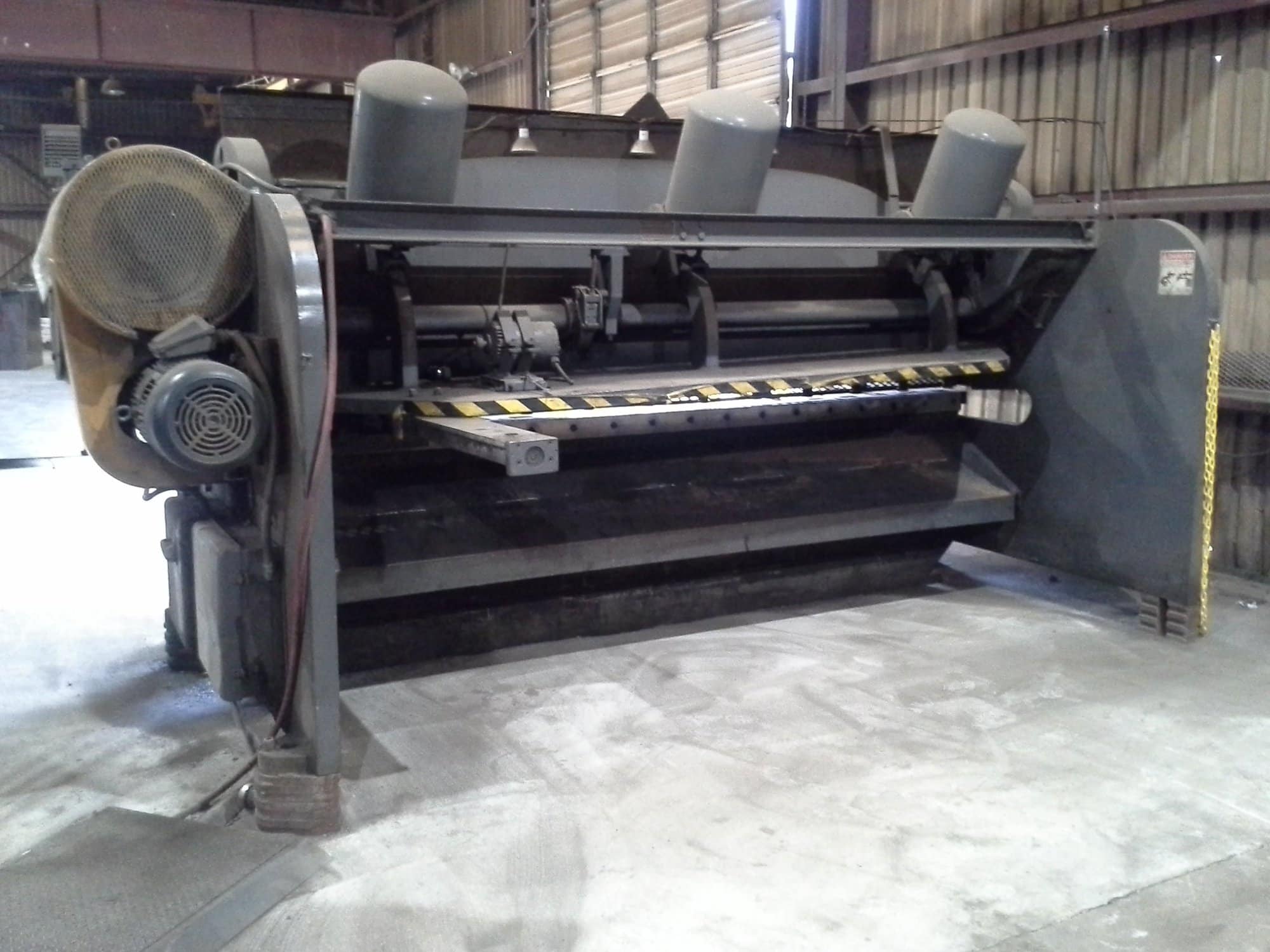

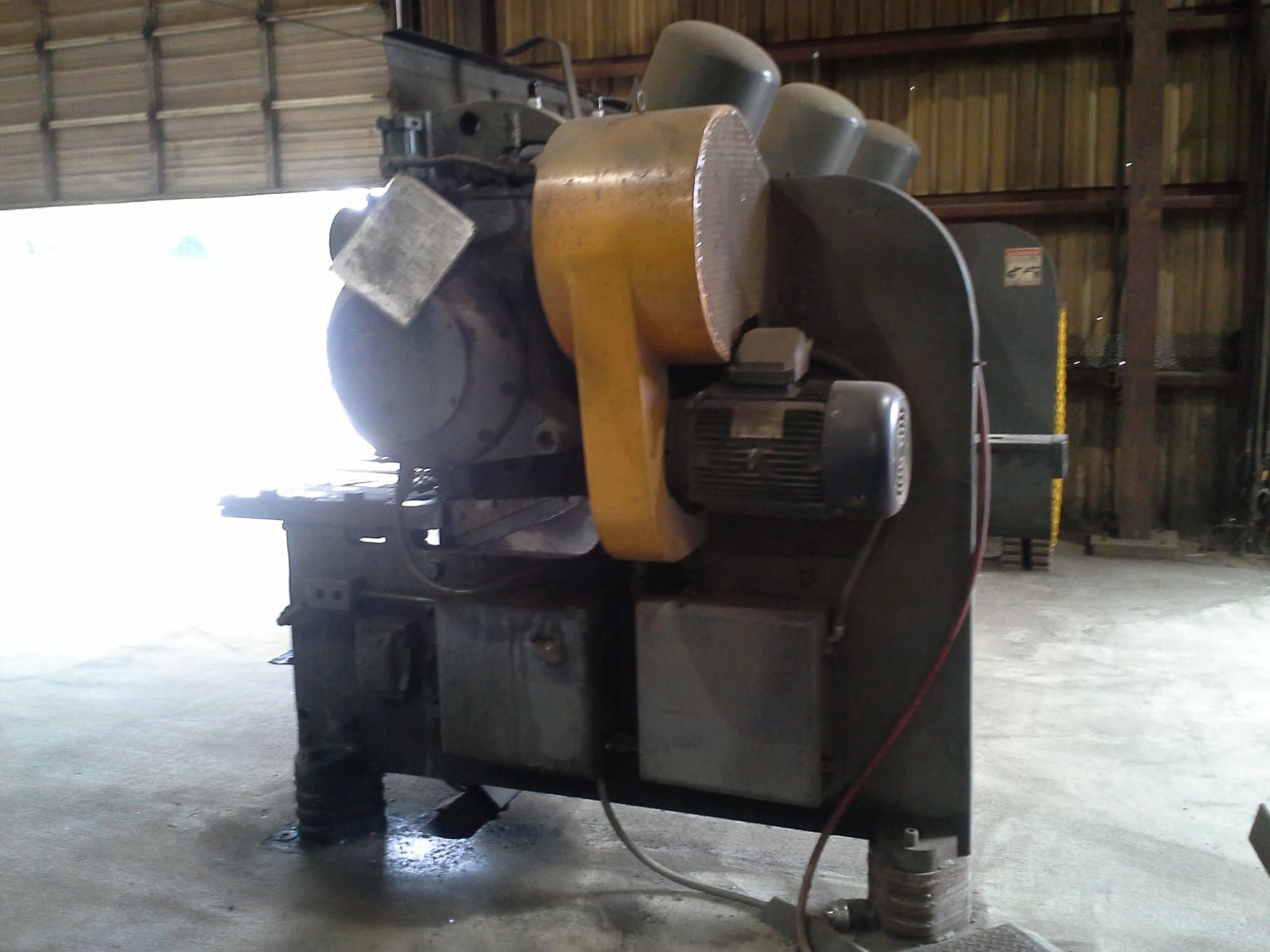

3/8″ x 12′ Cincinnati 2512 Shear, 1966
$10,850.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Shearing Capacity, Nominal……………. 12′ x 3/8″
Length of Knives…………………….. 12′ 4″
Length of Gap……………………….. 18″
Rake, Taper Per Foot…………………. 9/32″
Ram Adjustment………………………. 11/16″
Hold-Downs to Knife Edge……………… 7/8″
Distance Under Hold-Downs…………….. 11/16″
Total Hold-Down Pressure……………… 13 TON
Strokes Per Minute…………………… 50 SPM
Motor, Horsepower……………………. 20 HP
Electrical System……………………. 208/230/460 V, 3 ph, 60 hz
Overall Dimensions, L x D…………….. 15′ 8″ x 7′ 3″
Overall Height, Above Floor…………… 7′ 2″
Approximate Weight………………… 33,300 LBS
