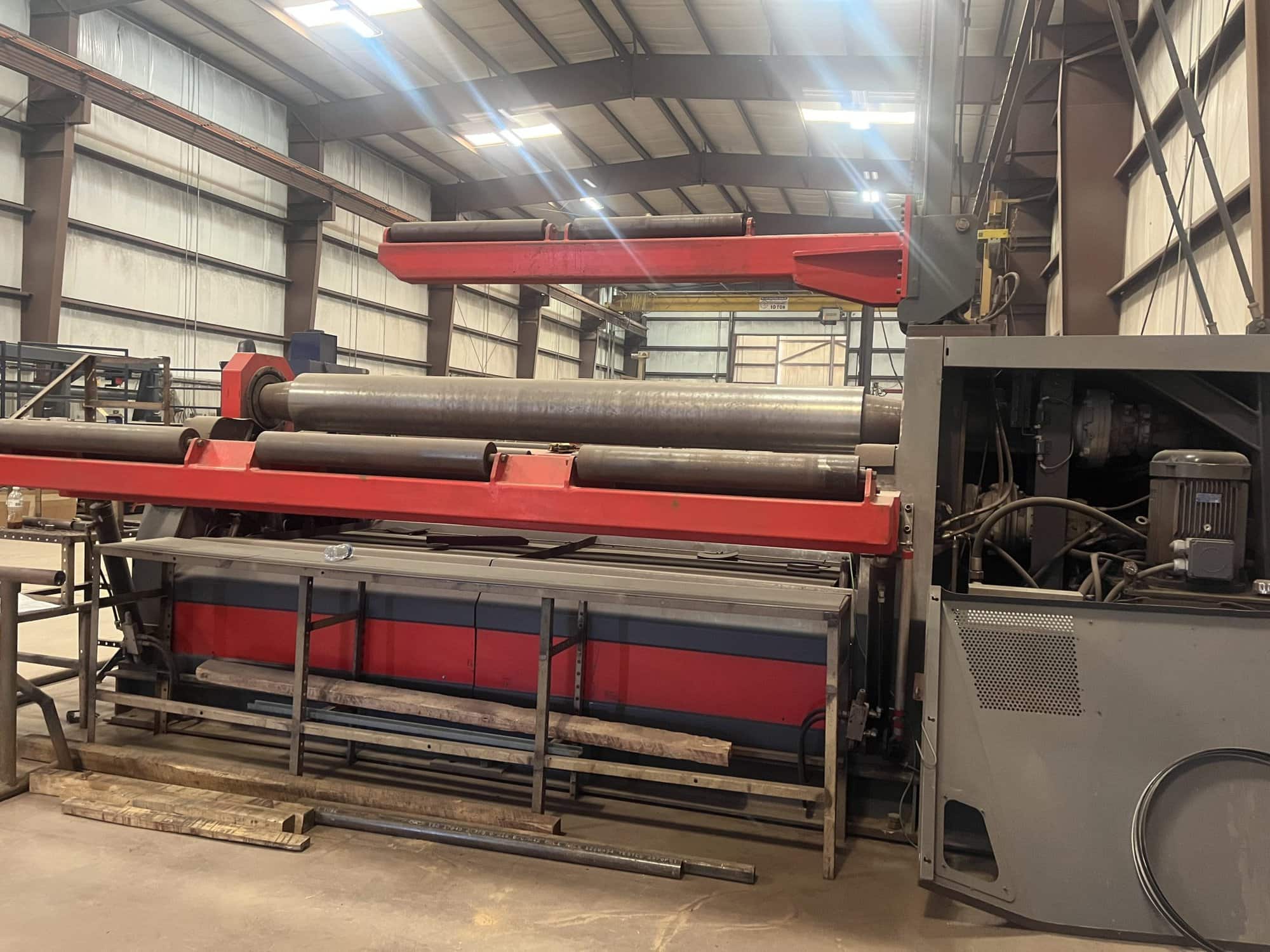

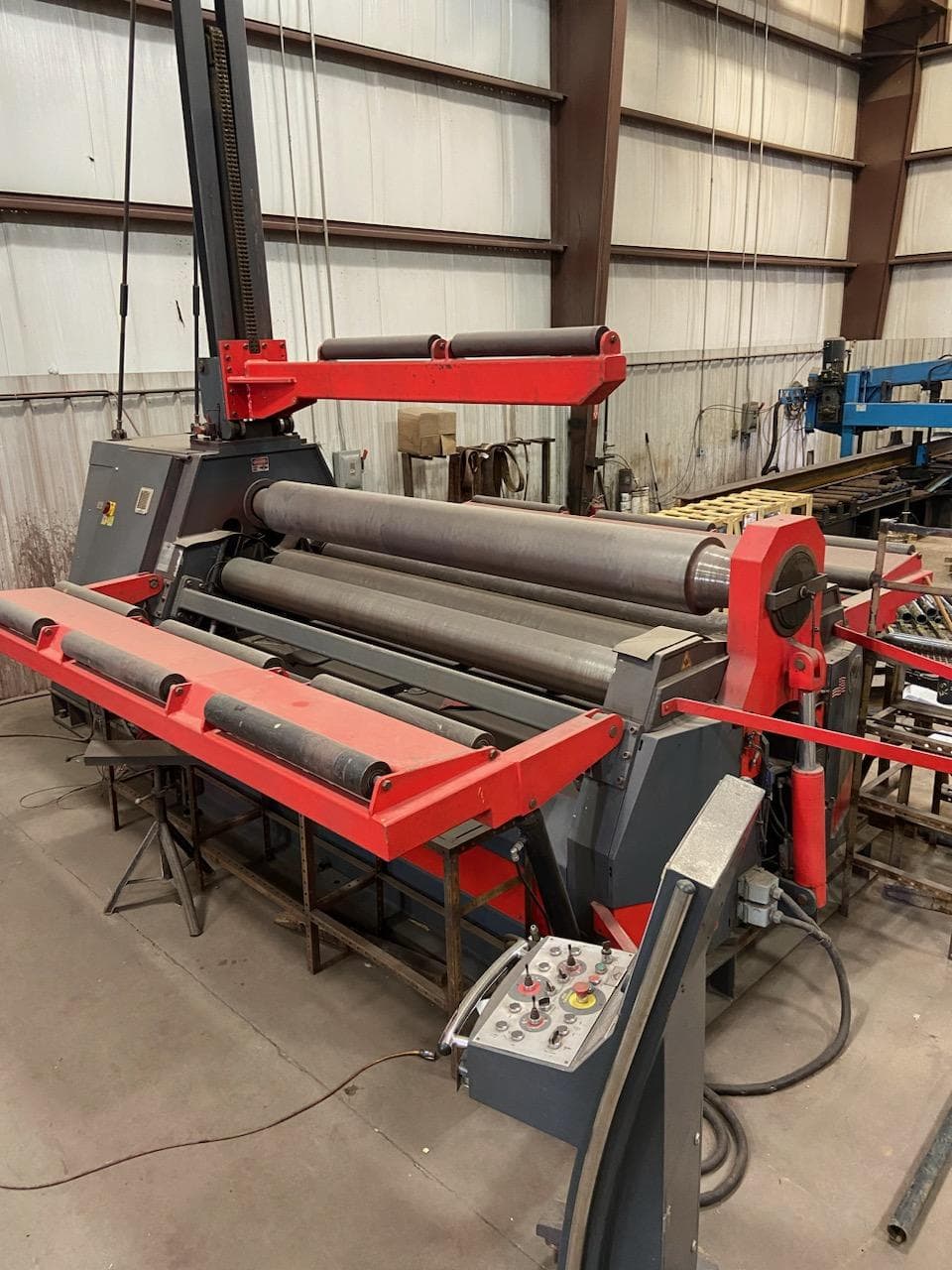

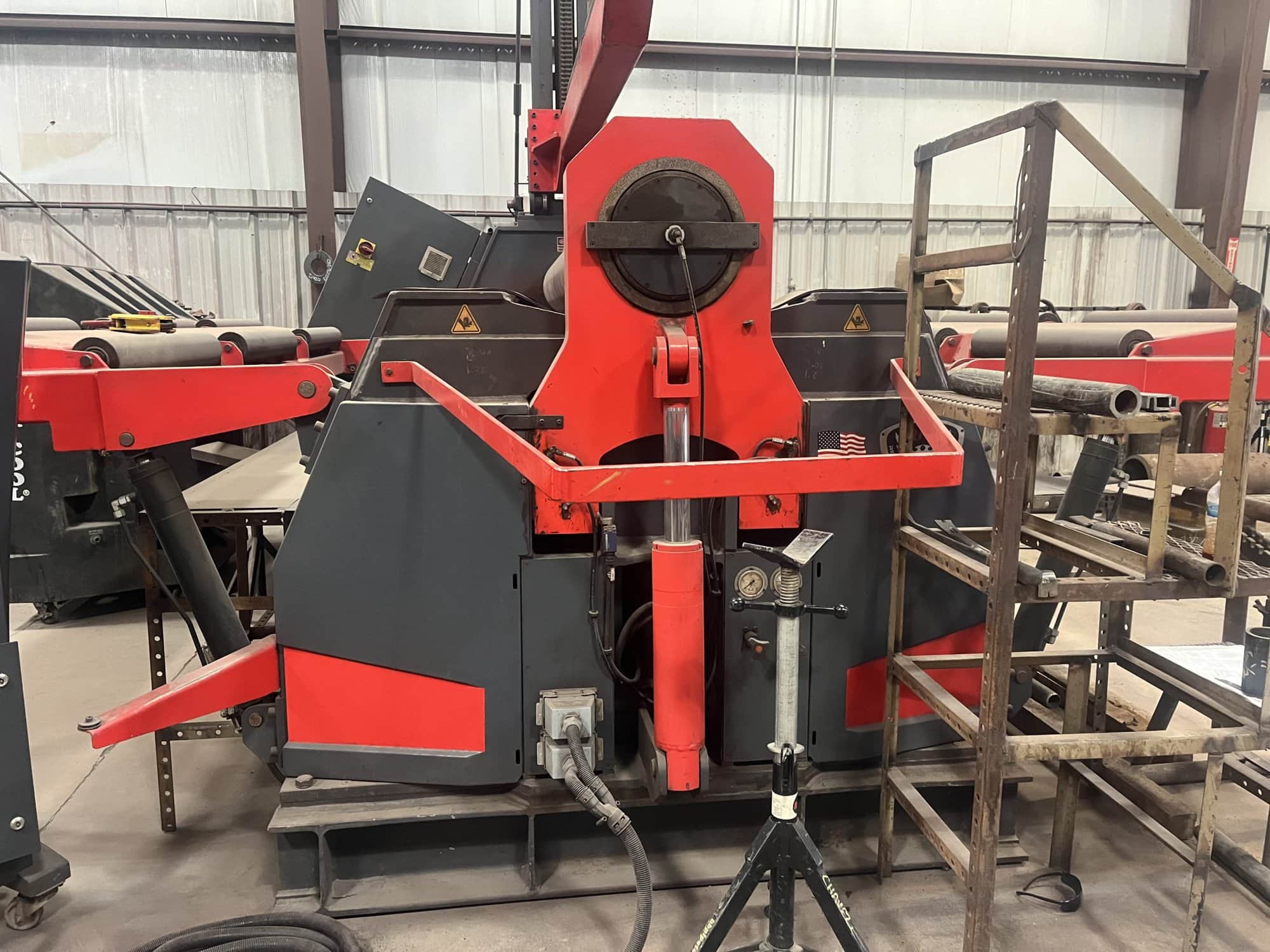

3/4″ x 10′ RMT Kyson R-Genius 10-1299 CNC Plate Roll, 2017- Overhead and Side Supports
$109,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Number Of Rolls: 4
Bending Length: 10’ 2”
Pre-Bending Capacity: 3/8” @ 1.5X Top Roll Diameter
Pre-Bending Capacity: 1/2” @ 5X Top Roll Diameter
Bending Capacity: 5/8”
Top Roll Diameter: 12.99”
Bottom Roll Diameter: 12.99”
Side Rolls Diameter: 9.45”
Length (L): 220”
Width (W): 76”
Height (H): 78”
Weight: 28,660 Lbs.
Motor Power: 20HP
Working Height (C): 56”
Max. Pass Through (A): 3-1/8”
Power Supply: 440V/3 Phase 60 Hz
Bending Speed FPM: 19 on 60 Hz
Oil Tank Capacity: Gallon 106
Feeding Rolls: 2 Independent Planetary Gear Box and Hydraulic Motors
Rolls Housing: All rolls housing spherical Roller Bearings and Bronze Sliders
Rolls Material: High Tensile Carbon Steel CK50
Rolls Hardening: Induction Hardened HRc 56±4
Rolls Positioning: One speed Electronic Synchronous
(Proportional Speed on NC-CNC)
Rolls Calibrationing: Manual
(Automatic on NC-CNC)
Pinching: Adjustable Hydraulic Pressure
Control Unit:
Conical Bending: Manual Bending with Conical Bending Device

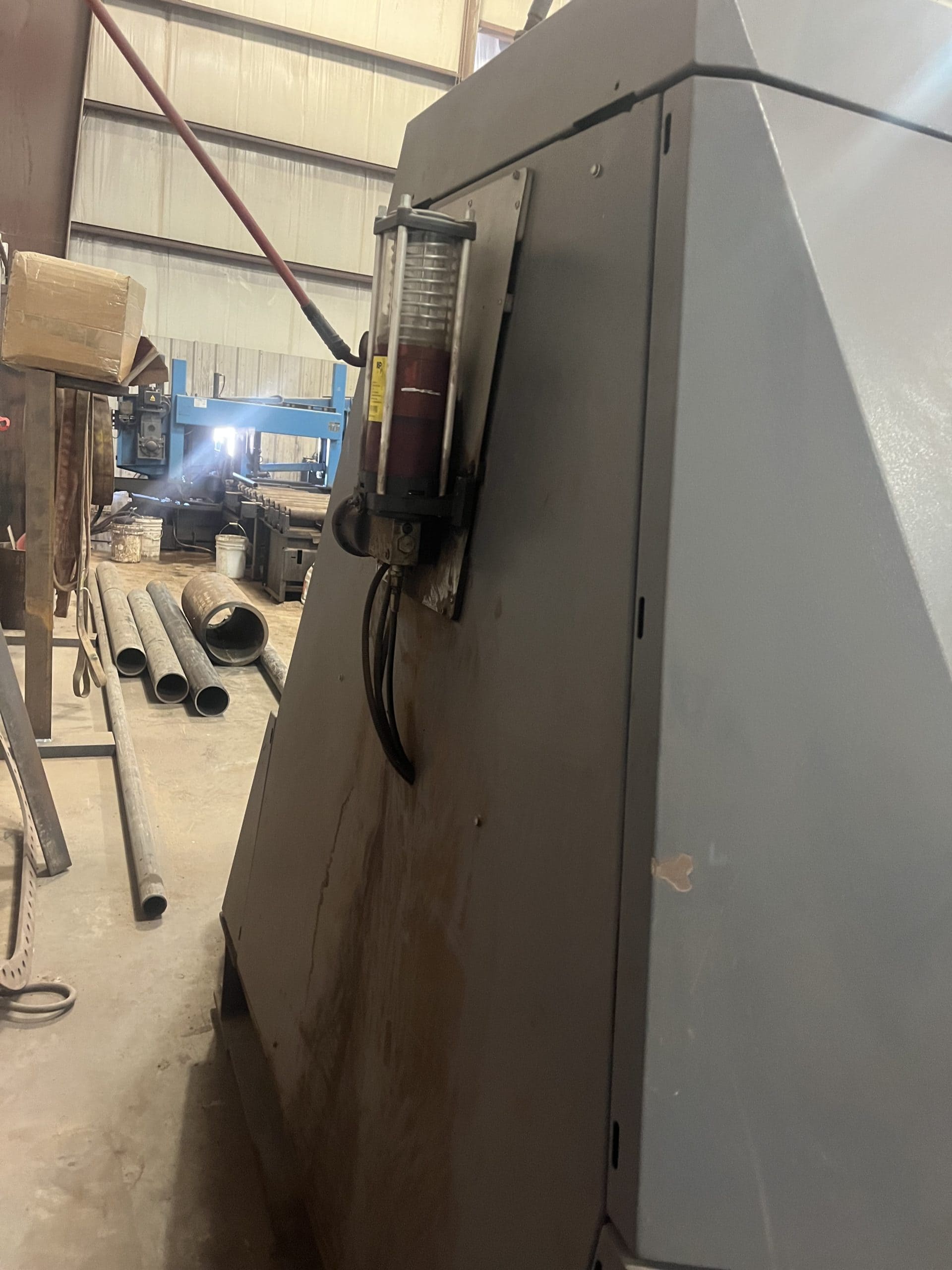

Lubrication: Manual or Automatic
Equipped with:
ESA CNC Control
Overhead Support
Side Supports (Both Sides)
