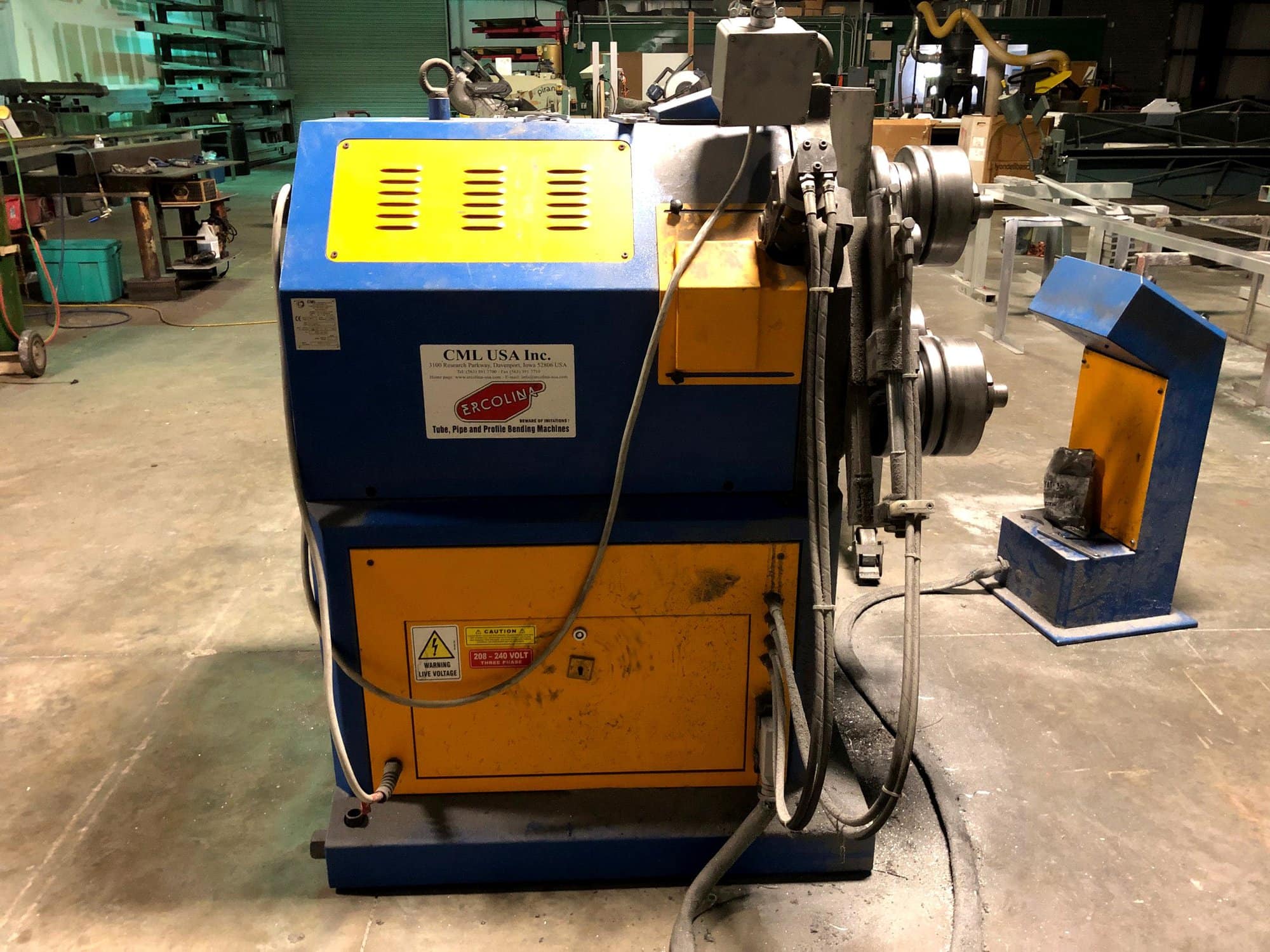

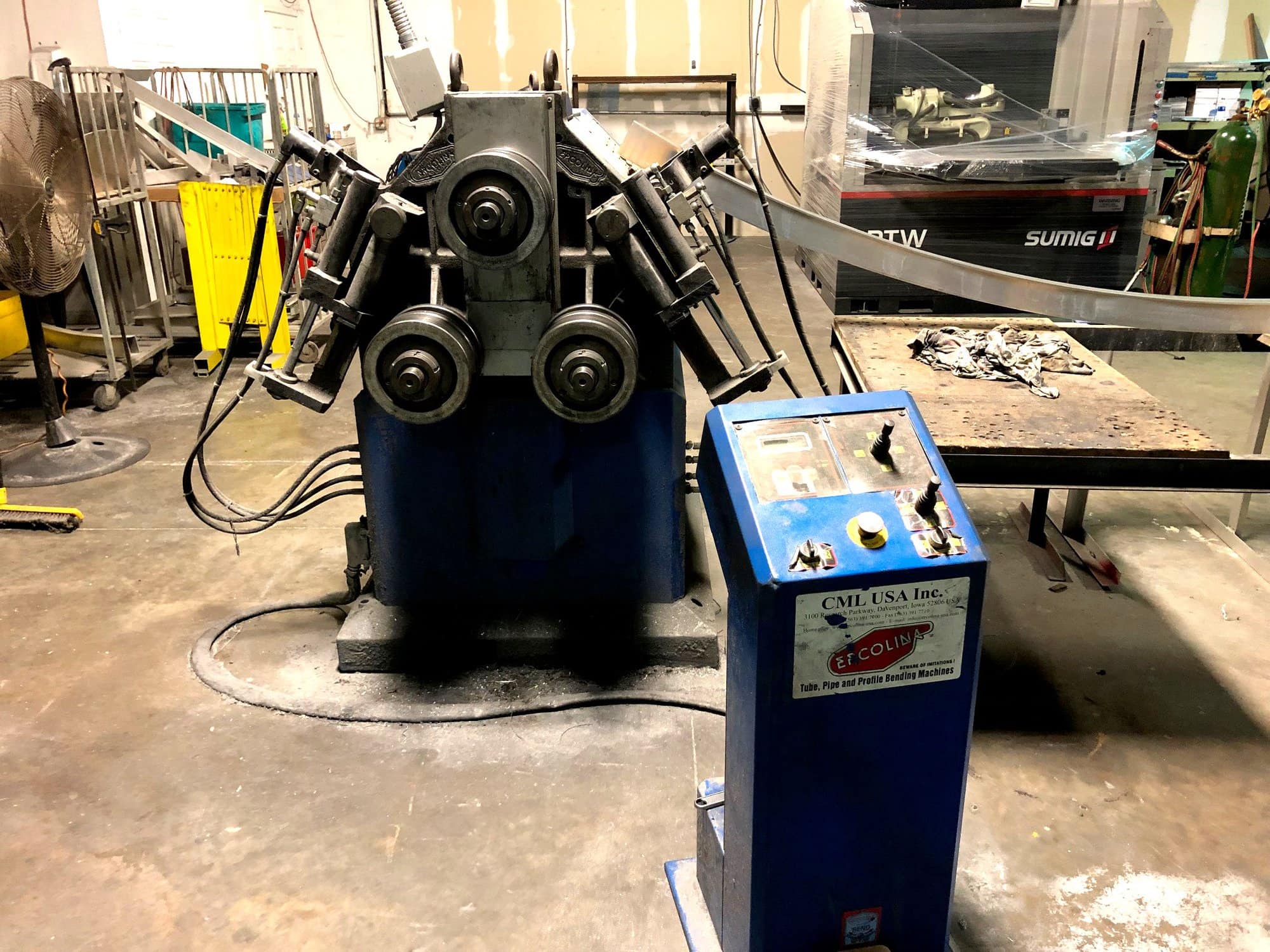

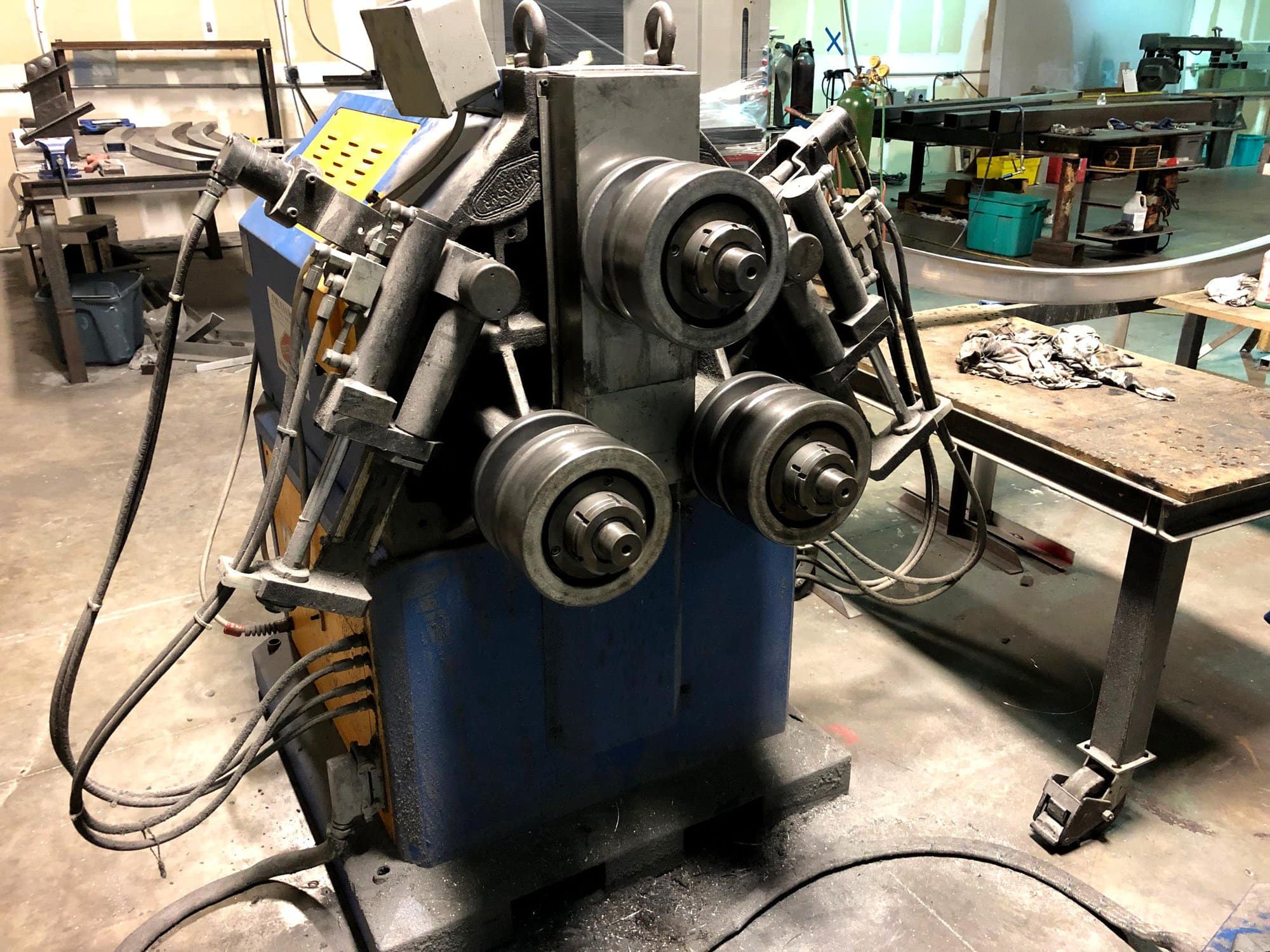

3″ x 3″ x 3/8″ Ercolina CE70-RLI Angle Roll, 2012- Hydraulic 3 Axis Twist
$22,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
70mm Roll Shaft Diameter
Maximum Pipe Capacity 3″ Sch. 40
Maximum Angle Capacity 3″ x 3″ x 3/8″
Included Universal Tooling Set Will Bend:
Rectangles (Flat Stock)
Squares (Solids and Tubing)
Angles
Rounds
T-Channel
C-Channel
Round Tube Capacity
Minimum Outside Diameter (OD): 1/4″ (6.4 mm)
Maximum Outside Diamter (OD): 3-1/2″ (88.9 mm)
Minimum Wall Thickness: Depends on Die (Contact us for details)
Maximum Wall Thickness: 0.216″-Solid, Depending on Size
Pipe Capacity
Minimum Size: NPS 1/4 (DN 8) Schedule 40
Maximum Size: NPS 3 (DN 80) Schedule 40
Other Specifications
Center Roll Positioning: Hydraulic, 16 Tons
Drive: 3-Roll
Degree of Bend: 0-360°
Bending Speed: 8 RPM
Anti-Twist Correction System: Manual

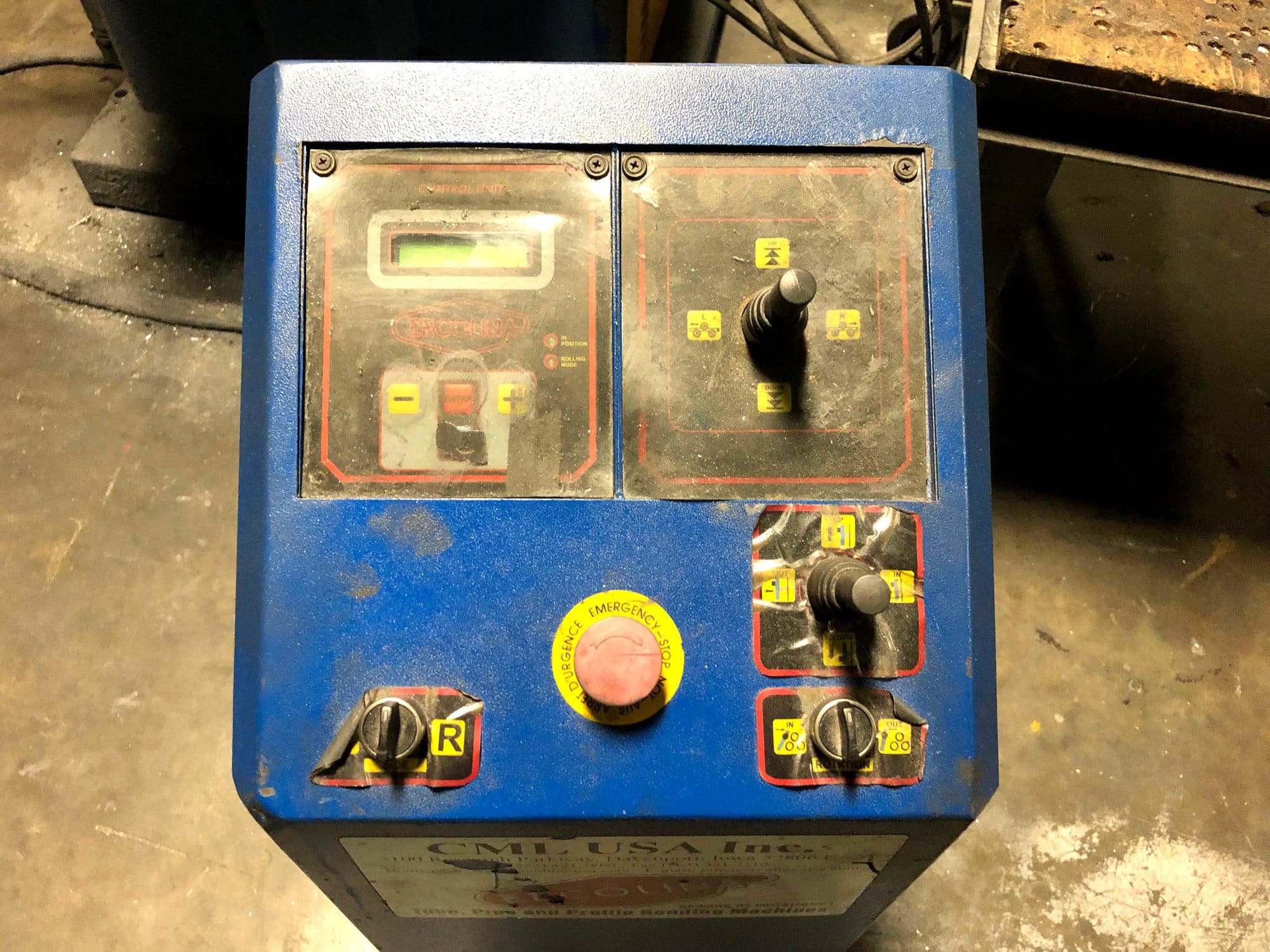

Programming: NC – Touchpad/li>
Distance Between Shafts: 15″ (380 mm)
-Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
-3 Independent Driven Rolls
