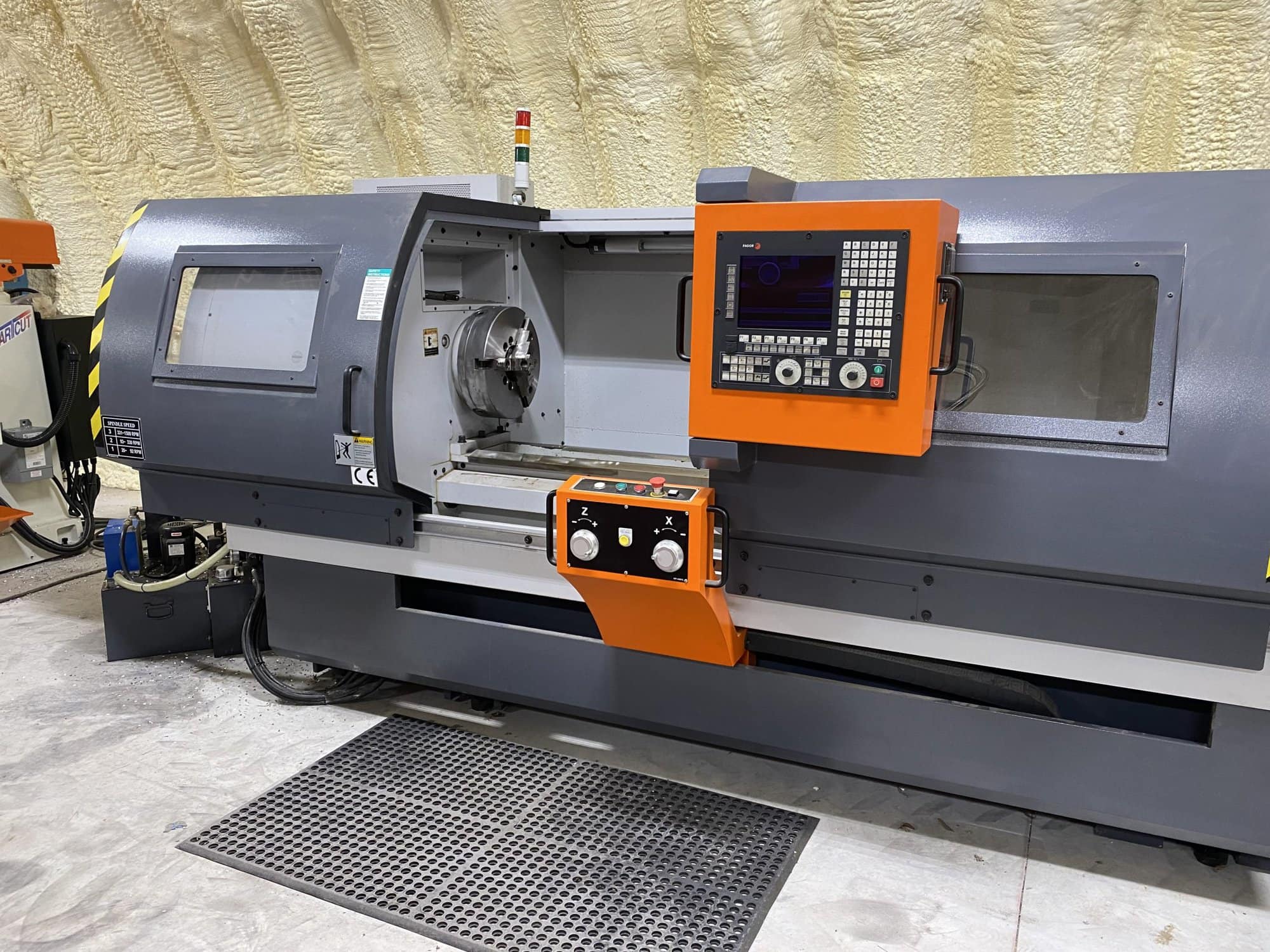

24″ x 78″ Kaast C Turn 315/2000 Lathe, 2017 – 20 Hours
$42,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 24”
Swing Over Gap: 30”
Swing Over Carriage: 17.5”
Distance Between Centers: 78”

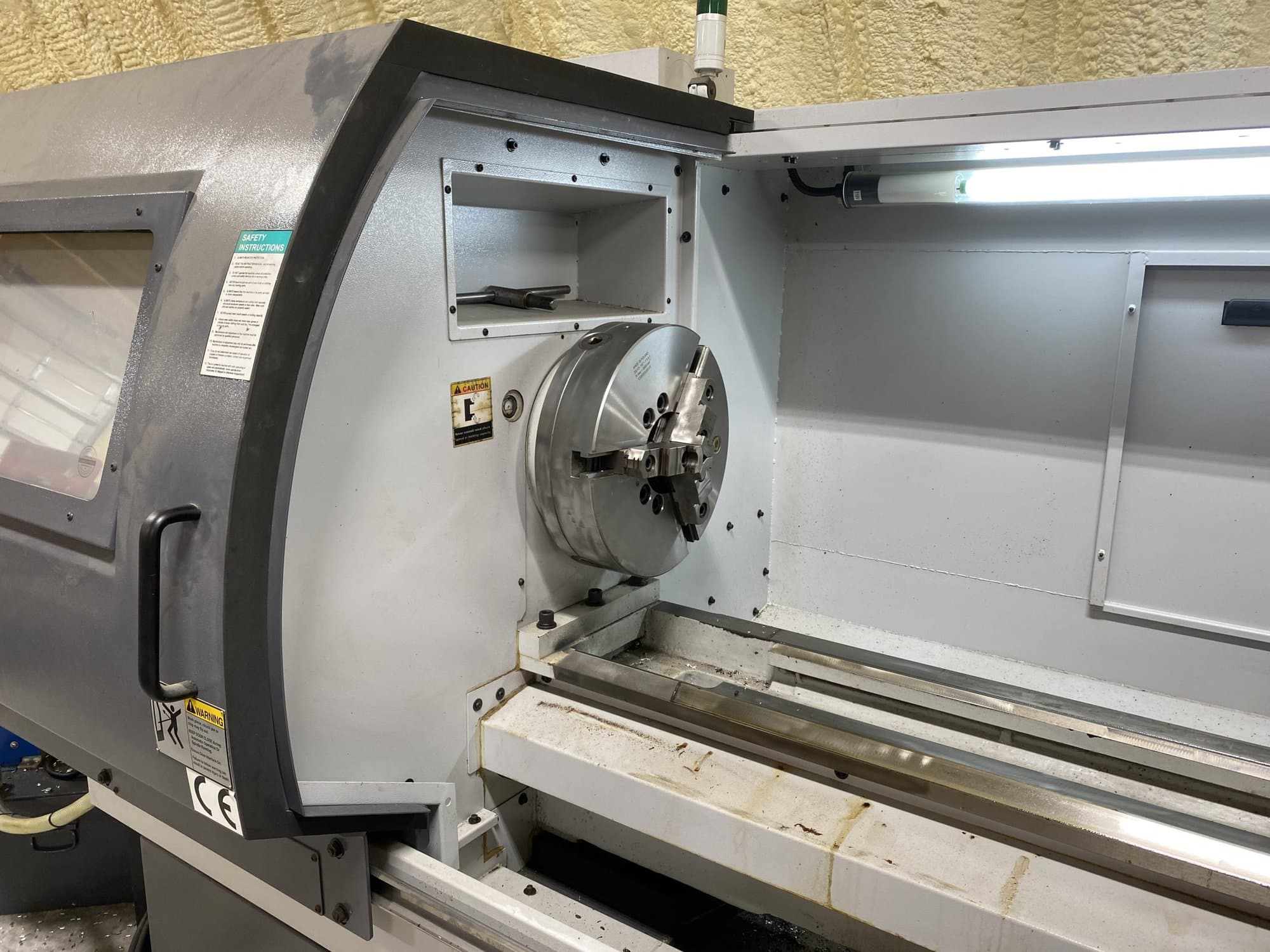

Chuck Mount: D1-8
Spindle Bore Diameter: 3.3”
Speeds: 18 Steps 23-1293 rpm
Inverter: 20-1500 rpm
Bed Width: 350 mm (13.5”)
Axis Travel: X 330 mm (12.8”)
Toolholder Travel: Z 150 mm (5.85”)
Threading
Inches (36) 4-56 TPI
Metric (24) 0.5-7 mm/pitch
Diametral (36) 8-112 D.P.
Module (16) 0.25-3.5 M.P.
Spindle Speeds: 20 – 1500 RPM
Travels
Z 0.06-0.88 mm/rev
(0.002-0.034”/rev)
X 0.03-0.44 mm/rev
(0.001-0.017”/rev)

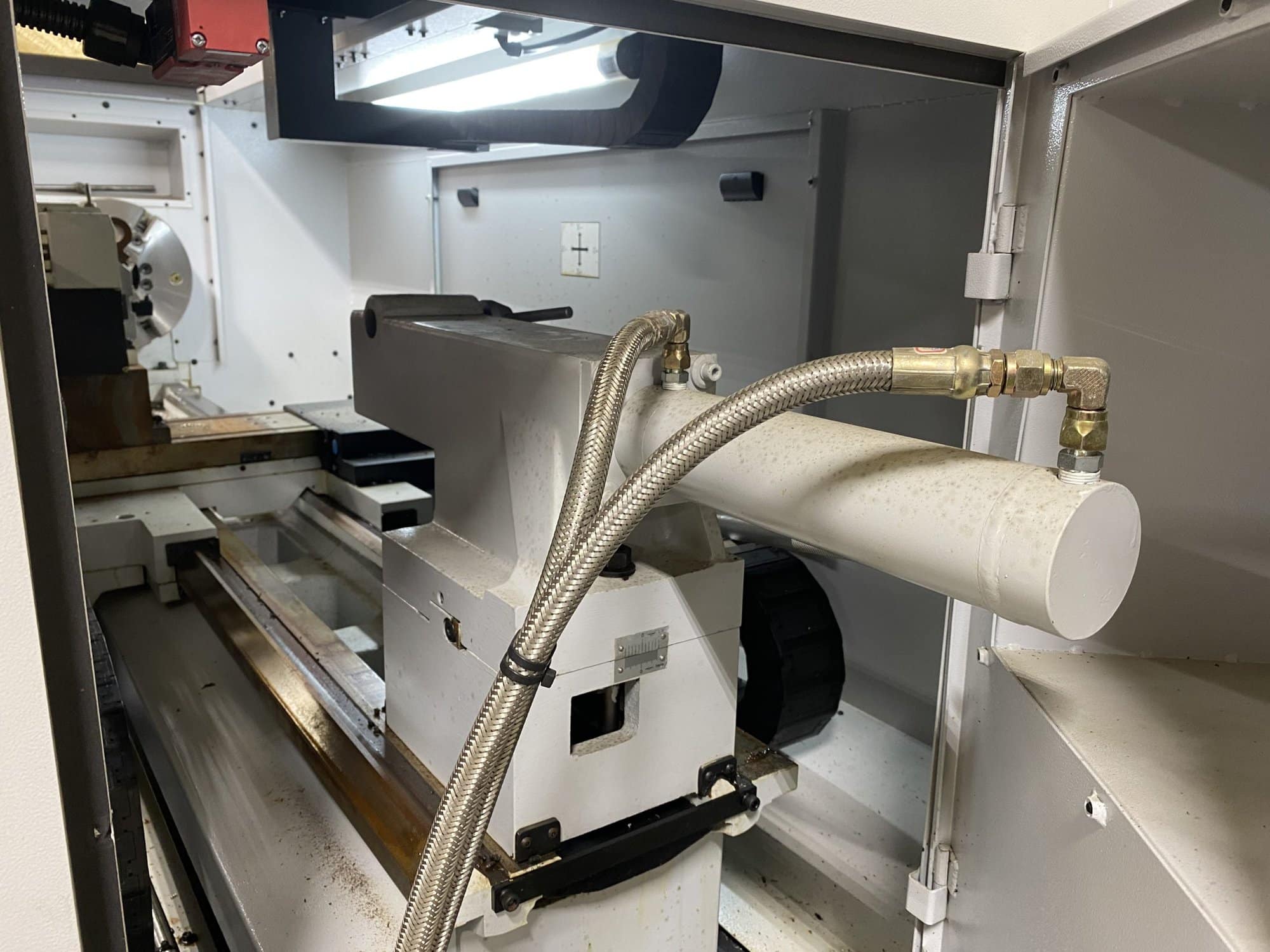

Tailstock Quill Diameter: 2.9”
Tailstock Quill Travel: 6.6”
Tailstock Quill Taper: MT5
Main Spindle Motor: 11 kW (15 Hp) This Machine
Weight: 3250 kg (7150 lbs.)
Equipped with: Fagor Control
