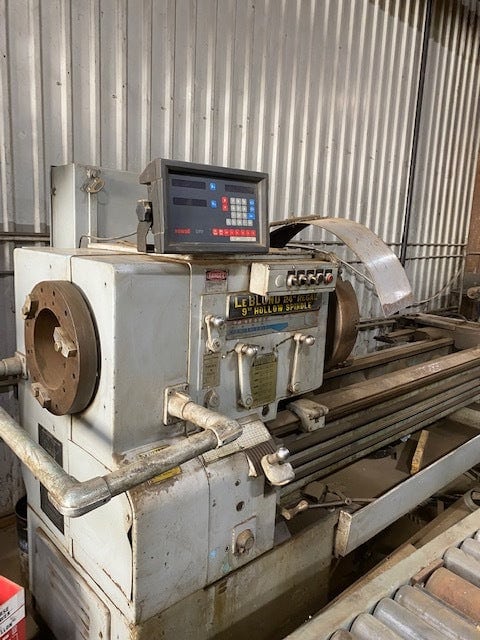

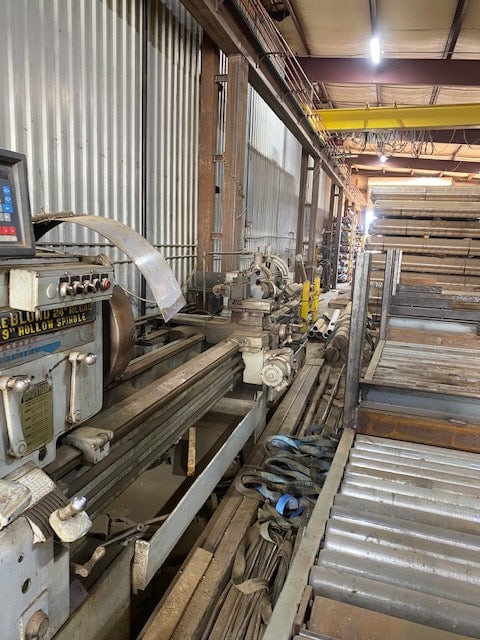

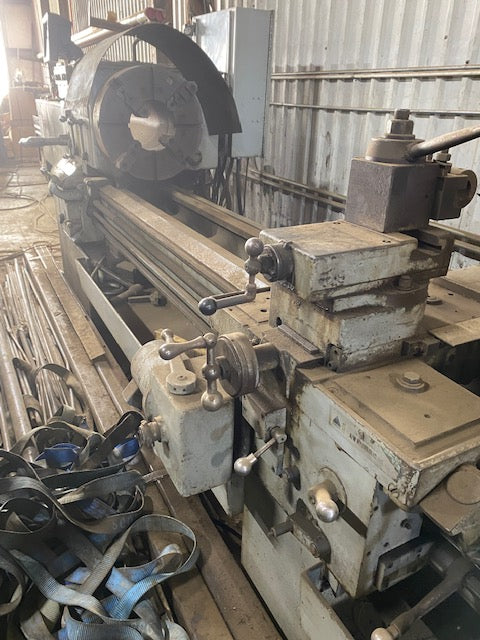

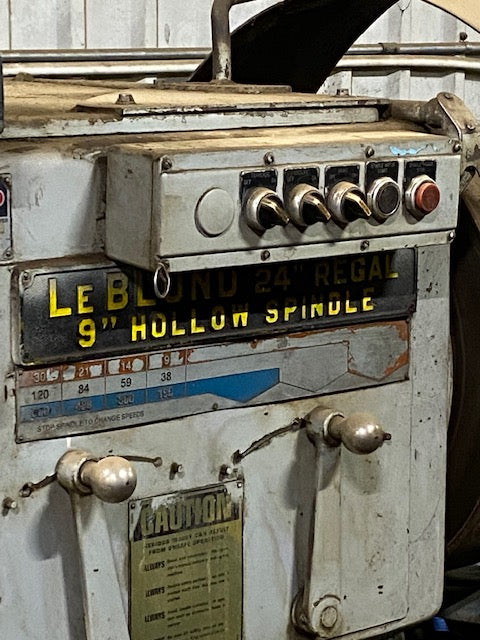

24″ x 72″ LeBlond Regal Lathe, 1979 – Equipped With Digital Readout
$11,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed & Carriage Ways 26”
Swing Over Cross Slide 18 ¼”
Distance Between Centers 72”
Size of Hole Thru Spindle 9”
Size of Tool Holder 1 1/16” x 1 ½”
Spindle Speeds 12
Spindle Speed Range 16 – 1200 RPM
Carriage Length on Bed 26”
Bridge Width 9”
Cross Slide Travel 14 ¼”
Compound Rest Travel 4 ¾”
Feed Changes 48
Feed Range .0036 IPR – .205 IPR
Thread Changes 48
Threads 2 – 112 TPI
Leadscrew Diameter 1 7/18
Tailstock Spindle Diameter 3 1/8”
Center Morse Taper 5
Motor 30 HP. 1800 RPM
Weight 8,250 lbs.
