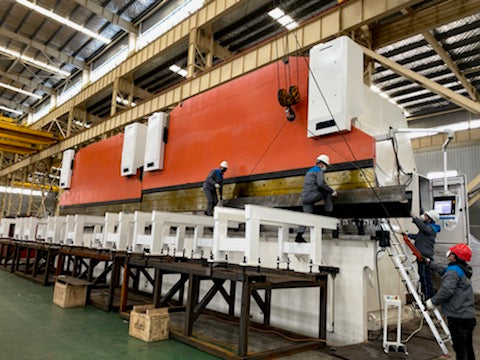

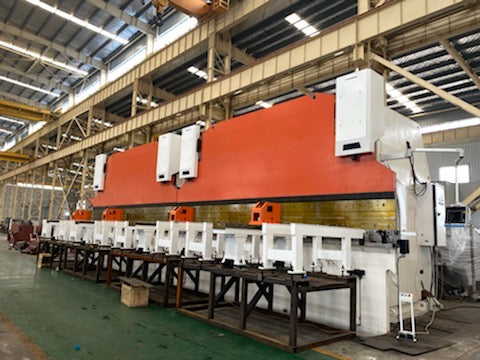

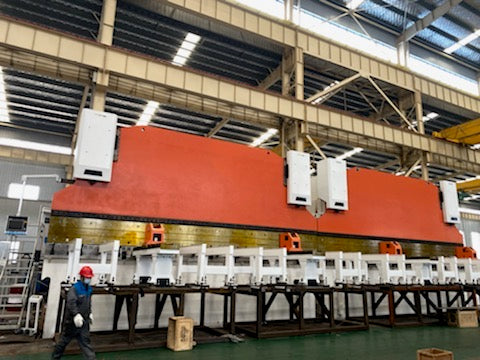

2200 Ton x 58′ AccurlUSA GeniusGiant CNC Press Brake, 2019, NEW- Tooled, Warranty
$1,500,000.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity:
Electrics: AC220V~480V,3ph,50/60HZ
Tonnage: 2200
Length: 58′
Weight (kgs): 498,040
Overall DImensions: 360″ X 164″ X 258″
Height Under Floor: 65″
Oil Tank Capacity: 2500
Motor Power(KW): 2 x 45

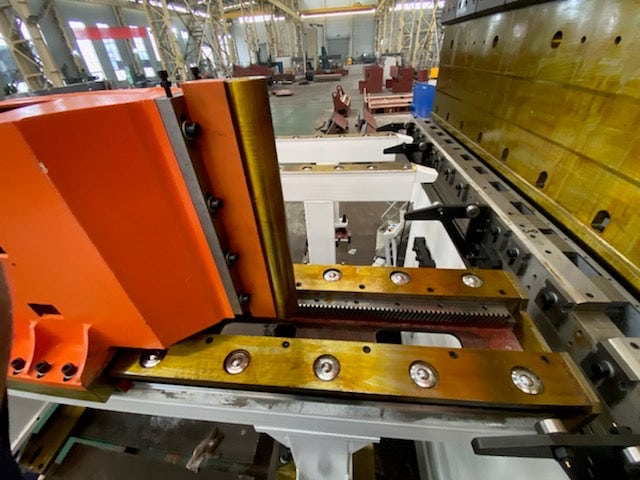

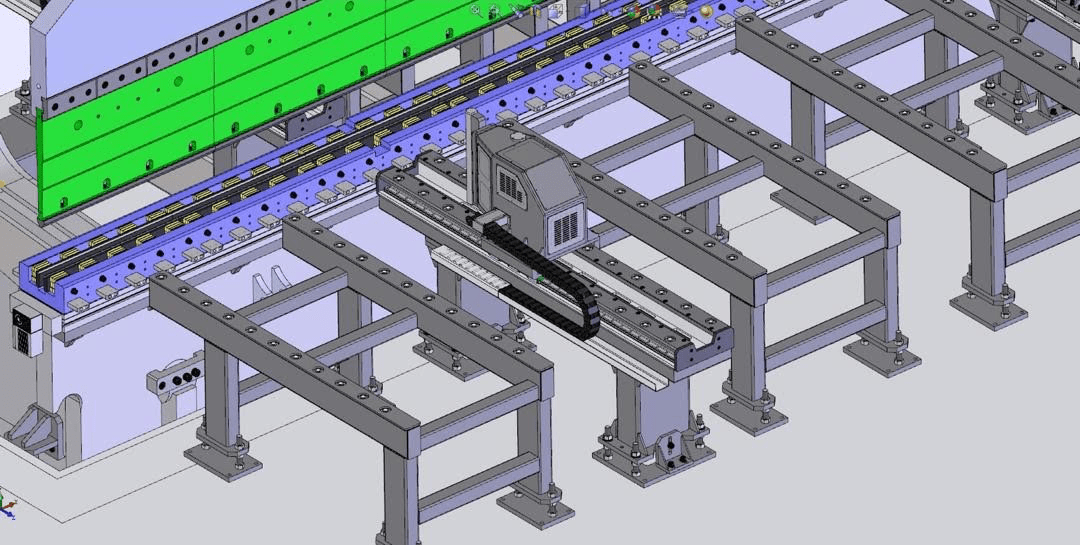

Backguage:
Max Speed X-axis (in/sec): 350
Max Travel X1- Axis (in): 2100
Max Travel X2- Axis (in) 2100
General:
Bending Force (Ton): 2 X 1100T
Bending Length (in): 2 X 29.5″
Distance Between Columns (in): 295″
Beam Stroke (in): 17.7″
Daylight (in): 49.2″
Throat Depth (in): 65″
Table Width (in): 15.7″
Working Table Height (in): 42″
EQUIPPED WITH:
Delem DA66 Touch control system (2D/3D)
DSP Laser Safety Protection

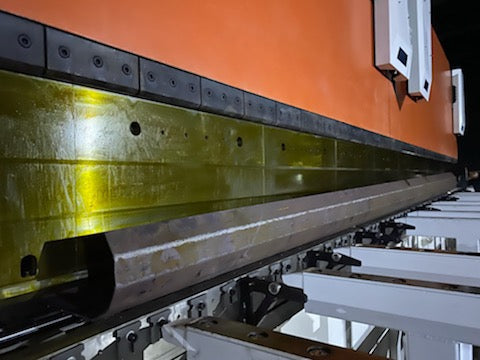

Top & Bottom Tooling with quick clamp system
Hoerbiger Hydraulics
A/C Unit for Electrical Cabinet
Siemens motor & Electrical, etc.
This system is also equipped with a Y1/Y2 cylinder ram configuration to ensure long lasting repeatability and tolerances for years to come. (+/- 0.0003″ Ram Repeat),
Installation
Training
3 Year Warranty
!!!BRAND NEW MACHINE WITH 3YR WARRANTY!!!
