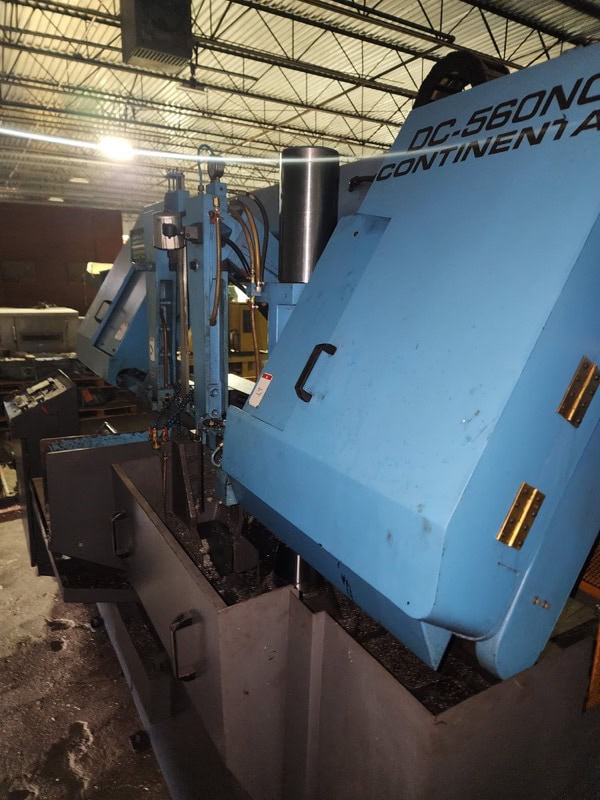

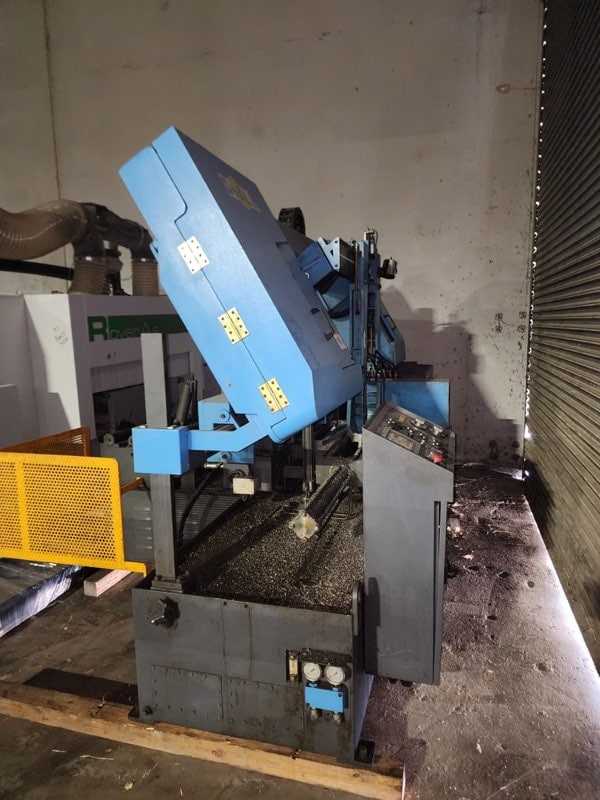

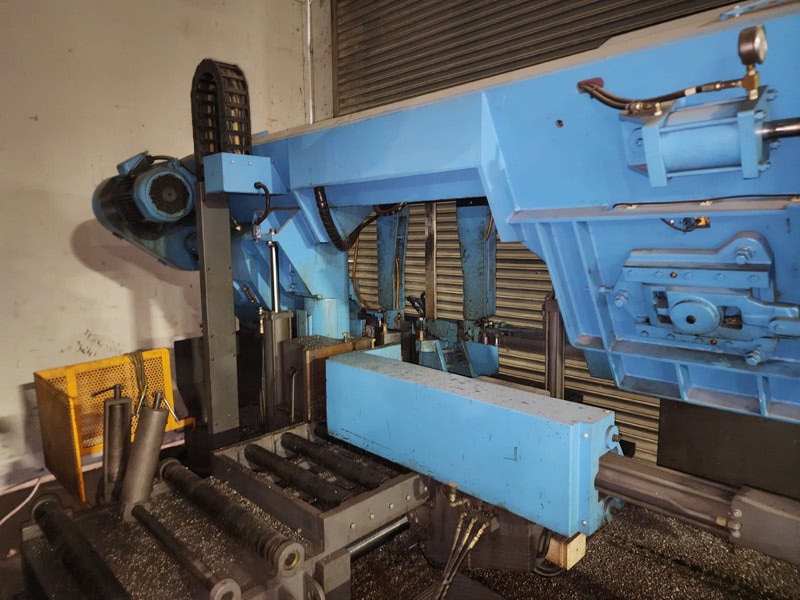

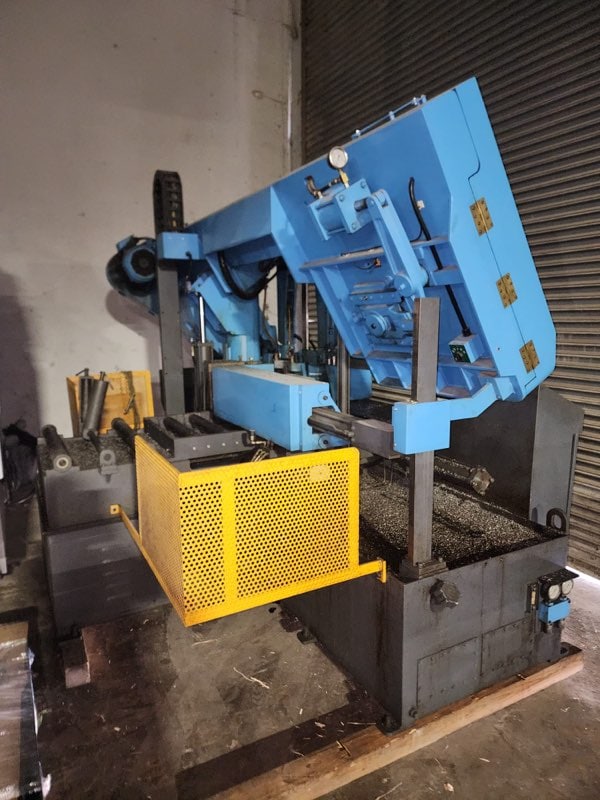

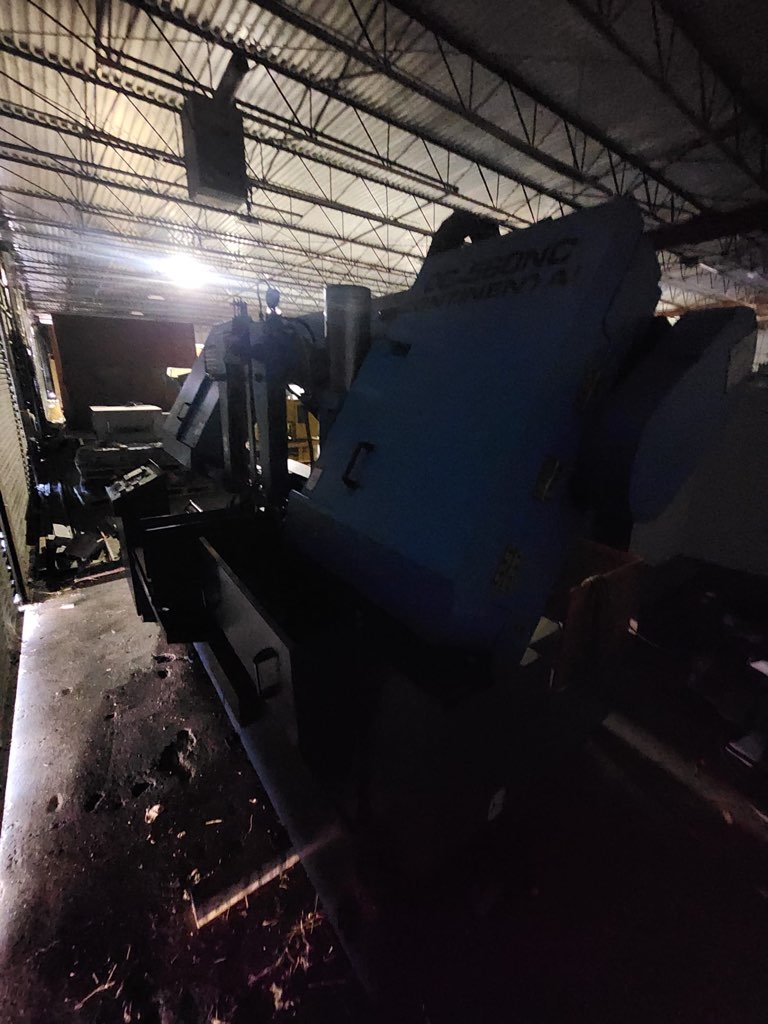

22” x 24” DoAll DC-560 NC Automatic Horizontal Band Saw, 2021 – Hydraulic Feed
$47,775.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Manufacturer: DoAll
Model: DC-560 NC
Type: Automatic Horizontal Band Saw – NC Control
Cutting Capacity (Max)
Round: ~22″ Diameter
Rectangular: ~24″ x 22″ (approx)
Blade: ~1.5″ Wide Industrial Band Saw Blade
Cutting Angle: 0°–60°
Machine Features
Control: NC (Programmable) for Automatic Cycles
Feed: Hydraulic Automatic Feed with Adjustable Speed
Vise: Hydraulic Clamp / Vise
Material Support: Roller Bed / Adjustable Supports
Blade Tension Gauge: Yes
Blade Guides: Carbide Guides
Coolant: Flood Coolant System
Mechanical / Electrical

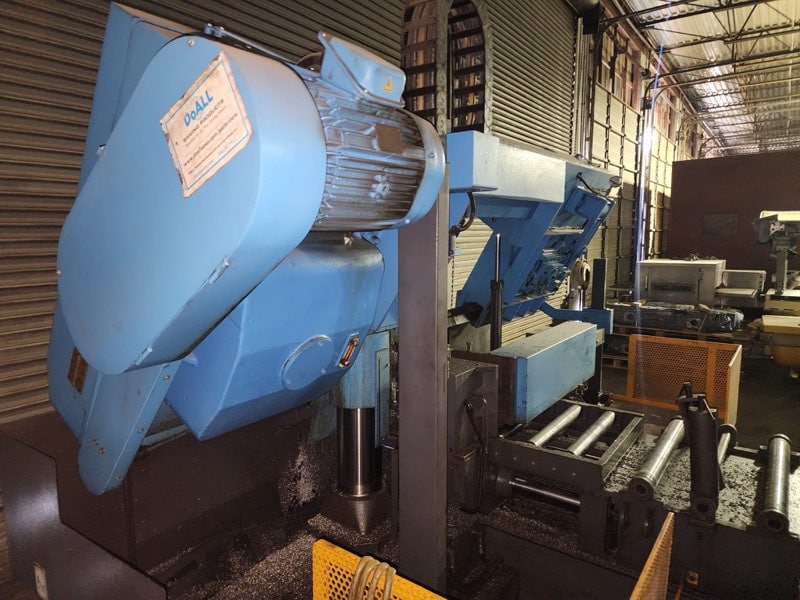

Drive Type: AC Motor with Gearbox
Voltage: Typically 230 3-Phase
Hydraulic Pump: Variable Speed
Blade Speed: Variable RPM (per material)
Physical & Utility
Overall Length: ~12–14 ft (machine + bed)
Weight: ~8,000–10,000 lbs
Floor Space: Approximate footprint 8’ x 12’
