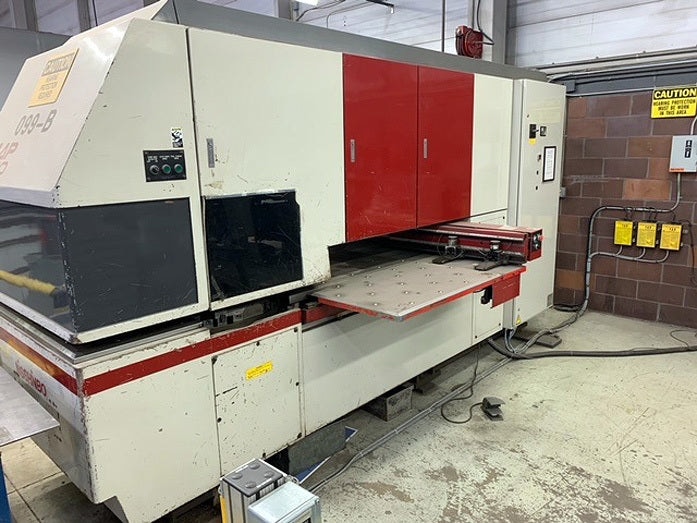

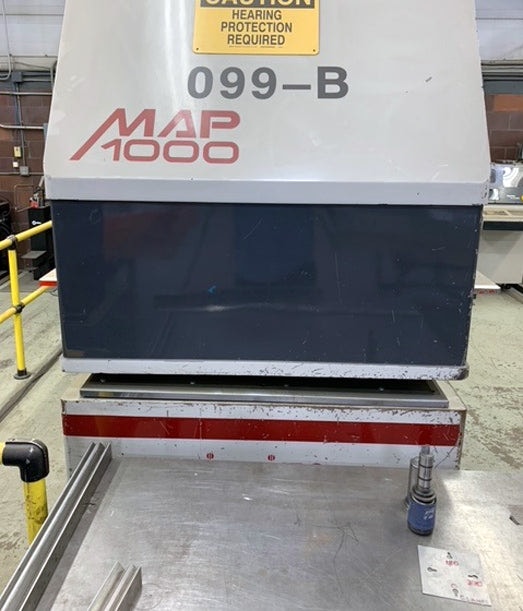

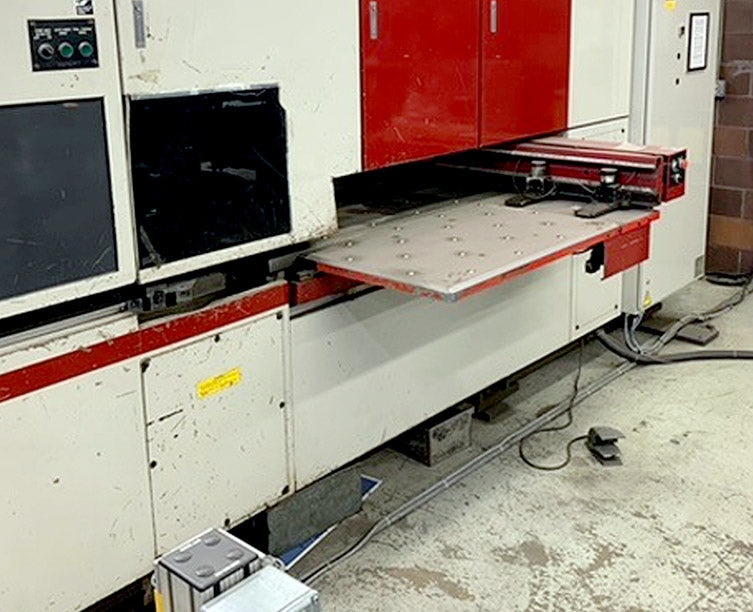

22 Ton Nisshinbo MAP-1000 Turret Punch, 1995- 39″ x 99″
$7,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Max Travel/Sheet Size (with Repositioning): 39.37 x 99.2”
Punch Tonnage: 22 Tons
Max Punching Capacity (mild Steel): 0.25″
Maximum Hits Per Minute: 180
Nibbling Rate: 280 SPM
Max Sheet Weight: 175 LBS
Max Positioning Speed: 2,820 IPM
Turret Speed (bi-directional): 30 RPM
Turret: 22 Stations
Auto Index: 2 Stations
Station Sizes: 1/2” x 8 Stations,
1.5” x 8 Stations,
2” x 2 Stations,
2.5” x 2 Stations,
Auto-index: 3.5” x 2 Stations
Air Requirement: 80 PSI
Main Motor Horsepower: 8 KVA
Approx Dimensions (l x w x h): 153″ x 93”’ x 87″
Approx Weight: 26,000 lbs
EQUIPPED WITH:

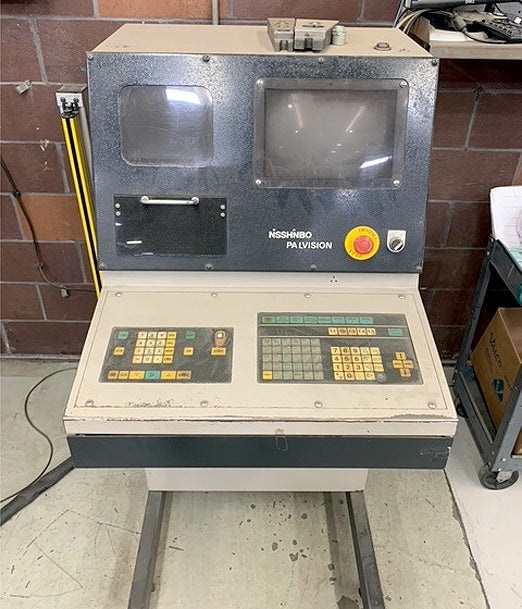

Nisshinbo Palvision CNC Control
22 Position Bi-Directional Turret Stations
2 Auto Index Stations
Auto Repositioning
Under power; Video available.
