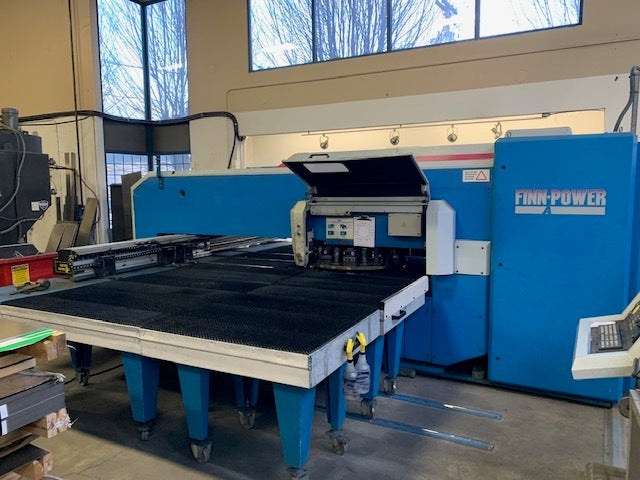

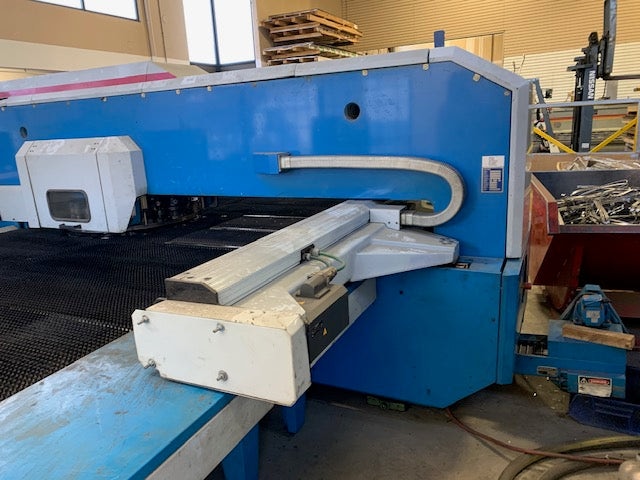

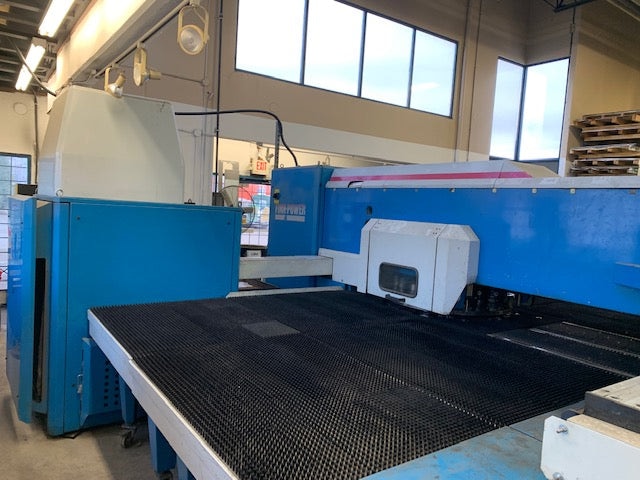

22 Ton Finn Power A5-20SB CNC Turret Punch, 1997 – Thick Turret
$16,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Finn-Power A5-20 SB 22-Ton CNC Turret Punch
89mm Max Punch Diameter
8mm Max Material Thickness
1270mmX2530mm Max Sheet Size
200kg Max Sheet Weight
10-Station Tool Index
40 RPM Max Tool Rotation
21-Turret Station
30 RPM Turret Rotation
2084 mm X-Axis
1317mm Y-Axis
88 m/min X-Axis Rapid Traverse
60 m/min Y-Axis Rapid Traverse
49″x78″ Table
Siemens Sinumerik 840D CNC Control
3X 400V
3PH
Hennig Model 100128 Chip Conveyor
Spare Motors
