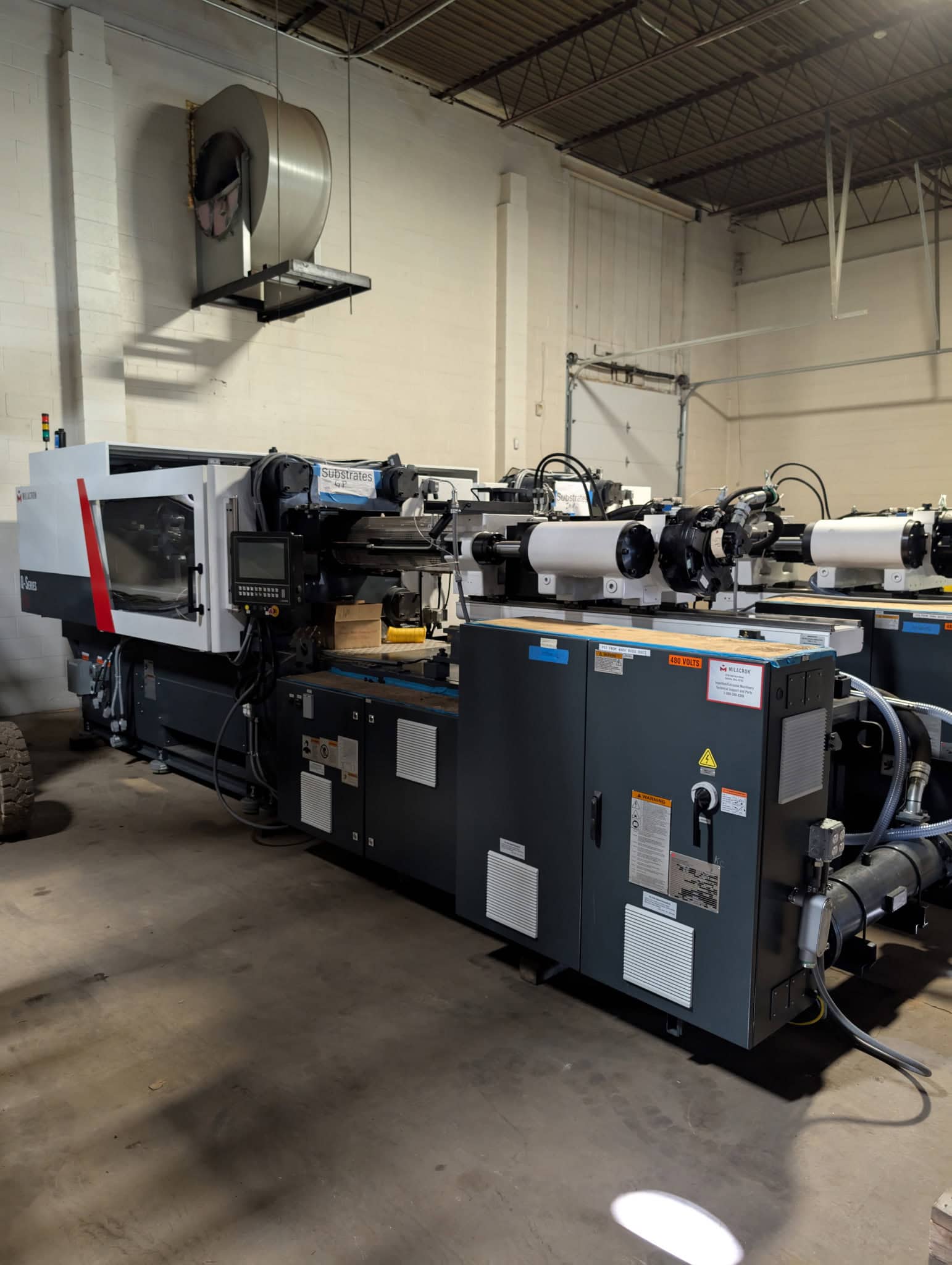

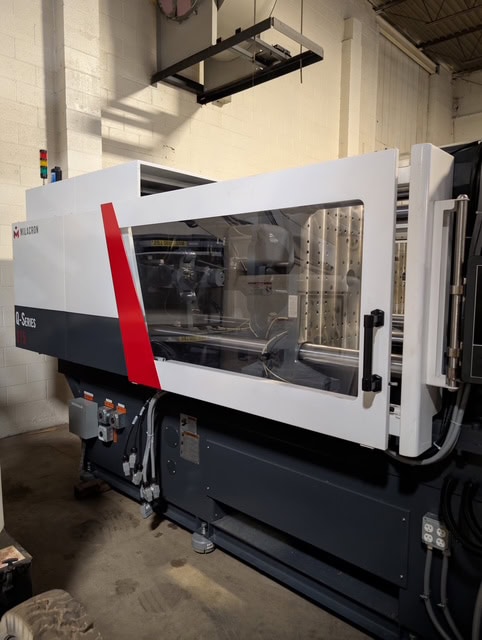

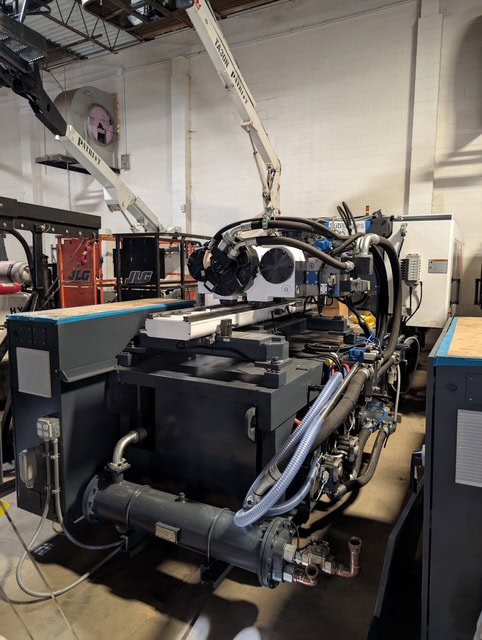

315 Ton Servo Hydraulic Milacron Q Series 3 Injection Molding Machine, 2024- Hydraulic Husky Altanium Neo5 Controller, Plastrac Blender
$5,750.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Manufacturer Milacron
Model Q Series 3
Year 2024
Type Servo-Hydraulic Injection Molding Machine
Clamping Force 315 U.S. Tons
Injection Unit Q 3 Platform – Servo Hydraulic Drive
Shot Size (PS) 17–36 oz
Screw Diameter 50–70 mm
Injection Pressure Up to 30,000 psi (2,068 bar)
Injection Speed 200–350 mm/sec
Platen Size Approx. 33 × 33 in (838 × 838 mm)
Tie Bar Spacing 20 × 20 in (508 × 508 mm)
Daylight Opening 18–44 in (adjustable)
Mold Thickness (min–max) 8 – 36 in
Ejector Stroke 5 – 7 in
Ejector Force ~ 8 tons
Clamp System 5-point toggle mechanism with servo pump control
Drive System Milacron Servo Hydraulic Energy-Efficient System
Controller Mosaic or Momentum Series Touchscreen Control
Pump System Variable speed servo pump for energy savings (30–60% vs standard hydraulic)
Electrical 480 V / 3-phase / 60 Hz

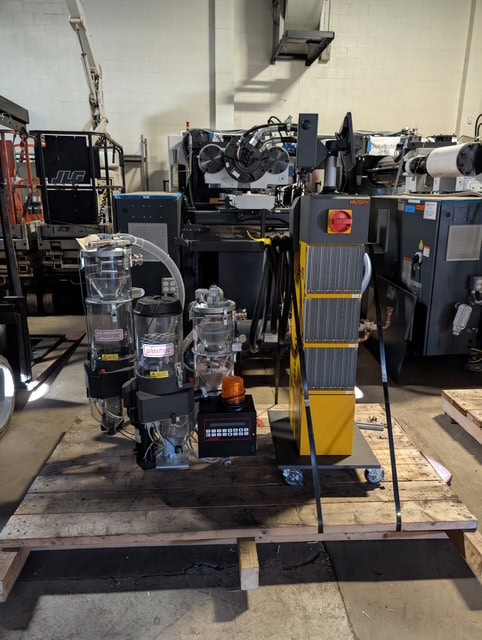

Husky 36 Zone Altanium Neo5 Controler
Plastrac Auto-Disc Blender – 3 Ingredient Model; 2 Feeders
