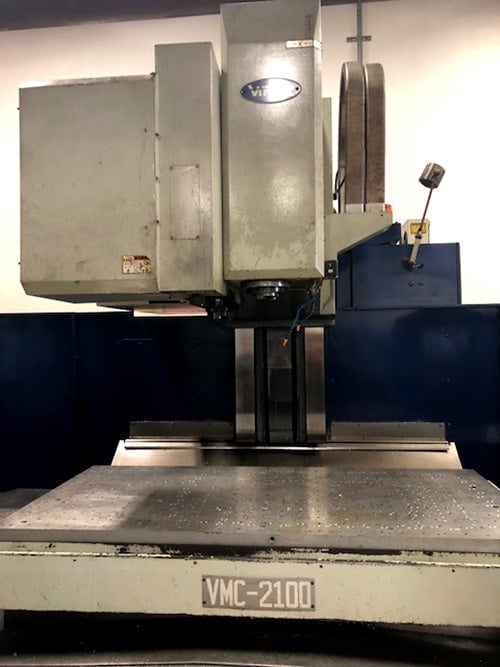

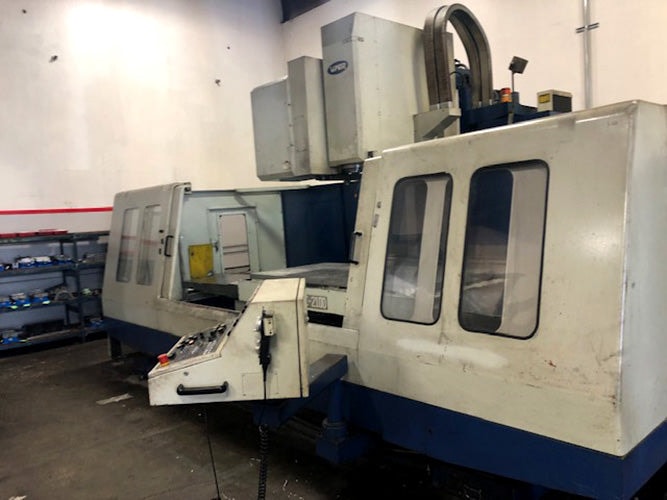

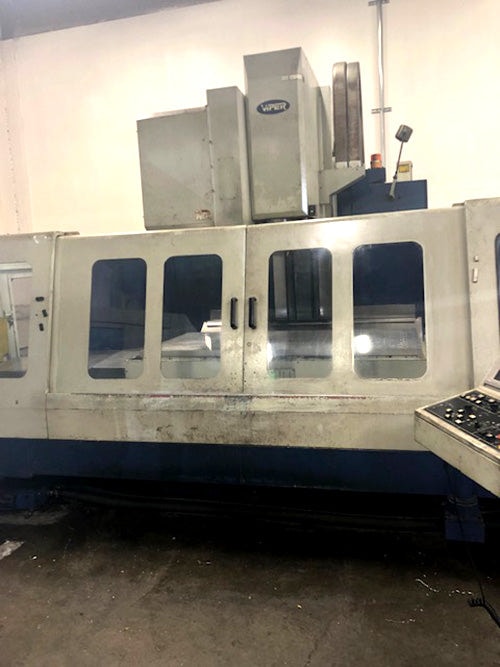

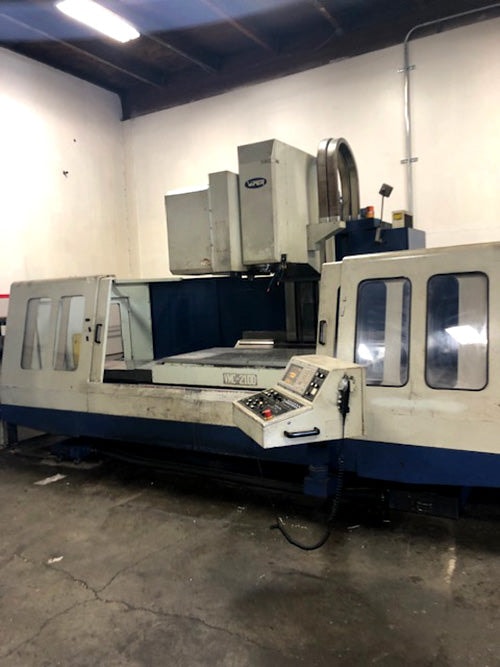

2009 Mighty Viper VMC 2100
$28,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
MIGHTY VIPER 2100 Travels:
X-Axis: 81″
Y-Axis: 40″
Z-Axis: 32.2″
Spindle Nose to Table (Min.- Max.): 4.9″ – 36.5″
Spindle Center to Column: 41″

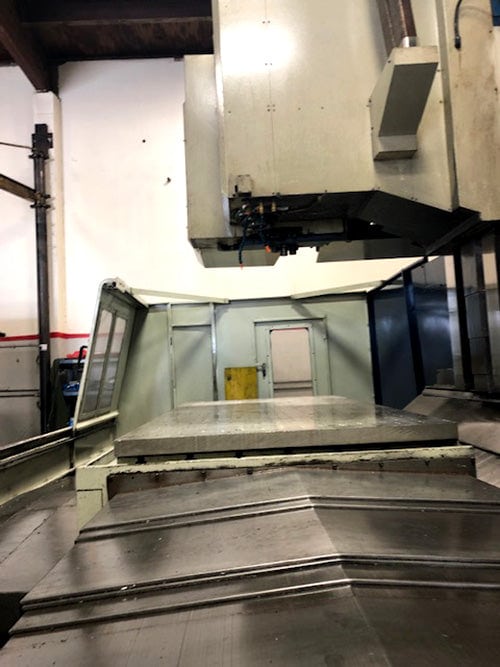

Table:
Length: 83″
Width: 41.3″
Max Weight on Table: 6600 lbs
Spindle:
Taper Size: 50
Speed Range: 60 – 6000 RPM
Spindle Power: 25 HP
Feed rates:
Rapid X,Y & Z: 590 inch/P.M
Cutting Feedrate: .04″ – 276″ inch/ P.M
Automatic Tool Changer:
50 Taper
Capacity: 32
Max Tool Weight: 33 lbs
Max Tool Length: 12″
Max Tool Dia.: 5″
General:
Air Required: 100 psi, 4 scfm

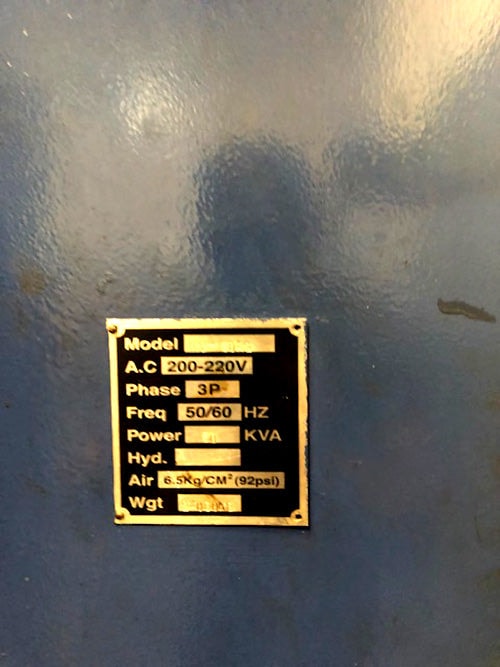

Power: 205-235v / 66FLA / 3-Phase, 40 Kva
Overall Dimensions: 220″ x 182″ x 110″ High
Weight: 53,000 lbs
Equipped with:
Mitsubishi 530 CNC Control

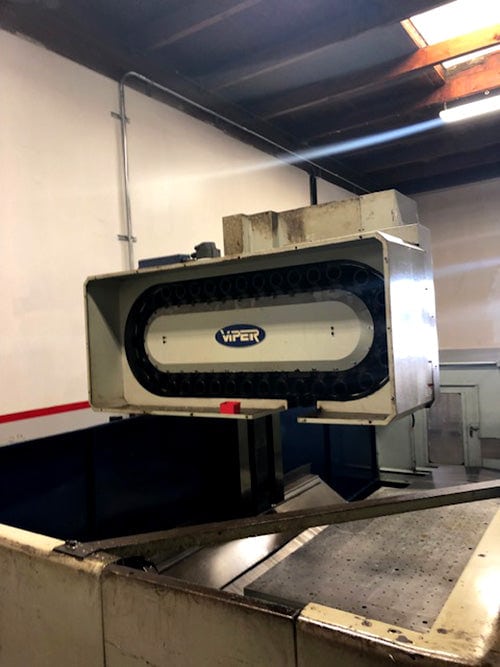

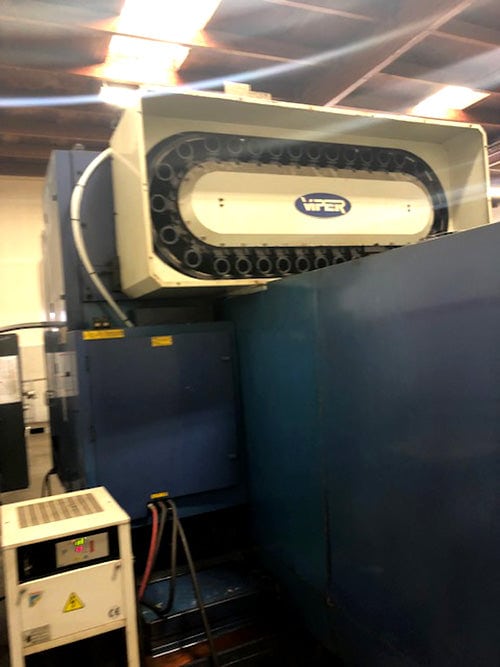

32 Station Side Mount ATC
High precision 6,000 RPM Spindle
CAT 50 Taper
Powerful 25hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Custom Micro B (User Definable)
Box Way Construction
Portable manual pulse generator
Flood coolant with large separate coolant tank
Base Flush Chip Disposal
