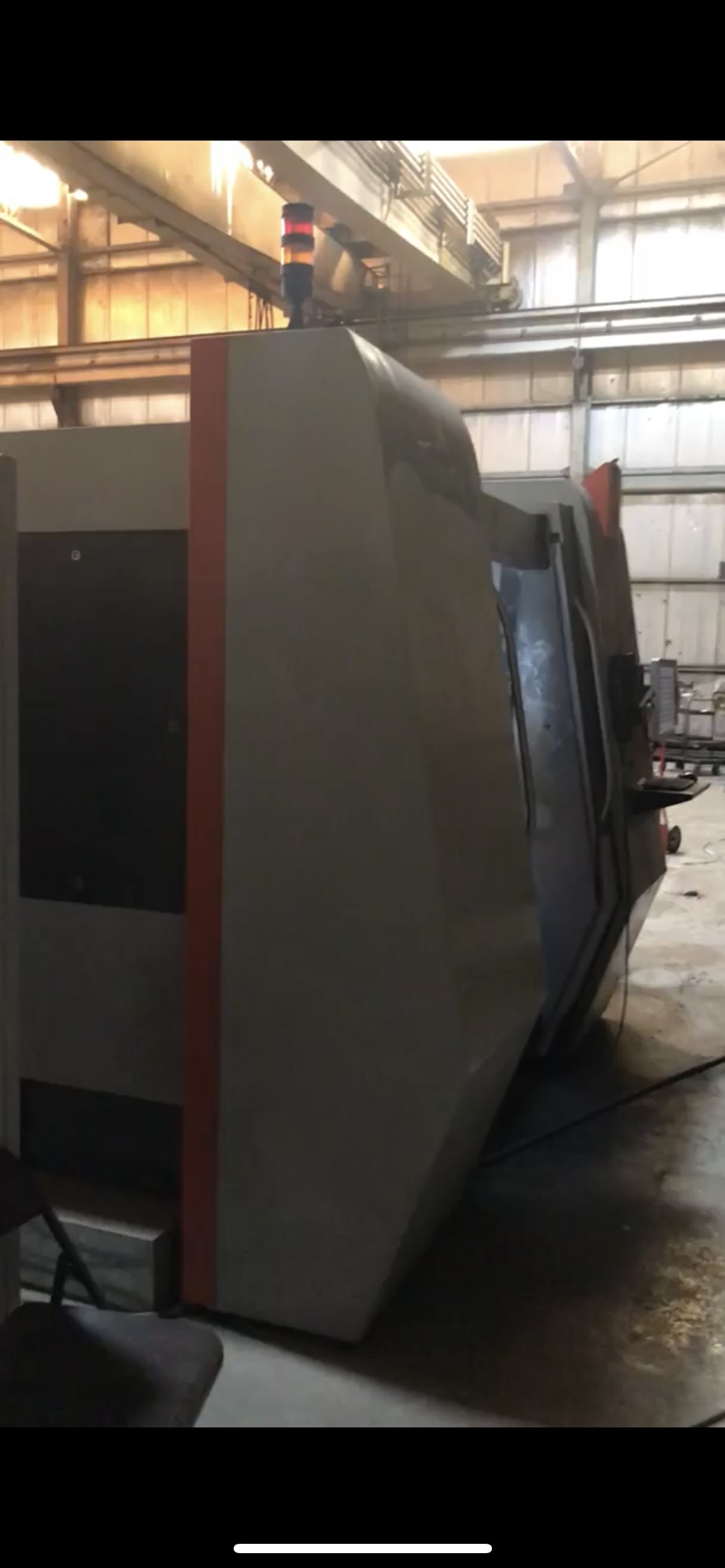

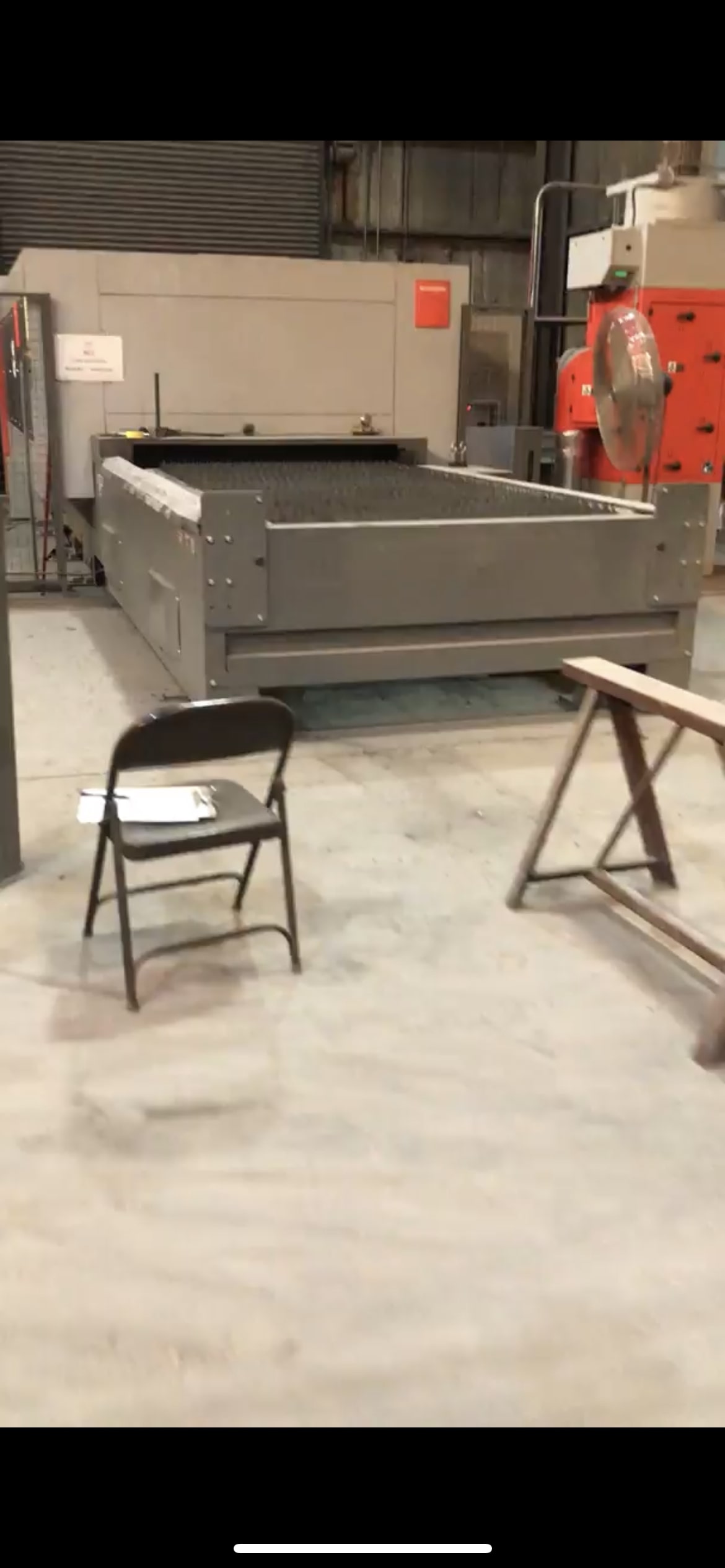

2000 Watt Bystronic BySmart Fiber Laser, 2016-5’x10′ table
$149,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Nominal Sheet Size (X): 120 in
Nominal Sheet Size (Y): 60 in
Cutting Area (X): 124 in
Cutting Area (Y): 63 in
Cutting Area (Z): 2.5 in
Maximum Position Speed Parallel Axis X/Y: 3937in/min
Maximum Positioning Speed Simultaneous: 5511 in/min
Repeatability (Positioning Spread) Ps(VDI/DGQ 3441): 0.002in
Positioning Accuracy Pa (VDI/DGQ 3441): 0.004 in
Edge Detection Accuracy: 0.02 in
Maximum Workpiece Weight: 1650 Lbs.
Machine Weight (without Exhaust, Chiller): 28700 Lbs.
Laser Source: Fiber 2000
Power: 2000W
Range of Adjustment: 200-2000W
Wavelength: Fiber
Steel (Max. Cutting Sheet Thickness): 0.5 in
Stainless Steel (Max. Cutting Sheet Thickness): 0.25in
Aluminum (Max. Cutting Sheet Thickness): 0.31 in
Copper (max. Sheet Thickness): 0.125 in
Brass (max. sheet thickness): 0.16in
Total Electric Consumption of System (with Exhaust, Chiller): 20.3kW
Construction Length, ca.[L]: 430 in
Construction Width, ca. [W]: 245 in
Construction Height, ca. [H]: 125 in
