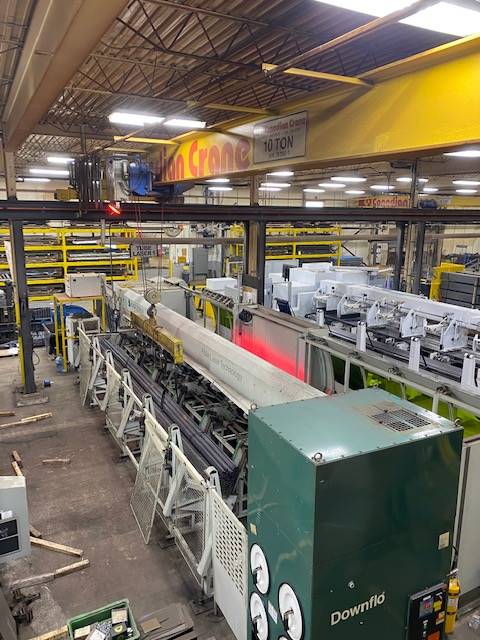

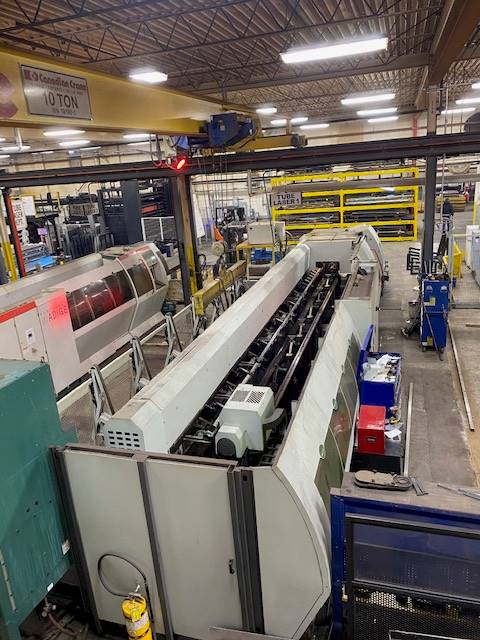

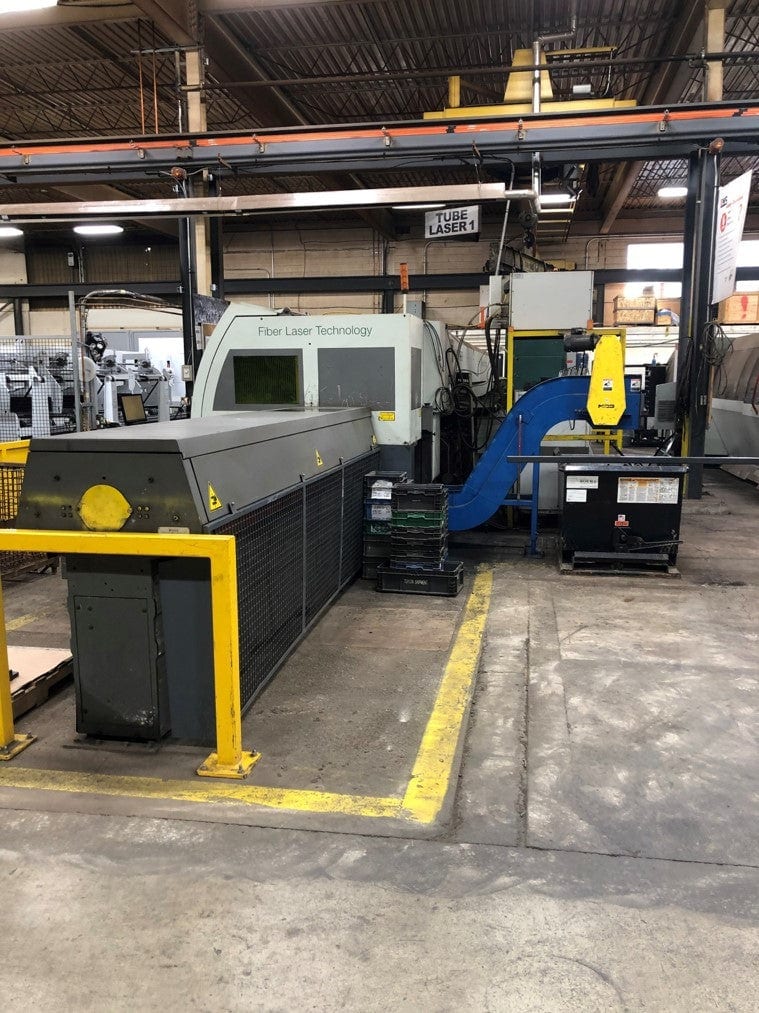

2000 Watt BLM LT722D Fiber Tube Laser, 2011- 5.5″ Round Capacity
$299,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Tube Section Size Capability:
Round:
Diamater: 0.472″ – 5.511″
Optional Manual Kit: 6.004″
Square:
Max. Inscribed Circle: 6.93″
Sides: .472″ – 4.724″
Rectangular and Flat Oval:
Max. Inscribed Circle: 6.94″
Dimensions: .394″ – 5.512″
Max. Difference Between Sides: 4.331″
Min. Difference Between Sides: .197″
Optional Manual Kit: 6.004″
Standard Materials:
Mild Steel, Stainless Steel, Aluminum, Copper and Brass
Tube Lengths:
Min. Bar Length for Automatic Loading: 10.499′
Min. Bar Length for Manual Loading (Excl. Spindle Clamped Material/Including)
With Scrap Reduction: 3.071″ / 3.66″
Without Scrap Reduction: 7.559″ / 8.150″
Max. Bar Length for Automatic Loading: 28′
Max. Bar Length for Manual Loading: 28′
Tube Discharge:
Max. Length for Small Part/ Scrap Conveyor: 11.811″
Max. Length for Unloader: Depends on Unloader Length and Options
Min. Length for Unloader: 5.906″
Tube Weight:
Max. 10.079 Lbs./Ft.

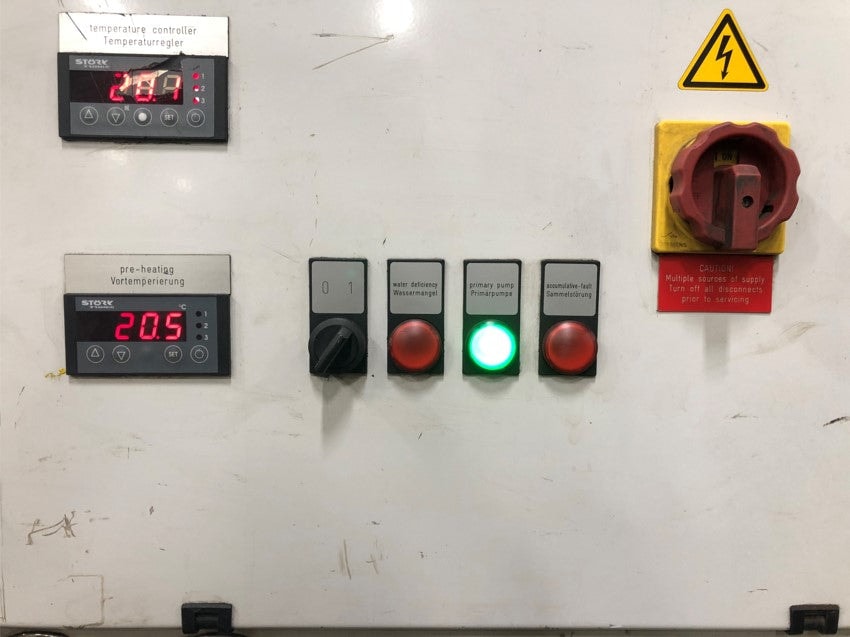

Chiller

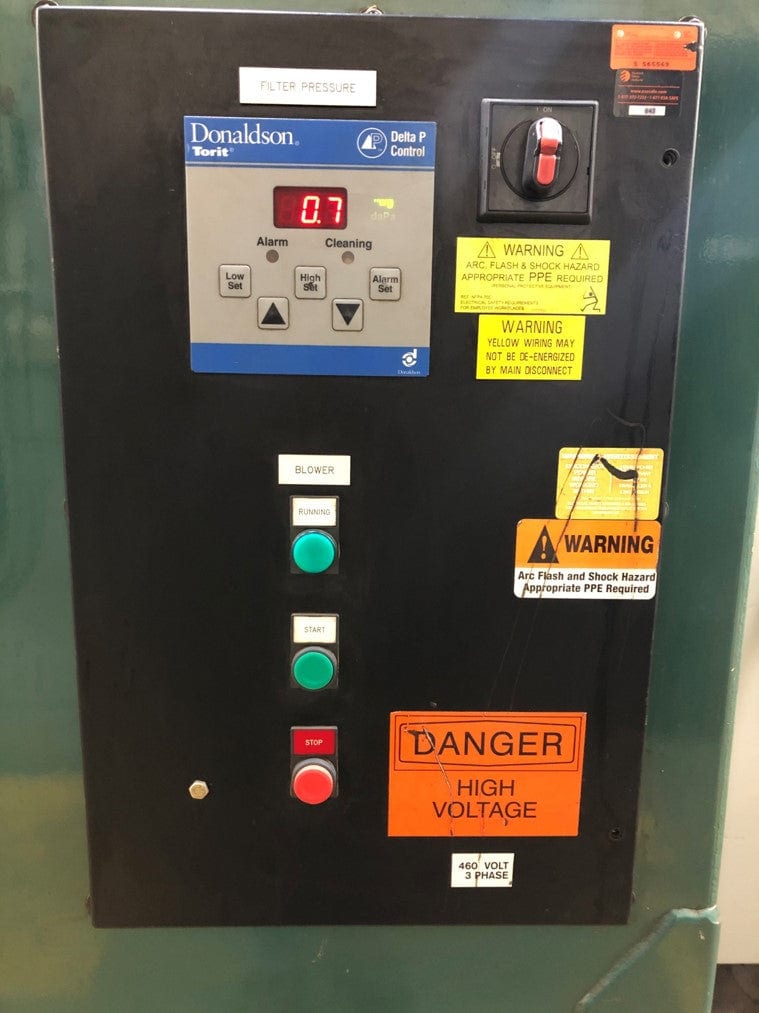

Dust Collector
High Speed Head
