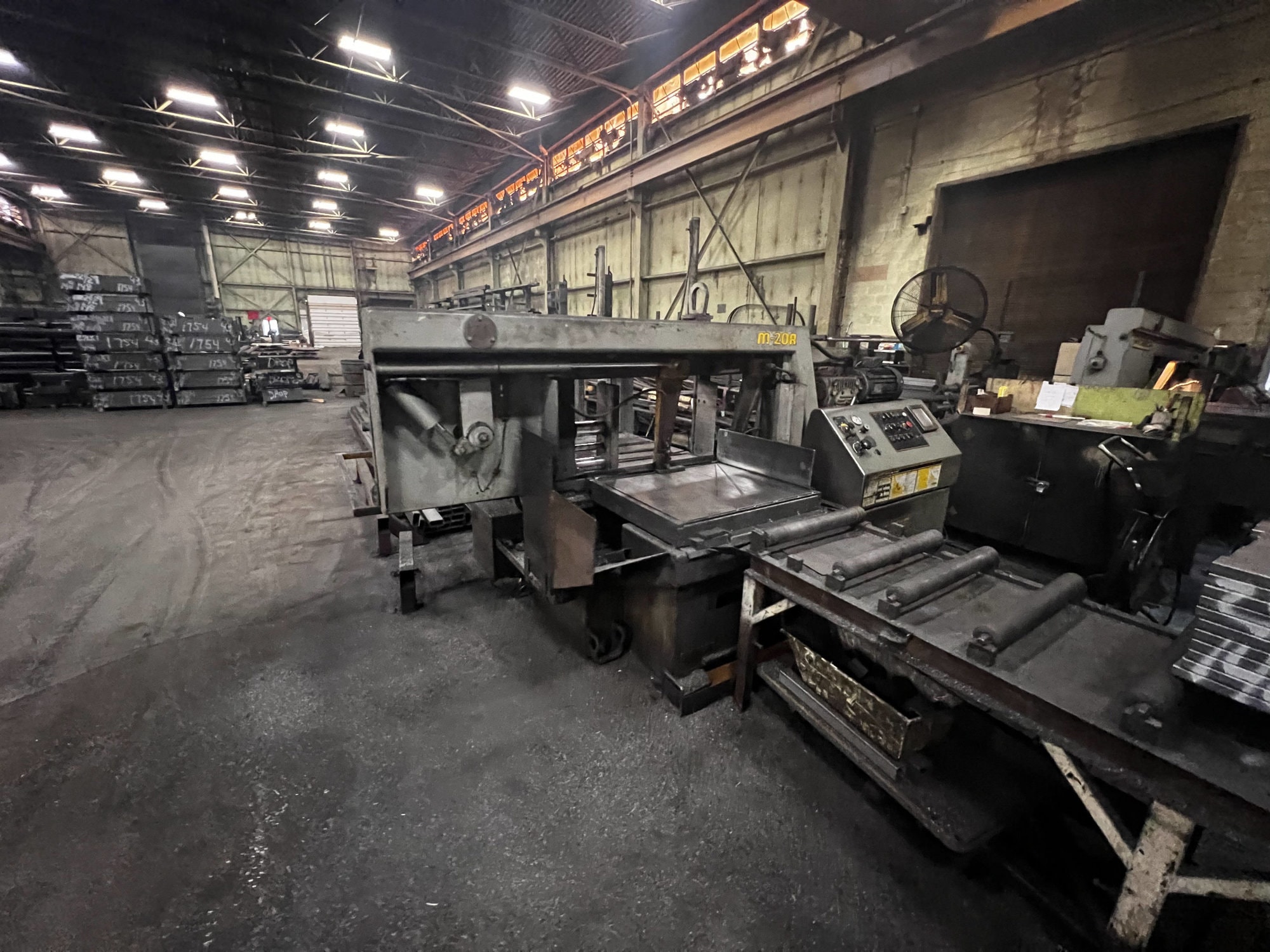

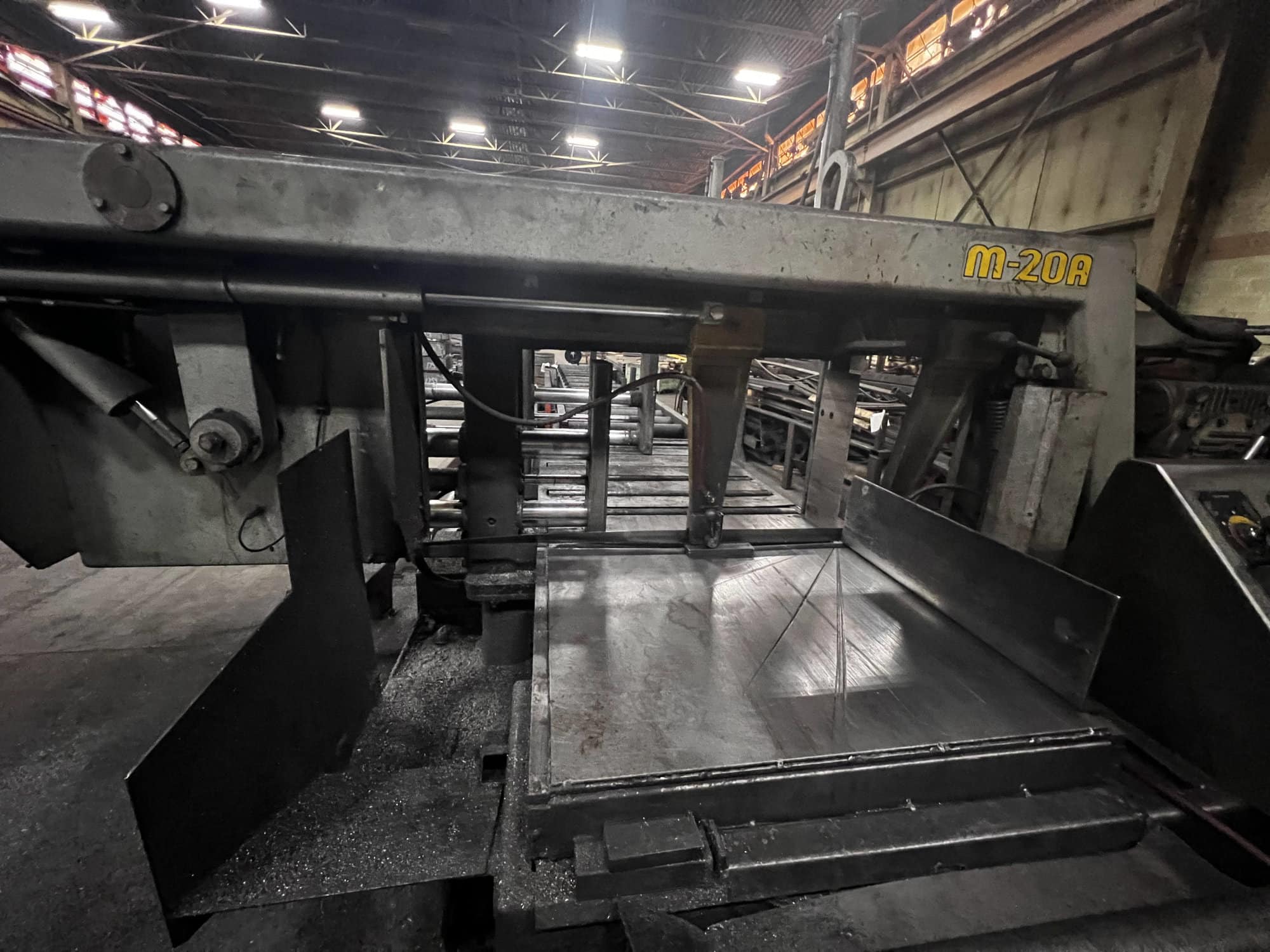

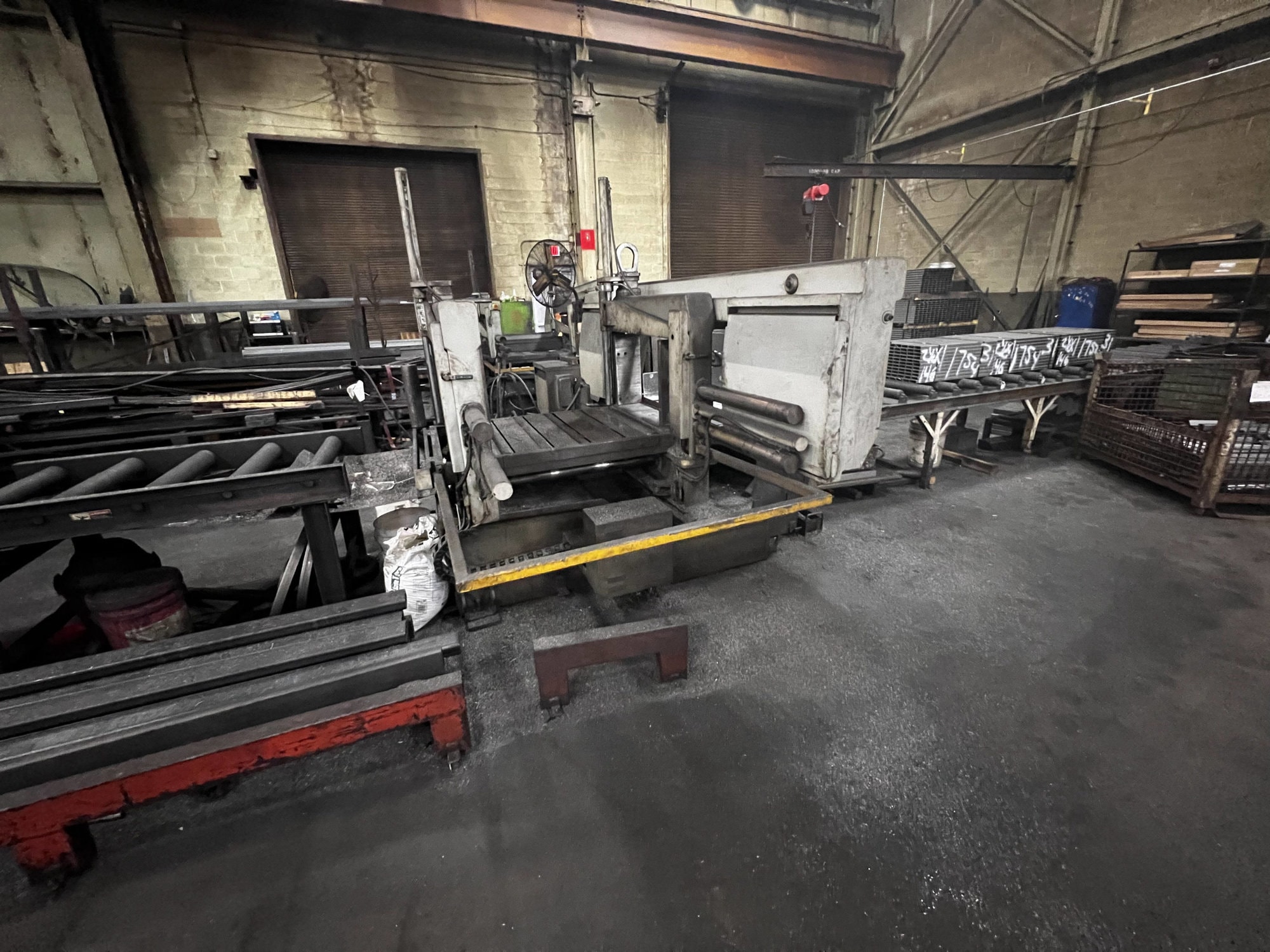

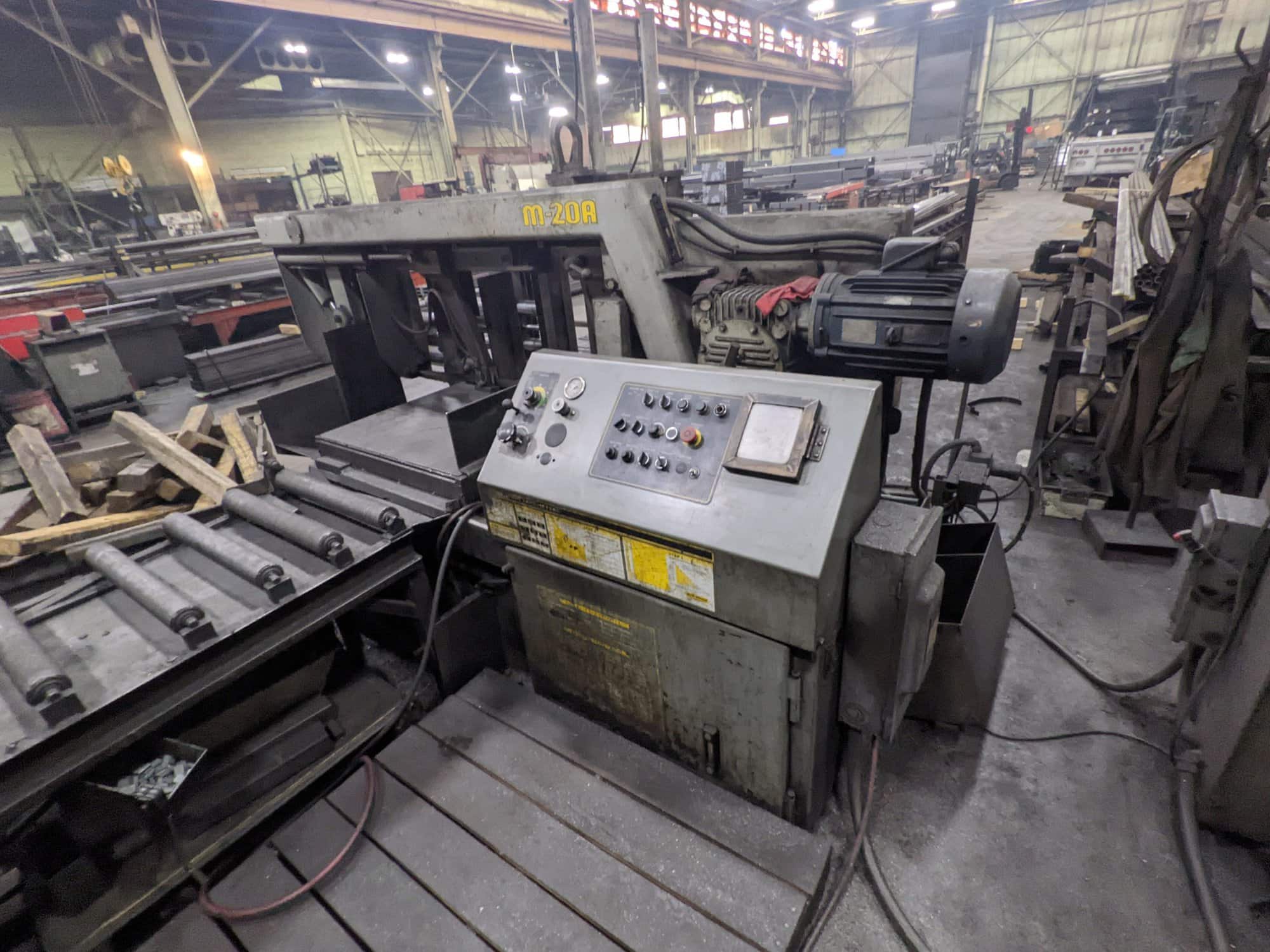

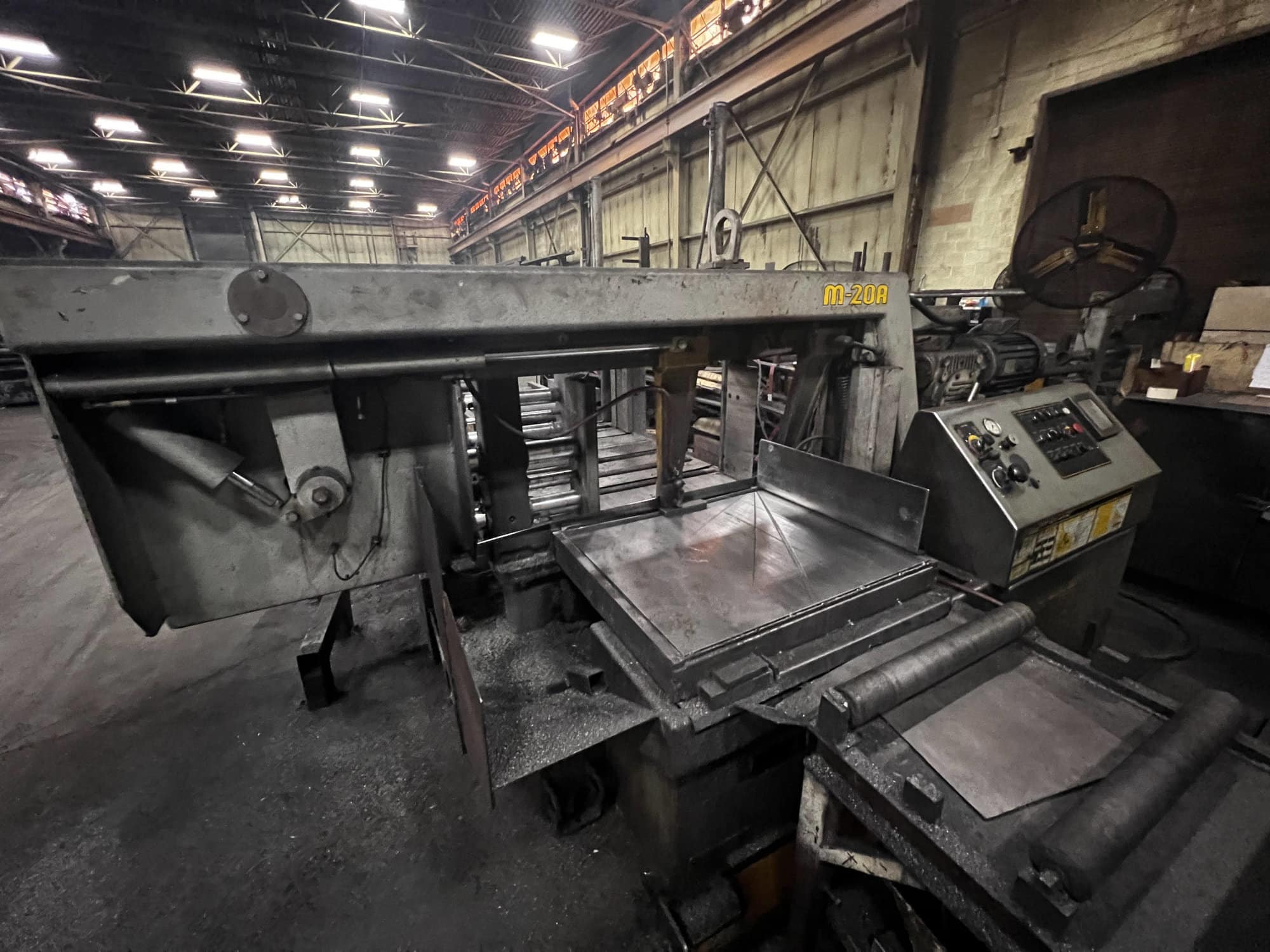

20″ x 30″ Hydmech M-20A Horizontal Band Saw, 2003 – Conveyor, Video Available
$21,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacity @ 90°: 20″ x 30″ Rectangle, 20″ Round
Capacity @ 45°: 20″ x 19″ Rectangle, 20″ Round
Capacity @ 30°: 20″ x 12″ Rectangle, 14″ Round
Blade Size: 1-1/2″ x 20’6″
Blade Speed: 50 – 350 SFM
Coolant Tank Capacity: 9 Gallons
Shuttle Stroke: 0 TO 33″ (220″ MAXIMUM)
Work Load: 8,000 Lbs.
Machine Weight: 7,800 lbs.
Machine Dimensions:
SAW- 120″ x 90″ x 60″. 8,000lbs.

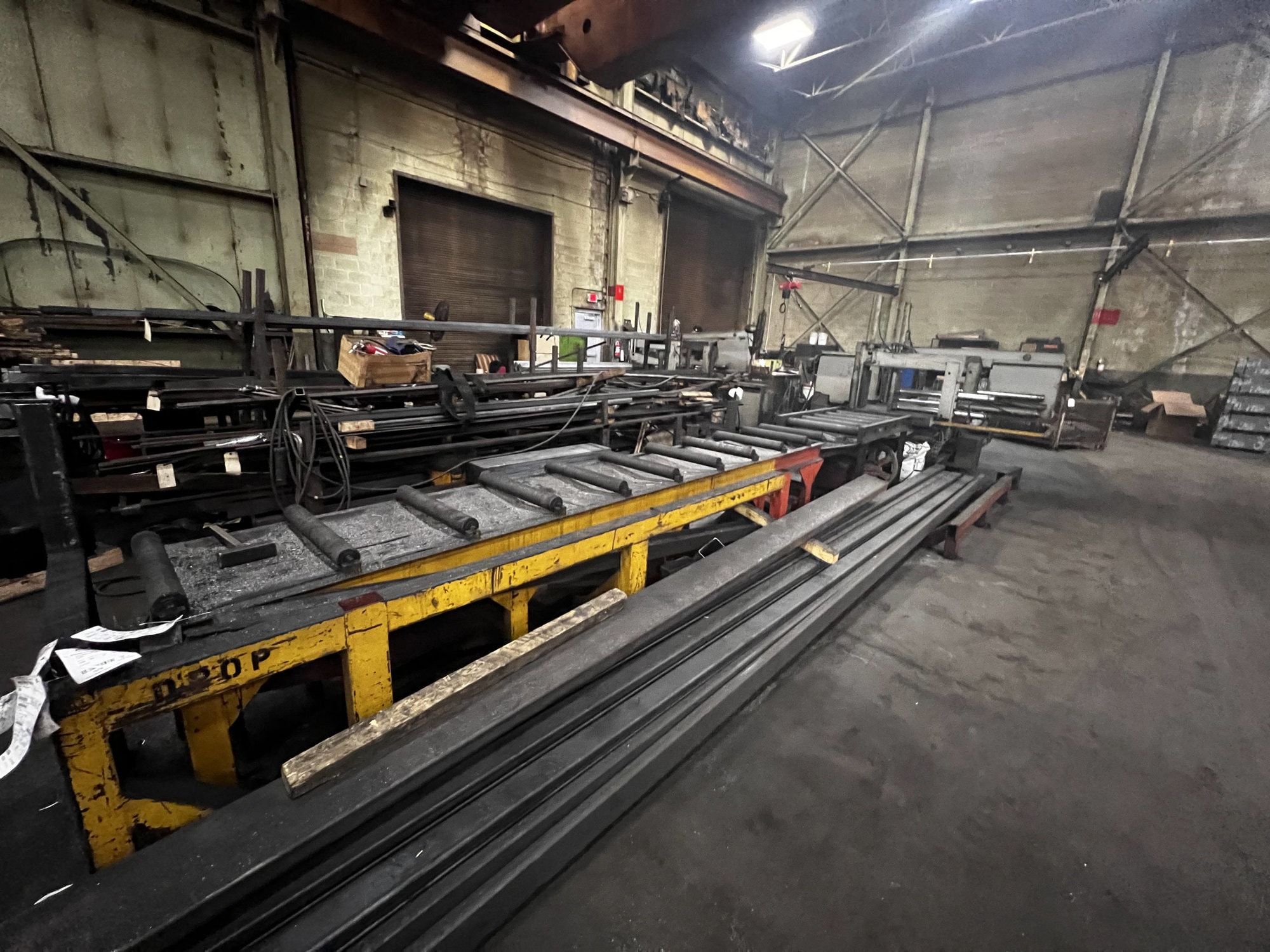

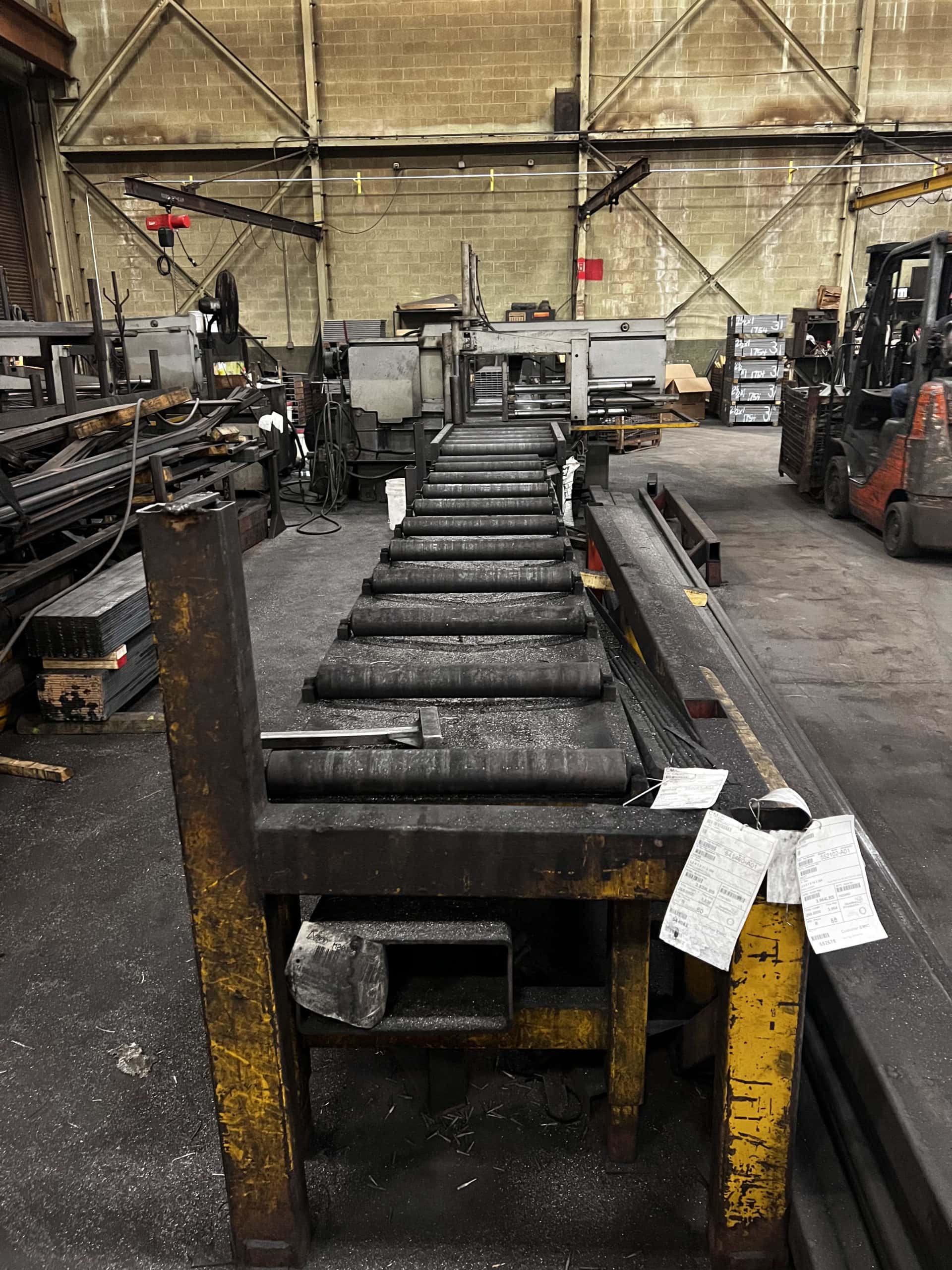

Infeed conveyor- 30″ x 360″ x 30″. 2,000lbs
Outfeed Conveyor- 30″ x 200″ x 30″, 1500lbs
Equipped With:
Conveyor
Mitering
