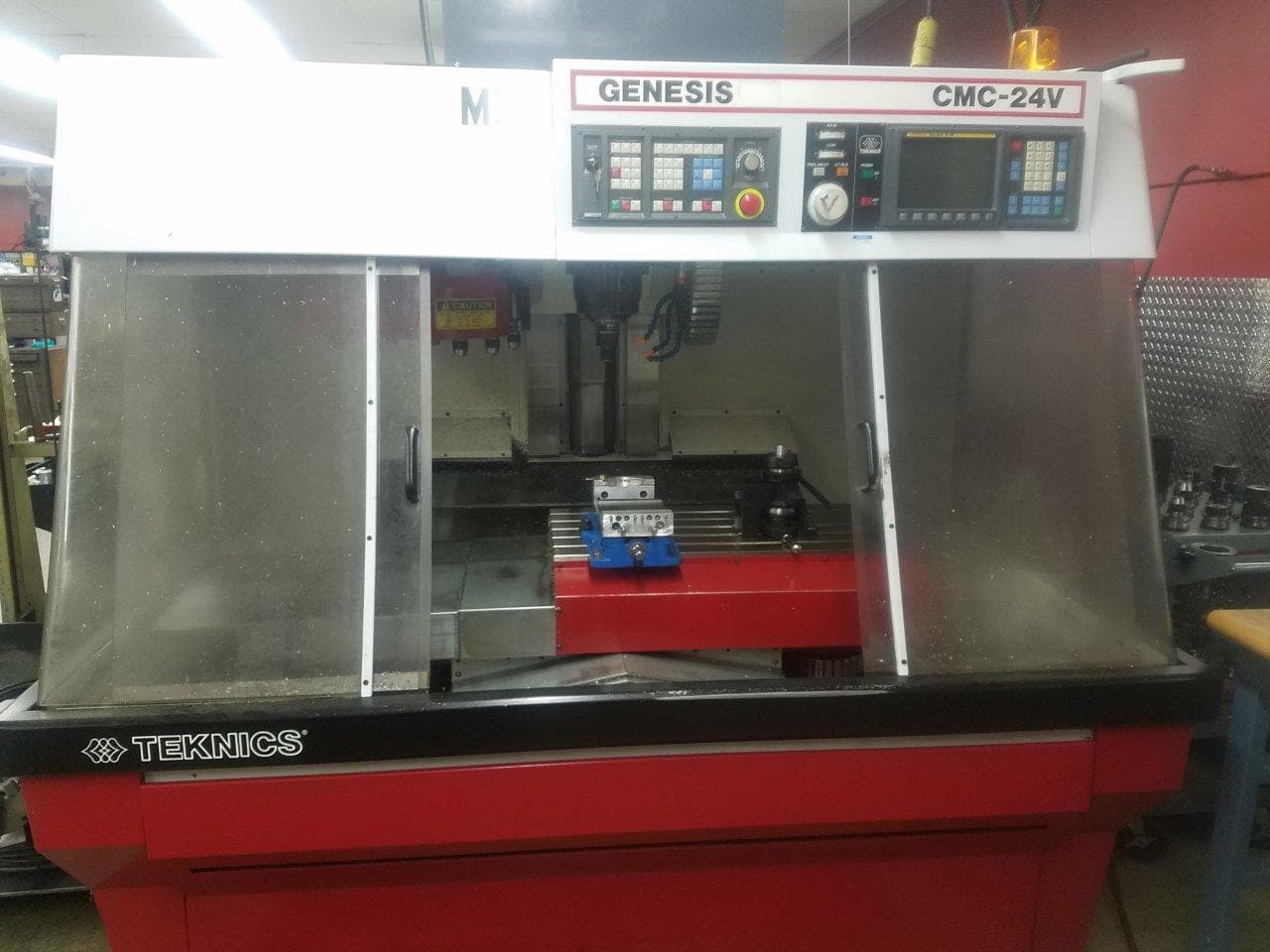

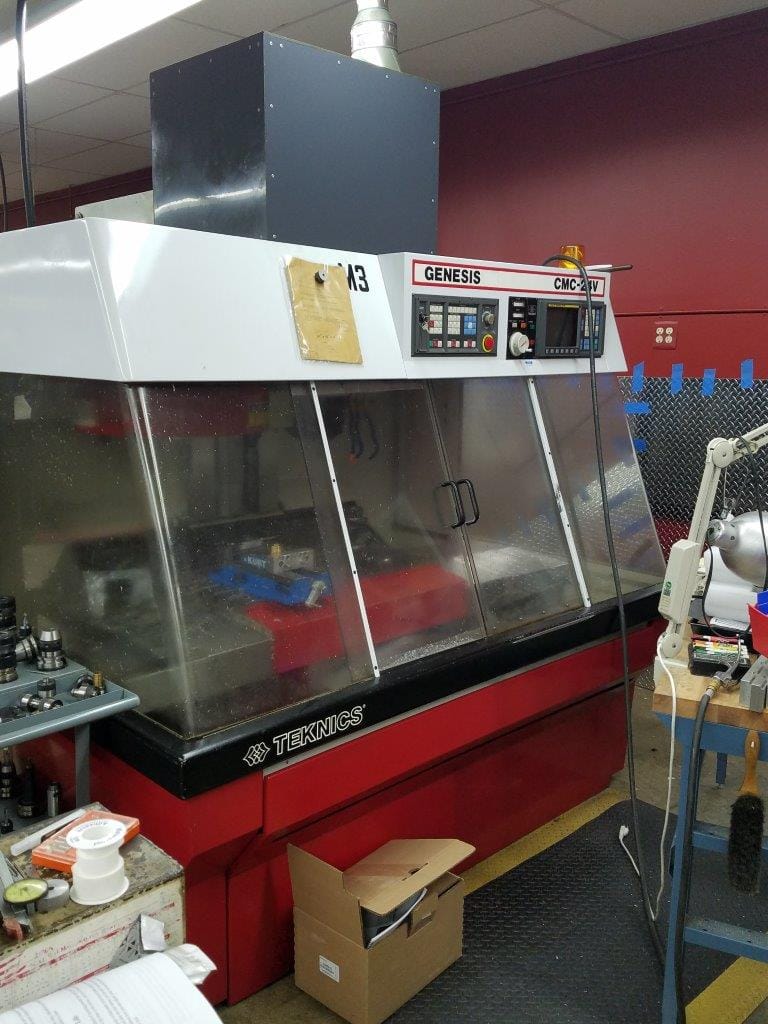

1991 Teknics Genesis CMC-24V
$6,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Travel
X – 24″
Y – 18″
Z – 18″
Spindle nose to Table Top – 4″-22″
Table – 34″ 18″
Floor to Table Surface – 32″
Max Table Load – 750 lbs
Spindle Motor – 10 HP
Spindle Taper – BT 40
Spindle Speed – 60-6000 RPM
Rapid on X and Y – 708 IPM
Rapid on Z – 600 IPM

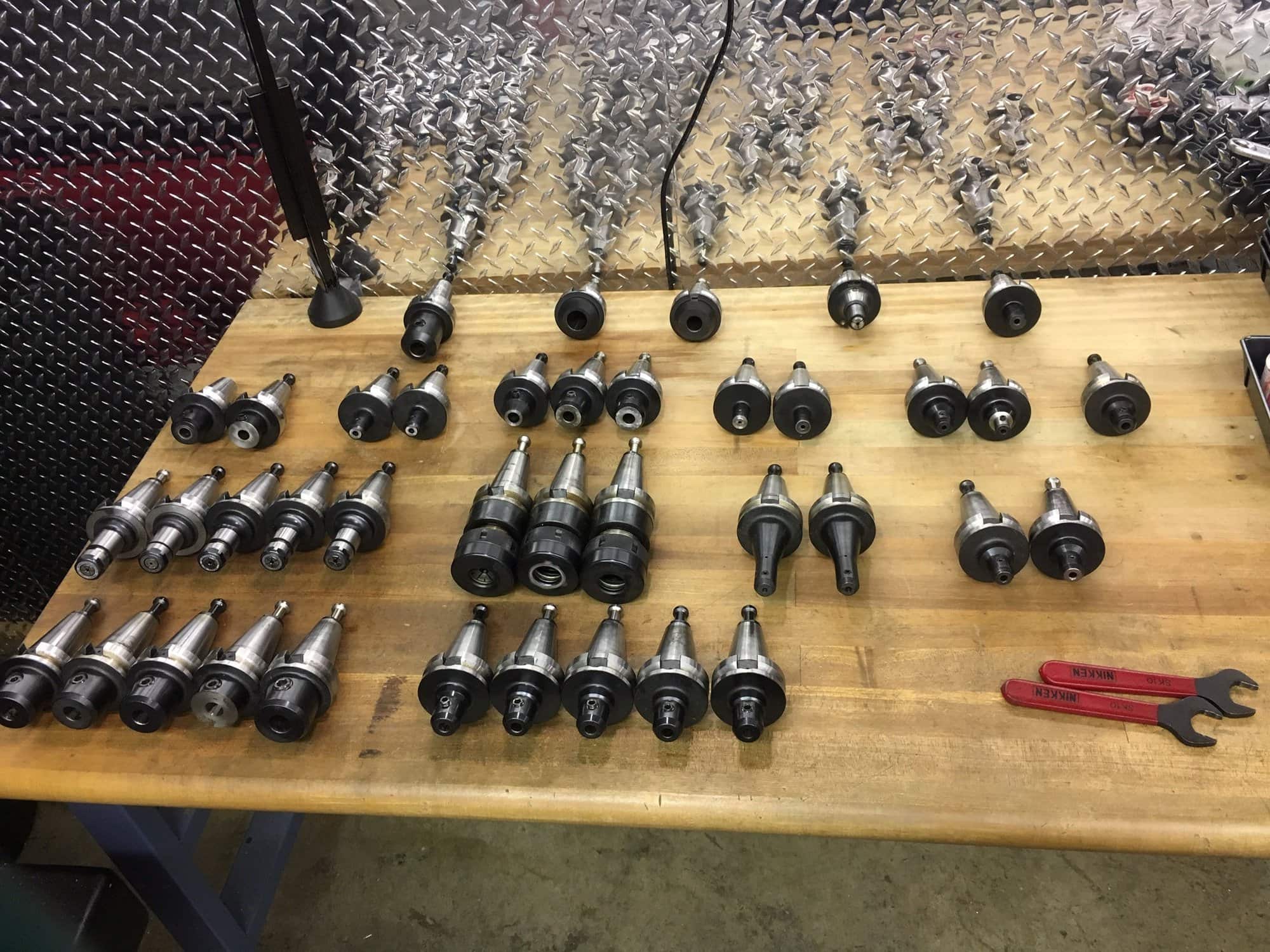

Tool Capacity – 16 ATC

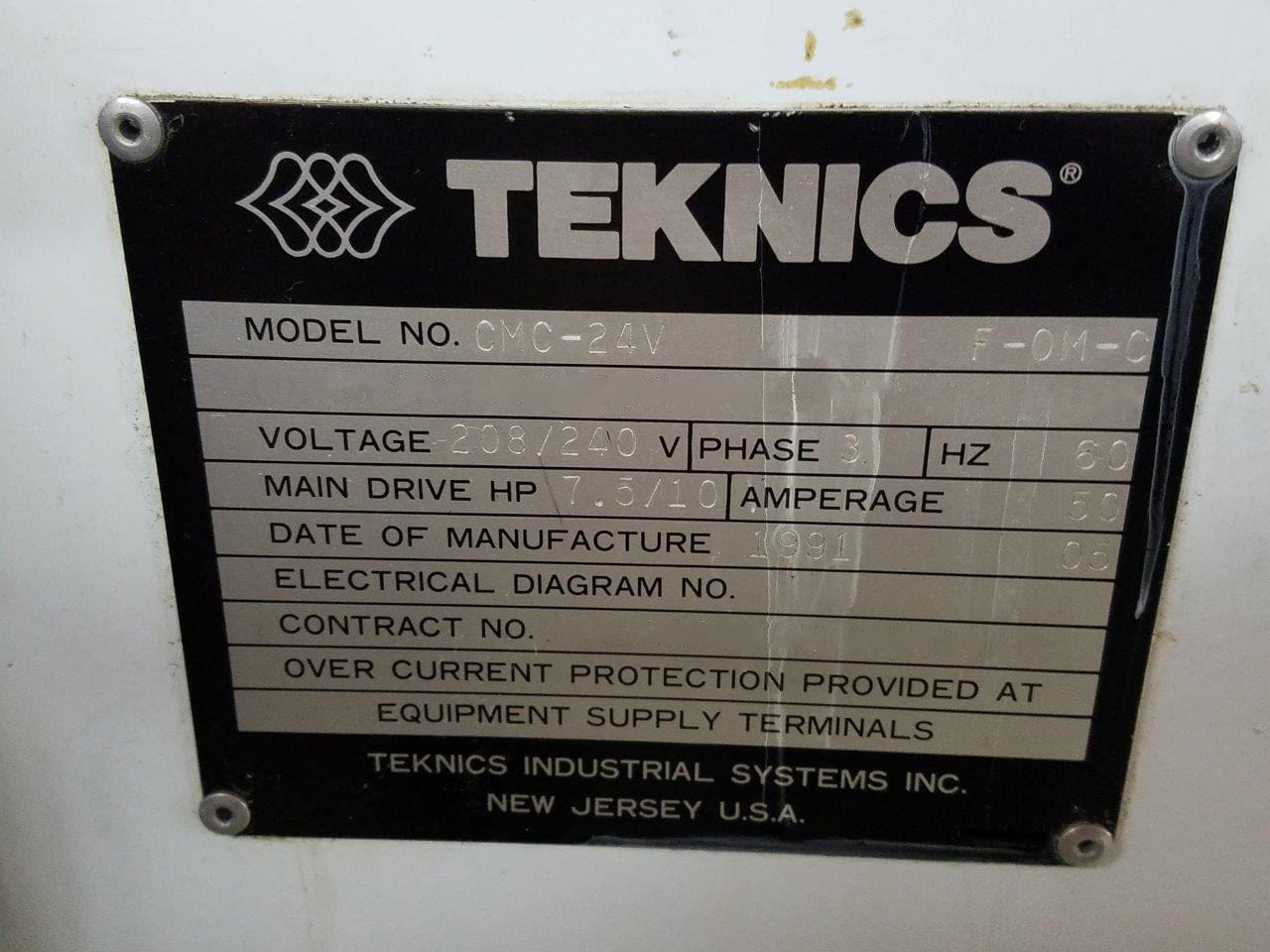

Power – 220 VAC / 3P /60 Cycle / 15 KVA
Dimensions – 7’6″ x 7′ x 97″
Weight – 14,000 lbs.
