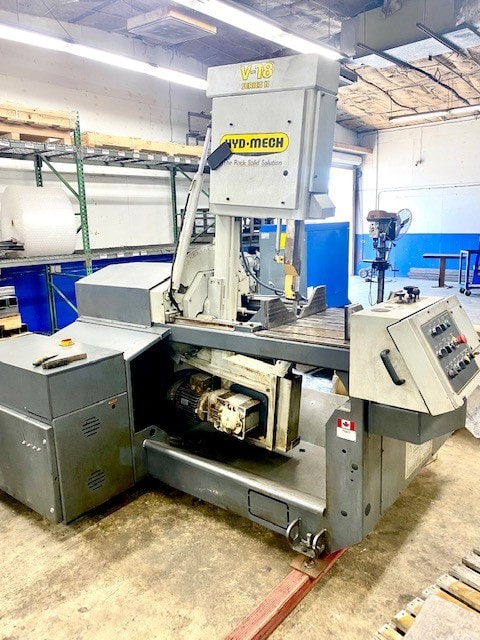

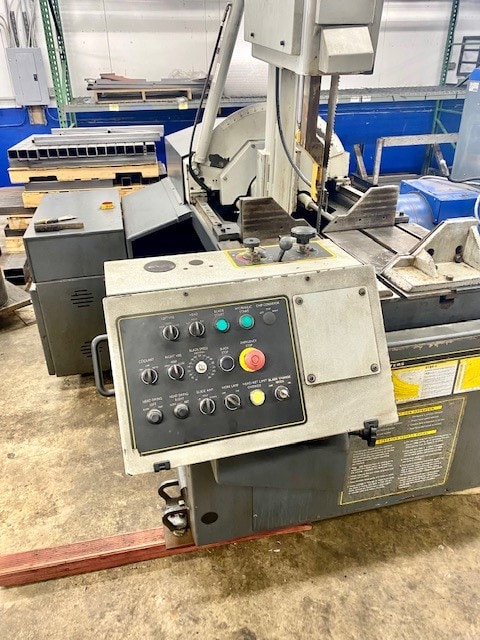

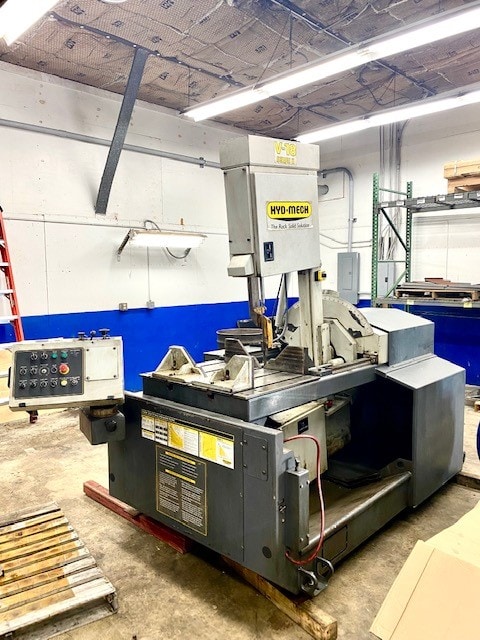

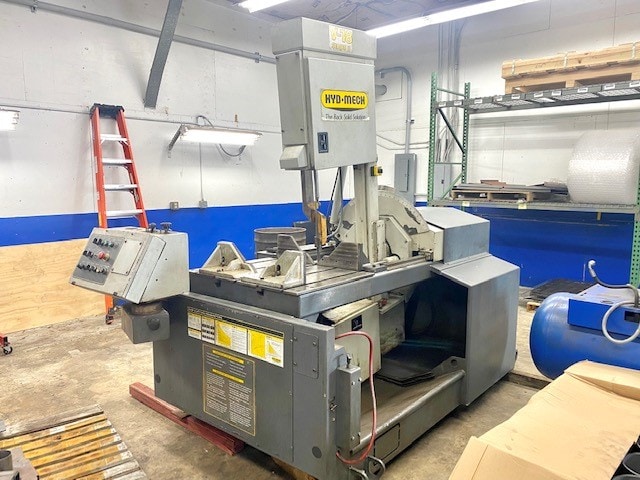

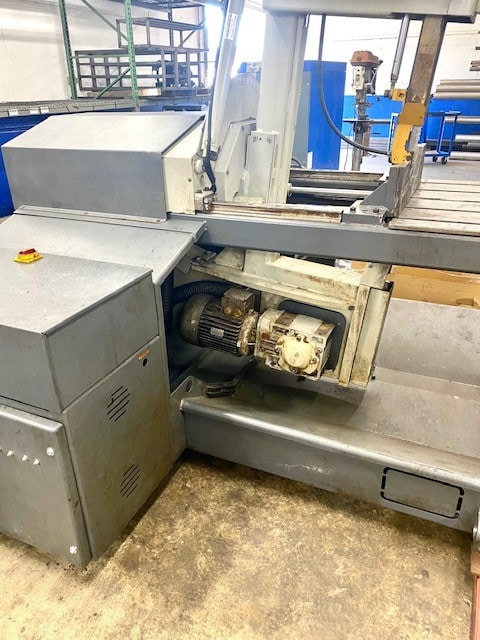

18″x31″ Hydmech V-18 Vertical Band Saw, 2006
$19,900.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Capacities:
at 90o rectangular 18”x 31”
at 90o round 18”
at 45o rectangular 18”x 13”
at 45o round 13”x 18”(330mm x 457mm) with ext. head option
Blade: 14″11′ – 16’11”
Length: 1.25″
Blade Tension: Hydraulic
Blade Speed: Variable 65 – 385 sf/min
Blade Guides: Carbide Inserts
Blade Wheel Dia. 19″
Motors:
Blade Drive: 7.5 HP
Hydraulic Pump Drive: 2 HP
Pumps:
Hydrualic: 6.5 Gal/min
Coolant: 3.5 Gal./min
Vises: Hydraulic Full Stroke
Head Swing: Hydraulically Positoned And Locked, Full 45o Left Or Right
Table Height: 38″
Feed System: Variable Pressure 0-300 PSI, Variable Rate 0-15 in/min
System Pressure: 650 PSI
Tank Capacity:
Hydraulic: 8 Gallons
Coolant: 30 Gallons
Guide Arm: Hydraulically Positioned And Locked
Machine Weight:: 4,500 lbs
Overall Dimensions: 97” High @ 90o x 120” Wide x 80” Long
