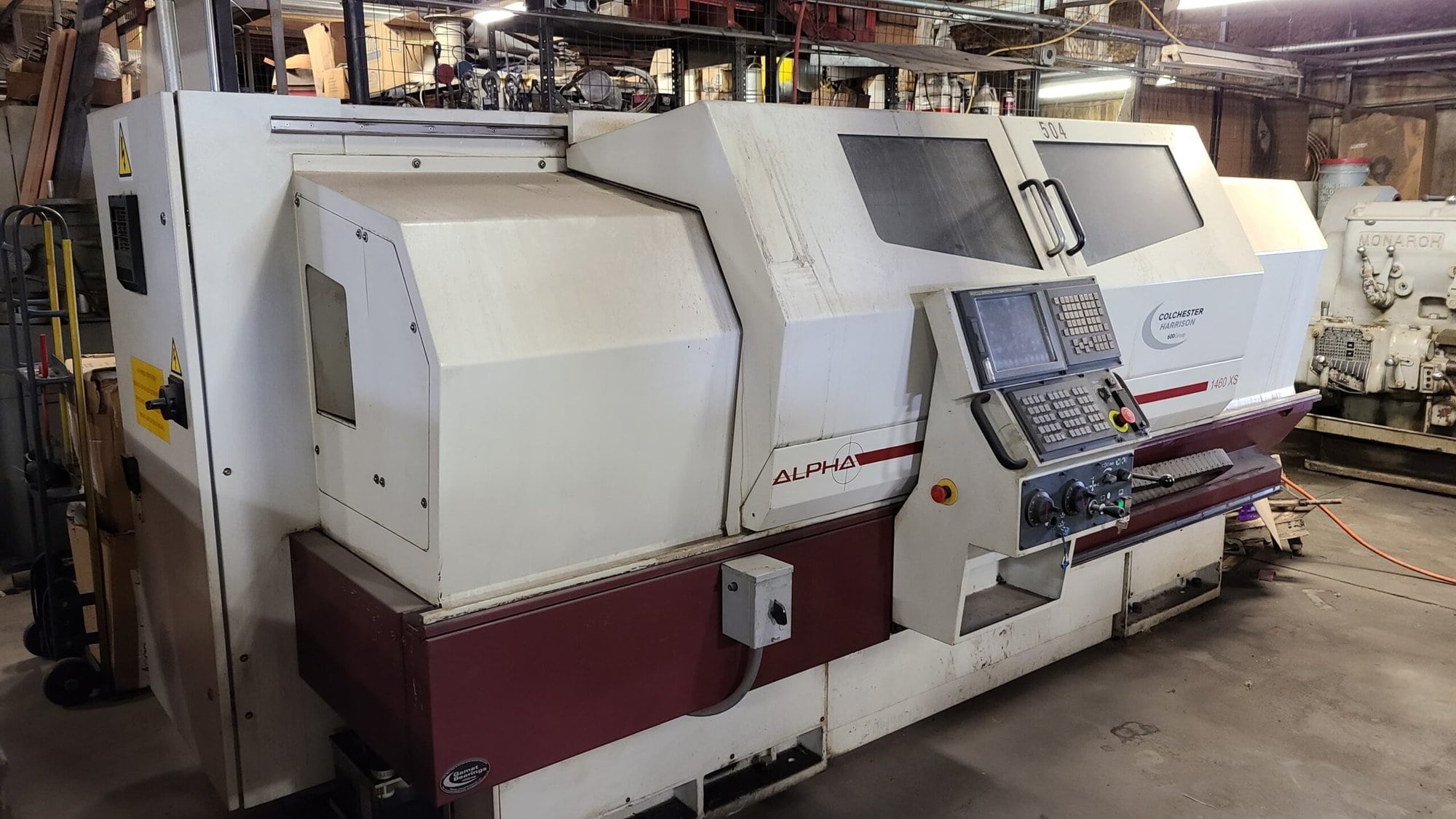

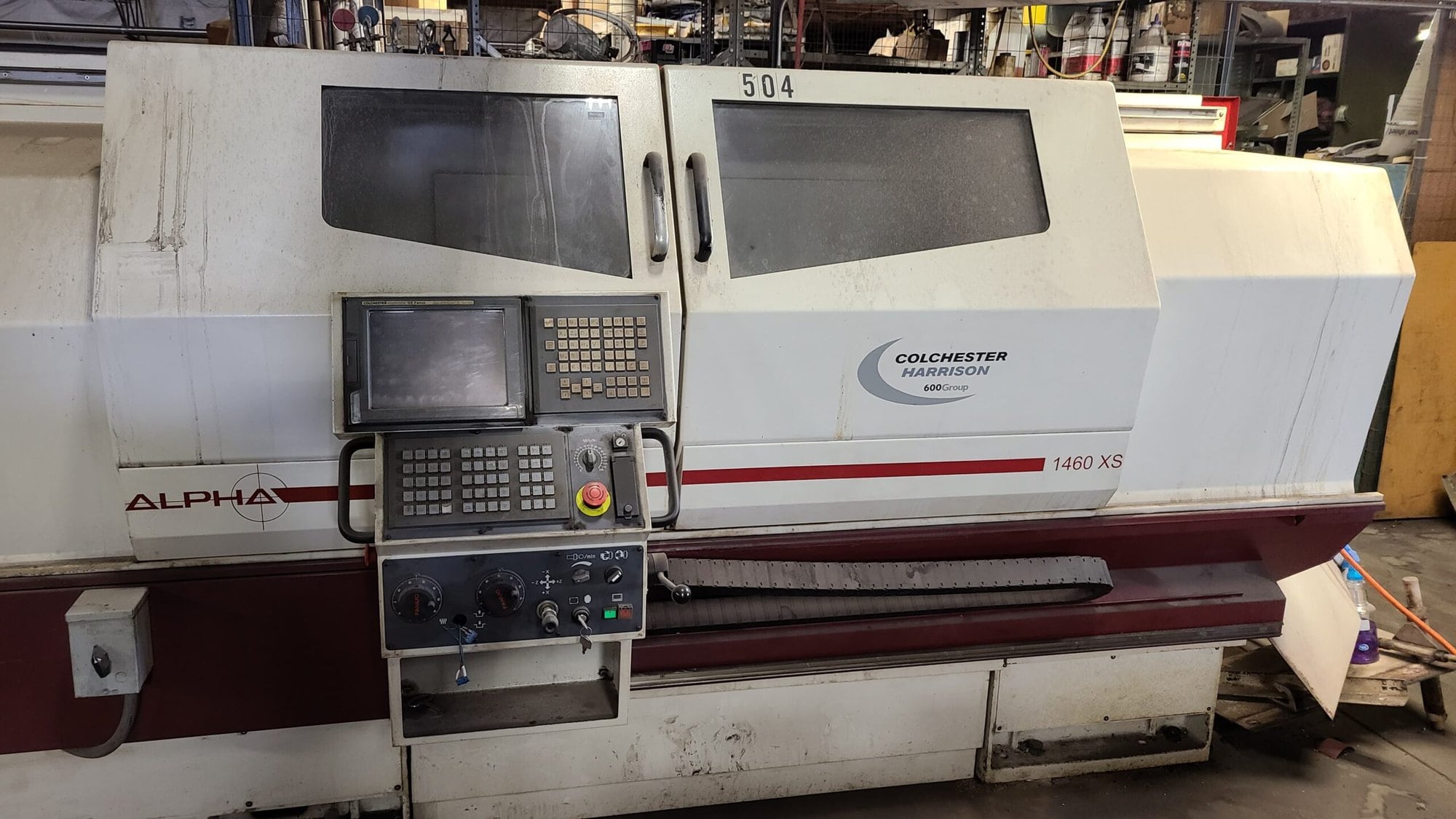

18” x 60” Colchester Harrison Alpha 1460 XS CNC Lathe, 2007, Tooling Included
$21,500.00
This specific product is no longer available, however we may have other similar or identical products in stock. Please utilize our search function at the top of the page to check and confirm, or fill out the form below:
Swing Over Bed: 18.375″
Swing in Gap: 28.75″
Gap Width from Faceplate: 8.5″
Swing Over Cross Slide: 10.875″
Distance Between Centers: 60″
Z Axis Travel: 61″
Spindle Bore: 3.062″
Spindle Nose: D1-8
Spindle Speeds: Up to 2,250 Rpm, 3 Ranges
Spindle Motor: 15 HP

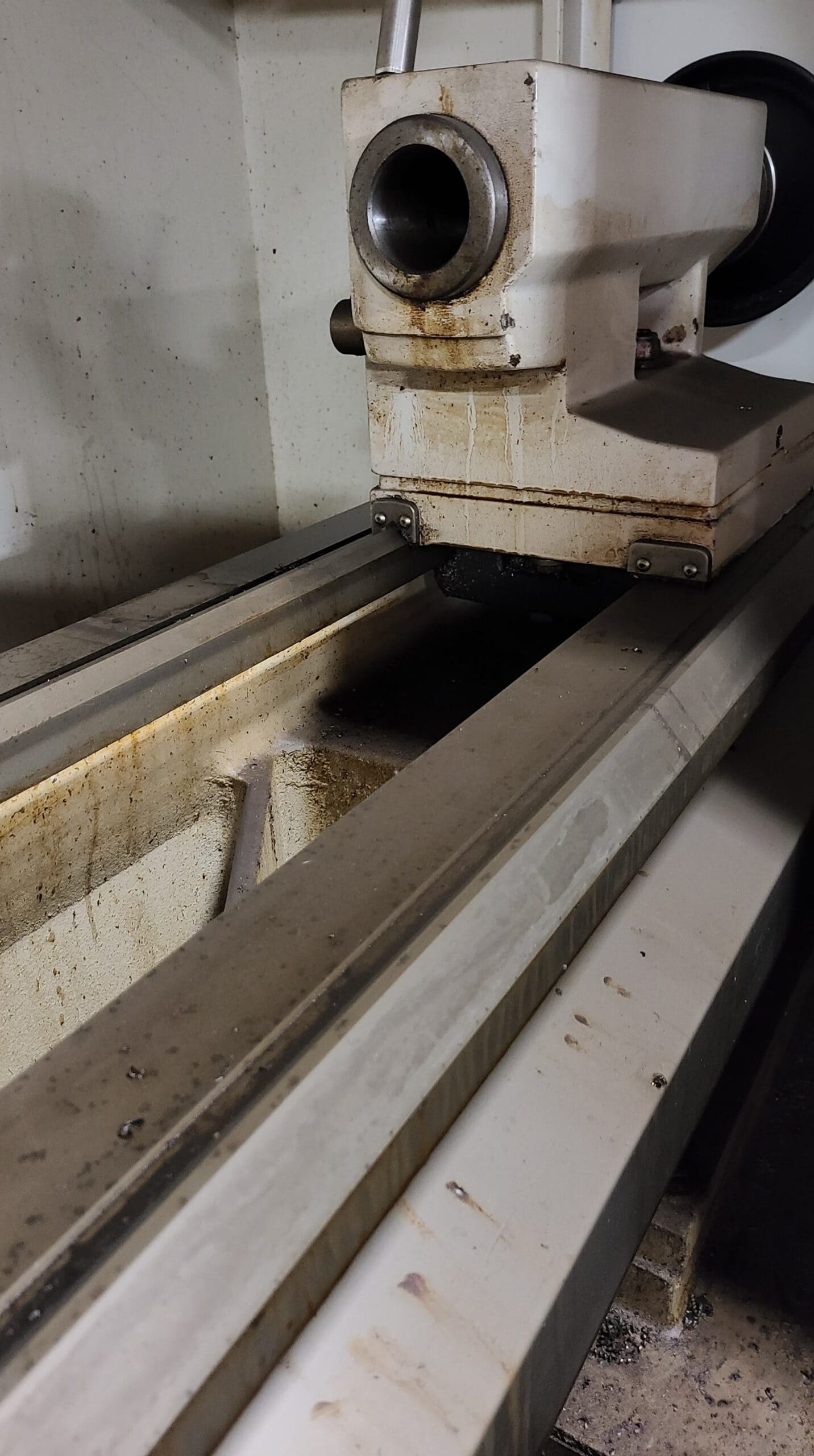

Tailstock Quill Diameter / Travel: 3.75″ / 5.875″
Machine Dimensions: 142″ x 78.75″ x 69″ H
Approx Weight: 7,054 lbs.
EQUIPPED WITH:

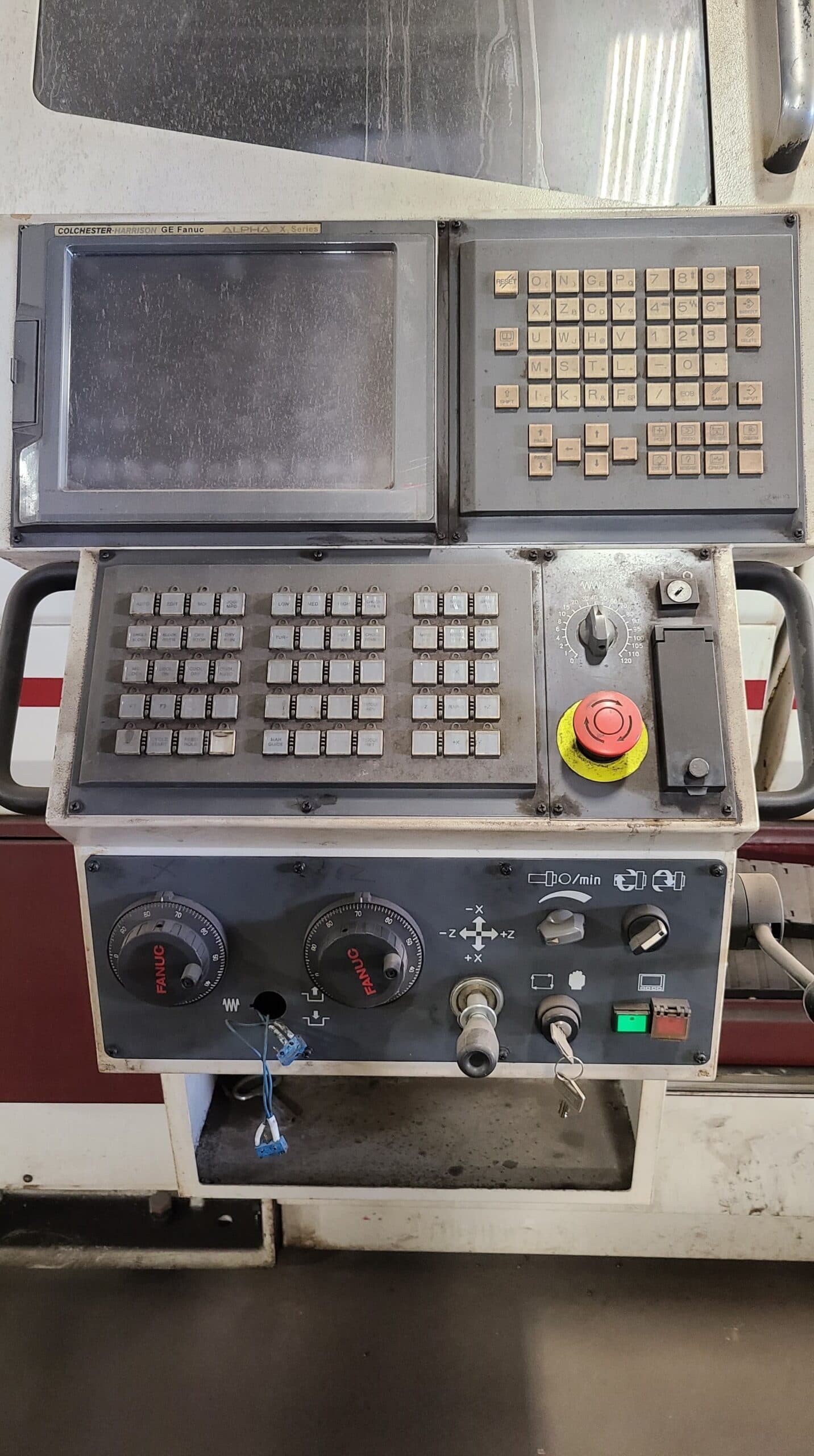

Fanuc Control
Coolant System

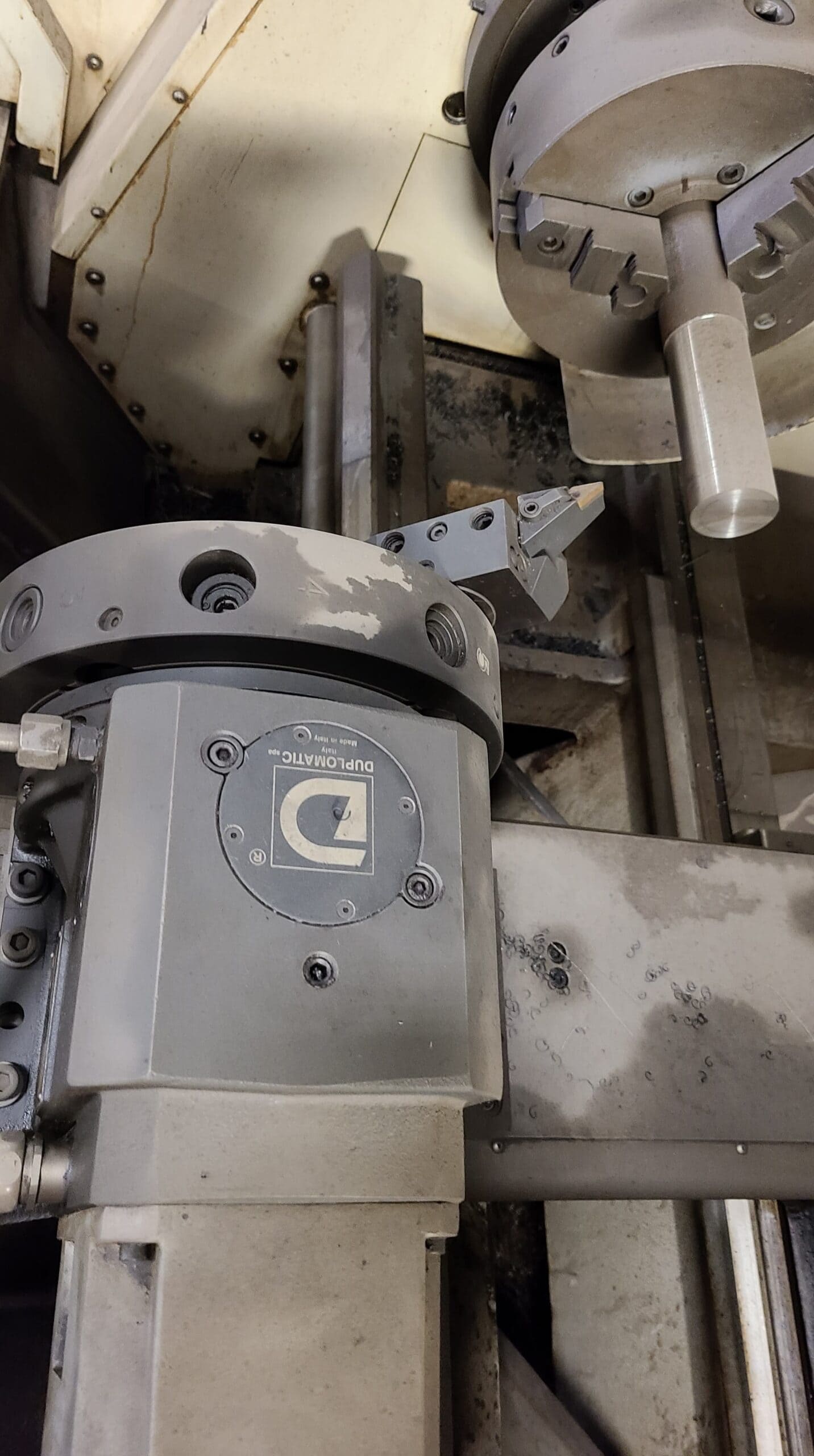

Programmable Turret
Misc Tooling
